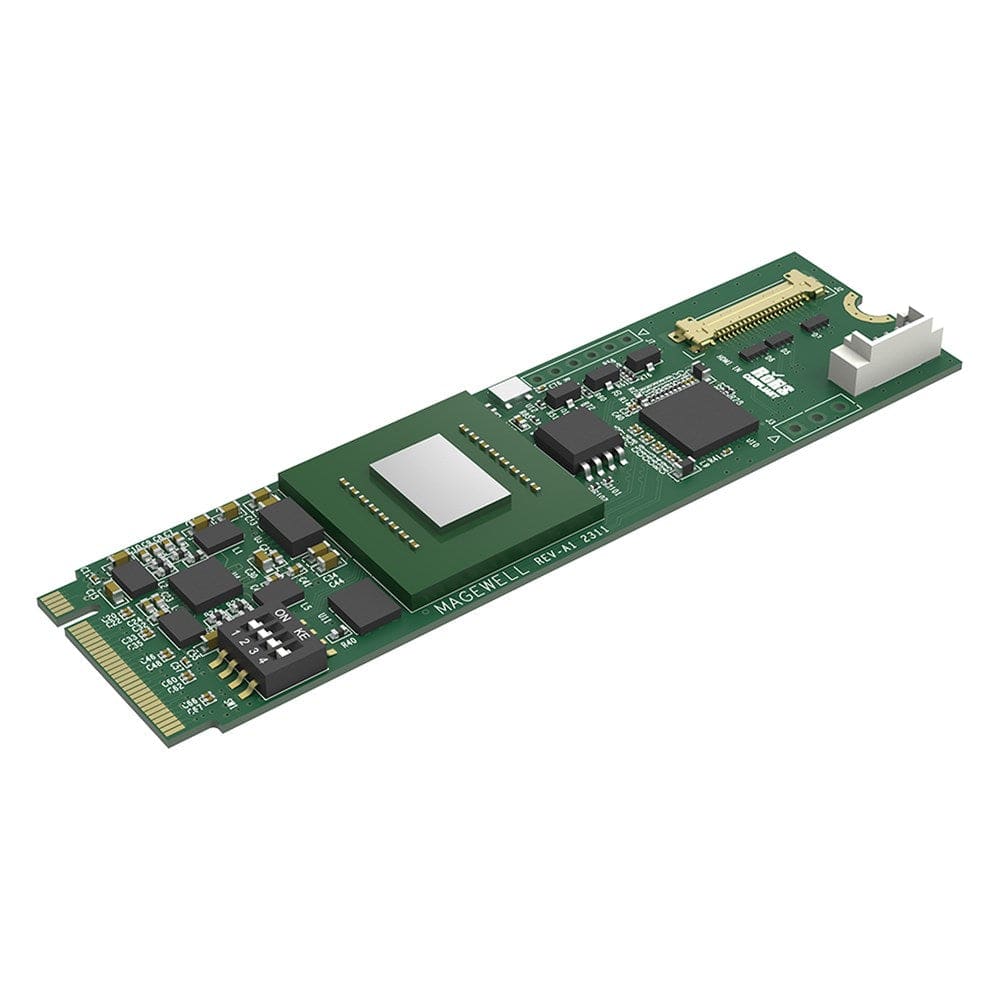

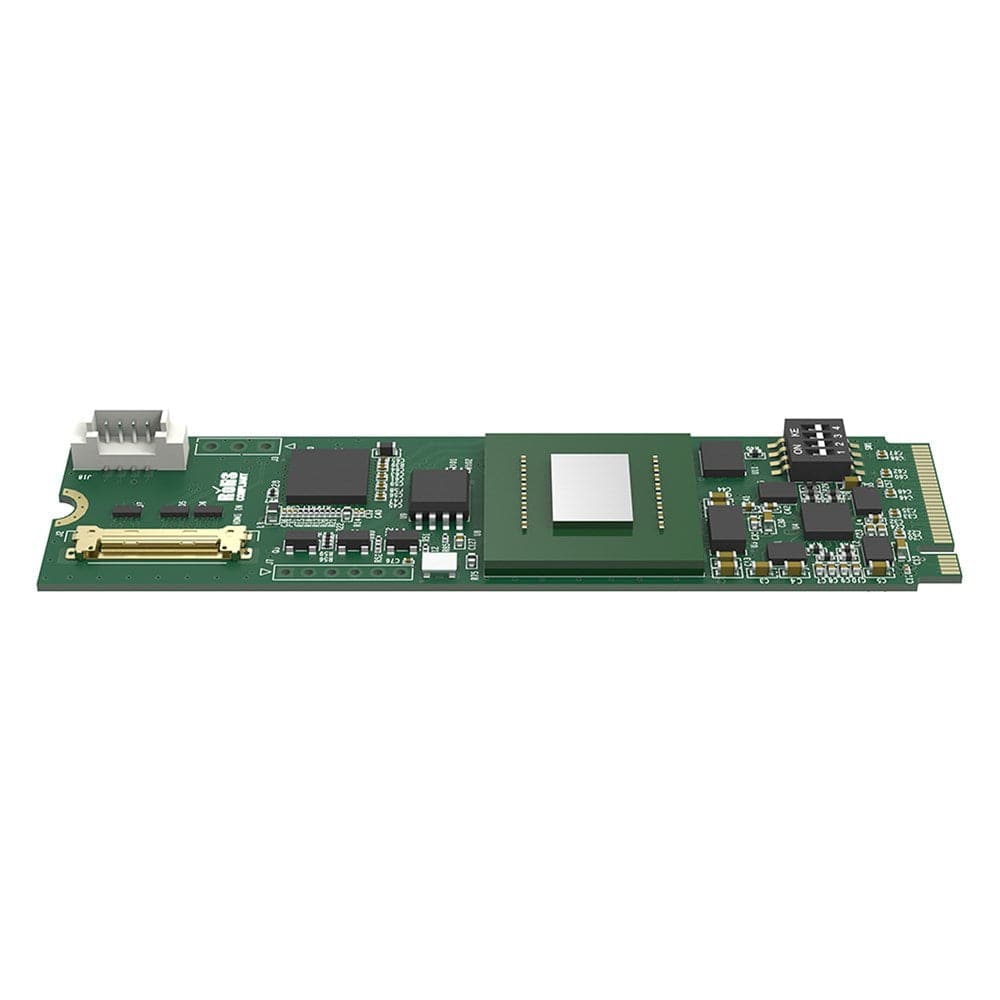

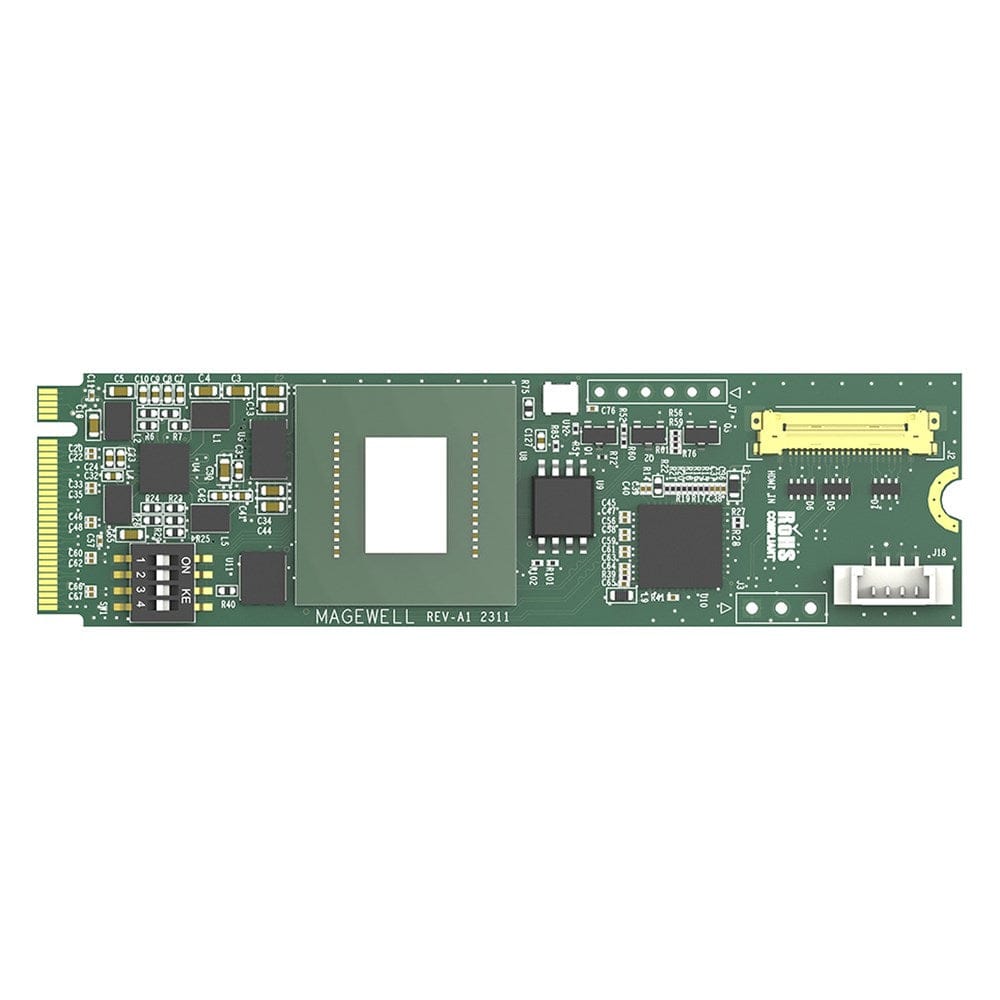

Single-Channel 4K HDMI Capture
The Magewell Eco Capture HDMI 4K Plus M.2 is a single-channel capture card for capturing HDMI video and audio in professional production and streaming workflows. This no-heat-sink variant uses an M.2 2280 Type M host interface with PCIe Gen3 x4 connectivity.
It supports HDMI 2.0 input up to 4096×2160 at 60fps, with video processing features for converting and scaling captured signals. The card is compatible with Windows and Linux systems and works with a range of DirectShow- and V4L2-compatible software.
4K HDMI Capture and Processing
The card captures HDMI signals up to 4096×2160 at 60fps and supports HDR10. It can also capture supported lower-resolution formats at higher frame rates, including 1920×1080p and 1280×720p at up to 120fps.
Video processing features include scaling, de-interlacing, colour format conversion and frame rate conversion. Custom output formats are also available through the Magewell Capture SDK.
Audio, Timing and Software Support
Embedded HDMI audio is supported at up to 8 channels, with 24-bit audio and a sample rate of up to 192kHz. Hardware clock timestamping supports audio and video synchronisation.
The card supports Windows DirectShow and audio APIs, as well as Linux V4L2 and ALSA. It is compatible with a range of capture, editing and streaming applications.
M.2 Installation
The Eco Capture HDMI 4K Plus M.2 is built in the M.2 2280 standard size and connects to a compatible host through PCIe Gen3 x4. The HDMI connection uses the card's LVDS 20-pin interface with an LVDS-to-HDMI adapter.
This is the no-heat-sink variant of the card. Magewell also lists a compatible LVDS 20-pin cable and LVDS-to-HDMI adapter for the Eco Capture HDMI 4K Plus M.2.
Technical details
Single-Channel 4K HDMI Capture
The Magewell Eco Capture HDMI 4K Plus M.2 is a single-channel capture card for capturing HDMI video and audio in professional production and streaming workflows. This no-heat-sink variant uses an M.2 2280 Type M host interface with PCIe Gen3 x4 connectivity.
It supports HDMI 2.0 input up to 4096×2160 at 60fps, with video processing features for converting and scaling captured signals. The card is compatible with Windows and Linux systems and works with a range of DirectShow- and V4L2-compatible software.
4K HDMI Capture and Processing
The card captures HDMI signals up to 4096×2160 at 60fps and supports HDR10. It can also capture supported lower-resolution formats at higher frame rates, including 1920×1080p and 1280×720p at up to 120fps.
Video processing features include scaling, de-interlacing, colour format conversion and frame rate conversion. Custom output formats are also available through the Magewell Capture SDK.
Audio, Timing and Software Support
Embedded HDMI audio is supported at up to 8 channels, with 24-bit audio and a sample rate of up to 192kHz. Hardware clock timestamping supports audio and video synchronisation.
The card supports Windows DirectShow and audio APIs, as well as Linux V4L2 and ALSA. It is compatible with a range of capture, editing and streaming applications.
M.2 Installation
The Eco Capture HDMI 4K Plus M.2 is built in the M.2 2280 standard size and connects to a compatible host through PCIe Gen3 x4. The HDMI connection uses the card's LVDS 20-pin interface with an LVDS-to-HDMI adapter.
This is the no-heat-sink variant of the card. Magewell also lists a compatible LVDS 20-pin cable and LVDS-to-HDMI adapter for the Eco Capture HDMI 4K Plus M.2.
- Single-channel HDMI capture.
- HDMI 2.0 input up to 4096×2160 at 60fps.
- Support for HDR10 input.
- Support for RGB/YUV 4:4:4 8-bit, YUV 4:2:2 12-bit and RGB/YUV 4:4:4 10/12-bit signals.
- Capture video at resolutions up to 4096×2160 and frame rates up to 240fps, subject to system and card limits.
- Support for up to 8-channel HDMI embedded audio.
- Video output formats include NV12, I420, YUYV, UYVY, RGB24 and RGB32.
- Support for custom EDID, video scaling, de-interlacing and colour format and frame rate conversion.
- Hardware timestamping and audio/video synchronisation.
- M.2 2280 Type M host interface with PCIe Gen3 x4 connectivity.
- Compatible with Windows 10/11 and Windows Server 2016 or later, and Linux on x86, x64 and ARM architectures.
- Compatible with software including OBS, VLC, vMix, Wirecast and VirtualDub.
| Specification | Detail |
|---|---|
| Product type | Single-channel HDMI capture card |
| Variant | M.2, no heat sink |
| Maximum input video | 4096×2160 at 60fps |
| HDMI input | HDMI 2.0 via LVDS 0.5PH 20-pin interface and adapter |
| Maximum input audio | 8-channel, 24-bit HDMI embedded audio, up to 192kHz |
| HDR support | HDR10 |
| Maximum capture frame rate | Up to 240fps, subject to PCIe bandwidth and internal working frequency |
| Video output formats | NV12, I420, YUYV, UYVY, RGB24 and RGB32 |
| Host interface | M.2 2280 Type M, PCIe Gen3 x4 |
| Form factor | M.2 2280 standard size (22mm × 80mm) |
| Operating systems | Windows 10/11 and Windows Server 2016 or later; Linux on x86, x64 and ARM |
| Power consumption | Maximum current at 3.3V: approximately 2A; maximum power: approximately 6.6W |
| Operating temperature | 0 to 40°C |
Compatibility
- M.2 2280 Type M host interface with PCIe Gen3 x4 connectivity.
- Compatible with Windows 10/11 and Windows Server 2016 or later, and Linux on x86, x64 and ARM architectures.
- Compatible with software including OBS, VLC, vMix, Wirecast and VirtualDub.
