Lumens Multi-Channel AV Media Processor, Streaming and Recording System with 2TB HDD

$9,139.00
$9,139.00

Back orders Delivered in 4 weeks

Not available for local pickup. On backorder

SKU: LC200-2TB
Availability: Custom order

Want to become a AV Hardware Reseller or find one near you? Contact us or call
09-979-5479.

Overview

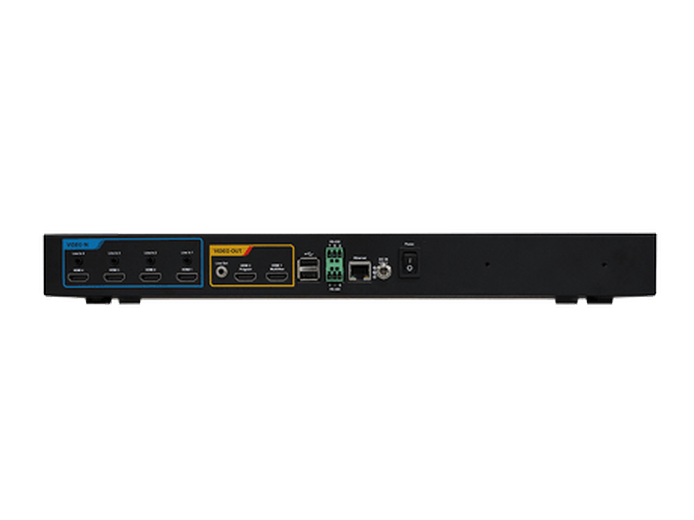

The Lumens LC200 CaptureVision System with 2TB HDD is an all-in-one 4-channel HD switcher, recorder, and live streaming media processor with an upgraded 2TB internal hard drive for extended local recording capacity. It accepts up to four HDMI inputs plus IP camera sources, allowing operators to mix, switch, and stream multiple video feeds simultaneously in a variety of layouts. Recordings are stored on the internal 2TB HDD and can be automatically uploaded to platforms such as Panopto, Kaltura, and Opencast, while live streams are delivered to YouTube, Facebook, Twitch, and other CDNs. The unit integrates with Crestron control systems and supports full automation via calendar scheduling.

Key features
  • 4-channel HD video switcher, recorder, and live streaming processor in one rack-unit device
  • Upgraded 2TB internal HDD for extended local recording capacity
  • Accepts up to 4 HDMI inputs plus Lumens IP cameras and RTSP sources
  • Records all 4 independent inputs plus program output simultaneously (up to 1080p 60fps)
  • Streams live to YouTube, Facebook, Twitch, Livestream, and custom CDNs via RTMP, RTMPS, MPEG-TS, TCP, UDP
  • Integrates with Panopto, Kaltura, Opencast, Wowza for automated upload and scheduling
  • Supports Crestron control and optional LC-RC01 remote control panel
  • Layouts: single, PIP, side-by-side, 3-window, 4-window, saveable as templates
  • USB 3.0 external storage + NAS/FTP/SFTP backup
  • Standard 1U rack dimensions
  • 5-year warranty

Warranty

5-year warranty

Lumens Multi-Channel AV Media Processor, Streaming and Recording System with 2TB HDD (LC200-2TB)
$9,139.00
$9,139.00

Technical details

  • Capture Vision Station
  • 1080p 60/30fps recording
  • 4 HDMI Inputs and IP video sources including Lumens IP Cameras, NDI|HX Camera, and standard RTSP streams
  • Supports HDMI-embedded audio or analog stereo audio with 4 channels Audio Input mixing and gain control
  • Advanced Scenes Switch
  • Flexible scaling and window processing, supports PIP, PBP and up to 4 windows layout and mixing
  • Built-in 2TB (LUM-VSLC200-2TB) HDD storage
  • Supports Katura, Panopto, OpenCast, YouTube, Twitter, Livestream, Wowza and more
  • 4-channel HD video switcher, recorder, and live streaming processor in one rack-unit device
  • Upgraded 2TB internal HDD for extended local recording capacity
  • Accepts up to 4 HDMI inputs plus Lumens IP cameras and RTSP sources
  • Records all 4 independent inputs plus program output simultaneously (up to 1080p 60fps)
  • Streams live to YouTube, Facebook, Twitch, Livestream, and custom CDNs via RTMP, RTMPS, MPEG-TS, TCP, UDP
  • Integrates with Panopto, Kaltura, Opencast, Wowza for automated upload and scheduling
  • Supports Crestron control and optional LC-RC01 remote control panel
  • Layouts: single, PIP, side-by-side, 3-window, 4-window, saveable as templates
  • USB 3.0 external storage + NAS/FTP/SFTP backup
  • Standard 1U rack dimensions
  • 5-year warranty
SpecificationDetail
Video inputs4x HDMI (480i-1080p 60fps) + IP cameras (RTSP H.264)
Video outputs3x Ethernet (H.264), 2x HDMI
Output resolution1080p @ 30/60fps
Video compressionH.264/AVC 4:2:0
Bitrate200 kbps, 10 Mbps
Internal storage2TB HDD
External storageUSB 3.0
Audio inputs4x Line In (3.5mm), 4x HDMI embedded, IP audio
Streaming protocolsRTMP, RTMPS, MPEG-TS, TCP, UDP, RTSP
ControlRS-232, RS-485, Ethernet
Dimensions431 x 122.5 x 44.3mm (1U rack)
Weight1.2kg
Power24W (12V DC)
Warranty5 years
Detail
2TB internal storage

Compatibility

  • 4x HDMI sources
  • Lumens IP PTZ and Box cameras
  • RTSP H.264 sources (1080p 60/30fps)
  • Crestron control systems
  • Panopto, Kaltura, Opencast, Wowza
  • YouTube, Facebook, Twitch, Livestream

Frequently Asked Questions

How is this different from the standard LC200?

It is the same LC200 CaptureVision System but with an upgraded 2TB internal HDD for more local recording capacity.

What inputs does it accept?

It accepts 4 HDMI inputs plus IP sources, including Lumens IP cameras, NDI|HX cameras and standard RTSP streams.

Can it record multiple sources at once?

Yes. It records all 4 independent inputs plus the program output at up to 1080p 60fps.

What layouts does it support?

It supports picture-in-picture, picture-by-picture and up to 4-window layouts.

Which platforms does it integrate with?

It works with Panopto, Kaltura, Opencast and Wowza, and streams to YouTube, Facebook, Twitch and Livestream.

What warranty is included?

It includes a 5-year warranty.
