By Lumens

Lumens Multi-Channel AV Media Processor, Streaming and Recording System

$8,155.00
$8,155.00

Back orders Delivered in 4 weeks

Not available for local pickup. On backorder

SKU: LC200
Availability: Custom order

Want to become a AV Hardware Reseller or find one near you? Contact us or call
09-979-5479.

Overview

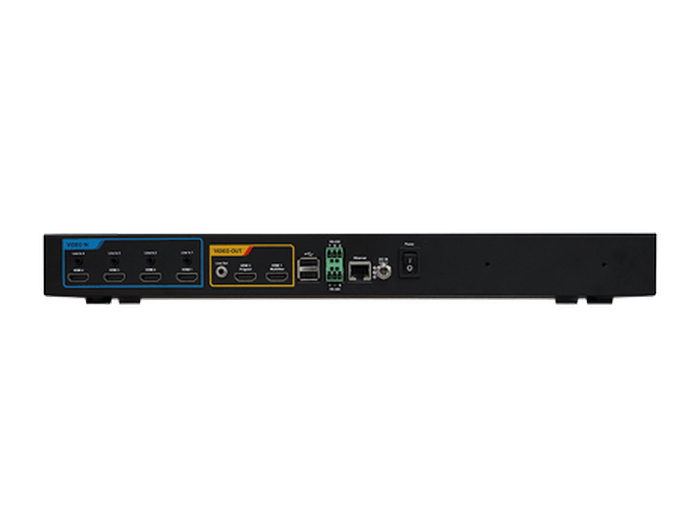

The Lumens LC200 CaptureVision System is an all-in-one 4-channel HD switcher, recorder, and live streaming media processor designed for lecture capture, event production, and corporate AV workflows. It accepts up to four HDMI inputs plus IP camera sources, allowing operators to mix, switch, and stream multiple video feeds simultaneously in a variety of layouts including picture-in-picture, side-by-side, and quad. Recordings are stored on the internal 1TB HDD and can be automatically uploaded to platforms such as Panopto, Kaltura, and Opencast, while live streams are delivered to YouTube, Facebook, Twitch, and other CDNs. The unit integrates with Crestron control systems and supports full automation via calendar scheduling.

Key features
  • 4-channel HD video switcher, recorder, and live streaming processor in one rack-unit device
  • Accepts up to 4 HDMI inputs plus Lumens IP cameras and RTSP sources
  • Records all 4 independent inputs plus program output simultaneously (up to 1080p 60fps)
  • Streams live to YouTube, Facebook, Twitch, Livestream, and custom CDNs via RTMP, RTMPS, MPEG-TS, TCP, UDP
  • Integrates with Panopto, Kaltura, Opencast, Wowza for automated upload and scheduling
  • Supports Crestron control and optional LC-RC01 remote control panel
  • Layouts: single, PIP, side-by-side, 3-window, 4-window, saveable as templates
  • Internal 1TB HDD + USB 3.0 external storage + NAS/FTP/SFTP backup
  • Standard 1U rack dimensions
  • 5-year warranty

Warranty

5-year warranty

Certifications
  • FCC Part 15, Class A, Supplier's Declaration of Conformity (47 CFR § 2.1077) (USA)
  • ICES-003 Class A, Industry Canada (Canada)
  • CE marked, EN 55032 Electromagnetic compatibility
  • KC registered, Industrial (Class A) electromagnetic wave suitability (South Korea)
Lumens Media Processor Lumens Multi-Channel AV Media Processor, Streaming and Recording System
$8,155.00
$8,155.00

Technical details

The LC200 supports Full HD 1080p video and audio recording with gorgeous high-definition images and crystal clear audio, which is excellent for lecture capture, conference recording and event streaming.

  • 4-input video processor (with HDMI and IP)
  • Source scaling switching and vision mixing
  • Supports RTMP, RTMPS, MPEG-TS, TCP and UDP streaming protocols
  • Full Panopto integration and Crestron control
  • On-board disk storage with network storage support
  • Supports 1080p 60/30fps recording
  • 4-channel HD video switcher, recorder, and live streaming processor in one rack-unit device
  • Accepts up to 4 HDMI inputs plus Lumens IP cameras and RTSP sources
  • Records all 4 independent inputs plus program output simultaneously (up to 1080p 60fps)
  • Streams live to YouTube, Facebook, Twitch, Livestream, and custom CDNs via RTMP, RTMPS, MPEG-TS, TCP, UDP
  • Integrates with Panopto, Kaltura, Opencast, Wowza for automated upload and scheduling
  • Supports Crestron control and optional LC-RC01 remote control panel
  • Layouts: single, PIP, side-by-side, 3-window, 4-window, saveable as templates
  • Internal 1TB HDD + USB 3.0 external storage + NAS/FTP/SFTP backup
  • Standard 1U rack dimensions
  • 5-year warranty
SpecificationDetail
Video inputs4x HDMI (480i-1080p 60fps) + IP cameras (RTSP H.264)
Video outputs3x Ethernet (H.264), 2x HDMI
Output resolution1080p @ 30/60fps
Video compressionH.264/AVC 4:2:0
Bitrate200 kbps, 10 Mbps
Internal storage1TB HDD
External storageUSB 3.0
Audio inputs4x Line In (3.5mm), 4x HDMI embedded, IP audio
Streaming protocolsRTMP, RTMPS, MPEG-TS, TCP, UDP, RTSP
ControlRS-232, RS-485, Ethernet
Dimensions431 x 122.5 x 44.3mm (1U rack)
Weight1.2kg
Power24W (12V DC)
Warranty5 years
Option
1TB internal storage
2TB internal storage (LC200-2TB)

Compatibility

  • 4x HDMI sources
  • Lumens IP PTZ and Box cameras
  • RTSP H.264 sources (1080p 60/30fps)
  • Crestron control systems
  • Panopto, Kaltura, Opencast, Wowza
  • YouTube, Facebook, Twitch, Livestream
