By Magewell

Magewell Pro Convert HDMI TX

$1,005.00
$1,005.00
SKU: MG-64050
Availability: Custom order

Fast Backorder – Get It Within 14 Days

Not available for local pickup. On backorder

Overview

The Magewell Pro Convert HDMI TX is a compact NDI encoder that converts an HDMI input signal into a Full NDI stream for distribution across standard IP networks. It supports PoE for single-cable installation, PTZ camera control via VISCA and Pelco protocols over NDI, and integrates with Q-SYS and Crestron control systems for professional AV environments.

Key features
  • Converts HDMI input to Full NDI stream for IP-based video distribution
  • PoE (IEEE 802.3af) powered via Ethernet, single-cable installation
  • PTZ camera control via VISCA, VISCA UDP, Pelco-P, and Pelco-D over NDI
  • Remote configuration via web browser UI and Magewell Control Hub
  • Integrates with Q-SYS and Crestron control systems via official plugins
  • Max HDMI input: 2048×1200 60fps 4:4:4/4:2:2

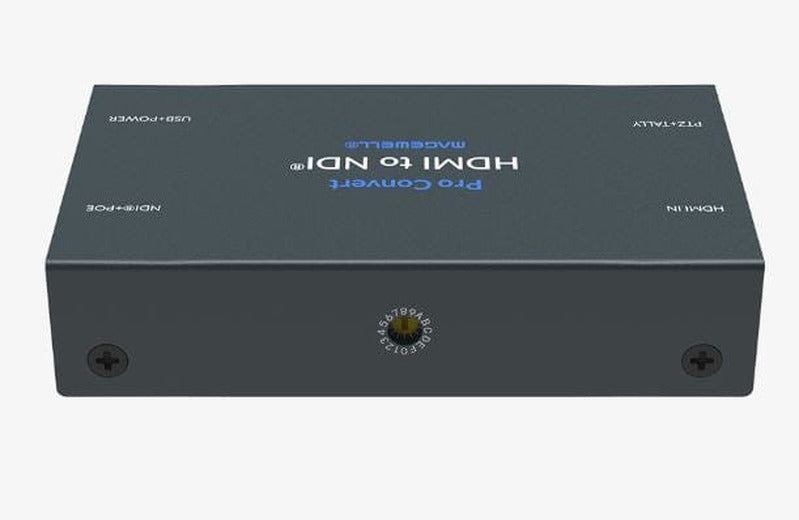

  • 16-position rotary DIP switch for multi-device network deployments
  • USB 2.0 Type B for computer-connected power and USB RNDIS/ECM support

Warranty

2-year warranty

Product specs Download
Assembly guide Download

Converts an HD HDMI input signal into Full NDI®.

Supports up to 2048x1200 60fps input signals.

Connects existing source equipment into NDI-enabled, IP-based media networks.

Plug-and-play ease of use with automatic input format detection and DHCP network configuration.
Magewell Media Processor Magewell Pro Convert HDMI TX
$1,005.00
$1,005.00

Technical details

Converts an HD HDMI input signal into Full NDI®.

Supports up to 2048x1200 60fps input signals.

Connects existing source equipment into NDI-enabled, IP-based media networks.

Plug-and-play ease of use with automatic input format detection and DHCP network configuration.

  • Converts HDMI input to Full NDI stream for IP-based video distribution
  • PoE (IEEE 802.3af) powered via Ethernet, single-cable installation
  • PTZ camera control via VISCA, VISCA UDP, Pelco-P, and Pelco-D over NDI
  • Remote configuration via web browser UI and Magewell Control Hub
  • Integrates with Q-SYS and Crestron control systems via official plugins
  • Max HDMI input: 2048×1200 60fps 4:4:4/4:2:2
  • 16-position rotary DIP switch for multi-device network deployments
  • USB 2.0 Type B for computer-connected power and USB RNDIS/ECM support
SpecificationDetail
Part Number64050
Video Input1 × HDMI 1.4 / DVI-D
Max Input Resolution2048×1200 at 60fps 4:4:4
NDI OutputFull NDI (NDI 6.2); up to 2048×1200 60fps 4:2:2 8-bit
Audio8-channel HDMI-embedded audio; 2-channel NDI-embedded output
Network10/100/1000Mbps Ethernet; IEEE 802.3af PoE
USBUSB 2.0 Type B (power + RNDIS/ECM)
Max Power~6W (1.5A at 5V)
Dimensions100.9 × 60.2 × 23.3mm
Operating Temp0-40°C

Compatibility

  • HDMI video sources including cameras, computers, and presentation systems. Compatible with NDI-enabled software and hardware including NDI Studio Monitor, OBS, and vMix. Integrates with Q-SYS and Crestron control systems.
