HDMI Capture for Professional Video Workflows

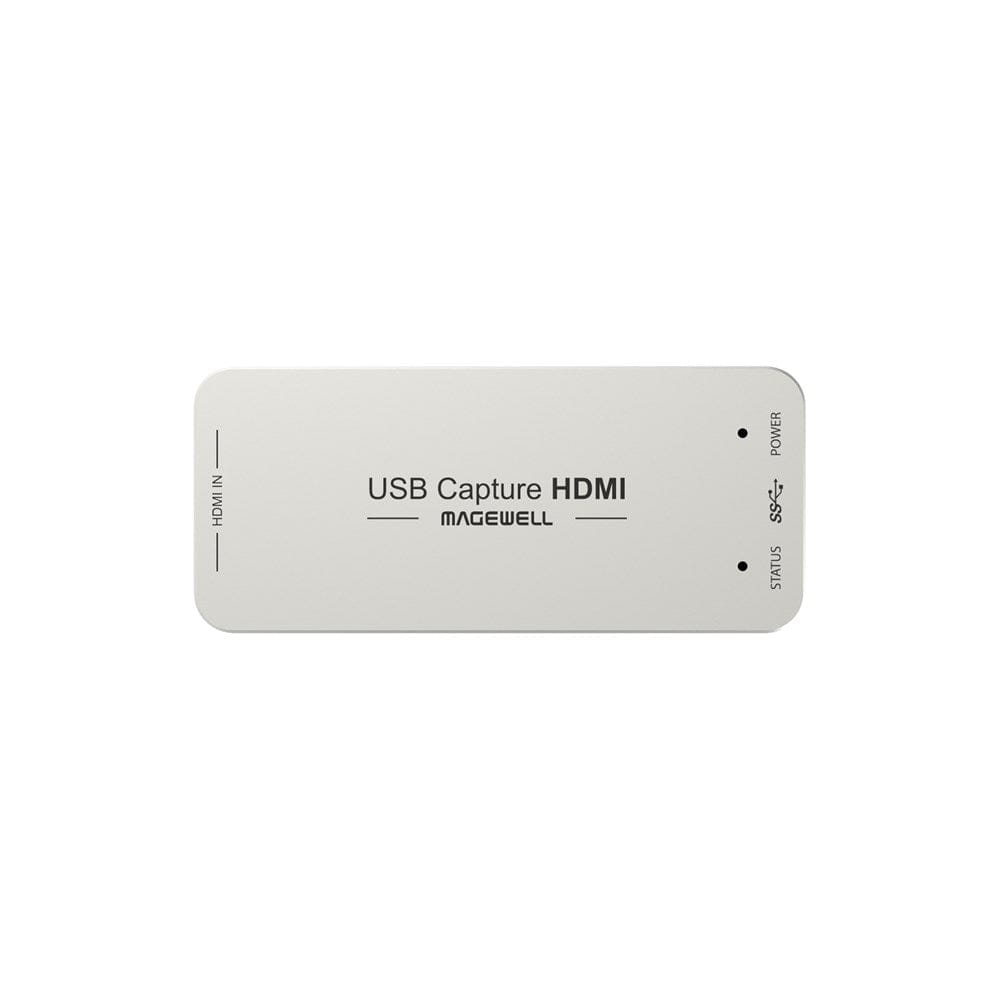

The Magewell USB Capture HDMI Gen 2 is a one-channel HDMI capture device for bringing video and embedded audio into a computer over USB. It supports a wide range of capture resolutions and frame rates, making it suitable for streaming, recording, conferencing and other video applications.
With USB 3.0 connectivity and compatibility with USB 2.0, the device works with Windows, Linux, macOS and Chrome OS. It supports common capture and streaming software, including OBS Studio, VLC, Zoom Rooms and Microsoft Teams.
Features include:
One-channel HDMI capture.
HDMI 1.4a input with a maximum input resolution of 2048 Γ 1080 at 60fps in 4:4:4.
Capture resolutions up to 2048 Γ 2160, with frame rates up to 120fps.
Support for RGB and YUV 4:4:4 input at 8-, 10- or 12-bit, and YUY 4:2:2 input at 12-bit.
Up to 8-channel, 24-bit HDMI-embedded audio input at 192kHz.
Up to 2-channel IEC60958 audio streams.
USB 3.0 output, compatible with USB 2.0 and USB 3.1 Gen 1.
Video processing includes cropping, scaling, de-interlacing and frame rate conversion.
Support for video flip, mirror, aspect ratio conversion and colour format conversion.
USB Capture Utility for configuring capture parameters, firmware upgrades and troubleshooting information.
Compatible with Windows, Linux, macOS and Chrome OS.
Works with software including OBS Studio, XSplit, QuickTime Player, VLC and GStreamer.
LED indicator shows the input signal and device status.
Flexible HDMI Capture
USB Capture HDMI Gen 2 accepts HDMI video and embedded audio, then presents the captured signal to compatible computer applications through USB. Its supported formats include RGB24, RGB32, YUY2 and UYVY.
Capture modes include common 1080p and 720p frame rates, as well as supported high-frame-rate 720p modes up to 120fps. Actual capture frame rates can be limited by USB bandwidth and the device's internal working frequency.
Broad Software and Operating System Support
The device works with DirectShow, V4L2 and AVCaptureSession-based applications, with audio support through the relevant Windows, Linux and macOS interfaces. Compatible software includes conferencing, playback, recording and streaming applications.
The included USB Capture Utility can check and configure capture parameters, upgrade device firmware and export information for troubleshooting. The MWCapture SDK also provides functions for signal status, capture configuration and real-time audio and video capture.
Compact USB Design

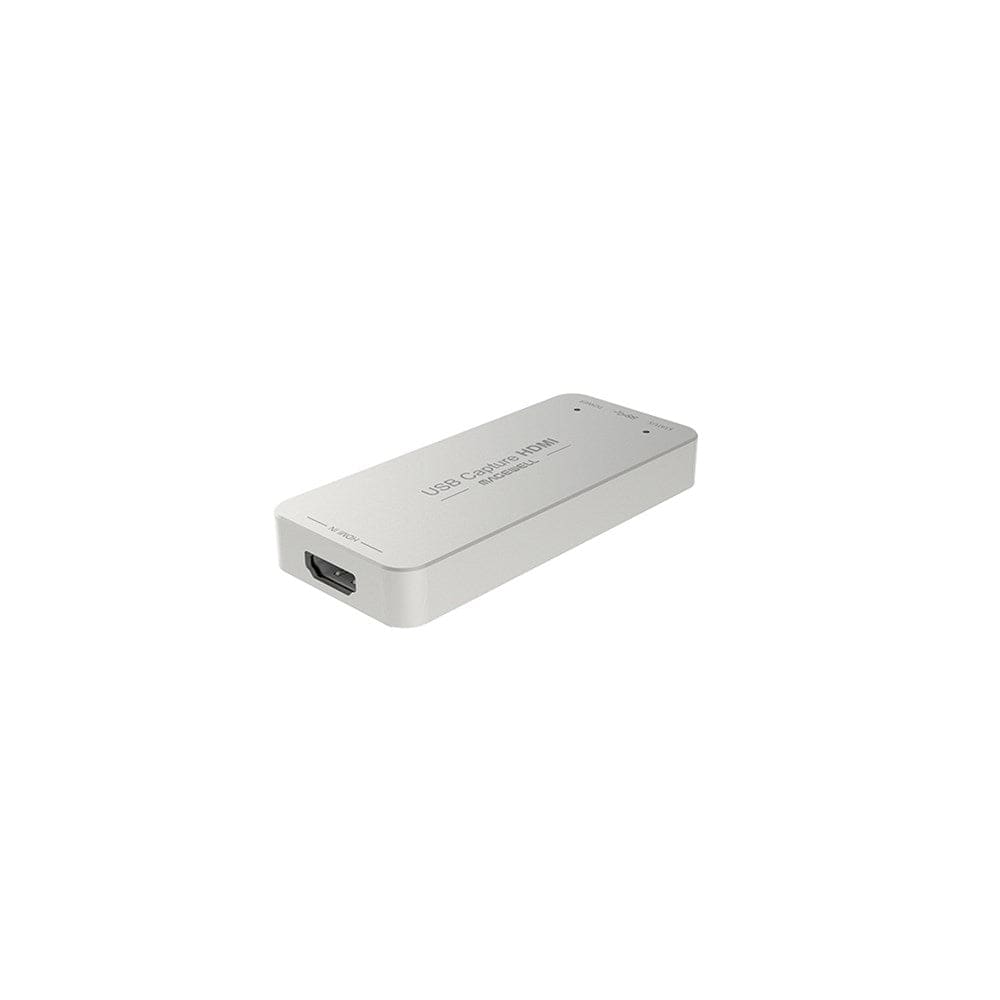

The compact device measures 92.2mm Γ 40.2mm Γ 12.3mm and is supplied with a 63cm USB 3.0 cable. It operates from USB power, with a maximum power consumption of approximately 2.5W.
An LED indicator displays the working state of the channel, including whether the input signal is locked. The stated operating temperature range is 0 to 50Β°C.
Product Specifications
| Specification | Details |
|---|---|
| Product type | One-channel HDMI capture device |
| Input interface | HDMI 1.4a |
| Maximum input | 2048 Γ 1080 at 60fps, 4:4:4 |
| Maximum capture resolution | Up to 2048 Γ 2160 |
| Maximum capture frame rate | Up to 120fps |
| Input colour formats | RGB/YUV 4:4:4 at 8/10/12-bit; YUY 4:2:2 at 12-bit |
| Embedded audio input | Up to 8-channel, 24-bit at 192kHz |
| Audio streams | Up to 2-channel IEC60958 |
| Video formats | YUY2, UYVY, RGB24 and RGB32 |
| Host interface | USB 3.0; compatible with USB 2.0 and USB 3.1 Gen 1 |
| Dimensions | 92.2mm Γ 40.2mm Γ 12.3mm |
| Included accessory | 1 Γ USB 3.0 cable, 63cm |
| Power consumption | 5V, approximately 0.5A maximum current; approximately 2.5W maximum power |
| Operating temperature | 0 to 50Β°C |
| Storage temperature | -20 to 70Β°C |
| Relative humidity | 5% to 90%, non-condensing |
Technical details
HDMI Capture for Professional Video Workflows
The Magewell USB Capture HDMI Gen 2 is a one-channel HDMI capture device for bringing video and embedded audio into a computer over USB. It supports a wide range of capture resolutions and frame rates, making it suitable for streaming, recording, conferencing and other video applications.
With USB 3.0 connectivity and compatibility with USB 2.0, the device works with Windows, Linux, macOS and Chrome OS. It supports common capture and streaming software, including OBS Studio, VLC, Zoom Rooms and Microsoft Teams.
Features include:
One-channel HDMI capture.
HDMI 1.4a input with a maximum input resolution of 2048 Γ 1080 at 60fps in 4:4:4.
Capture resolutions up to 2048 Γ 2160, with frame rates up to 120fps.
Support for RGB and YUV 4:4:4 input at 8-, 10- or 12-bit, and YUY 4:2:2 input at 12-bit.
Up to 8-channel, 24-bit HDMI-embedded audio input at 192kHz.
Up to 2-channel IEC60958 audio streams.
USB 3.0 output, compatible with USB 2.0 and USB 3.1 Gen 1.
Video processing includes cropping, scaling, de-interlacing and frame rate conversion.
Support for video flip, mirror, aspect ratio conversion and colour format conversion.
USB Capture Utility for configuring capture parameters, firmware upgrades and troubleshooting information.
Compatible with Windows, Linux, macOS and Chrome OS.
Works with software including OBS Studio, XSplit, QuickTime Player, VLC and GStreamer.
LED indicator shows the input signal and device status.
Flexible HDMI Capture
USB Capture HDMI Gen 2 accepts HDMI video and embedded audio, then presents the captured signal to compatible computer applications through USB. Its supported formats include RGB24, RGB32, YUY2 and UYVY.
Capture modes include common 1080p and 720p frame rates, as well as supported high-frame-rate 720p modes up to 120fps. Actual capture frame rates can be limited by USB bandwidth and the device's internal working frequency.
Broad Software and Operating System Support
The device works with DirectShow, V4L2 and AVCaptureSession-based applications, with audio support through the relevant Windows, Linux and macOS interfaces. Compatible software includes conferencing, playback, recording and streaming applications.
The included USB Capture Utility can check and configure capture parameters, upgrade device firmware and export information for troubleshooting. The MWCapture SDK also provides functions for signal status, capture configuration and real-time audio and video capture.
Compact USB Design
The compact device measures 92.2mm Γ 40.2mm Γ 12.3mm and is supplied with a 63cm USB 3.0 cable. It operates from USB power, with a maximum power consumption of approximately 2.5W.
An LED indicator displays the working state of the channel, including whether the input signal is locked. The stated operating temperature range is 0 to 50Β°C.
Product Specifications
| Specification | Details |
|---|---|
| Product type | One-channel HDMI capture device |
| Input interface | HDMI 1.4a |
| Maximum input | 2048 Γ 1080 at 60fps, 4:4:4 |
| Maximum capture resolution | Up to 2048 Γ 2160 |
| Maximum capture frame rate | Up to 120fps |
| Input colour formats | RGB/YUV 4:4:4 at 8/10/12-bit; YUY 4:2:2 at 12-bit |
| Embedded audio input | Up to 8-channel, 24-bit at 192kHz |
| Audio streams | Up to 2-channel IEC60958 |
| Video formats | YUY2, UYVY, RGB24 and RGB32 |
| Host interface | USB 3.0; compatible with USB 2.0 and USB 3.1 Gen 1 |
| Dimensions | 92.2mm Γ 40.2mm Γ 12.3mm |
| Included accessory | 1 Γ USB 3.0 cable, 63cm |
| Power consumption | 5V, approximately 0.5A maximum current; approximately 2.5W maximum power |
| Operating temperature | 0 to 50Β°C |
| Storage temperature | -20 to 70Β°C |
| Relative humidity | 5% to 90%, non-condensing |
- One channel HD capture device.
- Ability to work continuously 24/7.
- HDMI + embedded audio.
- Support capture resolutions up to 2048 x 2160 pixels, with frame rates up to 120fps.
- Support 2-channel audio streams.
- LED status indicator.
- Compatible with Zoom, Microsoft Teams, Skype, or Google Hangouts for Windows, Linux, Mac and Chrome OS.
- Single HDMI input with up to 2048Γ2160 capture at up to 120fps
- USB 3.0 bus-powered, no external power adapter required
- Up to 8-channel 24-bit HDMI-embedded audio capture at 192kHz
- Driver-free UVC/UAC compatibility with Windows, Linux, macOS, and Chrome OS
- Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
- Auto detection of input signal format
- Rated for continuous 24/7 operation
- Zoom Certified; Barco ClickShare Alliance certified
| Specification | Detail |
|---|---|
| Part Number | 32060 |
| Video Input | 1 Γ HDMI 1.4a |
| Max Input Resolution | 2048Γ2160 |
| Max Capture Frame Rate | Up to 120fps |
| Audio | Up to 8-channel 24-bit embedded audio at 192kHz |
| USB Standard | USB 3.0 (USB 2.0 compatible) |
| Max Power | ~2.5W (0.5A at 5V) |
| Dimensions | 92.2 Γ 40.2 Γ 12.3mm |
| OS Support | Windows 10/11/Server; Linux (kernel 2.6.35+); macOS 10.9+; Chrome OS |
| Operating Temp | 0-50Β°C |
Compatibility
- Zoom Rooms, Microsoft Teams, Skype for Business, Google Meet, OBS Studio, XSplit, VLC, QuickTime Player, and any DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS) compatible software.
