Modator Controller 2U
Couldn't load pickup availability
High-Density Modular IP Video Conversion
The Magewell Modator 2U is a rackmount chassis for Magewell IP encoder and decoder modules. It provides up to 10 hot-swappable slots, allowing installed modules to operate independently and convert audio and video signals to and from IP streams.
Designed for standard rack deployments, Modator 2U combines module and chassis status monitoring, browser-based configuration, redundant power supplies and centralised cooling. It is suitable for high-density IP video systems that require reliable operation.
Features include:
2U rackmount chassis for Magewell Modator modules.
Up to 10 module slots.
Hot-swappable modules.
Installed modules operate independently for encoding or decoding.
Supports Magewell encoder and decoder modules, including Pro Convert and Ultra Encode modules.

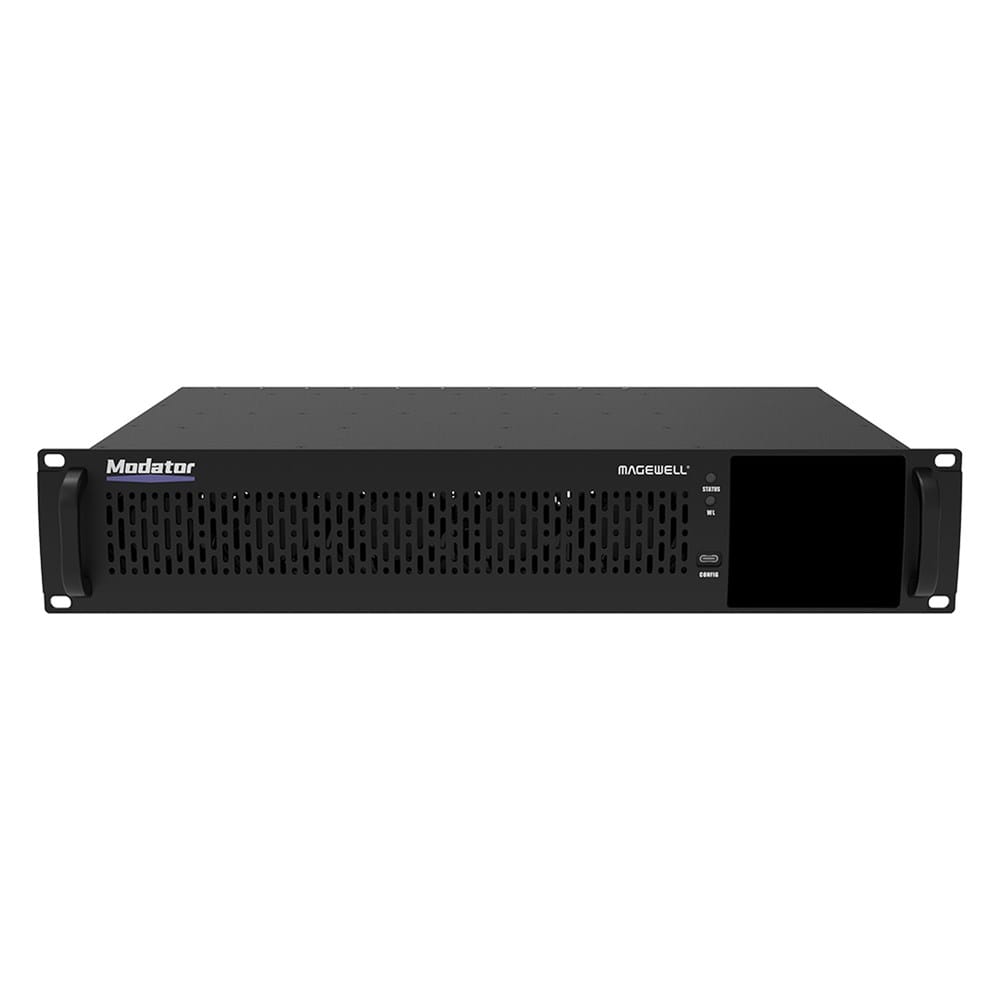

Front-panel LED touchscreen for monitoring chassis and module status.
Touchscreen access to connection information, logs, alarms and network configuration.
Browser-based Web UI for configuration and status monitoring.
HTTP API support.

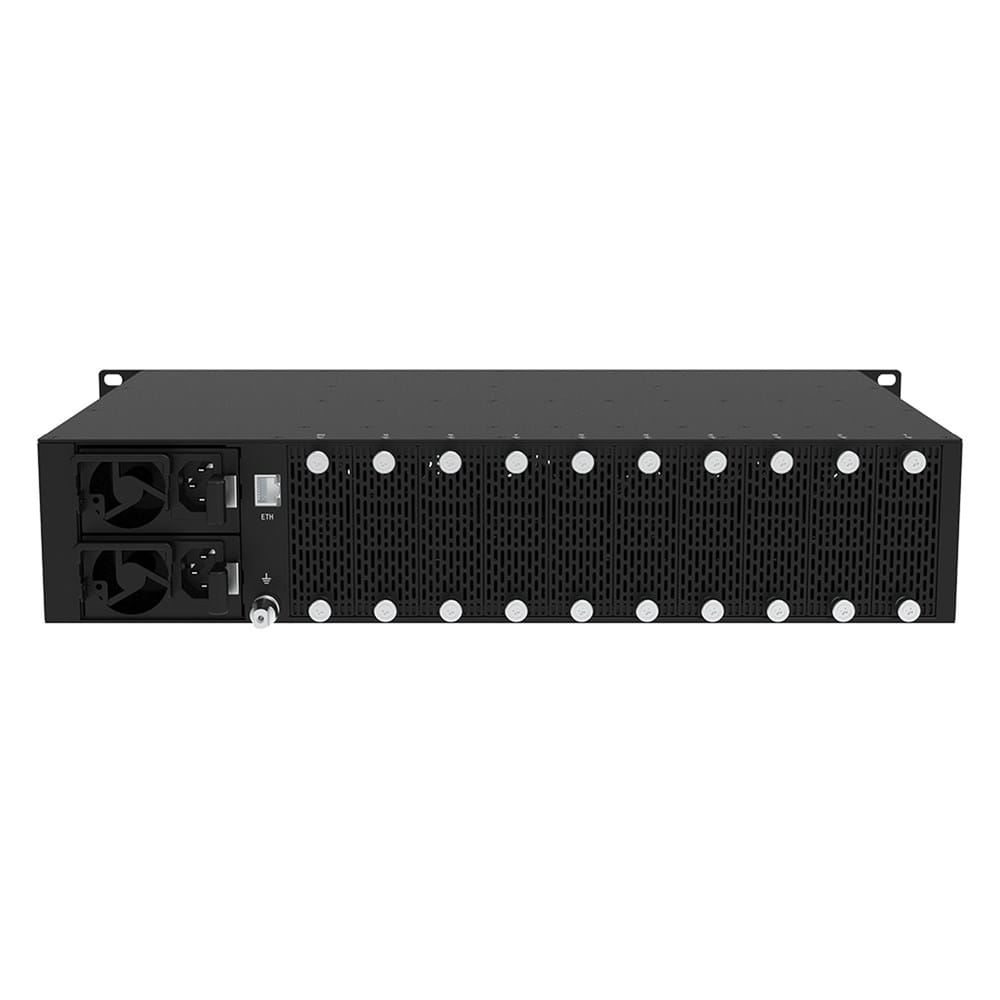

Two hot-swappable power supply modules for redundancy.
Centralised heat dissipation design for stable operation.
1Gbps RJ45 Ethernet port for configuration.
USB Type-C port for configuration.
Flexible Modular Deployment
Modator 2U accommodates up to 10 Magewell modules in a standard rackmount chassis. Modules can be freely combined and hot-swapped, with each installed module handling its own encoding or decoding function.
Current compatible modules include Pro Convert HDMI Plus, Pro Convert HDMI 4K Plus and Pro Convert for NDI to HDMI.
Monitoring and Management
The LED touchscreen displays chassis and module status, connection information, logs and error notifications. Network information can also be viewed and edited from the touchscreen.
The browser-based Web UI provides chassis and module status information, configuration and management, with HTTP APIs available for integration.
Designed for Reliable Operation
Dual hot-swappable power supplies provide redundancy, while the centralised heat dissipation design supports stable operation. Magewell describes the chassis as suitable for 24/7 operation.
Product Specifications
| Specification | Details |
|---|---|
| Product type | 2U rackmount chassis for Magewell Modator encoder and decoder modules |
| Module slots | 10, hot-swappable |
| Configuration interfaces | 1 × RJ45 1000Mbps Ethernet; 1 × USB Type-C |
| Power supplies | Dual hot-swappable power supply modules |
| AC input | 100–240V, 7–3.5A, 50/60Hz |
| Maximum chassis power consumption | 200W |
| Maximum power consumption per slot | 20W |
| Touchscreen | LED touchscreen, 91mm × 81mm |
| Dimensions | 482mm × 275mm × 88mm (W × D × H) |
| Weight | Approximately 5.6kg with 10 blank panels |
| Operating temperature | 0°C to 50°C |
| Storage temperature | −20°C to 70°C |
| Relative humidity | 5% to 90%, non-condensing |
Technical details
High-Density Modular IP Video Conversion
The Magewell Modator 2U is a rackmount chassis for Magewell IP encoder and decoder modules. It provides up to 10 hot-swappable slots, allowing installed modules to operate independently and convert audio and video signals to and from IP streams.
Designed for standard rack deployments, Modator 2U combines module and chassis status monitoring, browser-based configuration, redundant power supplies and centralised cooling. It is suitable for high-density IP video systems that require reliable operation.
Features include:
2U rackmount chassis for Magewell Modator modules.
Up to 10 module slots.
Hot-swappable modules.
Installed modules operate independently for encoding or decoding.
Supports Magewell encoder and decoder modules, including Pro Convert and Ultra Encode modules.
Front-panel LED touchscreen for monitoring chassis and module status.
Touchscreen access to connection information, logs, alarms and network configuration.
Browser-based Web UI for configuration and status monitoring.
HTTP API support.
Two hot-swappable power supply modules for redundancy.
Centralised heat dissipation design for stable operation.
1Gbps RJ45 Ethernet port for configuration.
USB Type-C port for configuration.
Flexible Modular Deployment
Modator 2U accommodates up to 10 Magewell modules in a standard rackmount chassis. Modules can be freely combined and hot-swapped, with each installed module handling its own encoding or decoding function.
Current compatible modules include Pro Convert HDMI Plus, Pro Convert HDMI 4K Plus and Pro Convert for NDI to HDMI.
Monitoring and Management
The LED touchscreen displays chassis and module status, connection information, logs and error notifications. Network information can also be viewed and edited from the touchscreen.
The browser-based Web UI provides chassis and module status information, configuration and management, with HTTP APIs available for integration.
Designed for Reliable Operation
Dual hot-swappable power supplies provide redundancy, while the centralised heat dissipation design supports stable operation. Magewell describes the chassis as suitable for 24/7 operation.
Product Specifications
| Specification | Details |
|---|---|
| Product type | 2U rackmount chassis for Magewell Modator encoder and decoder modules |
| Module slots | 10, hot-swappable |
| Configuration interfaces | 1 × RJ45 1000Mbps Ethernet; 1 × USB Type-C |
| Power supplies | Dual hot-swappable power supply modules |
| AC input | 100–240V, 7–3.5A, 50/60Hz |
| Maximum chassis power consumption | 200W |
| Maximum power consumption per slot | 20W |
| Touchscreen | LED touchscreen, 91mm × 81mm |
| Dimensions | 482mm × 275mm × 88mm (W × D × H) |
| Weight | Approximately 5.6kg with 10 blank panels |
| Operating temperature | 0°C to 50°C |
| Storage temperature | −20°C to 70°C |
| Relative humidity | 5% to 90%, non-condensing |
