Pro Capture Mini SDI LH
Couldn't load pickup availability
Single-Channel SDI Capture with Loop-Through

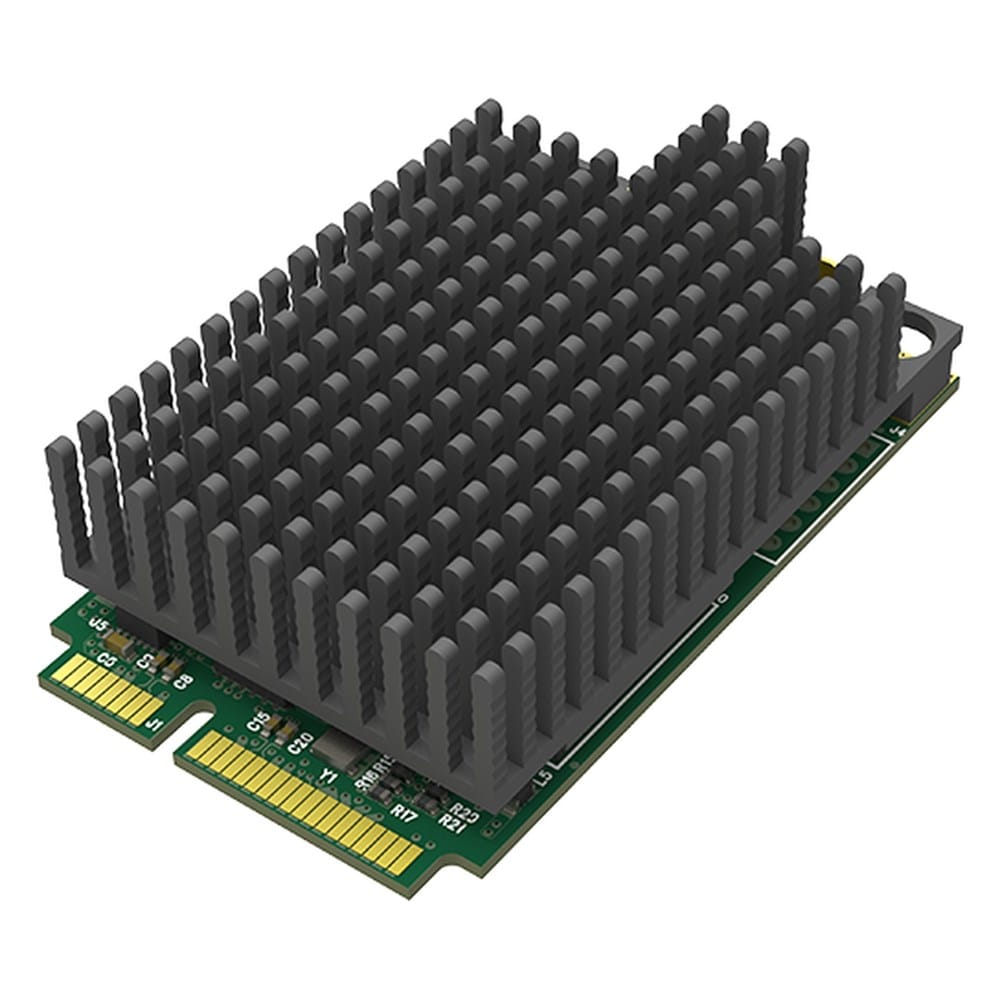

The Magewell Pro Capture Mini SDI LH is a one-channel HD capture card for capturing SDI video and embedded audio. Its SDI loop-through connection passes the input signal through to another device, while the LH variant features a large heat sink.
With support for SD, HD, 3G and 2K SDI signals, the card is suited to video capture workflows using compatible computer systems. Its Mini PCIe Gen2 x1 host interface and video processing features provide flexible integration for live production, recording and streaming applications.
Features include:
One-channel SDI video capture.
Support for SD, HD, 3G and 2K SDI standards.
SDI loop-through output for passing the input signal to another device.
MMCX input and loop-through connections.
Capture input resolutions up to 2048×1080 pixels.
Support for embedded audio, including up to eight mono channels at 48 kHz.
PCIe Gen2 x1 host interface in a Mini PCIe form factor.
10-bit video processing with cropping, scaling and deinterlacing.
Colour adjustment, colour space conversion and aspect ratio conversion.
Automatic detection of the input signal format.
Support for timecode and closed captions.
On-screen display and hardware timestamp features.
SG-DMA transmission mode and multiple capture streams.
Large heat sink on the LH variant.
SDI Capture and Loop-Through
The card captures one SDI channel and supports SD, HD, 3G and 2K formats. The SDI loop-through connection passes the input signal onward, helping integrate the card into existing video signal paths.
Embedded audio can be captured alongside the video, with support for up to eight mono audio channels at 48 kHz.
Video Processing and Integration
On-board processing includes 10-bit video processing, cropping, scaling, deinterlacing, colour adjustment and colour space conversion. Automatic input format detection, timecode and closed-caption support are also provided.

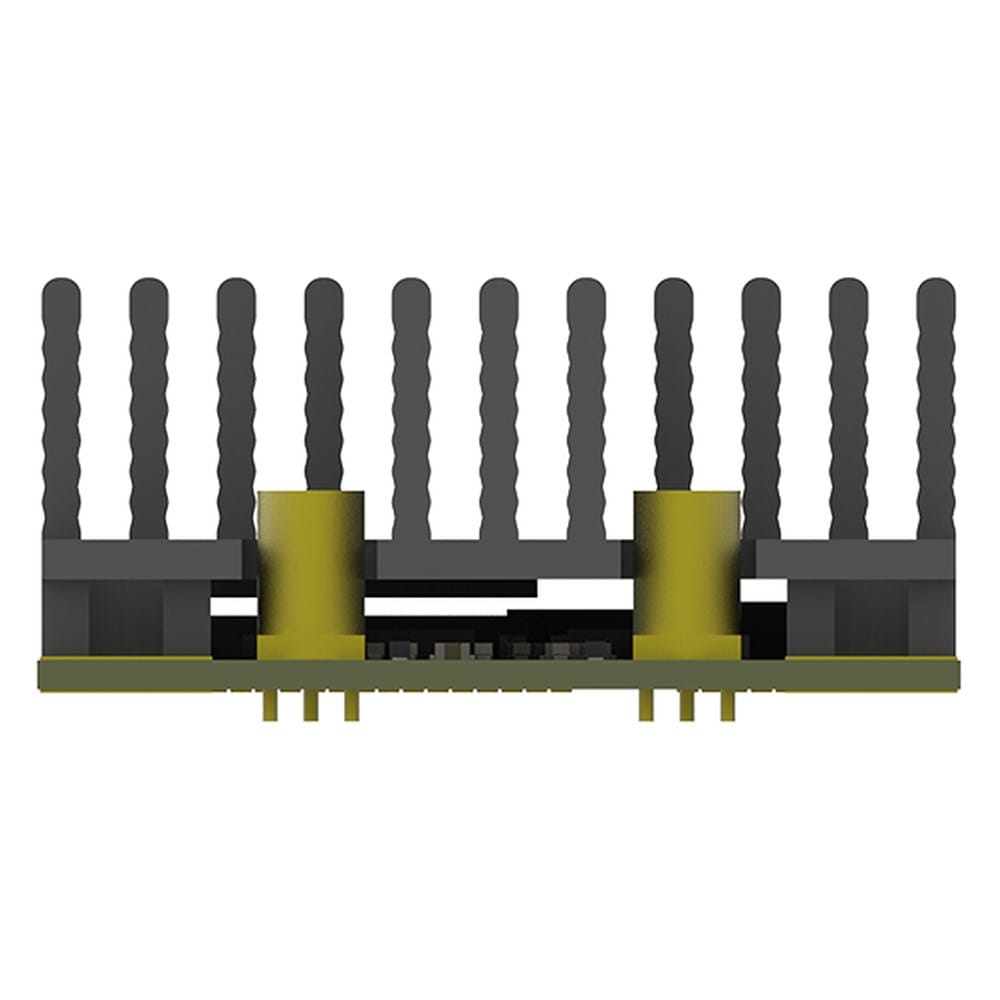

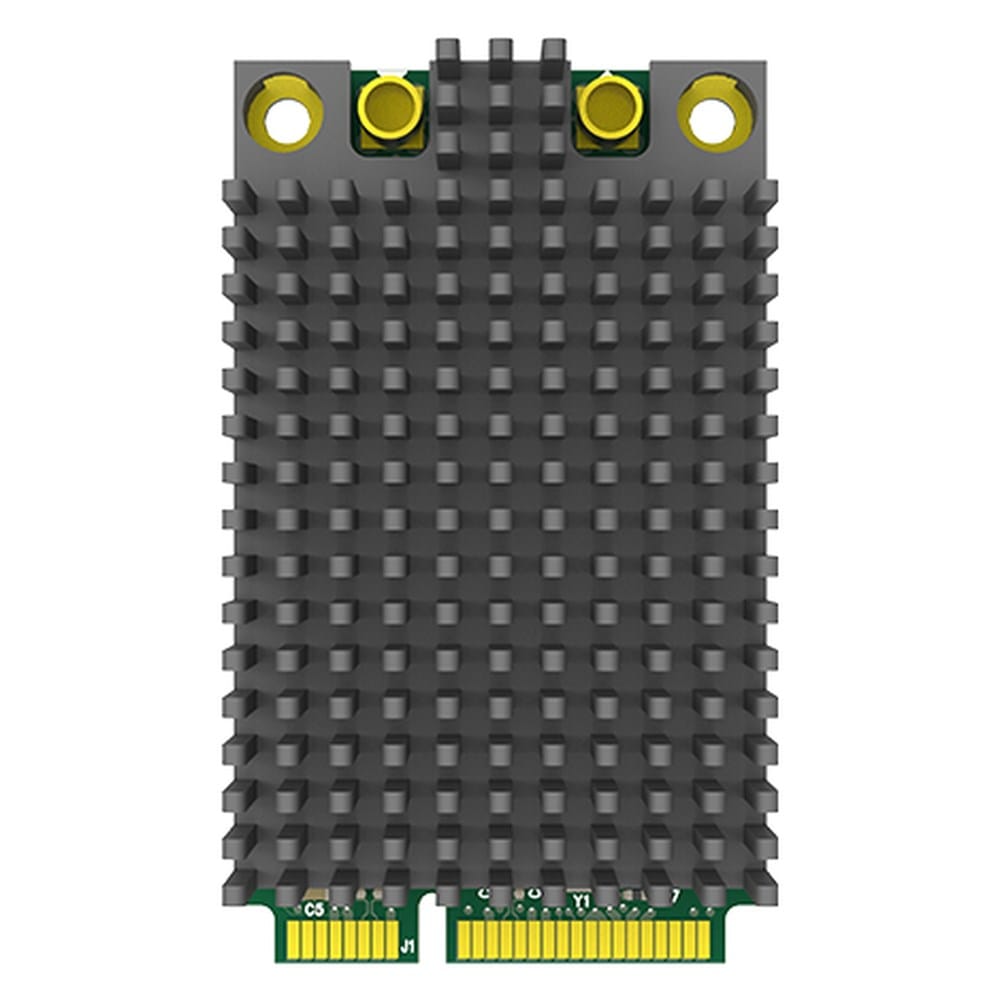

The Mini PCIe card uses a PCIe Gen2 x1 host interface and has MMCX connectors for SDI input and loop-through. The LH version is specified with a large heat sink.
Product Specifications
| Specification | Details |
|---|---|
| Product type | One-channel HD SDI capture card |
| Variant | LH, large heat sink |
| Input interface | 1 × MMCX SDI |
| Supported SDI formats | SD, HD, 3G and 2K |
| Maximum input resolution | 2048×1080 pixels |
| Loop-through interface | 1 × MMCX SDI |
| Host interface | Mini PCIe Gen2 x1 |
| Video processing | 10-bit; cropping, scaling, deinterlacing, colour adjustment and colour space conversion |
| Embedded audio | Up to 8 mono channels at 48 kHz |
| Additional features | Automatic input format detection, timecode, closed captions, OSD and hardware timestamp |
