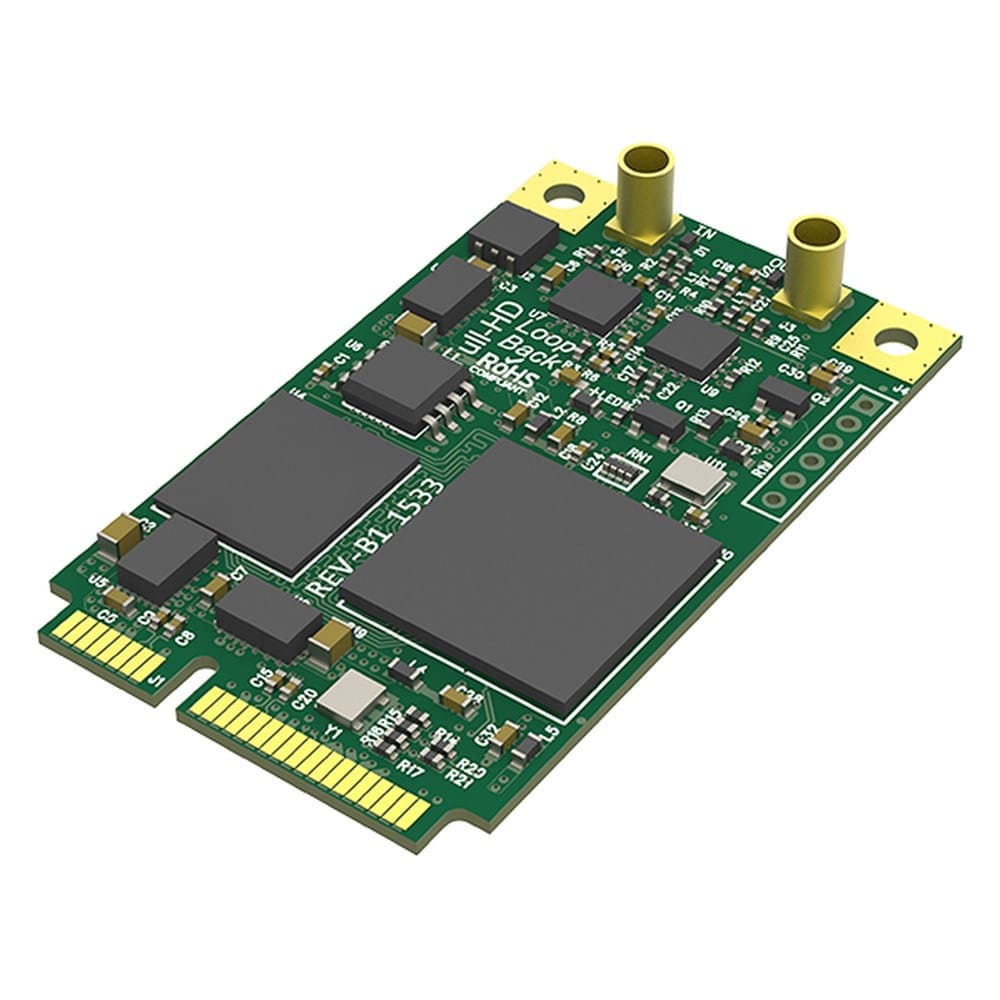

Pro Capture Mini SDI (no heat sink)
Couldn't load pickup availability
Compact SDI Capture for Embedded Systems
The Magewell Pro Capture Mini SDI (no heat sink) is a single-channel HD capture card for bringing SDI video and embedded audio into a computer. Its Mini PCIe form factor is designed for compact systems where space is limited.
With an MMCX SDI input and loop-through interface, the card supports SD, HD, 3G and 2K signals. It provides onboard video processing and is suitable for integration in broadcast, industrial and other embedded applications.
Features include:
One SDI input supporting SD, HD, 3G and 2K signals.
Input video resolutions up to 2048 × 1080 pixels.
MMCX input and SDI loop-through interfaces.
Embedded SDI audio support for up to eight mono channels at 48 kHz.
10-bit video processing.
Support for 10-bit and 12-bit SDI colour depth.
Onboard deinterlacing, cropping and colour adjustment.
Colour-space, up/down and aspect-ratio conversion.
Automatic detection of the input signal format.
Hardware timestamp, timecode and closed-caption support.
Low-latency mode and multiple capture streams.
Mini PCIe Gen2 x1 host interface.
Support for Windows, Linux and macOS, with Windows, Linux and Mac SDKs.
Designed for continuous 24-hour, 7-day operation.
SDI Capture and Loop-Through
The card captures a single SDI input and provides an SDI loop-through connection, allowing the signal to be passed on to other equipment. Its MMCX connectors support compact installation, with an MMCX-to-SDI breakout listed separately by Magewell.
Support for SD, HD, 3G and 2K SDI includes input resolutions up to 2048 × 1080 pixels and embedded audio carried in the SDI signal.
Onboard Video Processing
Video processing features include deinterlacing, cropping, colour adjustment, colour-space conversion, up/down conversion and aspect-ratio conversion. Automatic input-format detection, hardware timestamping, timecode and closed-caption support are also provided.
The card supports multiple capture streams and a low-latency mode, helping it integrate into a range of computer-based capture workflows.
Compact System Integration

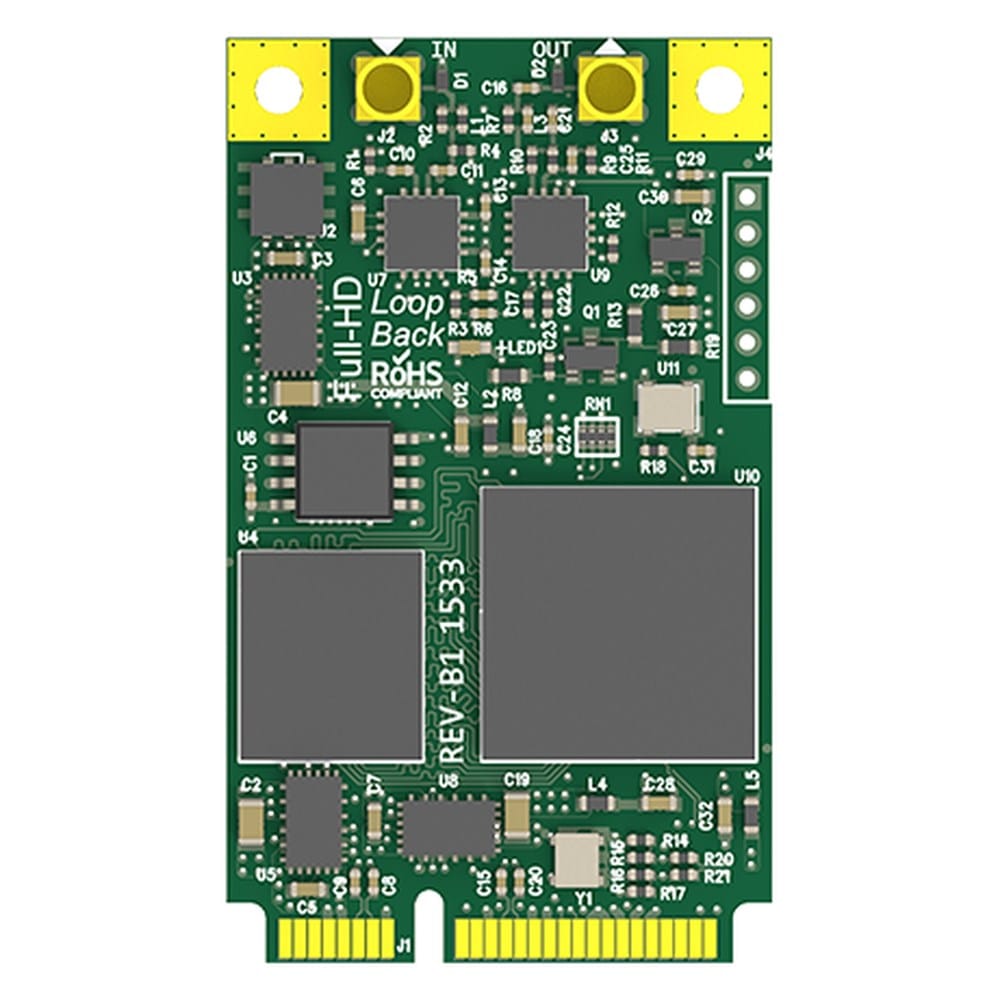

The 30 × 51 mm Mini PCIe card is designed for compact computer systems. This no-heat-sink variant is intended for installations requiring the card without a heat sink.
Windows, Linux and macOS support, SDK availability and continuous 24-hour, 7-day operation make the card suitable for integration into dedicated systems.
Product Specifications
| Specification | Details |
|---|---|
| Product type | One-channel HD capture card |
| Variant | No heat sink |
| Input interface | 1 × MMCX SDI |
| SDI standards | SD, HD, 3G and 2K |
| Maximum input resolution | 2048 × 1080 pixels |
| Loop-through interface | 1 × MMCX SDI |
| Embedded audio | Up to 8 mono channels at 48 kHz |
| Host interface | Mini PCIe Gen2 x1 |
| Card dimensions | 30 × 51 mm |
| Operating systems | Windows, Linux and macOS |
| Continuous operation | 24 hours, 7 days |
| Warranty | 2 years |
Technical details
Compact SDI Capture for Embedded Systems
The Magewell Pro Capture Mini SDI (no heat sink) is a single-channel HD capture card for bringing SDI video and embedded audio into a computer. Its Mini PCIe form factor is designed for compact systems where space is limited.
With an MMCX SDI input and loop-through interface, the card supports SD, HD, 3G and 2K signals. It provides onboard video processing and is suitable for integration in broadcast, industrial and other embedded applications.
Features include:
One SDI input supporting SD, HD, 3G and 2K signals.
Input video resolutions up to 2048 × 1080 pixels.
MMCX input and SDI loop-through interfaces.
Embedded SDI audio support for up to eight mono channels at 48 kHz.
10-bit video processing.
Support for 10-bit and 12-bit SDI colour depth.
Onboard deinterlacing, cropping and colour adjustment.
Colour-space, up/down and aspect-ratio conversion.
Automatic detection of the input signal format.
Hardware timestamp, timecode and closed-caption support.
Low-latency mode and multiple capture streams.
Mini PCIe Gen2 x1 host interface.
Support for Windows, Linux and macOS, with Windows, Linux and Mac SDKs.
Designed for continuous 24-hour, 7-day operation.
SDI Capture and Loop-Through
The card captures a single SDI input and provides an SDI loop-through connection, allowing the signal to be passed on to other equipment. Its MMCX connectors support compact installation, with an MMCX-to-SDI breakout listed separately by Magewell.
Support for SD, HD, 3G and 2K SDI includes input resolutions up to 2048 × 1080 pixels and embedded audio carried in the SDI signal.
Onboard Video Processing
Video processing features include deinterlacing, cropping, colour adjustment, colour-space conversion, up/down conversion and aspect-ratio conversion. Automatic input-format detection, hardware timestamping, timecode and closed-caption support are also provided.
The card supports multiple capture streams and a low-latency mode, helping it integrate into a range of computer-based capture workflows.
Compact System Integration
The 30 × 51 mm Mini PCIe card is designed for compact computer systems. This no-heat-sink variant is intended for installations requiring the card without a heat sink.
Windows, Linux and macOS support, SDK availability and continuous 24-hour, 7-day operation make the card suitable for integration into dedicated systems.
Product Specifications
| Specification | Details |
|---|---|
| Product type | One-channel HD capture card |
| Variant | No heat sink |
| Input interface | 1 × MMCX SDI |
| SDI standards | SD, HD, 3G and 2K |
| Maximum input resolution | 2048 × 1080 pixels |
| Loop-through interface | 1 × MMCX SDI |
| Embedded audio | Up to 8 mono channels at 48 kHz |
| Host interface | Mini PCIe Gen2 x1 |
| Card dimensions | 30 × 51 mm |
| Operating systems | Windows, Linux and macOS |
| Continuous operation | 24 hours, 7 days |
| Warranty | 2 years |
