Pro Convert 12G SDI 4K Plus Module
Couldn't load pickup availability
12G-SDI to Full NDI for 4K Production

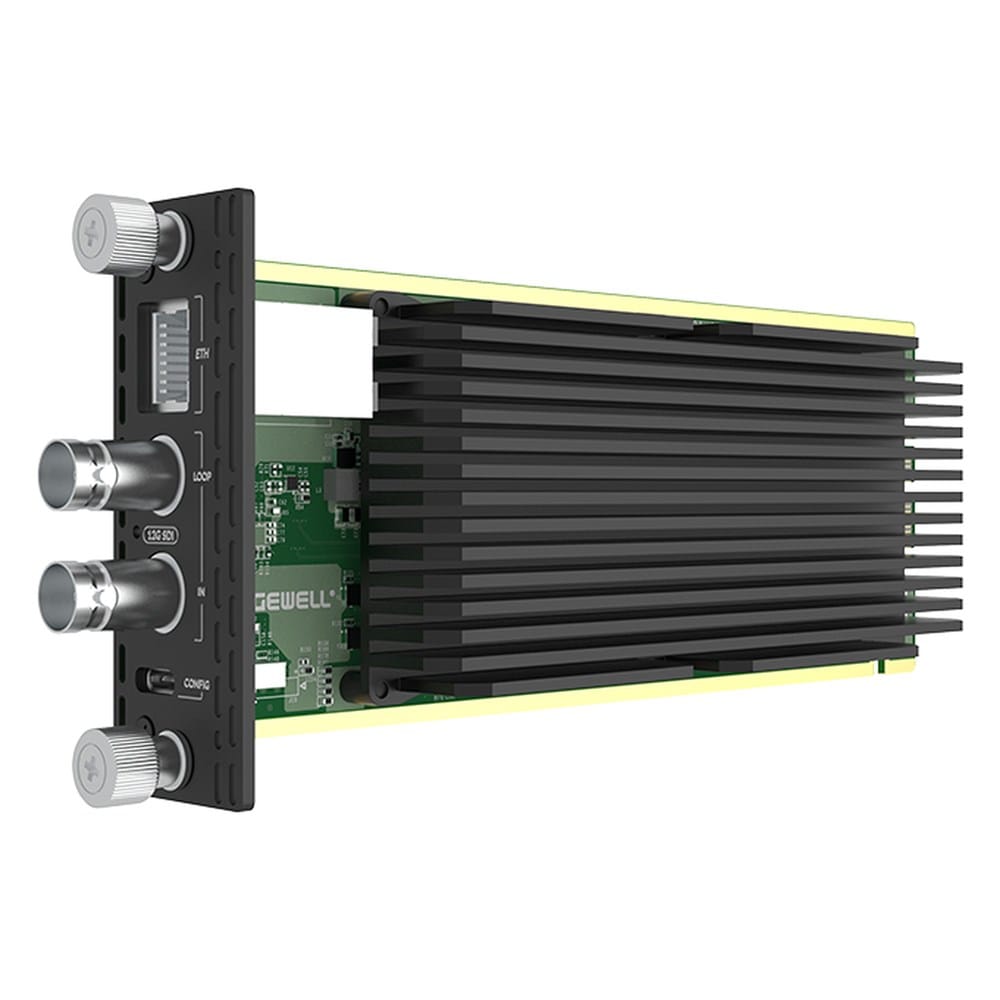

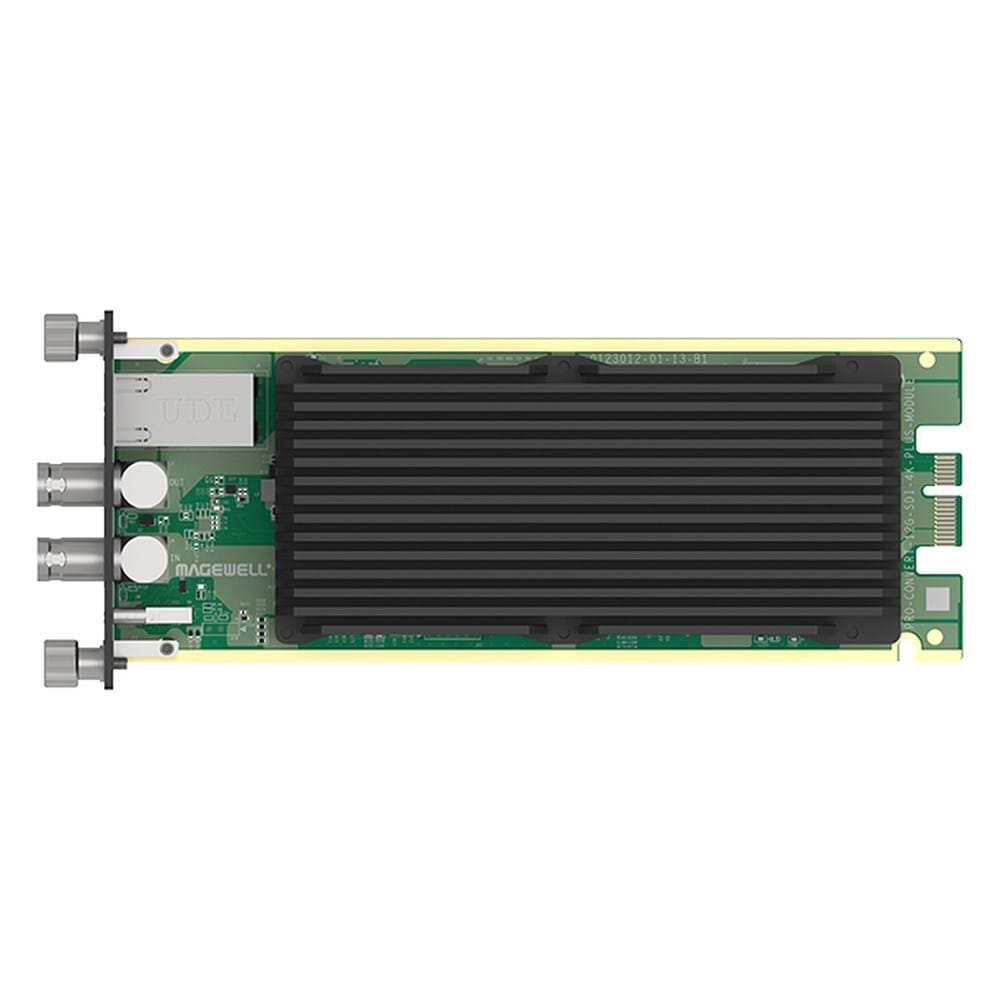

The Magewell Pro Convert 12G SDI 4K Plus Module is a video encoder module for converting one channel of SDI video into a Full NDI stream. Designed for use in a Modator rackmount chassis, it supports input video up to 4K at 60 frames per second.
With SDI loop-through, the module can send the input signal to other equipment while converting it for an NDI-based IP workflow. Support for embedded audio, automatic input format detection and DHCP-based network configuration helps simplify integration.
Features include:
Module for use in a Modator rackmount chassis.
Converts one channel of SDI video to Full NDI.
Supports video input up to 4096 × 2160 at 60 frames per second.
Accepts SD, HD, 3G, 6G and 12G-SDI signals.
SDI loop-through lets the input signal feed additional equipment.
Supports up to 16 channels of embedded SDI audio.
Encodes NDI High Bandwidth video up to 4096 × 2160 at 60 frames per second.
NDI video encoding supports 4:2:2 8-bit colour.
Provides low-latency conversion for live production workflows.
Automatically detects the input video format.
DHCP-based network configuration helps simplify setup.
Q-SYS plugin support enables control and monitoring.
Connect SDI Sources to NDI Workflows
The module converts a single-link SDI source into a Full NDI stream, allowing compatible video equipment to be used in NDI-enabled IP media networks.
Support for SD, HD, 3G, 6G and 12G-SDI formats lets the encoder work with a range of SDI sources, including signals up to 4Kp60.
Maintain Existing SDI Connections

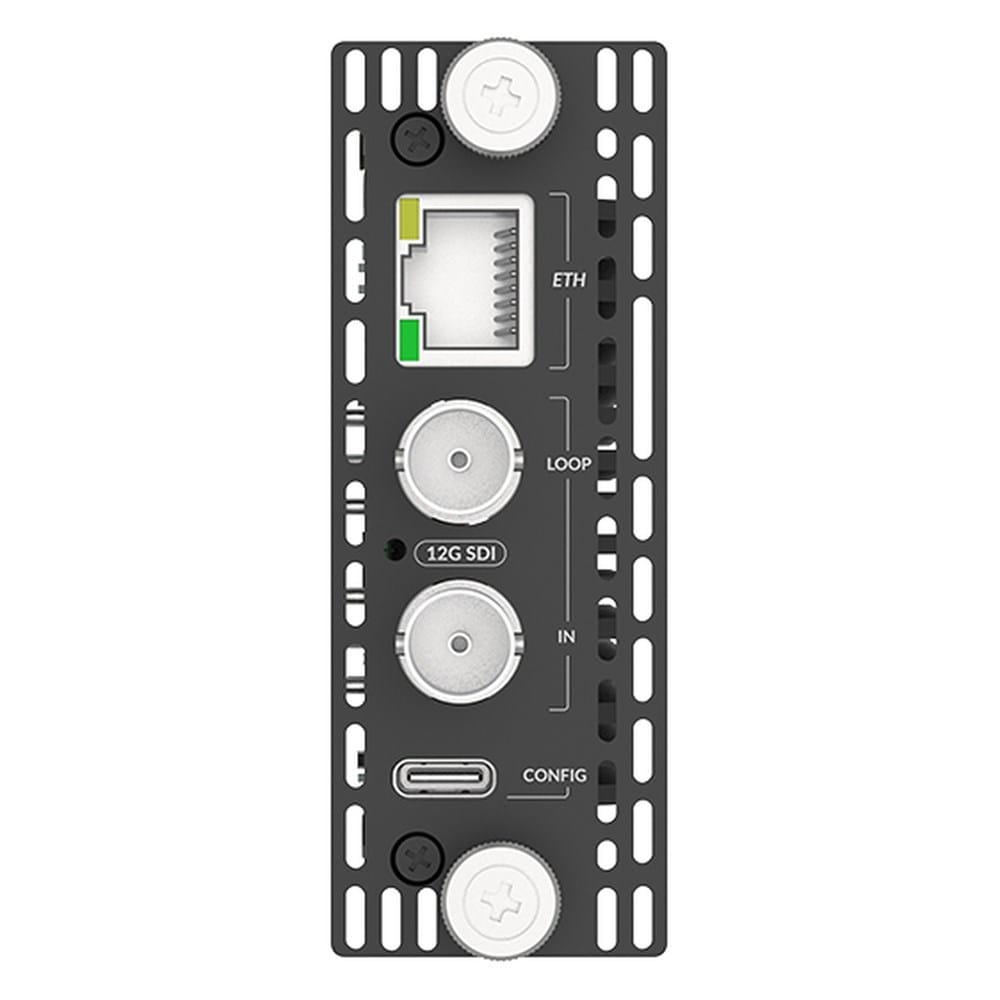

An SDI loop-through connection passes the input signal on to additional displays or equipment while the module converts the same source to NDI.
Up to 16 channels of embedded SDI audio are supported, helping carry audio with the video into the IP workflow.
Product Specifications
| Specification | Details |
|---|---|
| Product type | SDI-to-Full-NDI encoder module for Modator rackmount chassis |
| Video channels | 1 |
| SDI input | SD, HD, 3G, 6G and 12G-SDI |
| SDI loop-through | 1 |
| Maximum video input | 4096 × 2160 at 60 frames per second |
| Embedded audio input | Up to 16 channels |
| NDI encoding | NDI High Bandwidth, up to 4096 × 2160 at 60 frames per second, 4:2:2 8-bit |
| Configuration | Automatic input format detection and DHCP-based network configuration |
| Control and monitoring | Q-SYS plugin support |
