Pro Convert for NDI to HDMI Module
Couldn't load pickup availability
Flexible NDI Decoding for Modator Systems

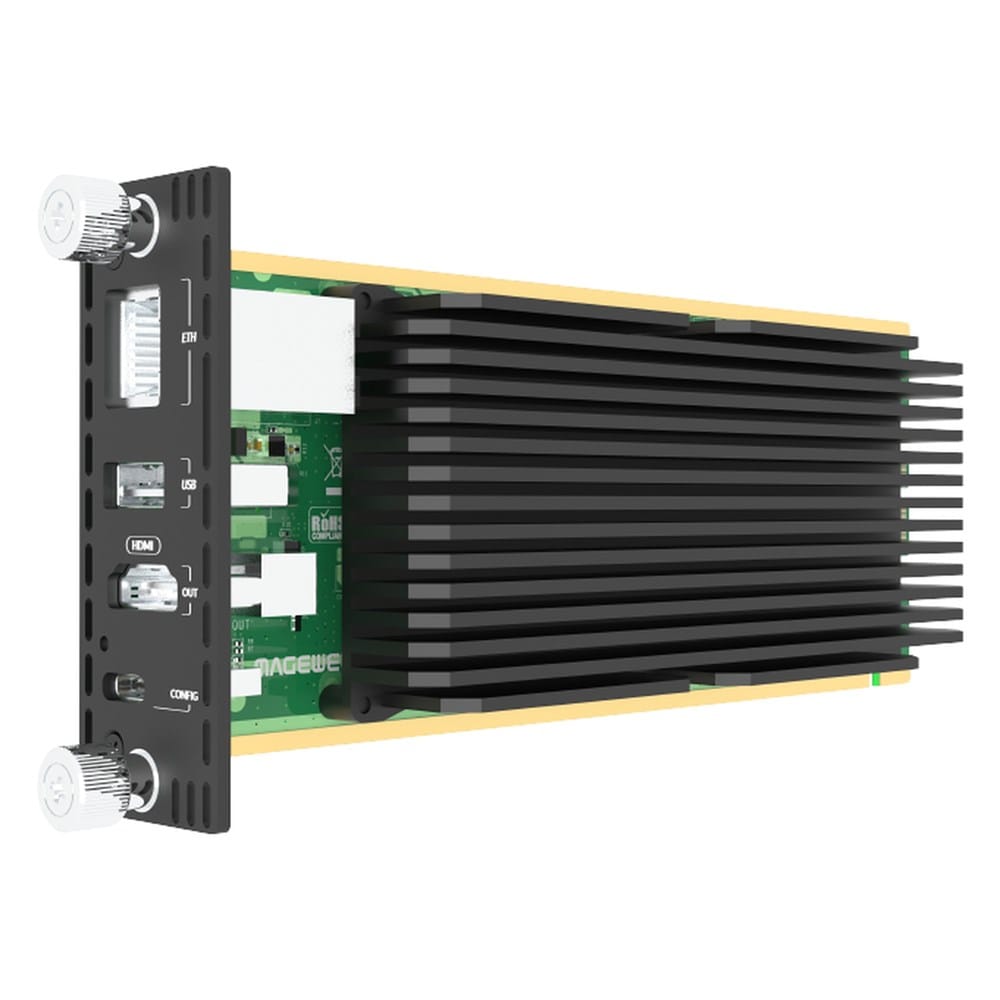

The Magewell Pro Convert for NDI to HDMI Module is a hot-swappable decoder module for the Magewell Modator 2U chassis. It converts live NDI and other supported IP streams into HDMI output for professional video and AV workflows.
Designed for scalable, centralised installations, the module decodes video streams up to 2Kp60 and can output HDMI video at resolutions up to 4096x2160p60. It is suitable for production, distribution and display applications using network video sources.
Features include:
Hot-swappable module for installation in the Magewell Modator 2U chassis.
Decodes NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3 streams up to 2Kp60.
Supports NDI 6.2.
Decodes H.264 and H.265 video streams.
Supports RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP, SRT and RTP.
Supports TVU protocols.
HDMI 2.0 output up to 4096x2160p60, 4:4:4, 8-bit.
Provides 48kHz, 8-channel audio output and decodes AAC and MP3 audio.
Automatically selects a suitable output format based on the connected display’s EDID.
Supports RGB, YUV 4:4:4 and YUV 4:2:2 output signals.
Configurable through the Web UI, Magewell Control Hub or the Modator chassis touchscreen.
Web UI provides real-time device and decoded-signal information, configuration and firmware updates.
Gigabit Ethernet connection, USB Type-C configuration port and USB Type-A 3.0 peripheral port.
Supports HTTP APIs and USB RNDIS/ECM.
Decode and Output Network Video
The module converts live NDI streams and compatible IP video protocols into an HDMI signal for a connected display or other HDMI equipment. It supports NDI High Bandwidth and NDI HX formats alongside H.264 and H.265 streams delivered using supported protocols.
Output formats are selected according to the connected monitor’s EDID, with supported modes including 4K and lower-resolution progressive and interlaced formats.
Configuration and Management
Configure and manage the decoder through its Web UI, Magewell Control Hub or the touchscreen of the Modator chassis. The Web UI provides real-time information about the device and decoded signals, as well as controls for output settings, audio and network configuration.
NDI device discovery across network segments and HTTP APIs support integration into networked production and AV systems.
Designed for Modator Chassis

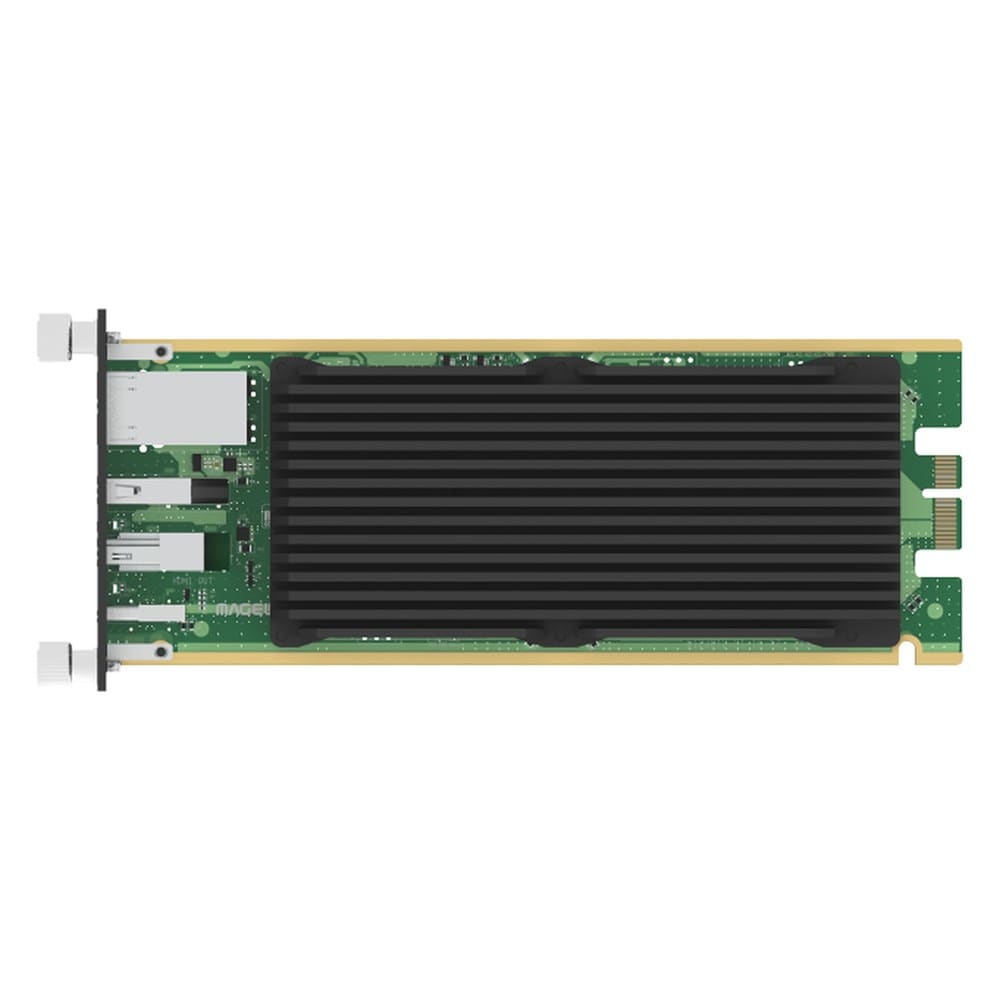

The hot-swappable module installs in the Magewell Modator 2U chassis, providing a rackmount form factor for deployments that need multiple IP video decoding modules.

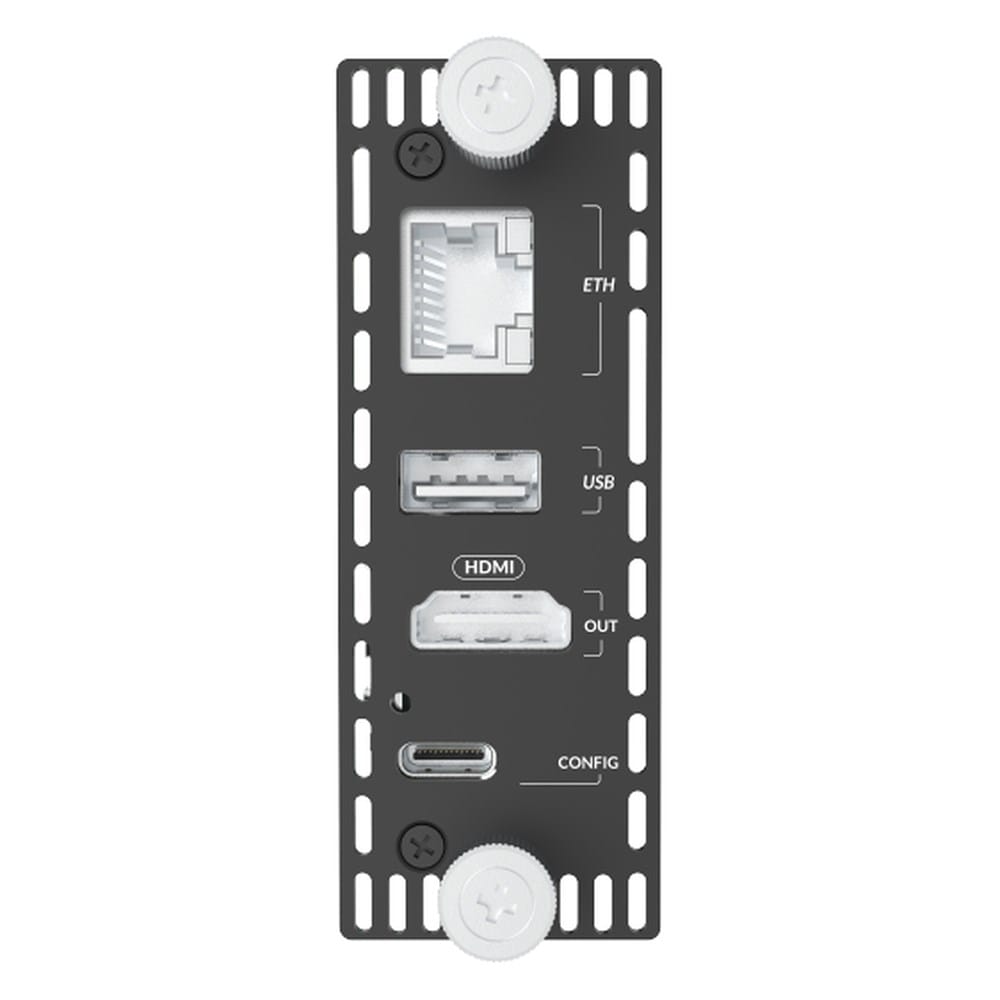

Its compact design includes a Gigabit Ethernet port, HDMI 2.0 output, USB configuration and peripheral connections, and a Modator interface.
Product Specifications
| Specification | Details |
|---|---|
| Product type | Hot-swappable NDI-to-HDMI decoder module for Magewell Modator 2U |
| SKU | B41010000 |
| Supported video streams | NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU protocols |
| Maximum decoding resolution | Up to 2Kp60 |
| Video codecs | H.264 and H.265 |
| Audio codecs | AAC and MP3 |
| Maximum HDMI output | 4096x2160p60, 4:4:4, 8-bit |
| Audio output | 48kHz, 8-channel |
| Video output formats | RGB, YUV 4:4:4 and YUV 4:2:2 |
| Interfaces | 1 × RJ45 1000Mbps Ethernet, 1 × USB Type-C configuration port, 1 × USB Type-A 3.0 port, 1 × HDMI 2.0 output and 1 × Modator interface |
| Configuration | Web UI, Magewell Control Hub or Modator chassis touchscreen |
| Dimensions | 184.4mm (L) × 30.0mm (W) × 81.5mm (H) |
| Weight | Approximately 290g |
| Maximum power consumption | 4.3W |
| Operating temperature | 0 to 50°C |
| Storage temperature | −20 to 70°C |
| Relative humidity | 5% to 90%, non-condensing |
Technical details
Flexible NDI Decoding for Modator Systems
The Magewell Pro Convert for NDI to HDMI Module is a hot-swappable decoder module for the Magewell Modator 2U chassis. It converts live NDI and other supported IP streams into HDMI output for professional video and AV workflows.
Designed for scalable, centralised installations, the module decodes video streams up to 2Kp60 and can output HDMI video at resolutions up to 4096x2160p60. It is suitable for production, distribution and display applications using network video sources.
Features include:
Hot-swappable module for installation in the Magewell Modator 2U chassis.
Decodes NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3 streams up to 2Kp60.
Supports NDI 6.2.
Decodes H.264 and H.265 video streams.
Supports RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP, SRT and RTP.
Supports TVU protocols.
HDMI 2.0 output up to 4096x2160p60, 4:4:4, 8-bit.
Provides 48kHz, 8-channel audio output and decodes AAC and MP3 audio.
Automatically selects a suitable output format based on the connected display’s EDID.
Supports RGB, YUV 4:4:4 and YUV 4:2:2 output signals.
Configurable through the Web UI, Magewell Control Hub or the Modator chassis touchscreen.
Web UI provides real-time device and decoded-signal information, configuration and firmware updates.
Gigabit Ethernet connection, USB Type-C configuration port and USB Type-A 3.0 peripheral port.
Supports HTTP APIs and USB RNDIS/ECM.
Decode and Output Network Video
The module converts live NDI streams and compatible IP video protocols into an HDMI signal for a connected display or other HDMI equipment. It supports NDI High Bandwidth and NDI HX formats alongside H.264 and H.265 streams delivered using supported protocols.
Output formats are selected according to the connected monitor’s EDID, with supported modes including 4K and lower-resolution progressive and interlaced formats.
Configuration and Management
Configure and manage the decoder through its Web UI, Magewell Control Hub or the touchscreen of the Modator chassis. The Web UI provides real-time information about the device and decoded signals, as well as controls for output settings, audio and network configuration.
NDI device discovery across network segments and HTTP APIs support integration into networked production and AV systems.
Designed for Modator Chassis
The hot-swappable module installs in the Magewell Modator 2U chassis, providing a rackmount form factor for deployments that need multiple IP video decoding modules.
Its compact design includes a Gigabit Ethernet port, HDMI 2.0 output, USB configuration and peripheral connections, and a Modator interface.
Product Specifications
| Specification | Details |
|---|---|
| Product type | Hot-swappable NDI-to-HDMI decoder module for Magewell Modator 2U |
| SKU | B41010000 |
| Supported video streams | NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU protocols |
| Maximum decoding resolution | Up to 2Kp60 |
| Video codecs | H.264 and H.265 |
| Audio codecs | AAC and MP3 |
| Maximum HDMI output | 4096x2160p60, 4:4:4, 8-bit |
| Audio output | 48kHz, 8-channel |
| Video output formats | RGB, YUV 4:4:4 and YUV 4:2:2 |
| Interfaces | 1 × RJ45 1000Mbps Ethernet, 1 × USB Type-C configuration port, 1 × USB Type-A 3.0 port, 1 × HDMI 2.0 output and 1 × Modator interface |
| Configuration | Web UI, Magewell Control Hub or Modator chassis touchscreen |
| Dimensions | 184.4mm (L) × 30.0mm (W) × 81.5mm (H) |
| Weight | Approximately 290g |
| Maximum power consumption | 4.3W |
| Operating temperature | 0 to 50°C |
| Storage temperature | −20 to 70°C |
| Relative humidity | 5% to 90%, non-condensing |
