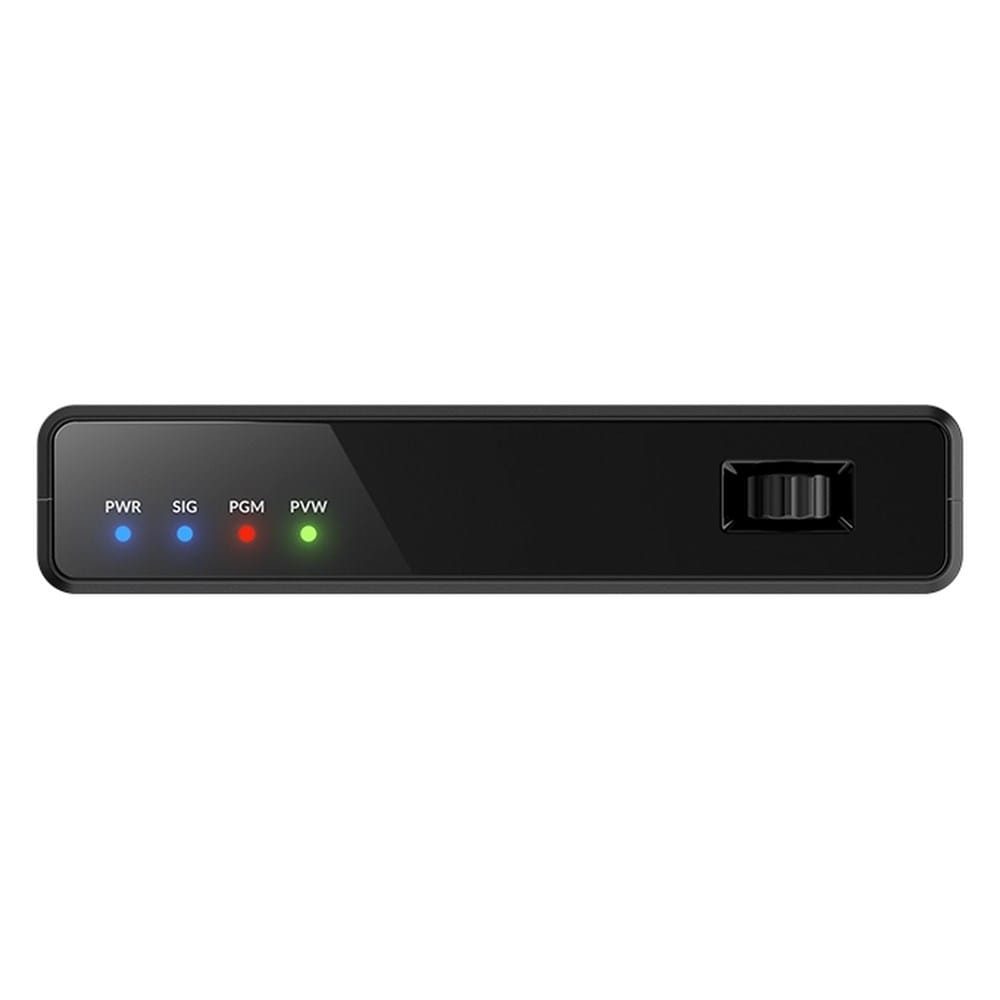

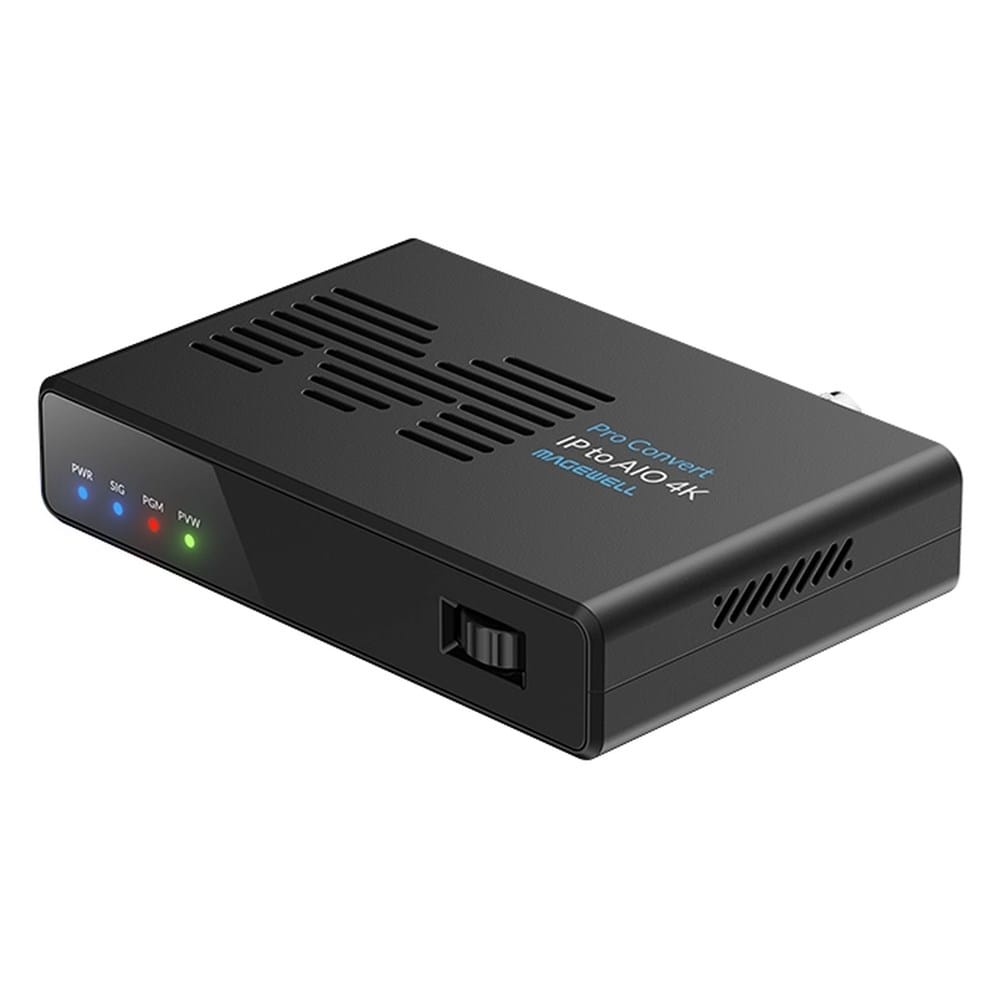

Pro Convert IP to AIO 4K

Flexible IP Decoding for 4K Production

The Magewell Pro Convert IP to AIO 4K is a standalone decoder that converts IP video streams into HDMI and SDI outputs for professional display and distribution workflows. It supports resolutions up to 4Kp60 and can combine multiple streams in preset multiview layouts.

With support for NDI and a wide range of streaming protocols, Pro Convert IP to AIO 4K connects baseband presentation and distribution equipment to IP-based media networks. It is suitable for production, monitoring and AV applications that need flexible video decoding and output options.

Features include:

• Decodes up to four IP video streams.

• Supports single-stream decoding up to 4096×2160p60.

• Supports picture-in-picture decoding of two streams up to 1920×1080p60.

• Supports quad-view decoding of four H.264 or H.265 streams up to 1920×1080p60.

• Preset dual-view and quad-view layouts for multiview monitoring.

• HDMI 2.0 and 12G-SDI video outputs.

• Supports HDR PQ and HLG.

• Compatible with NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3.

• Supports SRT, RTMP, RTSP, HLS, HTTP and Zixi.

• Supports MPEG-TS over RTP, UDP and RIST.

• Provides 8-channel audio output.

• Web GUI provides video preview as a real-time stream or MJPEG image.

• Remote centralized management via Magewell Control Hub or Zixi ZEN Master.

• Supports configuration through the Web GUI, keyboard and mouse, or onboard controls.

Decode Multiple IP Sources

Pro Convert IP to AIO 4K supports single-view, picture-in-picture and quad-view decoding. A single stream can be decoded at up to 4Kp60, while picture-in-picture supports two streams and quad-view supports four HD streams.

Its broad protocol compatibility supports a range of IP video workflows, including NDI, H.264 and H.265 streams delivered through common streaming and transport protocols.

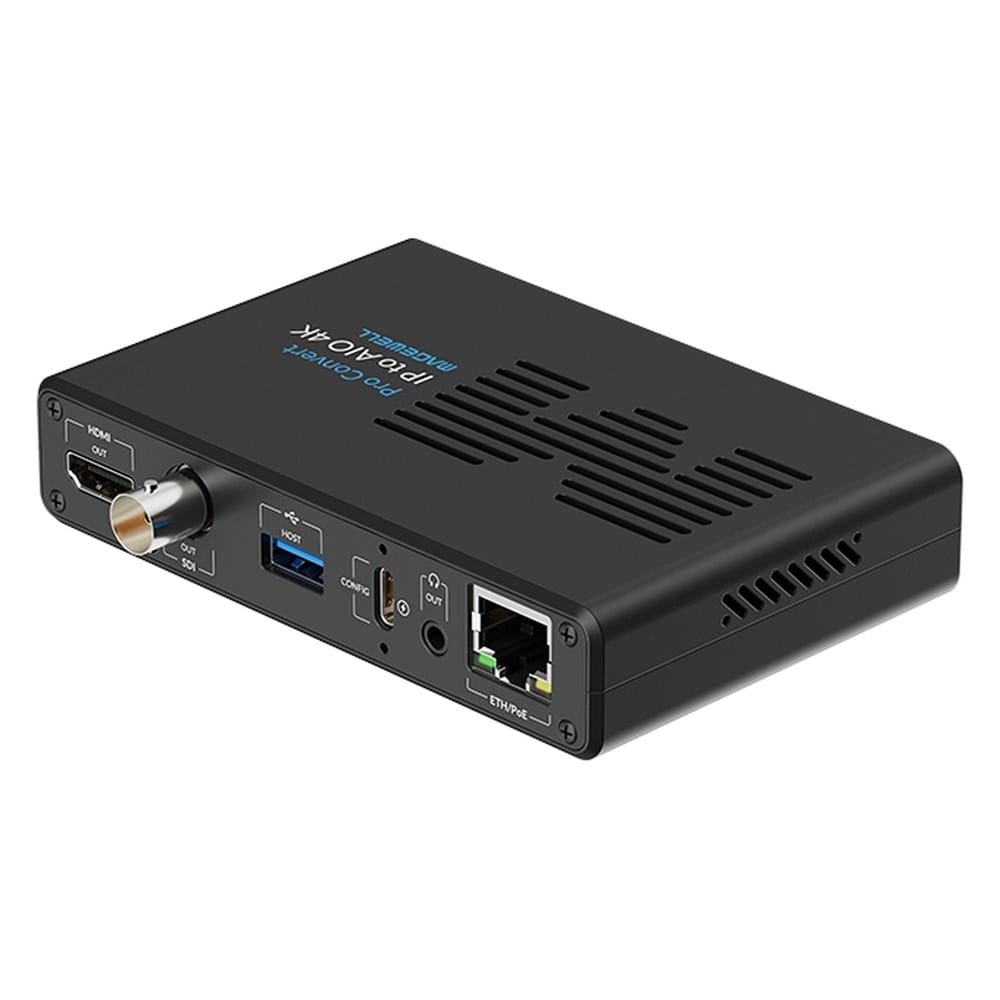

Flexible Video Outputs

The decoder provides HDMI 2.0 and 12G-SDI outputs, with support for video resolutions up to 4096×2160p60. HDR PQ and HLG support helps retain high dynamic range in compatible workflows.

Eight-channel audio output is supported, making the unit suitable for integration with professional display and distribution equipment.

Web-Based Control and Management

The Web GUI provides video preview and configuration controls, while onboard controls and keyboard and mouse operation offer additional ways to adjust settings.

For larger installations, remote centralized management is available through Magewell Control Hub or Zixi ZEN Master. The product also supports HTTP API control.

Product Specifications
