Pro Convert IP to USB
Couldn't load pickup availability
IP Video Capture via USB

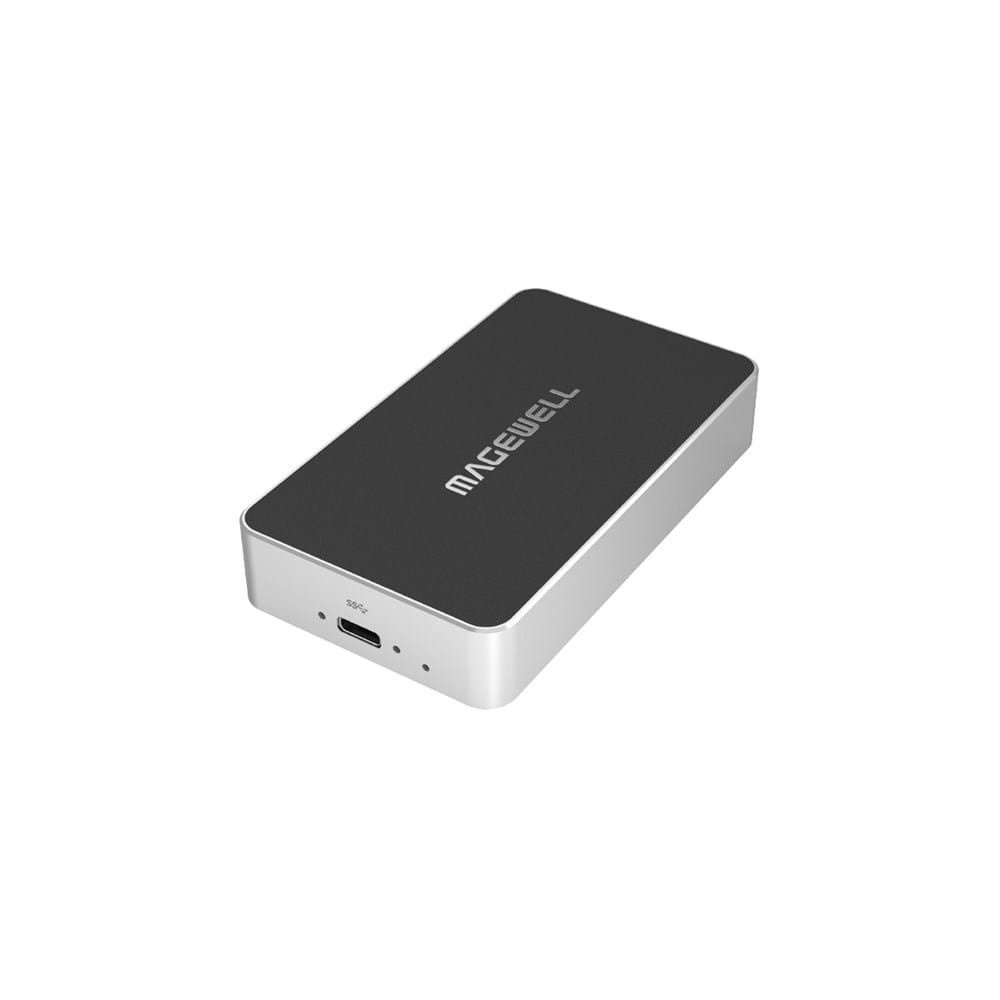

The Magewell Pro Convert IP to USB is a network video decoder that captures NDI and streaming sources into software through a USB Type-C connection. It converts a single IP video stream into a USB webcam signal for use with compatible computers and applications.
Supporting NDI, NDI HX2, NDI HX3 and other streaming protocols, Pro Convert IP to USB provides video output up to 1080p60 and two-channel USB audio. It is suitable for video conferencing, live production, streaming and other workflows that use software capable of detecting a USB webcam.
Features include:
Captures one NDI or streaming video source into software via USB Type-C.
Decodes NDI High Bandwidth, NDI HX2, NDI HX3, RTMP, RTSP, RTP, UDP, SRT and HTTP streams.
Supports NDI 6.
Decodes H.264 and H.265 video.
USB video output up to 1080p60 in YUY2 or NV12 formats.
MJPEG USB video output up to 1080p30.
Two-channel, 16-bit, 48 kHz USB audio output.

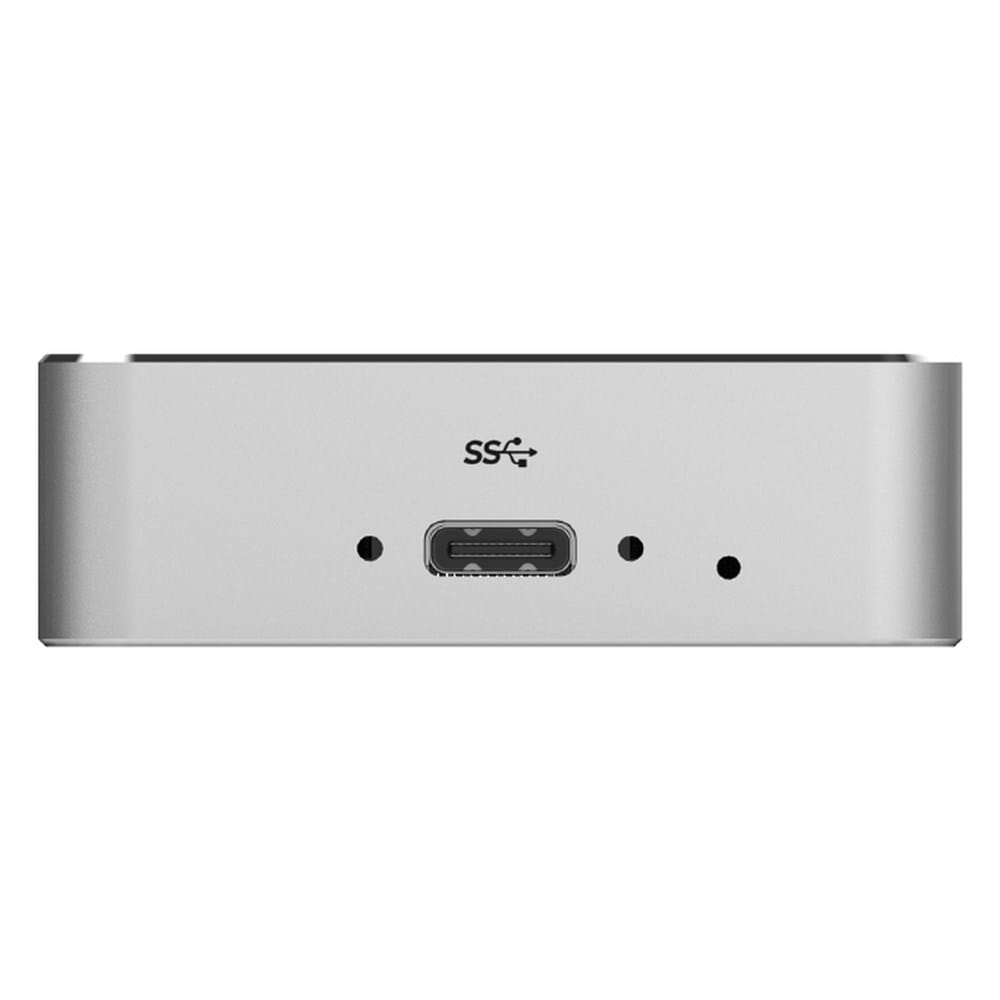

USB 3.0 Type-C host interface with a 5 Gbps link rate.

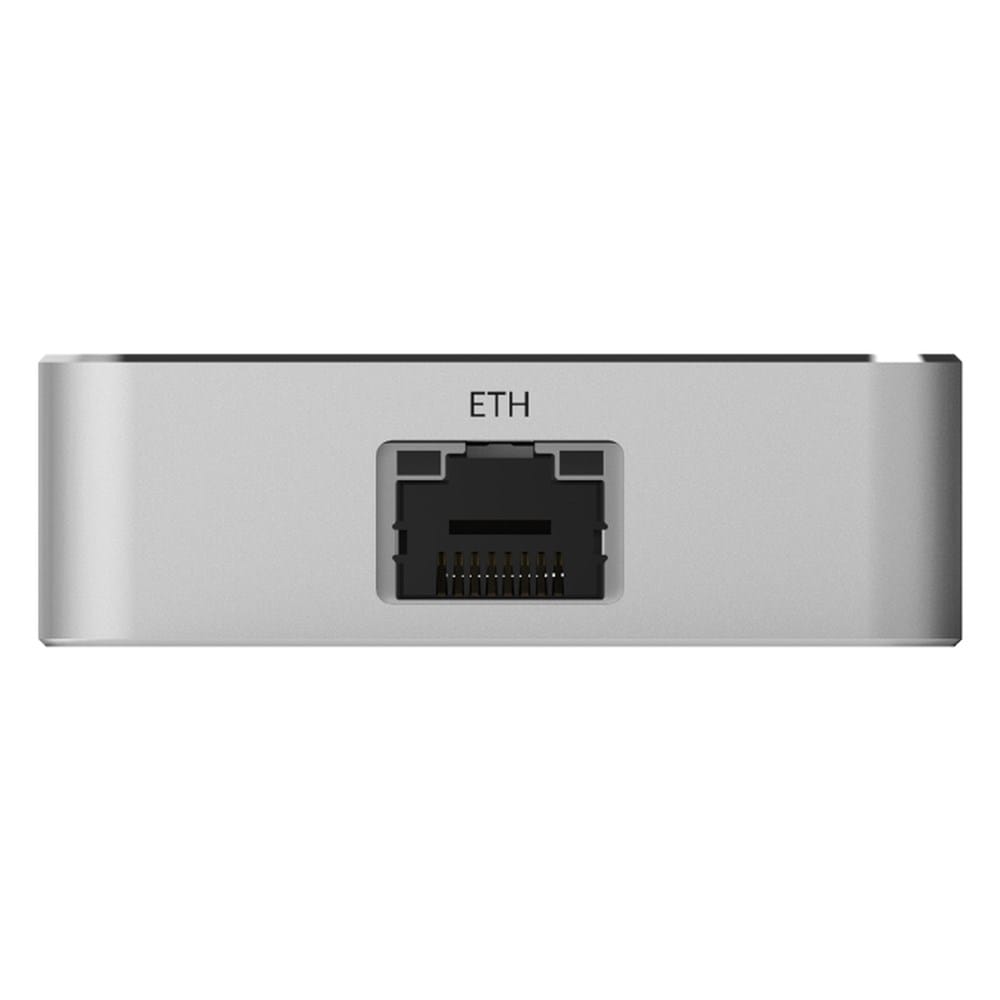

Gigabit Ethernet connection via an RJ45 port.
Compatible with software that can detect a USB webcam, including Zoom Rooms, Microsoft Teams, VLC, OBS Studio, XSplit, QuickTime Player and vMix.
Remote configuration through the Web UI and Control Hub.
HTTP APIs and USB NCM support.
Capture IP Video in USB Software
Pro Convert IP to USB decodes a supported network video stream and presents it to a host as a USB video source. This allows NDI and other IP sources to be used with compatible conferencing, production and streaming software.
Output formats depend on the host USB interface, operating system and capture software. The device supports up to 1080p60 in YUY2 or NV12, and up to 1080p30 in MJPEG.
Video and Audio Decoding
The device can decode one stream of NDI High Bandwidth, NDI HX2, NDI HX3, RTMP, RTSP, RTP, UDP, SRT or HTTP video at up to 1080p60. H.264 and H.265 decoding are supported.
USB audio output is provided as two-channel, 16-bit audio at 48 kHz, for use by compatible host applications.
Network and Remote Configuration
A 10/100/1000 Mbps Ethernet port connects the device to the network. Users can check and set process and capture parameters, upgrade firmware and export troubleshooting information through the Web UI.
Control Hub registration, remote control through Control Hub and HTTP APIs provide additional options for configuration and integration.
Product Specifications
| Specification | Details |
|---|---|
| Product type | IP video decoder and USB capture device |
| Decoding | 1 stream of NDI High Bandwidth, NDI HX2, NDI HX3, RTMP, RTSP, RTP, UDP, SRT or HTTP |
| Maximum decoding resolution | Up to 1080p60 |
| Video codecs | H.264 and H.265 |
| NDI support | NDI 6 |
| Maximum UVC output | 1080p60 YUY2/NV12; 1080p30 MJPEG |
| UAC audio | 2-channel, 16-bit, 48 kHz |
| Host interface | USB 3.0 (5 Gbps) Type-C |
| Network connection | 1 × RJ45, 10/100/1000 Mbps Base-T |
| Configuration | Web UI, Control Hub and HTTP APIs |
| Dimensions | 98.1 × 56.78 × 18 mm |
| Power | 5 V; maximum current approximately 1 A; maximum power consumption approximately 3.8 W |
| Operating temperature | 0 to 50°C |
| Storage temperature | −20 to 70°C |
| Relative humidity | 5% to 90%, non-condensing |
Technical details
IP Video Capture via USB
The Magewell Pro Convert IP to USB is a network video decoder that captures NDI and streaming sources into software through a USB Type-C connection. It converts a single IP video stream into a USB webcam signal for use with compatible computers and applications.
Supporting NDI, NDI HX2, NDI HX3 and other streaming protocols, Pro Convert IP to USB provides video output up to 1080p60 and two-channel USB audio. It is suitable for video conferencing, live production, streaming and other workflows that use software capable of detecting a USB webcam.
Features include:
Captures one NDI or streaming video source into software via USB Type-C.
Decodes NDI High Bandwidth, NDI HX2, NDI HX3, RTMP, RTSP, RTP, UDP, SRT and HTTP streams.
Supports NDI 6.
Decodes H.264 and H.265 video.
USB video output up to 1080p60 in YUY2 or NV12 formats.
MJPEG USB video output up to 1080p30.
Two-channel, 16-bit, 48 kHz USB audio output.
USB 3.0 Type-C host interface with a 5 Gbps link rate.
Gigabit Ethernet connection via an RJ45 port.
Compatible with software that can detect a USB webcam, including Zoom Rooms, Microsoft Teams, VLC, OBS Studio, XSplit, QuickTime Player and vMix.
Remote configuration through the Web UI and Control Hub.
HTTP APIs and USB NCM support.
Capture IP Video in USB Software
Pro Convert IP to USB decodes a supported network video stream and presents it to a host as a USB video source. This allows NDI and other IP sources to be used with compatible conferencing, production and streaming software.
Output formats depend on the host USB interface, operating system and capture software. The device supports up to 1080p60 in YUY2 or NV12, and up to 1080p30 in MJPEG.
Video and Audio Decoding
The device can decode one stream of NDI High Bandwidth, NDI HX2, NDI HX3, RTMP, RTSP, RTP, UDP, SRT or HTTP video at up to 1080p60. H.264 and H.265 decoding are supported.
USB audio output is provided as two-channel, 16-bit audio at 48 kHz, for use by compatible host applications.
Network and Remote Configuration
A 10/100/1000 Mbps Ethernet port connects the device to the network. Users can check and set process and capture parameters, upgrade firmware and export troubleshooting information through the Web UI.
Control Hub registration, remote control through Control Hub and HTTP APIs provide additional options for configuration and integration.
Product Specifications
| Specification | Details |
|---|---|
| Product type | IP video decoder and USB capture device |
| Decoding | 1 stream of NDI High Bandwidth, NDI HX2, NDI HX3, RTMP, RTSP, RTP, UDP, SRT or HTTP |
| Maximum decoding resolution | Up to 1080p60 |
| Video codecs | H.264 and H.265 |
| NDI support | NDI 6 |
| Maximum UVC output | 1080p60 YUY2/NV12; 1080p30 MJPEG |
| UAC audio | 2-channel, 16-bit, 48 kHz |
| Host interface | USB 3.0 (5 Gbps) Type-C |
| Network connection | 1 × RJ45, 10/100/1000 Mbps Base-T |
| Configuration | Web UI, Control Hub and HTTP APIs |
| Dimensions | 98.1 × 56.78 × 18 mm |
| Power | 5 V; maximum current approximately 1 A; maximum power consumption approximately 3.8 W |
| Operating temperature | 0 to 50°C |
| Storage temperature | −20 to 70°C |
| Relative humidity | 5% to 90%, non-condensing |
