USB Capture HDMI 4K Pro

4Kp60 HDMI Capture with USB 3.2

The Magewell USB Capture HDMI 4K Pro is a one-channel HDMI capture device for recording, streaming and other video workflows. It supports capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a host with USB 3.2 Gen 2x2 connectivity.

With HDMI loop-through, embedded HDMI audio support and a 3.5mm audio input and headphone output, the device brings video capture and monitoring together in a compact interface. Driver-free setup and broad software compatibility make it suitable for live production, presentations, conferencing and other professional applications.

Features include:

• One-channel HDMI video capture.

• Capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a compatible 20Gbps USB host.

• USB 3.2 Gen 2x2 Type-C host interface with transfer rates up to 20Gbps.

• HDMI loop-through for sending the source signal to a monitor or projector.

• Supports embedded HDMI audio.

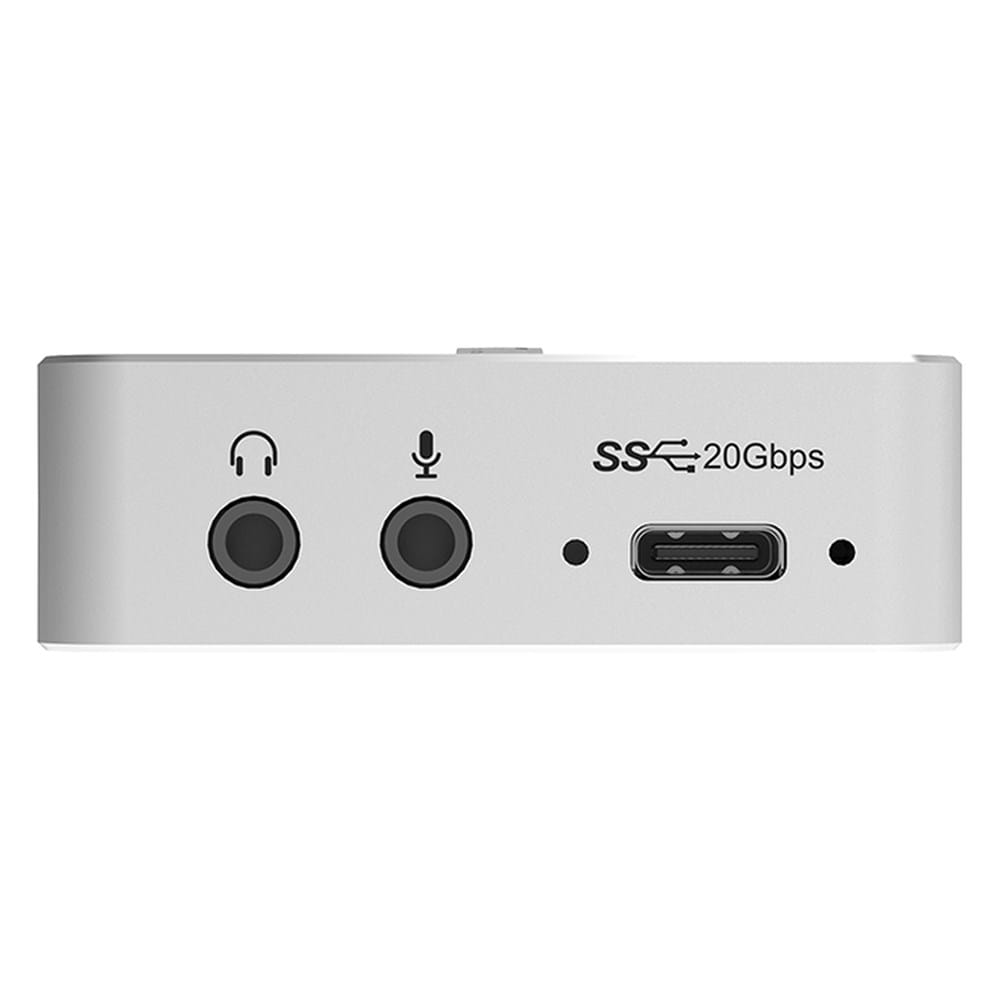

• 3.5mm audio input and stereo headphone output.

• Supports 10-bit HDR source capture through software that directly supports the feature via the Magewell SDK.

• Compatible with lower-performance USB interfaces, with capture capabilities dependent on host connectivity and operating system.

• Driver-free setup with automatic input signal format detection.

• UVC compatibility for use with a wide range of video software.

• Compatible with Windows, macOS, Linux and Chrome OS.

• Built-in FPGA video processing supports deinterlacing, up/down conversion and image controls.

• Includes USB Type-C to Type-C, USB Type-C to Type-A and HDMI cables.

High-Resolution HDMI Capture

When connected to a host with USB 3.2 Gen 2x2 connectivity, USB Capture HDMI 4K Pro can capture HDMI signals up to 4096×2160 at 60fps with 4:4:4 chroma fidelity. Capture performance depends on the USB connection and operating system; lower-bandwidth connections support different resolutions, frame rates and colour formats.

For compatible software, the device can also capture 10-bit HDR sources through the Magewell SDK. HDR capture requires software that directly supports this device feature.

Loop-Through and Audio Connections

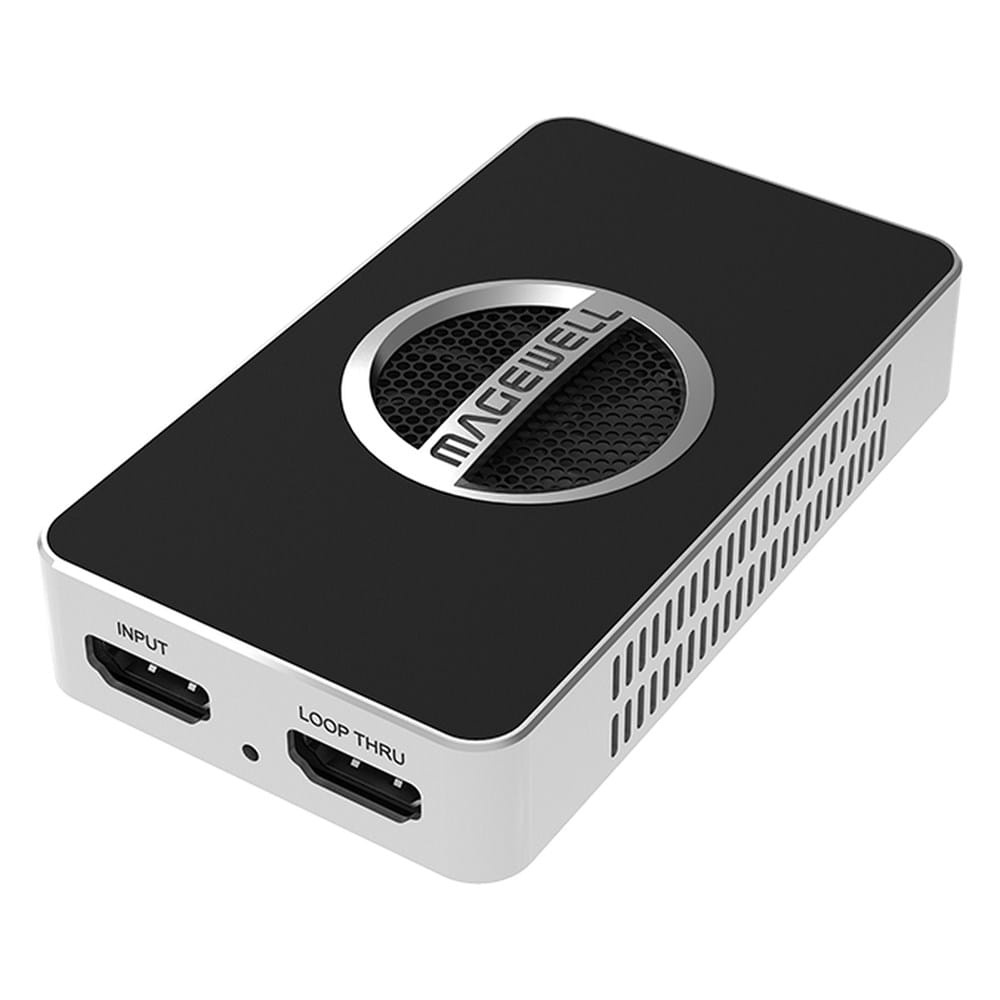

The HDMI loop-through sends the input signal to a monitor or projector while the device captures it over USB, without requiring a separate splitter. Embedded HDMI audio is supported alongside a 3.5mm audio input and stereo headphone output.

These connections allow the device to fit into workflows that need local video monitoring and audio capture alongside computer-based production or streaming.

Flexible Computer Compatibility

USB Capture HDMI 4K Pro offers driver-free setup, automatic input format detection and UVC compatibility for use with a wide range of software. It supports Windows, macOS, Linux and Chrome OS.

The device can also connect to lower-performance USB interfaces, although available capture formats depend on the host computer's USB connectivity and operating system.
