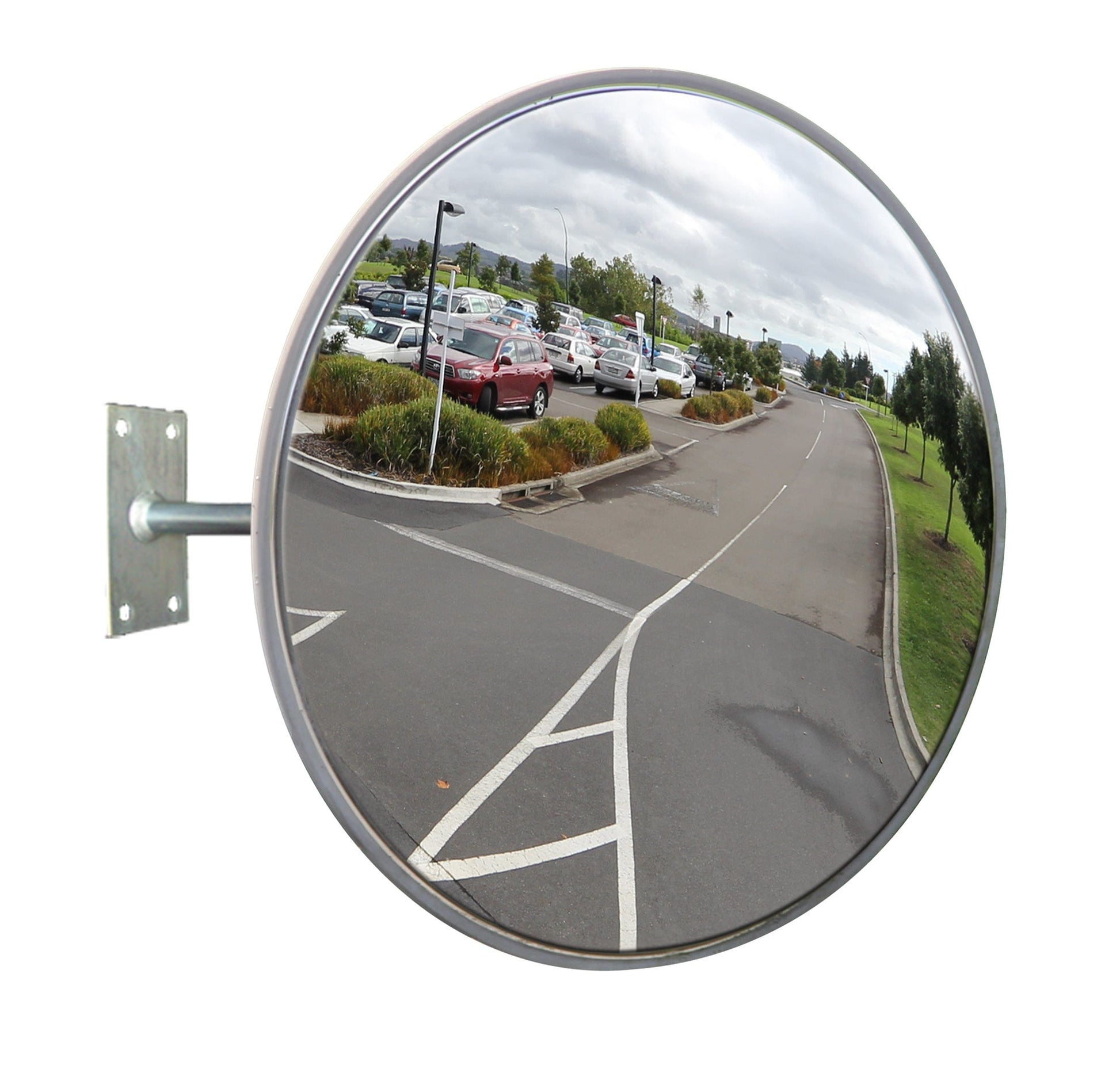

Outdoor Heavy Duty Acrylic Mirror

Outdoor Heavy Duty Acrylic Mirror

Product SKU: 18078S

Robust mirror for industrial & Outside Spaces

The weather resistant heavy duty acrylic convex mirror is versatile and robust and will handle many industrial and traffic situations. Complete with a fully adjustable wall mounting bracket (optional pole mounting accessories are available) which is easy to install and allows the mirror to be angled in the most effective position. The mirror face is manufactured from optical grade 100% virgin acrylic and vacuum metalised using 99% pure Aluminium. These advanced mirroring and shaping techniques result in a super-bright, clear reflection with no distortion. For industrial and outdoor situations where extreme weather is not experienced, the heavy duty acrylic mirror is ideal.

Features

  • 2mm or 3mm acrylic mirror face
  • Pure reflective coating
  • Vinyl celuka back
  • Vinyl extrusion

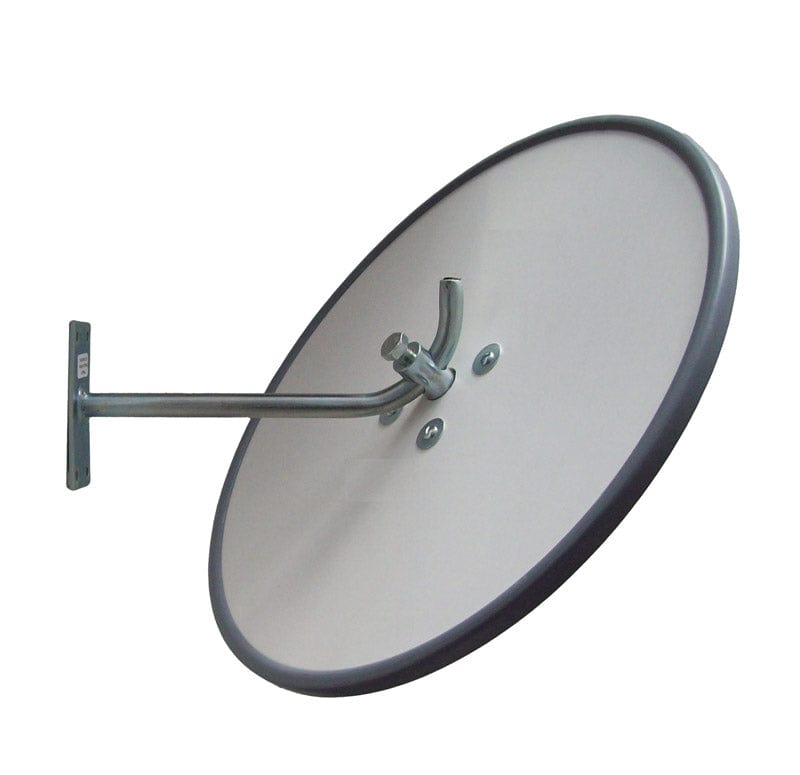

  • Includes Outdoor J-Bracket to fix to wall or ceiling
  • Mounting screws Not included.
  • Pole mounting kit available

Suitable Uses

  • Outdoor Surveillance
  • Industrial Safety

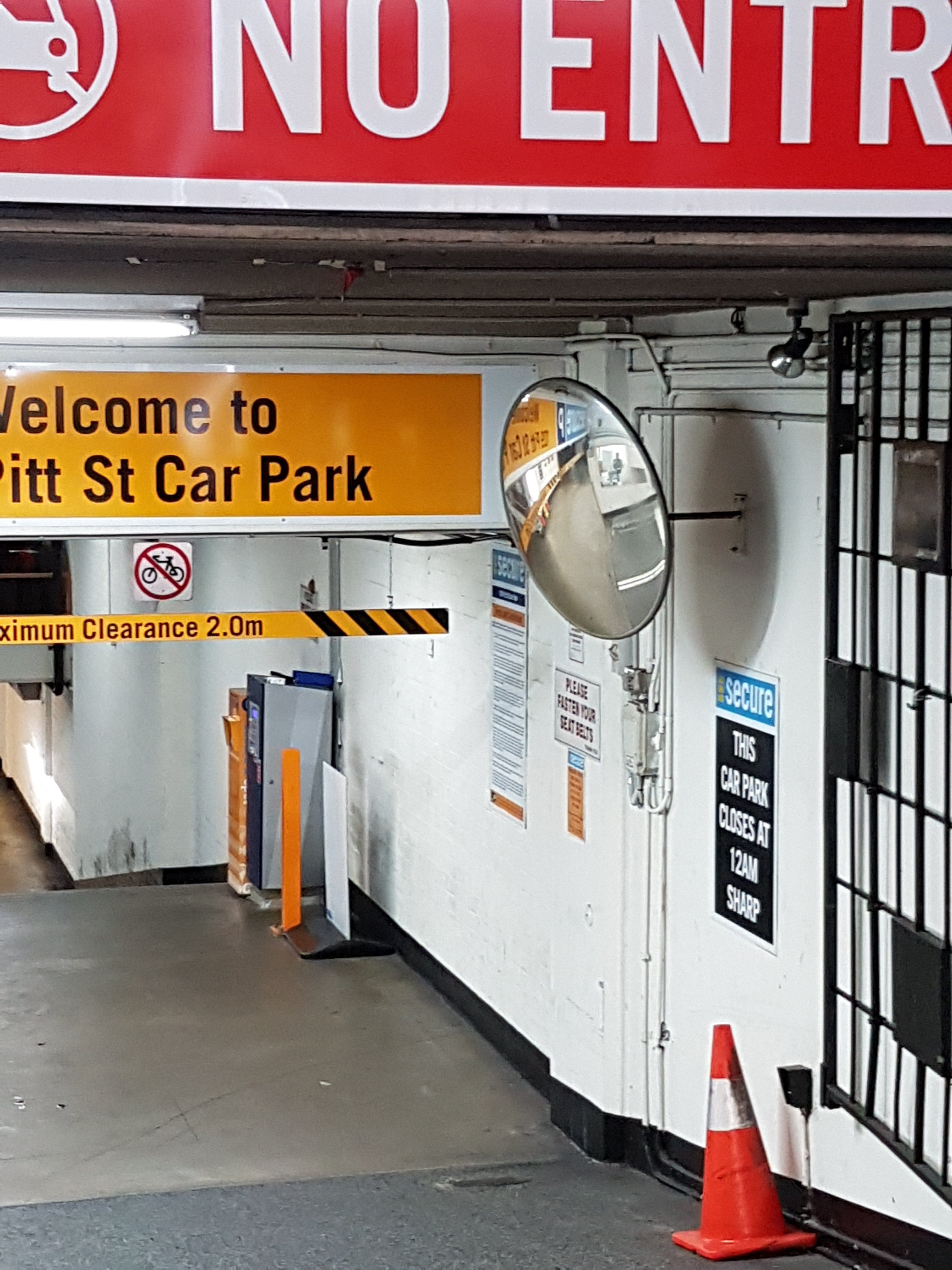

  • Driveways and Carparks
  • Pedestrian Crossings and Sidewalks
  • Livestock Observation and Heat Detection

Installation Guide

  1. Decide the appropriate place to site the mirror to give maximum vision.

  2. Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.

  3. Thread adaptor into the back of the mirror

  4. Peel protective film off around the immediate edge of the mirror.

  5. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

  6. Tighten the locking bolt on the adaptor securely.

Optional Pole Mounting: (NOTE: U-Bolts are optional and must be purchased separately)

  1. Choose a 60mm or 75mm Round pole to attach the U-Bolts to.

  2. 300mm - 760mm diameter mirrors: - Thread the U-Bolts around the J-Bracket and through the U-Bolt Flat Plate.

    900mm - 1200mm diameter mirrors: - Thread the U-Bolts through one side of the J-Bracket and then through both sides of the U-Bolt Flat Plate.

  3. Thread the Washer and Nut onto the U-Bolts and tighten.

  4. Thread adaptor into the back of the mirror

  5. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

  6. Tighten the locking bolt on the adaptor securely and remove protective film.

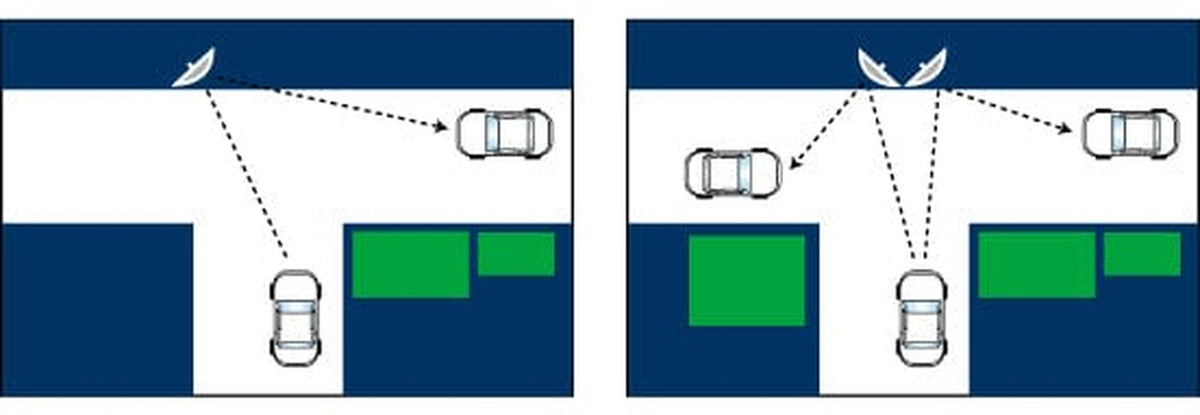

Positioning

Viewing Distance
