By Lumens

CamConnect Pro Microphone Tracking System

$2,935.00
$2,935.00

Back orders Delivered in 4 weeks

Not available for local pickup. On backorder

SKU: AI-BOX1
Availability: Custom order

Want to become a AV Hardware Reseller or find one near you? Contact us or call
09-979-5479.

Overview

The Lumens AI-BOX1 CamConnect Pro is an AI-powered microphone tracking processor that enables any compatible IP or USB conference camera to automatically track the active speaker using directional audio input from a connected microphone array. Rather than requiring a camera with built-in tracking hardware, the AI-BOX1 processes audio signals from leading professional microphone brands and drives camera PTZ movement via network control, turning any supported camera into a smart tracking system. It supports up to four cameras simultaneously and integrates with major video conferencing platforms and control systems.

Key features
  • AI microphone-tracking processor: drives PTZ cameras based on active speaker audio
  • Supports up to 4 IP cameras simultaneously (or 3 IP + 1 USB camera)
  • Compatible microphones: Audio-Technica, Nureva, Sennheiser, Shure, Televic, Yamaha
  • Compatible control modules: ATEN, Crestron, Extron, Kramer, Q-SYS
  • HDMI 2.0 output at 1080p @ 60fps with multiview: PIP, 3-split, 4-split layouts
  • Supports Microsoft Teams, Zoom Room, Zoom, and Google Meet room systems
  • Gigabit Ethernet (RJ-45 10/100/1000); OTA firmware updates
  • USB Type-C power (5V, 4A); no additional power supply required
  • Compact desktop form factor
  • 5-year warranty

Warranty

5-year warranty

Lumens Camera CamConnect Pro Microphone Tracking System
$2,935.00
$2,935.00

Technical details

  • Supports up-to 4 IP cameras
  • Supports up-to 16 multiple array microphones
  • Supports PBP and 2x2 multiview output
  • AI algorithm for people tracking and center stage

Voice Tracking Camera Control

AI-Box1 matches directional audio data with preset camera positions to focus on the active speaker. If the speaker adjusts their position, the camera will intelligently correct the preset to keep the subject in the center of the frame.





Hybrid Audio-Visual Tracking Algorithm

Turning a PTZ camera into an auto-tracking camera, AI-Box1 uses live data from microphones to track a presenter or teacher as they move across a stage. This makes the unit an ideal partner for lecture capture systems.



Multiple Camera Auto Switch

AI-Box1 can use up-to 4 cameras to deliver the best shooting angle, dramatically enhancing AV production and the remote meeting experience. The unit also supports multiview mode, for output of two cameras side by side (PBP) or multiple cameras in a 2x2 gallery.





Microphone Arrays and Digital Signal Processors

AI-Box1 is optimized for a growing line-up of microphones from manufacturers, including Sennheiser, Shure, Yamaha and Nureva. For the latest information, please visit our website.




  • AI microphone-tracking processor: drives PTZ cameras based on active speaker audio
  • Supports up to 4 IP cameras simultaneously (or 3 IP + 1 USB camera)
  • Compatible microphones: Audio-Technica, Nureva, Sennheiser, Shure, Televic, Yamaha
  • Compatible control modules: ATEN, Crestron, Extron, Kramer, Q-SYS
  • HDMI 2.0 output at 1080p @ 60fps with multiview: PIP, 3-split, 4-split layouts
  • Supports Microsoft Teams, Zoom Room, Zoom, and Google Meet room systems
  • Gigabit Ethernet (RJ-45 10/100/1000); OTA firmware updates
  • USB Type-C power (5V, 4A); no additional power supply required
  • Compact desktop form factor
  • 5-year warranty
SpecificationDetail
IP camera protocolRTSP H.264 1080p @ 60fps
USB camera protocolUVC MJPEG 1080p @ 30fps

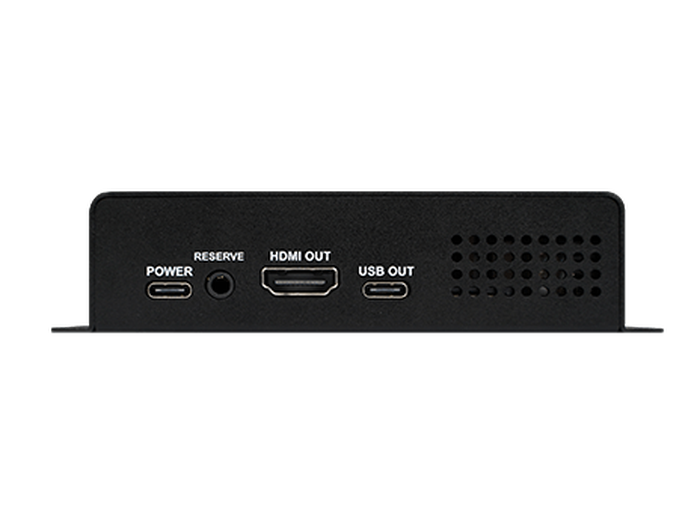

HDMI output1080p @ 60fps (HDMI 2.0)
MultiviewPBP, 3-split, 4-split

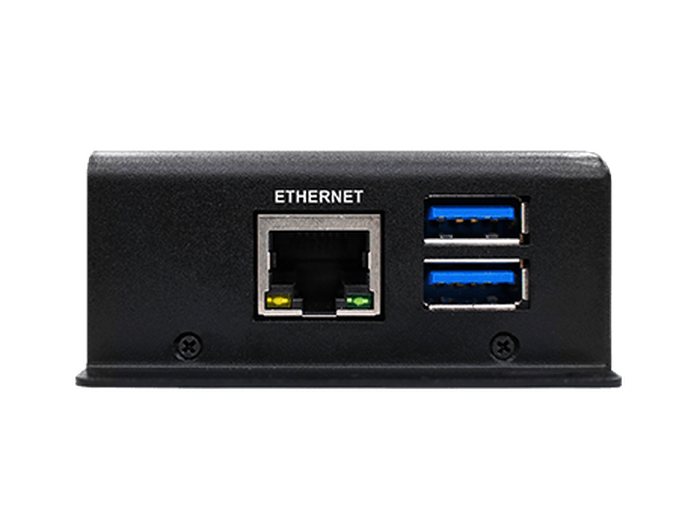

NetworkRJ-45 10/100/1000 Gigabit Ethernet
PowerUSB Type-C 5V 4A (20W)
Dimensions126 x 70 x 30mm
Weight350g
Warranty5 years

Compatibility

  • Up to 4 IP cameras (RTSP H.264 1080p @ 60fps)
  • Up to 1 USB camera (UVC MJPEG 1080p @ 30fps)
  • Audio-Technica, Nureva, Sennheiser, Shure, Televic, Yamaha microphone arrays
  • ATEN, Crestron, Extron, Kramer, Q-SYS control systems
  • Microsoft Teams, Zoom Room, Zoom, Google Meet
