HD IP Digital Signage Display with Speaker & Two-Way Intercom (PoE Powered)

$3,449.00
$3,449.00

Back orders Delivered in 4 weeks

Not available for local pickup. On backorder

SKU: IPCSHD-MB
Availability: Custom order

Want to become a AV Hardware Reseller or find one near you? Contact us or call
09-979-5479.

Overview

The ANetD IPCSHD-L is a large-format PoE++ IP display combining a 1920x540 full-colour LCD, a 21" integrated RGB LED marquee bar, and a four-speaker premium audio system in a single wall-mounted unit for hallways, gyms, lobbies, auditoriums, and large spaces. Powered entirely by a single Cat5e or Cat6 Ethernet cable, it displays time, date, announcements, emergency alerts, evacuation maps, wayfinding, advertising, scoreboards, and live video streams. A built-in microphone enables hands-free two-way intercom across the facility.

Key features
  • 1920x540 full-colour LCD for high-visibility visual messaging
  • 21" integrated RGB LED marquee bar (896 LEDs) for scrolling and flashing emergency or informational alerts
  • 4-speaker system including subwoofer, bass-tuned for large spaces; 107 dB SPL at 1 m
  • Built-in microphone for hands-free two-way intercom

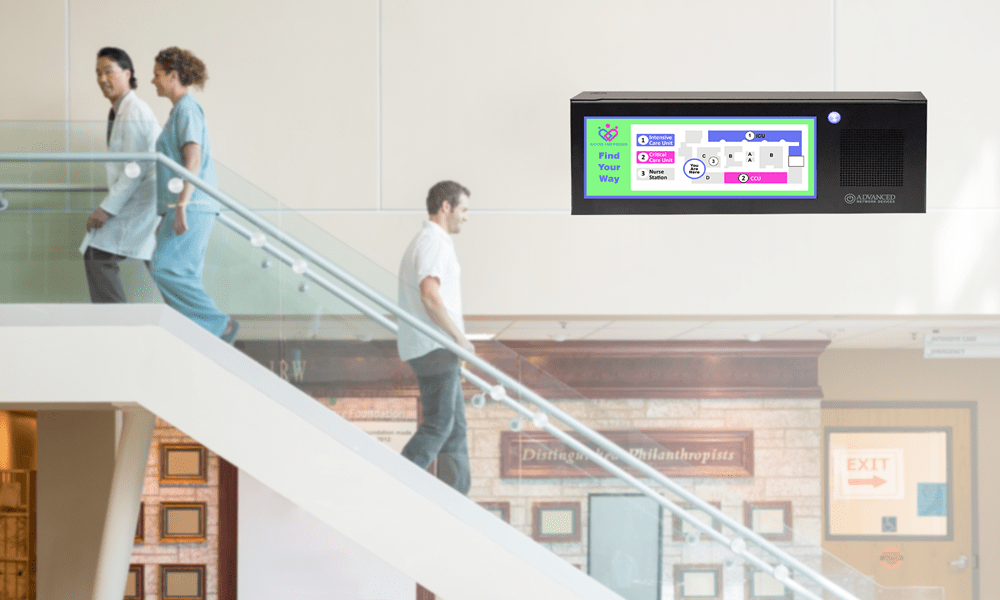

  • Displays live and recorded video streams, evacuation maps, wayfinding, and custom graphics
  • Integrates with security cameras, access control, and threat detection systems
  • PoE++ powered, single Ethernet cable, no AC outlet required
  • VESA mount compatible
  • 6-year limited warranty

Warranty

6-year limited warranty

Product specs Download
Assembly guide Download
Advanced Network Devices HD IP display with speaker and intercom for alerts.
$3,449.00
$3,449.00

Technical details

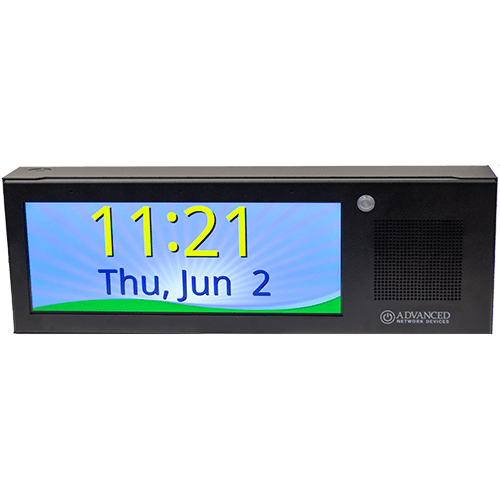

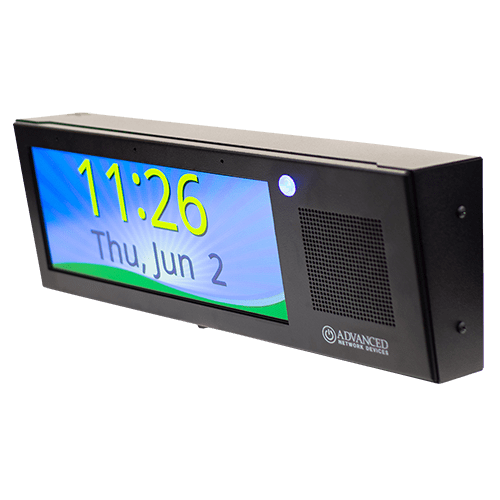

The HD IP Display is a professional-grade PoE-powered network display, delivering high-definition messaging, real-time alerts, and synchronized clock functions across your facility. With a bright 1920x720 LCD screen and integrated speaker, this solution ensures clear, reliable communication for schools, healthcare centres, businesses, and public buildings.

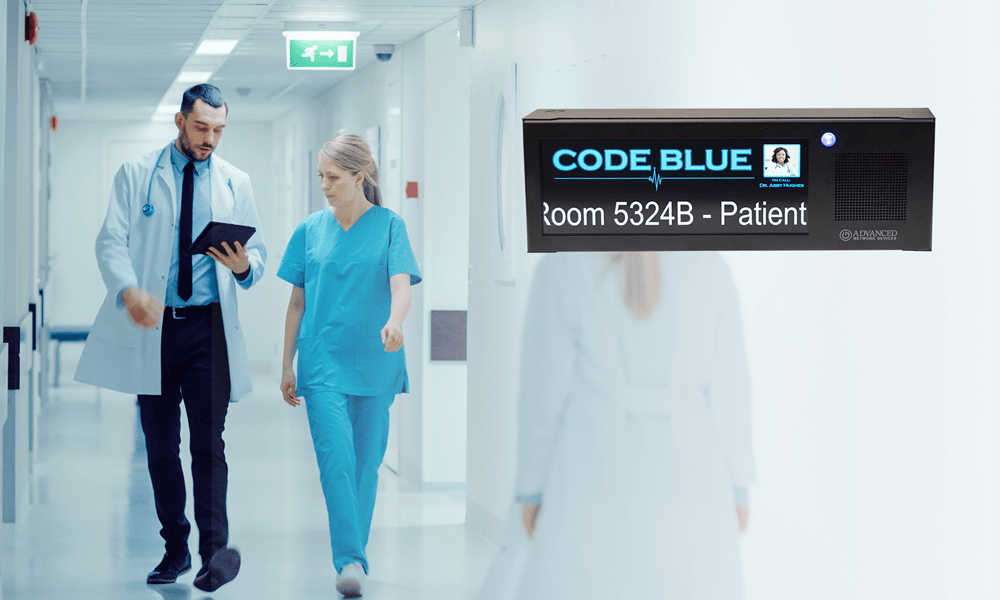

Ideal for emergency notifications, daily announcements, digital signage, and critical updates, the HD IP Display connects easily to your network via PoE+, combining power and data over a single Ethernet cable for fast, cost-effective installations. Whether installed in hallways, lobbies, classrooms, or public areas, it enables organisations to deliver visual and audible information instantly when it matters most.

  • 1920x720 HD Display – Sharp text, graphics, and video.

  • PoE+ Powered – Power and data via a single cable.

  • 2 Way Speaker – Hands free Intercom.

  • Multicast Ready – Real-time network messaging support.

  • Syncing Clock – Auto time updates and DST support.

  • Flexible Messaging – Scrolling, static, and scheduled alerts.

  • Offline Playback – Stores and plays scheduled content without network.

  • Metal Housing – Durable build for indoor use.

  • Wall/Ceiling Mount – Versatile installation options.

  • Low Power Use – Efficient for 24/7 operation.

Perfect in a school environment, the HD IP Display can be used to present synchronized clocks, daily bulletins, bell schedules, and urgent emergency alerts β€” all pushed across the network in real-time. Thanks to its PoE+ capability, setup is quick and efficient, ensuring important messages are delivered both visually and audibly throughout the campus.

Installation only requires access to an Ethernet cable connected to a PoE switch. Once connected to the network, the device will power up automatically. For detailed installation and setup instructions, download ourΒ Full Installation and Setup Guide for AND IP Devices.

  • 1920x540 full-colour LCD for high-visibility visual messaging
  • 21" integrated RGB LED marquee bar (896 LEDs) for scrolling and flashing emergency or informational alerts
  • 4-speaker system including subwoofer, bass-tuned for large spaces; 107 dB SPL at 1 m
  • Built-in microphone for hands-free two-way intercom
  • Displays live and recorded video streams, evacuation maps, wayfinding, and custom graphics
  • Integrates with security cameras, access control, and threat detection systems
  • PoE++ powered, single Ethernet cable, no AC outlet required
  • VESA mount compatible
  • 6-year limited warranty
SpecificationDetail
PowerPoE++ IEEE 802.3bt, 60W (Type 3) or 90W (Type 4); 90W recommended
Ethernet10/100/1000 Mbps
Required CablingCat5e or Cat6
Display Resolution1920x540 full-colour LCD
LED Marquee21", 896 RGB LEDs
Audio CoverageUp to 600 ftΒ²
Frequency Response100 Hz, 20 kHz
Average Sensitivity107 dB SPL at 1 m (4-speaker, 60W)
Audio CodecG.711 A-law/ΞΌ-law, G.722, PCM
Audio InterfacesAnalog line out, analog line in
GPI/GPO2 GPI, 1 GPO (contact closure or 12/24 VDC)
ProtocolsSIP, InformaCast, IPv4, IPv6, 802.1X, HTTP, SNMP v1/v2c, DHCP, NTP, LLDP-MED, MDNS
MountVESA compatible
Operating Temperature-10Β°C to 50Β°C
Dimensions775mm (W) x 310mm (H) x 74mm (D)
Weight8.4 kg
Detail
Single configuration

Compatibility

  • Suitable for hallways, gymnasiums, lobbies, auditoriums, and large open spaces. Compatible with ClockWise Campus, InformaCast, Singlewire, Intrado, Bell Commander, Connexall, and Vigilar threat detection systems. VESA mount compatible.

Product Features

  • ClockWise Campus Software Included

    Comes with ClockWise Campus software, providing advanced scheduling and notification capabilities.

  • Approved Software Partners: Cisco GPL

    Compatible with approved third-party software and listed on the Cisco Global Price List, ensuring seamless integration and procurement.

  • Made in USA

    Manufactured in the United States, ensuring high-quality standards and reliable performance.

  • ISO Certified

    Built in facilities adhering to ISO standards, reflecting a commitment to quality management and product reliability
