IP Speaker with LED Display

$2,425.00
$2,425.00

Back orders Delivered in 4 weeks

Not available for local pickup. On backorder

SKU: IPSWD-RWB
Availability: Custom order

Want to become a AV Hardware Reseller or find one near you? Contact us or call
09-979-5479.

Overview

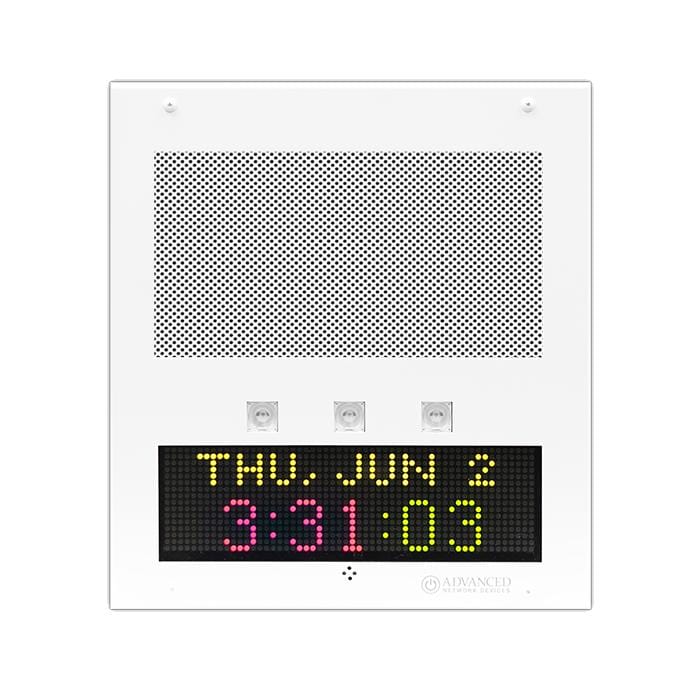

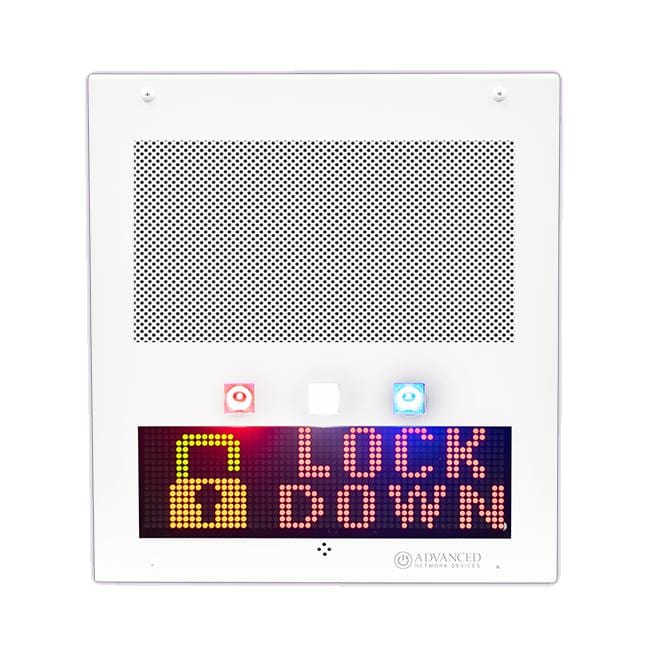

The ANetD IPSWD-RWB is a PoE IP speaker with a multi-colour LED scrolling display and red/white/blue LED flashers, delivering combined audio and visual notifications in a single ceiling or wall-mounted unit. The 8" speaker covers up to 600 ft², while the scrolling LED display shows text and pixel graphics in one or two lines. A built-in microphone enables hands-free two-way intercom. A surface or flush mount enclosure (sold separately) is required for installation.

Key features
  • Multi-colour LED scrolling display shows text and pixel graphics (1 or 2 lines)
  • Red, white, and blue LED flashers individually controlled for visual alerting
  • 8" speaker with up to 600 ft² audio coverage
  • Built-in microphone for hands-free two-way intercom
  • Auto-dimming light sensor adjusts display brightness automatically
  • SIP/VoIP enabled with ClockWise Campus software included
  • PoE powered, single Ethernet cable installation
  • Requires surface or flush mount enclosure (sold separately)
  • 6-year limited warranty

Warranty

6-year limited warranty

Certifications
  • UL STD 60950-1
  • CAN/CSA C22.2 No. 60950-1
  • IEC 62471
  • PoE+ IEEE 802.3at
Product specs Download
Assembly guide Download
Advanced Network Devices IP speaker with LED text display and built-in microphone, wall-mounted.
$2,425.00
$2,425.00

Technical details

The PoE IP Speaker with Display (IPSWD-RWB) works well for offices, classrooms, and any average-sized room.

Key Features:

  • Required surface mount (IPS-SM1) or flush mount (IPS-FM1) enclosure sold separately.
  • Viewable up to 40 feet Configurable multi-colour text and pixel images
  • 8" high-efficiency speaker
  • Flashers for enhanced alert and messaging
  • Built-in microphone and sound masking
  • General purpose inputs and outputs for sensors, buttons, strobes, and contact closures

Installation only requires access to an Ethernet cable connected to a PoE switch. Once connected to the network, the device will power up automatically. For detailed installation and setup instructions, download our Full Installation and Setup Guide for AND IP Devices.

  • Multi-colour LED scrolling display shows text and pixel graphics (1 or 2 lines)
  • Red, white, and blue LED flashers individually controlled for visual alerting
  • 8" speaker with up to 600 ft² audio coverage
  • Built-in microphone for hands-free two-way intercom
  • Auto-dimming light sensor adjusts display brightness automatically
  • SIP/VoIP enabled with ClockWise Campus software included
  • PoE powered, single Ethernet cable installation
  • Requires surface or flush mount enclosure (sold separately)
  • 6-year limited warranty
SpecificationDetail
PowerPoE 802.3af 15.4W or PoE+ 802.3at 30W
Ethernet10/100 Mbps
Speaker Size8"
Audio Power8W / 16W
Frequency Response60 Hz, 17 kHz
Average Sensitivity95 dB (1W/1M)
Audio CodecG.711 A-law/μ-law, PCM
DisplayMulti-colour LED scrolling (1 or 2 line)
FlashersRed/White/Blue LED (individually controlled)
GPI/GPO2 GPI, 1 GPO (17.5 VDC)
ProtocolsSIP, IPv4, IPv6, 802.1X, HTTP, SNMP v1/v2c, DHCP, NTP, LLDP-MED, MDNS
Operating Temperature-10°C to 50°C
Dimensions342mm (W) x 377mm (H) x 124mm (D)
Weight4.7 kg
Detail
Single configuration

Compatibility

  • Requires ANetD surface mount enclosure (IPS-SM1) or flush mount enclosure for installation. Compatible with ClockWise Campus, InformaCast, Singlewire, Intrado, Bell Commander, Connexall, and Vigilar systems.

Product Features

  • ClockWise Campus Software Included

    Comes with ClockWise Campus software, providing advanced scheduling and notification capabilities.

  • Approved Software Partners: Cisco GPL

    Compatible with approved third-party software and listed on the Cisco Global Price List, ensuring seamless integration and procurement.

  • Made in USA

    Manufactured in the United States, ensuring high-quality standards and reliable performance.

  • ISO Certified

    Built in facilities adhering to ISO standards, reflecting a commitment to quality management and product reliability
