By Magewell

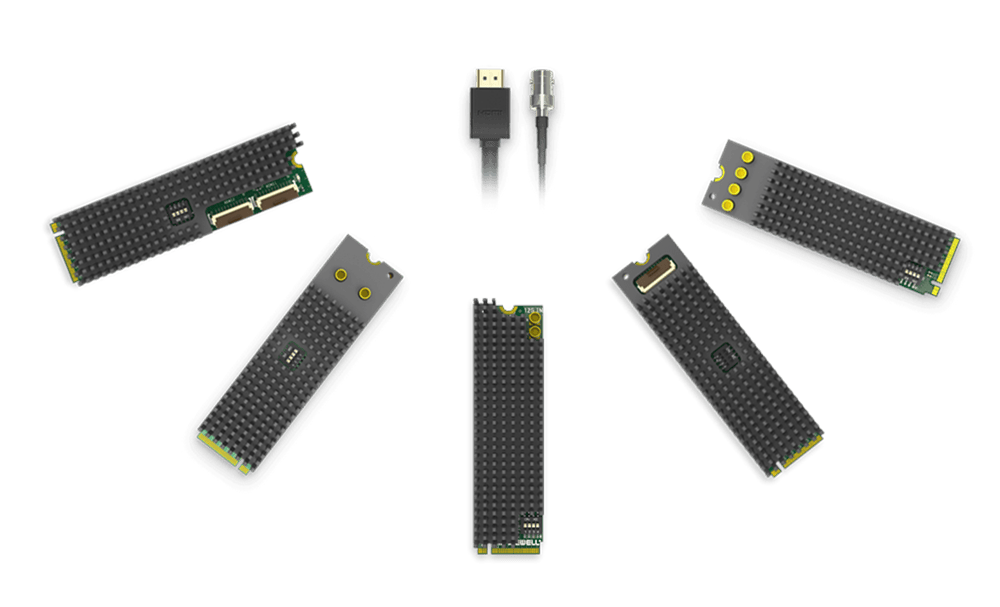

Magewell Eco Capture Dual HDMI M.2 (Modified Connectors)

$935.18
$935.18
SKU: MG-115140000
Availability: In Stock With Supplier

Fast Backorder – Get It Within 14 Days

Not available for local pickup. On backorder

Overview

The Magewell Eco Capture Dual HDMI M.2 is a compact M.2 2280 capture card that captures two independent HDMI/DVI channels, each with embedded audio, at resolutions up to 2048x2160 and frame rates up to 144fps. It connects via a PCIe Gen2 x4 M.2 interface and is supplied in a modified-connector variant using two JST SHD 20-pin or FPC 20-pin sockets for tailored system integration.

Key features
  • Dual HDMI Channels: Captures two independent HDMI sources with embedded audio.
  • High-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
  • Modified Connectors: Supplied with two modified connectors for custom system integration.
  • Compact M.2 Design: M.2 2280 Type M form factor with a PCIe Gen2 interface.

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell Eco Capture dual HDMI M.2 - with two modified connectors (MG-11514)
$935.18
$935.18

Technical details

The Magewell Eco Capture Dual HDMI M.2 (modified connectors) is a compact M.2 capture card for two independent HDMI channels, supplied with two modified connectors for tailored integration. It suits OEMs building bespoke, space-efficient capture appliances.

Ideal for tailored embedded builds, the Eco Capture Dual HDMI M.2 delivers dual-channel HDMI capture with connectors matched to your system.

  • Dual HDMI Channels: Captures two independent HDMI sources with embedded audio.
  • High-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
  • Modified Connectors: Supplied with two modified connectors for custom system integration.
  • Compact M.2 Design: M.2 2280 Type M form factor with a PCIe Gen2 interface.
SpecificationDetail
Video / signalDual HDMI Channels: Captures two independent HDMI sources with embedded audio.
Video / signalHigh-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
Host interfaceCompact M.2 Design: M.2 2280 Type M form factor with a PCIe Gen2 interface.

Compatibility

  • Supported on Windows via DirectShow/DirectKS/WASAPI and Linux via V4L2/ALSA, and works with VLC, VirtualDub, OBS, XSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, and other DirectShow/V4L2 capture software.

Eco Capture Dual HDMI M.2 (Modified Connectors) FAQs

How is this version different?

It offers the same dual-channel HDMI capture as the standard Eco Capture Dual HDMI M.2, but is supplied with two modified connectors for custom integration.

How many sources can it capture?

It captures two independent HDMI sources with embedded audio.

What resolution does it support?

It supports resolutions up to 2048 x 2160 at frame rates up to 144fps.

What form factor does it use?

It is an M.2 2280 Type M card with a PCIe Gen2 interface.

Who should choose this version?

It suits OEMs building bespoke, space-efficient capture appliances that need tailored connectors.

Does it capture audio?

Yes. Each channel captures embedded HDMI audio.
