By Magewell

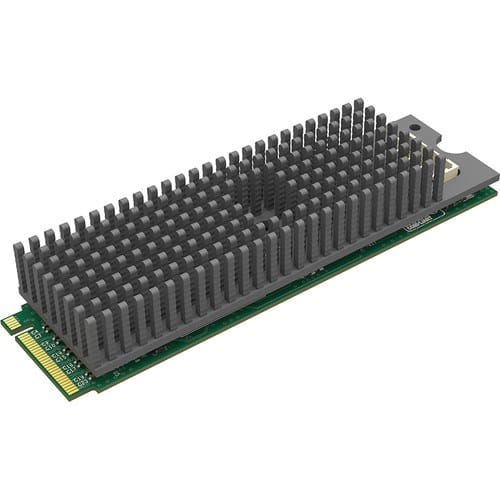

Magewell Eco Capture HDMI 4K M.2 (Modified Connector)

$935.18
$935.18
SKU: MG-115240000
Availability: In Stock With Supplier

Fast Backorder – Get It Within 14 Days

Not available for local pickup. On backorder

Overview

The Magewell Eco Capture HDMI 4K M.2 is a single-channel, compact M.2 2280 capture card that captures one HDMI/DVI-D signal with embedded audio at resolutions up to 4096x2160 and frame rates up to 144fps. It connects via a PCIe Gen2 x4 M.2 interface and is supplied in a modified-connector variant using a JST SHD 20-pin or FPC 20-pin socket for tailored system integration.

Key features
  • 4K HDMI Capture: Captures a single HDMI channel with embedded audio at up to 4096 x 2160.
  • High Frame Rates: Supports capture frame rates up to 144fps.
  • Modified Connector: Supplied with a modified connector for custom system integration.
  • Compact M.2 Design: M.2 2280 Type M form factor with a PCIe Gen2 interface.

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell Eco Capture HDMI 4K M.2 - with a modified connector (MG-11524)
$935.18
$935.18

Technical details

The Magewell Eco Capture HDMI 4K M.2 (modified connector) is a single-channel 4K HDMI capture card in a compact M.2 form factor, supplied with a modified connector for tailored integration. It is built for OEM and embedded 4K capture projects.

Perfect for bespoke embedded 4K systems, the Eco Capture HDMI 4K M.2 offers full 4K capture with a connector matched to your build.

  • 4K HDMI Capture: Captures a single HDMI channel with embedded audio at up to 4096 x 2160.
  • High Frame Rates: Supports capture frame rates up to 144fps.
  • Modified Connector: Supplied with a modified connector for custom system integration.
  • Compact M.2 Design: M.2 2280 Type M form factor with a PCIe Gen2 interface.
SpecificationDetail
Video / signal4K HDMI Capture: Captures a single HDMI channel with embedded audio at up to 4096 x 2160.
Video / signalHigh Frame Rates: Supports capture frame rates up to 144fps.
Host interfaceCompact M.2 Design: M.2 2280 Type M form factor with a PCIe Gen2 interface.

Compatibility

  • Supported on Windows via DirectShow/DirectKS/WASAPI and Linux via V4L2/ALSA, and works with VLC, VirtualDub, OBS, XSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, and other DirectShow/V4L2 capture software.

Eco Capture HDMI 4K M.2 (Modified Connector) FAQs

How is this different from the standard Eco Capture HDMI 4K M.2?

It offers the same single-channel 4K HDMI capture but is supplied with a modified connector for custom system integration.

What resolution does it capture?

It captures one HDMI channel with embedded audio at up to 4096 x 2160.

What frame rates does it support?

It supports capture frame rates up to 144fps.

What form factor does it use?

It is an M.2 2280 Type M card with a PCIe Gen2 interface.

Who should choose this version?

It suits OEMs and integrators building bespoke embedded 4K systems that need a connector matched to their build.

Does it capture audio?

Yes. It captures embedded HDMI audio along with the video.
