By Magewell

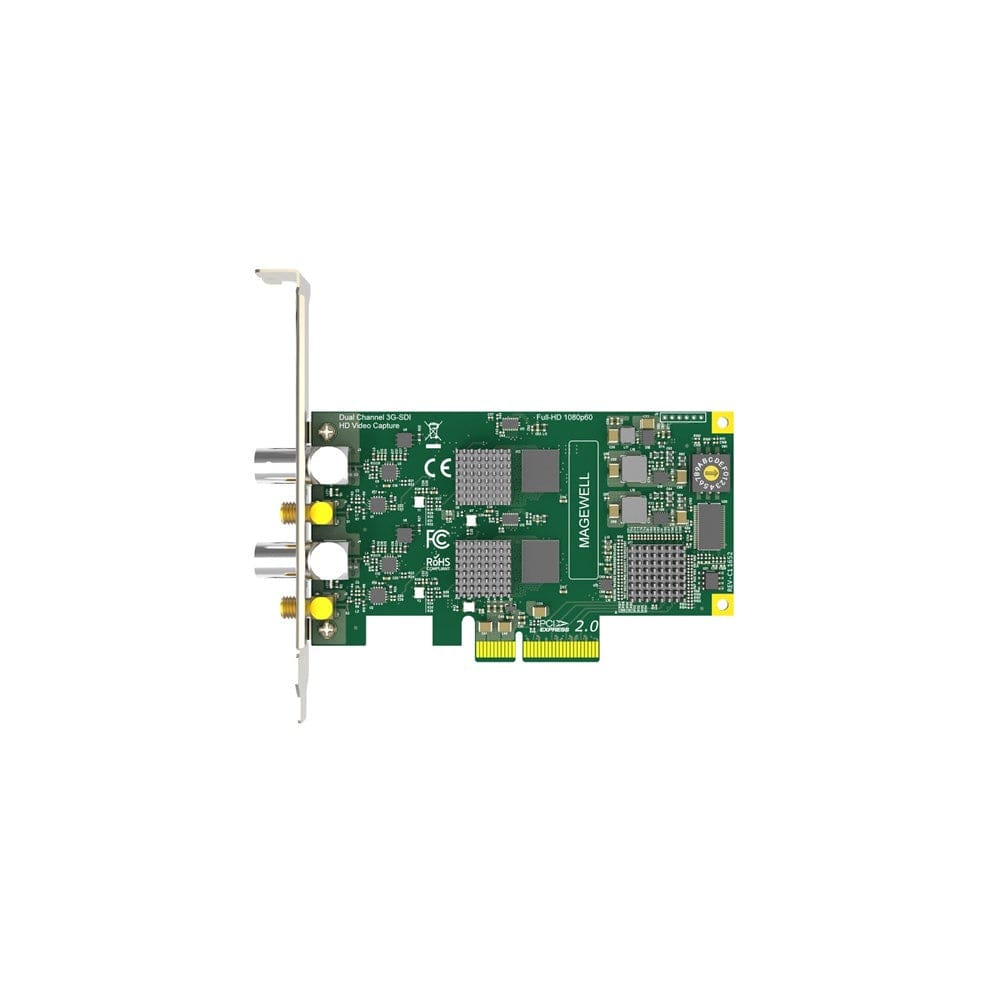

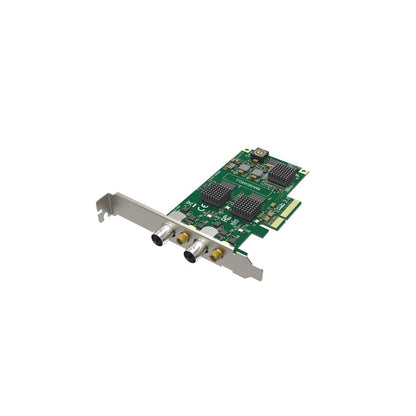

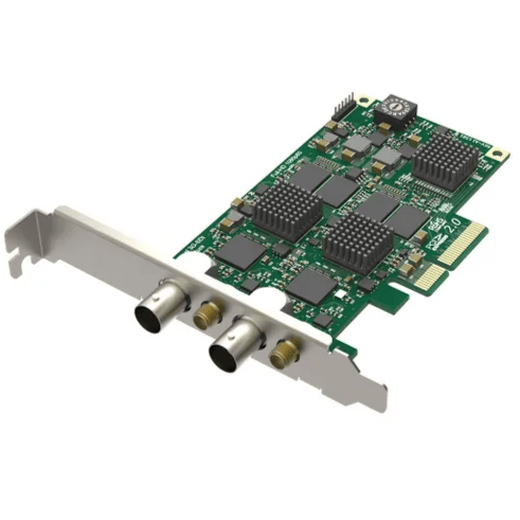

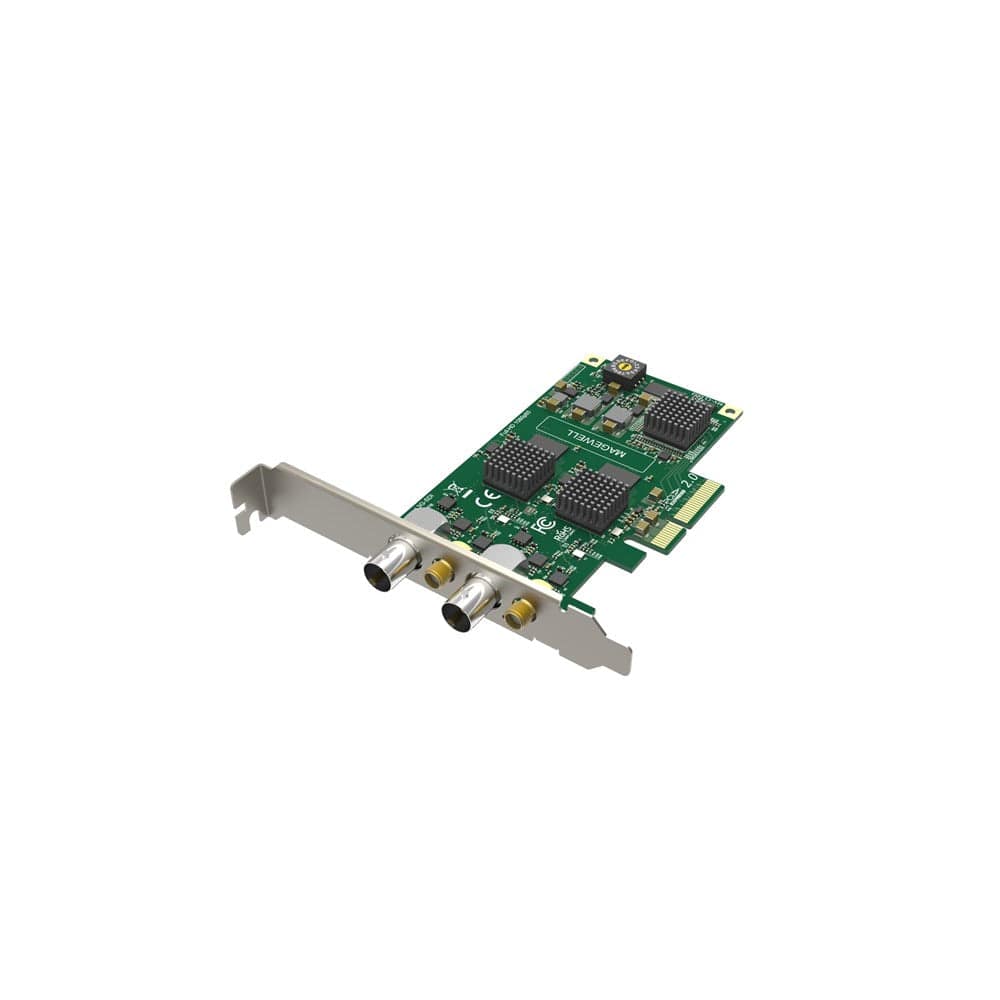

Magewell Pro Capture Dual SDI

$1,348.22
$1,348.22
SKU: MG-110600000
Availability: In Stock With Supplier

Fast Backorder – Get It Within 14 Days

Not available for local pickup. On backorder

Overview

Magewell Pro Capture Dual SDI is a two-channel PCIe Gen2 x4 video capture card that captures two independent SD/HD/3G/2K SDI feeds simultaneously, each with its own SDI loop-through output, for multi-camera broadcast and production. According to the retailer, it supports capture resolutions up to 2048x2160 at frame rates up to 144fps with minimal CPU load, and Closed Caption extraction is available via the Magewell Capture SDK.

Key features
  • Dual SDI Channels: Captures two independent SD/HD/3G/2K SDI sources.

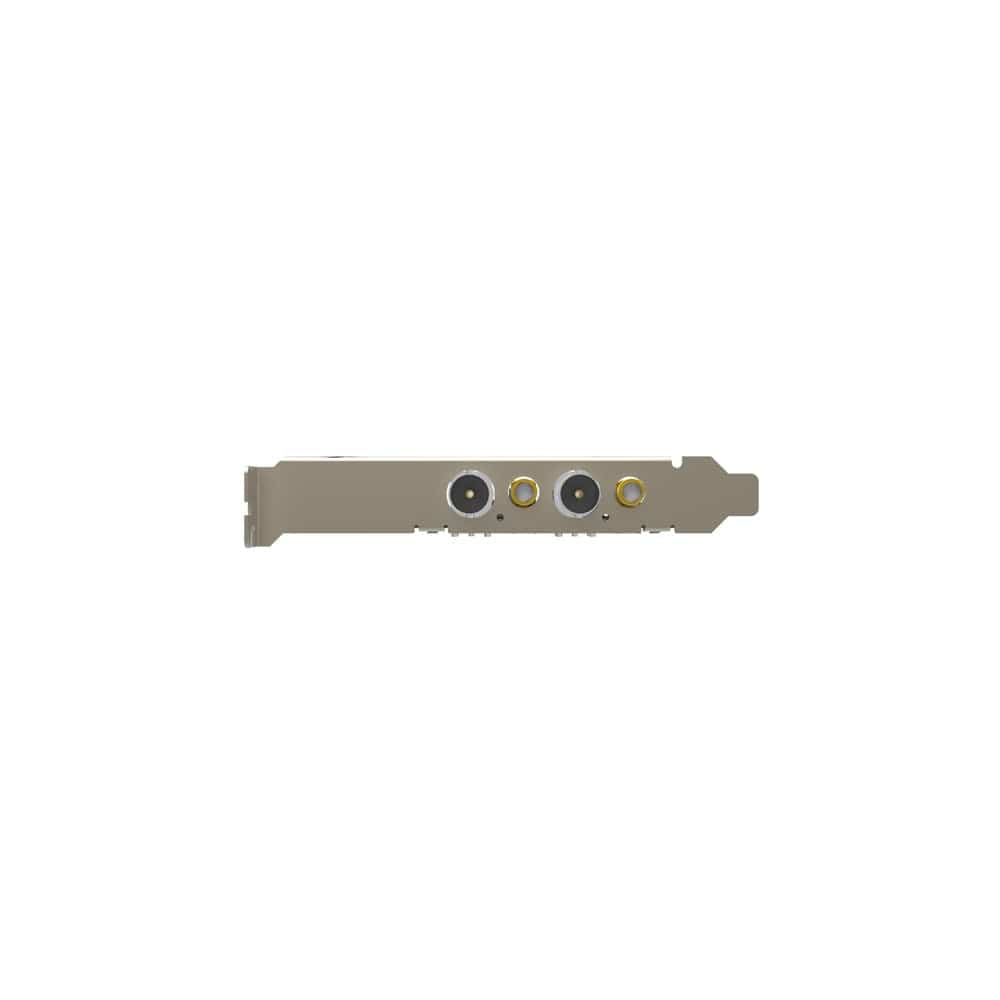

  • Dual Loop-Through: Two SDI loop-through outputs for downstream monitoring.
  • High-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
  • Closed Caption: Closed Caption extraction available via the SDK.
  • PCIe Gen2 x4: High-bandwidth interface for reliable dual-channel capture.

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell I/O (Capture) Magewell Pro Capture Dual SDI
$1,348.22
$1,348.22

Technical details

The Magewell Pro Capture Dual SDI is a two-channel SDI PCIe capture card with per-channel loop-through, designed for multi-camera broadcast and production. It captures two SD/HD/3G/2K SDI feeds at once with minimal CPU load.

Perfect for multi-camera broadcast, the Pro Capture Dual SDI captures two SDI feeds with loop-through on one card.

  • Dual SDI Channels: Captures two independent SD/HD/3G/2K SDI sources.
  • Dual Loop-Through: Two SDI loop-through outputs for downstream monitoring.
  • High-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
  • Closed Caption: Closed Caption extraction available via the SDK.
  • PCIe Gen2 x4: High-bandwidth interface for reliable dual-channel capture.
SpecificationDetail
Video / signalDual SDI Channels: Captures two independent SD/HD/3G/2K SDI sources.
Video / signalDual Loop-Through: Two SDI loop-through outputs for downstream monitoring.
Video / signalHigh-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
Video / signalPCIe Gen2 x4: High-bandwidth interface for reliable dual-channel capture.

Compatibility

  • Compatible with Windows, Linux and macOS via the Magewell Capture SDK; works with common DirectShow/V4L2/AVCaptureSession-based capture and streaming software such as OBS Studio, vMix and Wirecast.

Pro Capture Dual SDI FAQs

How many SDI channels does it capture?

It captures two independent SD, HD, 3G or 2K SDI sources.

Does it have loop-through outputs?

Yes. It has two SDI loop-through outputs for downstream monitoring.

What resolution does it support?

It supports resolutions up to 2048 x 2160 at frame rates up to 144fps.

Can it extract closed captions?

Yes. Closed caption extraction is available via the Magewell SDK.

What PCIe interface does it use?

It uses a PCIe Gen2 x4 interface.

Can it capture 4K SDI?

No. It captures SD, HD, 3G and 2K SDI. For 4K, the Pro Capture Dual SDI 4K Plus captures two 12G-SDI channels at up to 4096 x 2160.
