Overview

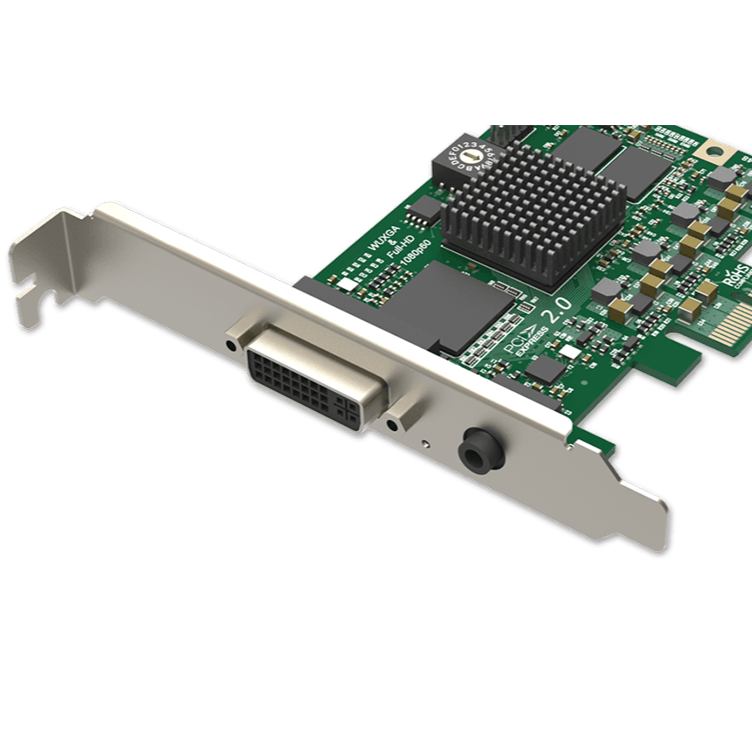

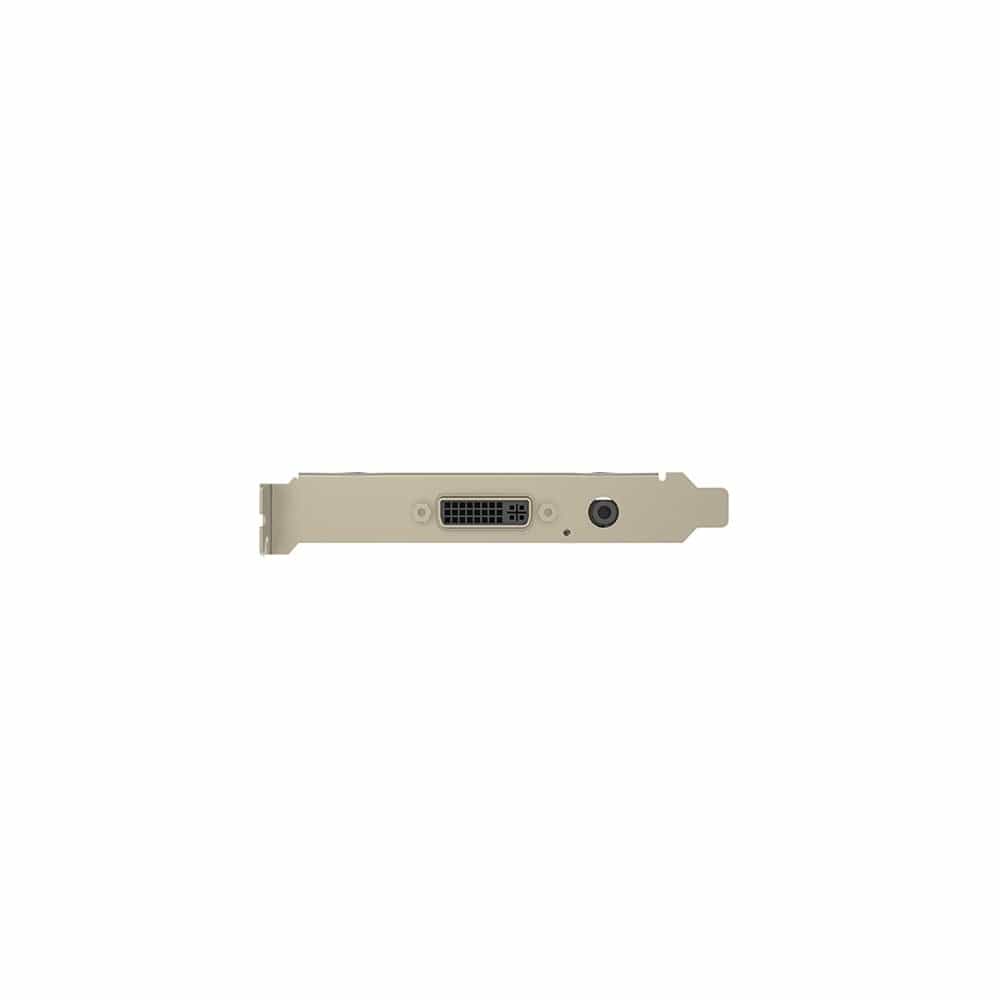

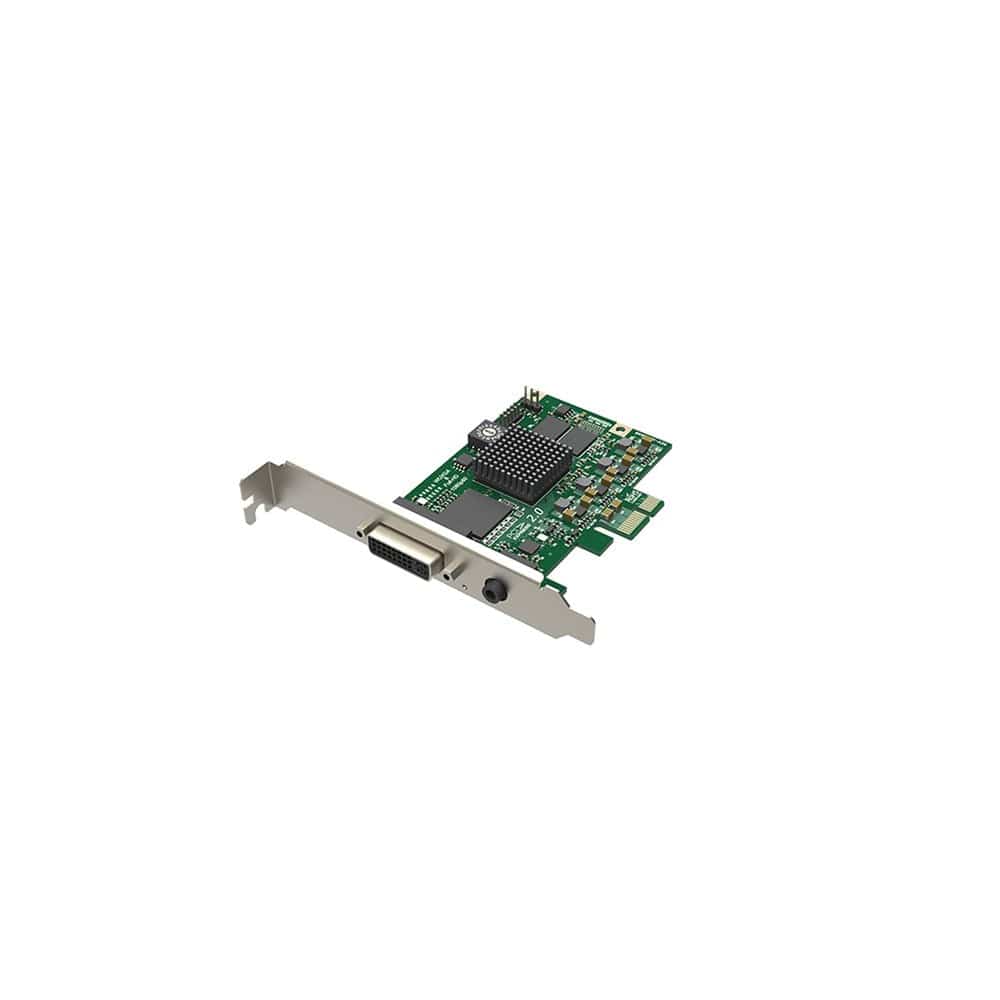

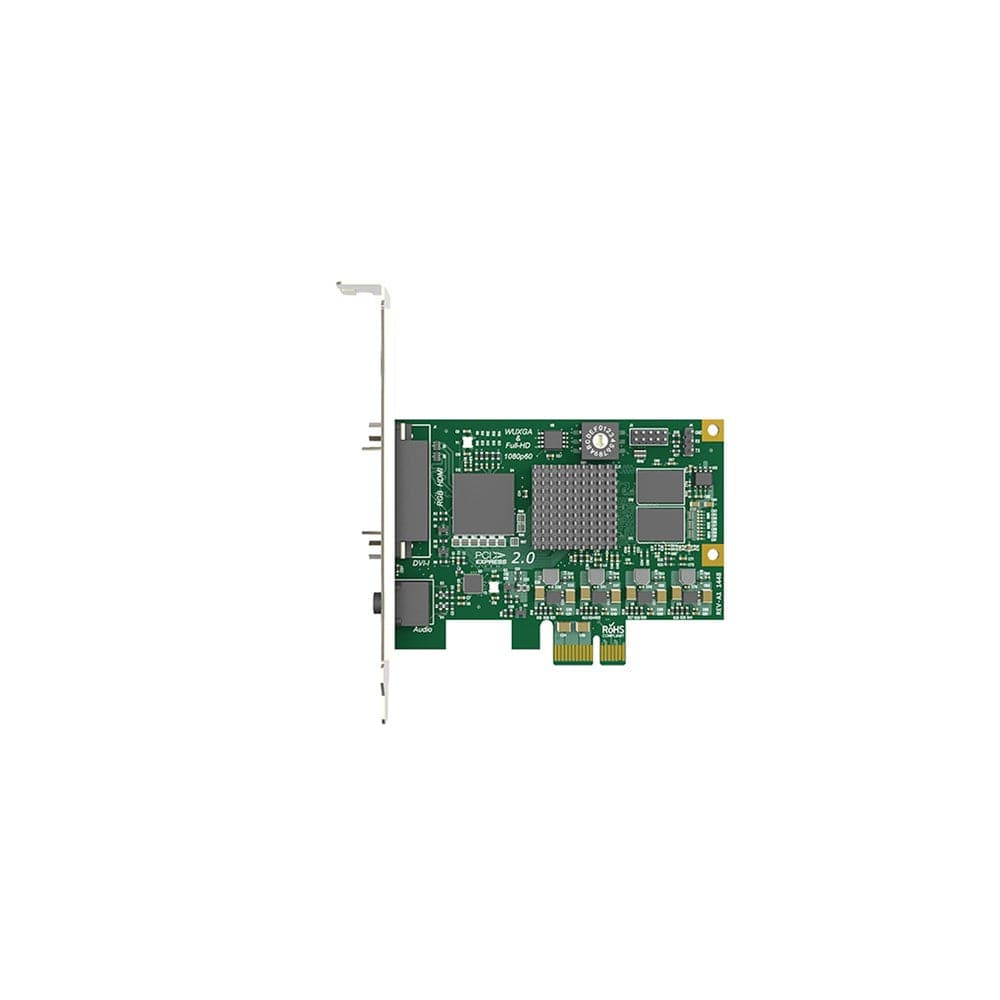

The Magewell Pro Capture DVI is a single-channel PCIe capture card that accepts DVI-I, HDMI (via breakout cable), VGA (via adapter), component (via breakout cable) and a 3.5mm analog line-in audio input. It uses a PCIe Gen2 x1 host interface and hardware FPGA processing to capture resolutions up to 2048x2160 pixels at up to 144fps with low CPU overhead.

Key features
  • Flexible Inputs: Captures DVI, VGA, component and HDMI sources.
  • High-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
  • Accurate Analog: 12-bit ADC delivers precise capture of analog signals.
  • Custom EDID: Supports customized EDID for source compatibility.
  • PCIe Gen2 x1: Compact single-lane interface for broad system fit.

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell I/O (Capture) Magewell Pro Capture DVI
$827.67
$827.67

Technical details

The Magewell Pro Capture DVI is a single-channel PCIe capture card for DVI, VGA, component and HDMI sources. It is well suited to capturing computer output and analog signals with high accuracy.

Ideal for capturing PC and legacy video, the Pro Capture DVI provides flexible, accurate capture in a single card.

  • Flexible Inputs: Captures DVI, VGA, component and HDMI sources.
  • High-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
  • Accurate Analog: 12-bit ADC delivers precise capture of analog signals.
  • Custom EDID: Supports customized EDID for source compatibility.
  • PCIe Gen2 x1: Compact single-lane interface for broad system fit.
SpecificationDetail
Video / signalFlexible Inputs: Captures DVI, VGA, component and HDMI sources.
Video / signalHigh-Quality Capture: Supports resolutions up to 2048 x 2160 at frame rates up to 144fps.
Video / signalAccurate Analog: 12-bit ADC delivers precise capture of analog signals.
Host interfacePCIe Gen2 x1: Compact single-lane interface for broad system fit.

Compatibility

  • Supported on Windows (DirectShow, DirectKS, WASAPI/DirectSound), Linux (V4L2, ALSA) and macOS (AVCaptureSession, AudioUnit), and verified with VLC, VirtualDub, OBS, XSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, and other DirectShow/V4L2/AVCaptureSession capture or streaming software.

Pro Capture DVI FAQs

Which sources can the Pro Capture DVI capture?

It captures DVI, VGA, component and HDMI sources.

What resolution does it support?

It supports resolutions up to 2048 x 2160 at frame rates up to 144fps.

How accurate is analog capture?

A 12-bit ADC delivers precise capture of analog signals.

Does it support custom EDID?

Yes. Customised EDID is supported for better source compatibility.

What PCIe interface does it use?

It uses a compact PCIe Gen2 x1 interface.

Is there a two-channel version?

Yes. The Pro Capture Dual DVI captures two DVI, VGA, component or HDMI sources at once on a PCIe Gen2 x4 card.
