By Magewell

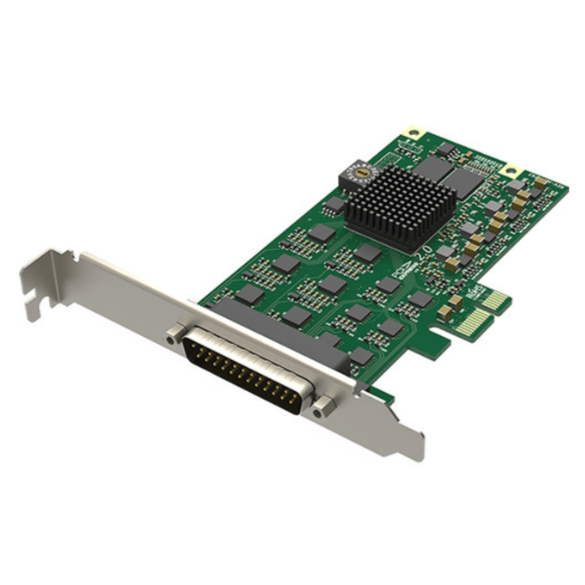

Magewell Pro Capture Hexa CVBS

$1,452.33
$1,452.33
SKU: MG-112500000
Availability: In Stock With Supplier

Fast Backorder – Get It Within 14 Days

Not available for local pickup. On backorder

Overview

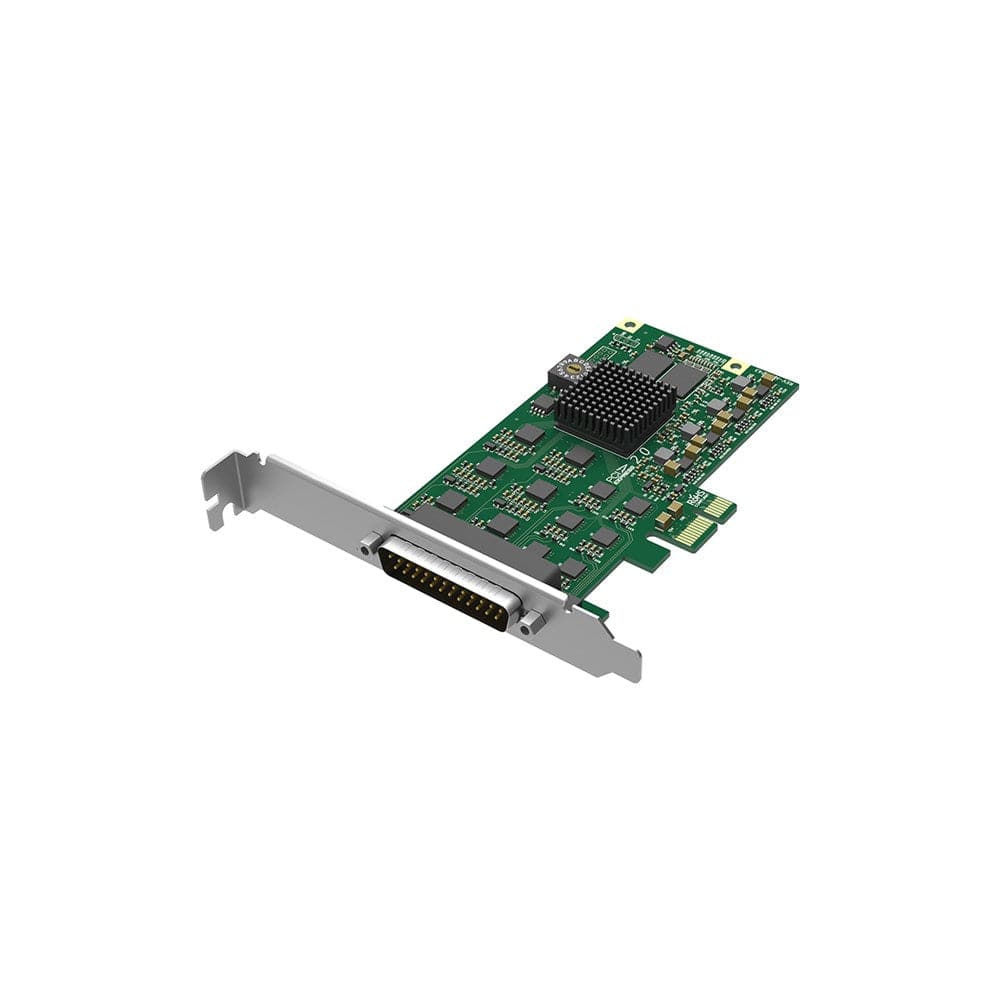

The Magewell Pro Capture Hexa CVBS is a six-channel composite video (CVBS) PCIe capture card that captures standard-definition analog video up to 720x576 resolution across six independent channels via a single DB25 breakout connector, with six channels of analog audio. It connects via PCIe Gen2 x1 and automatically detects NTSC, PAL and SECAM standards, making it suited to surveillance, legacy analog integration and multi-camera standard-definition capture applications.

Key features
  • Six CVBS Channels: Captures up to six standard-definition composite sources at once.
  • SD Capture: Supports resolutions up to 720 x 576 at up to 30fps.

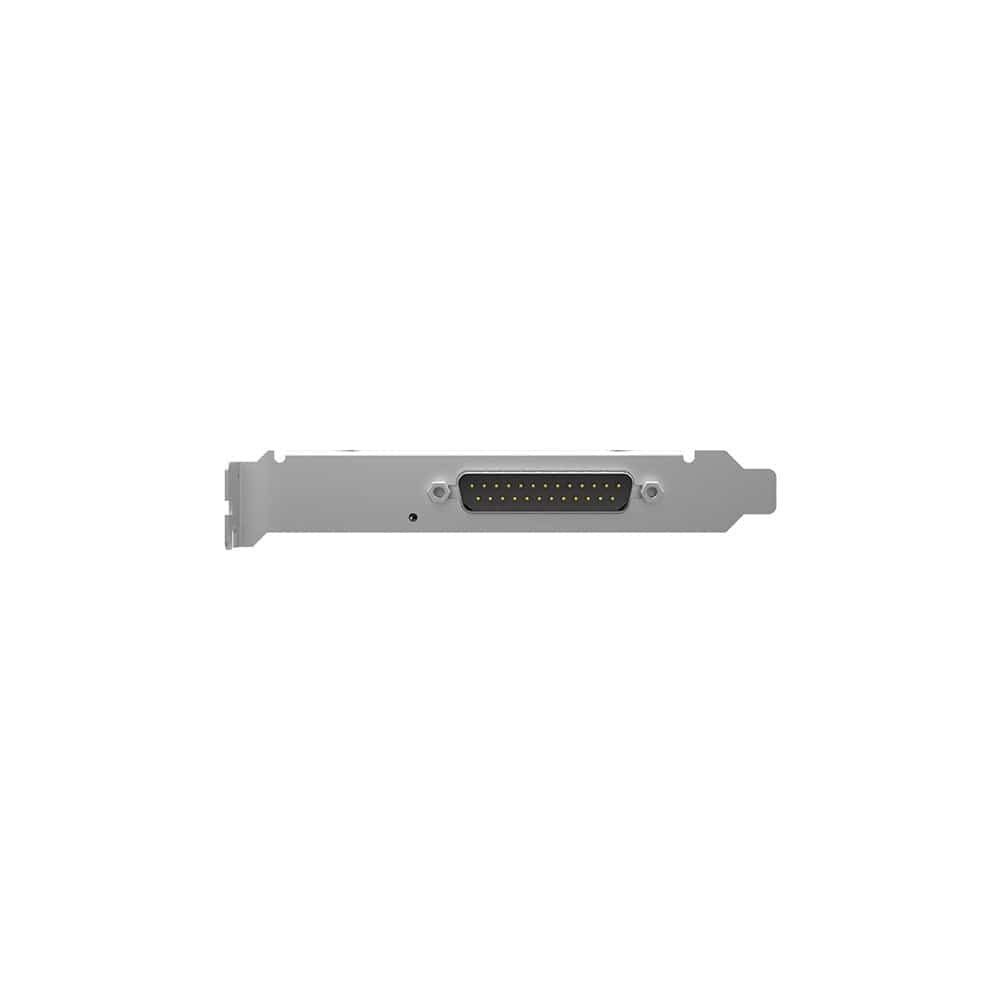

  • Multi-Channel Audio: Captures six channels of analog audio via a DB25 breakout.
  • Auto Standard Detection: Automatic NTSC, PAL and SECAM detection.
  • PCIe Gen2 x1: Single-lane interface for broad system fit.

Warranty

2-year warranty

Product specs Download
Assembly guide Download

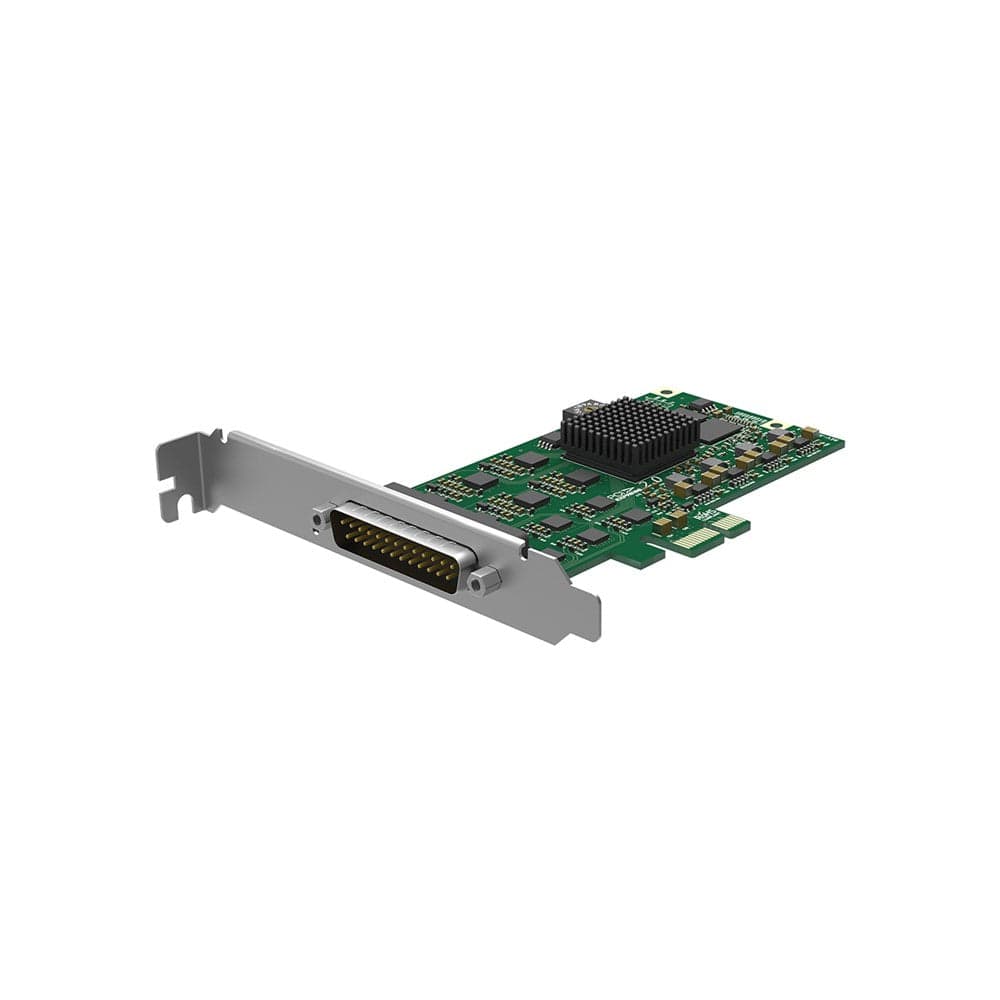

Magewell I/O (Capture) Magewell Pro Capture Hexa CVBS
$1,452.33
$1,452.33

Technical details

The Magewell Pro Capture Hexa CVBS is a six-channel composite video PCIe capture card for multi-source standard-definition capture. It is ideal for surveillance, legacy analog systems and multi-camera SD applications.

Ideal for surveillance and legacy analog capture, the Pro Capture Hexa CVBS brings six composite channels to one card.

  • Six CVBS Channels: Captures up to six standard-definition composite sources at once.
  • SD Capture: Supports resolutions up to 720 x 576 at up to 30fps.
  • Multi-Channel Audio: Captures six channels of analog audio via a DB25 breakout.
  • Auto Standard Detection: Automatic NTSC, PAL and SECAM detection.
  • PCIe Gen2 x1: Single-lane interface for broad system fit.
SpecificationDetail
Video / signalSix CVBS Channels: Captures up to six standard-definition composite sources at once.
Video / signalSD Capture: Supports resolutions up to 720 x 576 at up to 30fps.
Video / signalMulti-Channel Audio: Captures six channels of analog audio via a DB25 breakout.
Host interfacePCIe Gen2 x1: Single-lane interface for broad system fit.

Compatibility

  • Supports Windows and Linux via DirectShow, DirectKS and V4L2/ALSA APIs, and works with OBS Studio, vMix, Wirecast, XSplit, VLC, VirtualDub, VidBlaster and other DirectShow/V4L2-based encoding and streaming software.

Pro Capture Hexa CVBS FAQs

How many sources can the Hexa CVBS capture?

It captures up to six standard-definition composite (CVBS) sources at once.

What resolution does it support?

It supports SD resolutions up to 720 x 576 at up to 30fps.

Does it capture audio?

Yes. It captures six channels of analog audio via a DB25 breakout.

Which video standards does it detect?

It automatically detects NTSC, PAL and SECAM.

What PCIe interface does it use?

It uses a PCIe Gen2 x1 interface.

Can it capture HD sources?

No. It captures standard-definition composite video up to 720 x 576. For HD, a card such as the Pro Capture HDMI or Pro Capture Quad SDI is a better fit.
