By Magewell

Magewell Pro Capture Mini HDMI

$671.51
$671.51
SKU: MG-111100000
Availability: In Stock With Supplier

Fast Backorder – Get It Within 14 Days

Not available for local pickup. On backorder

Overview

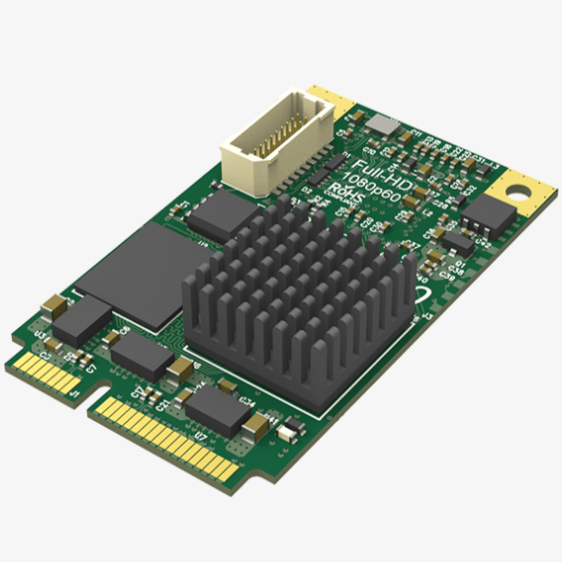

Magewell Pro Capture Mini HDMI is a compact single-channel Mini PCIe capture card with a JST SHD 20-pin connector that breaks out to HDMI type A (and DVI 1.0), intended for space-constrained and embedded integration into systems such as OEM appliances. It captures resolutions up to 2048x2160 at frame rates up to 144fps with hardware-based FPGA processing for low CPU usage, and is available with a choice of heat-sink options for thermal management in compact enclosures.

Key features
  • Compact Form Factor: Low-profile Mini design with a space-saving JST connector.
  • HDMI Capture: Captures HDMI and DVI sources at up to 2048 x 2160.
  • High Frame Rates: Supports capture frame rates up to 144fps.
  • Efficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
  • PCIe Gen2 x1: Single-lane interface ideal for compact builds.

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell Pro Capture MINI HDMI (MG-11110)
$671.51
$671.51

Technical details

The Magewell Pro Capture Mini HDMI is a compact, low-profile single-channel HDMI PCIe capture card for space-constrained and integrated systems. It delivers full Pro Capture performance in a smaller footprint.

Ideal for embedded and space-limited systems, the Pro Capture Mini HDMI packs professional HDMI capture into a small card.

  • Compact Form Factor: Low-profile Mini design with a space-saving JST connector.
  • HDMI Capture: Captures HDMI and DVI sources at up to 2048 x 2160.
  • High Frame Rates: Supports capture frame rates up to 144fps.
  • Efficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
  • PCIe Gen2 x1: Single-lane interface ideal for compact builds.
SpecificationDetail
Video / signalHDMI Capture: Captures HDMI and DVI sources at up to 2048 x 2160.
Video / signalHigh Frame Rates: Supports capture frame rates up to 144fps.
Video / signalEfficient FPGA Processing: Hardware-based capture keeps CPU usage extremely low.
Host interfacePCIe Gen2 x1: Single-lane interface ideal for compact builds.

Compatibility

  • Compatible with Windows (DirectShow, DirectKS, WASAPI), Linux (V4L2, ALSA) and macOS (AVCaptureSession, AudioUnit), and works with VLC, VirtualDub, OBS Studio, XSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder and other DirectShow/V4L2/AVCaptureSession-based capture or streaming software.

Pro Capture Mini HDMI FAQs

What makes the Pro Capture Mini HDMI different?

It is a compact, low-profile card with a space-saving JST connector, designed for space-constrained and integrated systems.

What sources can it capture?

It captures HDMI and DVI sources at up to 2048 x 2160.

What frame rates are supported?

It supports capture frame rates up to 144fps.

Does it use much CPU?

No. FPGA-based hardware capture keeps CPU usage extremely low.

What PCIe interface does it use?

It uses a PCIe Gen2 x1 interface.

How many channels does it capture?

It is a single-channel card.
