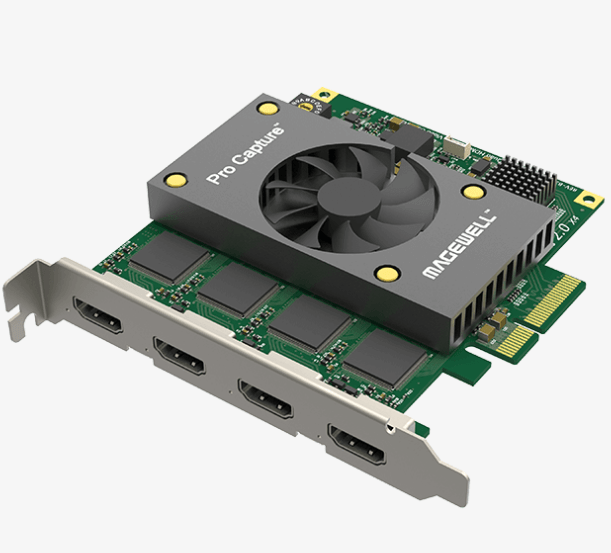

Magewell Pro Capture Quad HDMI
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Warranty
Warranty
The Magewell Pro Capture Quad HDMI is a professional four-channel HDMI capture card for live production, streaming, and broadcast applications. It captures up to four HDMI sources simultaneously—each with embedded audio—through a PCIe Gen2 ×4 interface, supporting resolutions up to 2048 × 2160.
Hardware-based processing delivers ultra-low-latency performance and reliable 24/7 operation, with features such as de-interlacing, scaling, colour-space conversion, and multiple capture streams per input. Compatible with Windows, macOS, and Linux, it integrates seamlessly with popular software like OBS, vMix, and Wirecast.
Key Features
-
4 × HDMI Type A inputs with embedded audio
-
PCIe Gen2 ×4 host interface
-
Up to 2048 × 2160 resolution support
-
Hardware processing: de-interlace, scaling, cropping, colour adjustment
-
Multiple simultaneous capture streams per input
-
Ultra-low-latency with hardware timestamping
-
Supports Windows, Linux, and macOS
-
Compatible with OBS, vMix, Wirecast, and more
-
24/7 reliable operation with LED indicators and card ID switch
Technical details
The Magewell Pro Capture Quad HDMI is a professional four-channel HDMI capture card for live production, streaming, and broadcast applications. It captures up to four HDMI sources simultaneously—each with embedded audio—through a PCIe Gen2 ×4 interface, supporting resolutions up to 2048 × 2160.
Hardware-based processing delivers ultra-low-latency performance and reliable 24/7 operation, with features such as de-interlacing, scaling, colour-space conversion, and multiple capture streams per input. Compatible with Windows, macOS, and Linux, it integrates seamlessly with popular software like OBS, vMix, and Wirecast.
Key Features
-
4 × HDMI Type A inputs with embedded audio
-
PCIe Gen2 ×4 host interface
-
Up to 2048 × 2160 resolution support
-
Hardware processing: de-interlace, scaling, cropping, colour adjustment
-
Multiple simultaneous capture streams per input
-
Ultra-low-latency with hardware timestamping
-
Supports Windows, Linux, and macOS
-
Compatible with OBS, vMix, Wirecast, and more
-
24/7 reliable operation with LED indicators and card ID switch
- Four independent HDMI 1.4a capture channels on a single PCIe x4 card
- Captures up to 2048×2160 per channel; up to ~80fps at 1080p (bandwidth limited)
- Ultra-low latency: 64 video lines; hardware 100ns timestamps on all audio and video frames
- GPU Direct support for Nvidia and AMD; Intel tiled GPU surface auto-detection
- Up to 8-channel IEC60958/IEC61937 audio per input channel via SDK
- Unlimited independent capture streams per channel with per-stream crop, scale, de-interlace, and colour settings
- Multiple cards per system supported via on-board rotary switch (up to 16 cards)
- Compatible with VLC, OBS, XSplit, vMix, Wirecast, Adobe, and any DirectShow/V4L2/AVCaptureSession software
- Continuously rated for 24/7 operation up to 60°C
| Specification | Detail |
|---|---|
| Part Number | 11100 |
| Host Interface | PCIe Gen2 x4 |
| HDMI Inputs | 4 × HDMI 1.4a (Type-A); DVI 1.0 compatible |
| Max Input Resolution | 2048×2160 per channel |
| Audio | Up to 8-channel IEC60958/IEC61937 per channel (via SDK) |
| Form Factor | Normal-profile PCIe add-in card |
| Card Dimensions | 112.15 × 102.92mm (without bracket) |
| Max Power | ~15.39W (0.86A at 12V; 0.95A at 3.3V) |
| OS Support | Windows 10/11/Server; Linux (kernel 2.6.35+); macOS 10.9+ |
| Operating Temp | 0-60°C |
Compatibility
- Any HDMI 1.4a source including cameras, computers, and AV equipment. Compatible with VLC, VirtualDub, OBS, XSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, and any DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS) compatible software.
