By Magewell

Magewell Pro Capture SDI 4K Plus

$2,597.54
$2,597.54
SKU: MG-111800000
Availability: In Stock With Supplier

Fast Backorder – Get It Within 14 Days

Not available for local pickup. On backorder

Overview

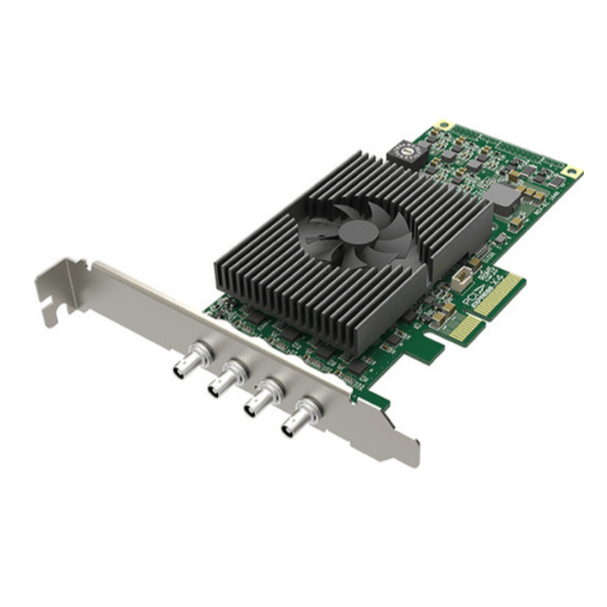

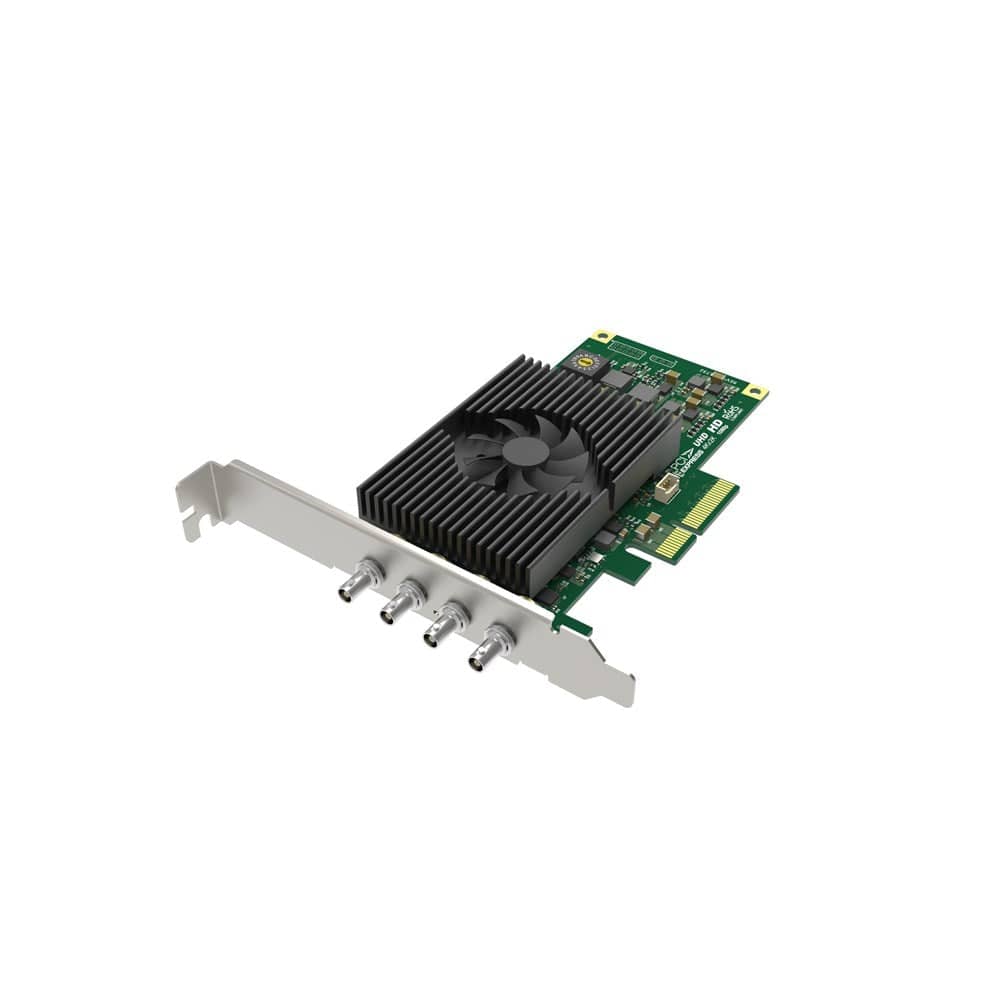

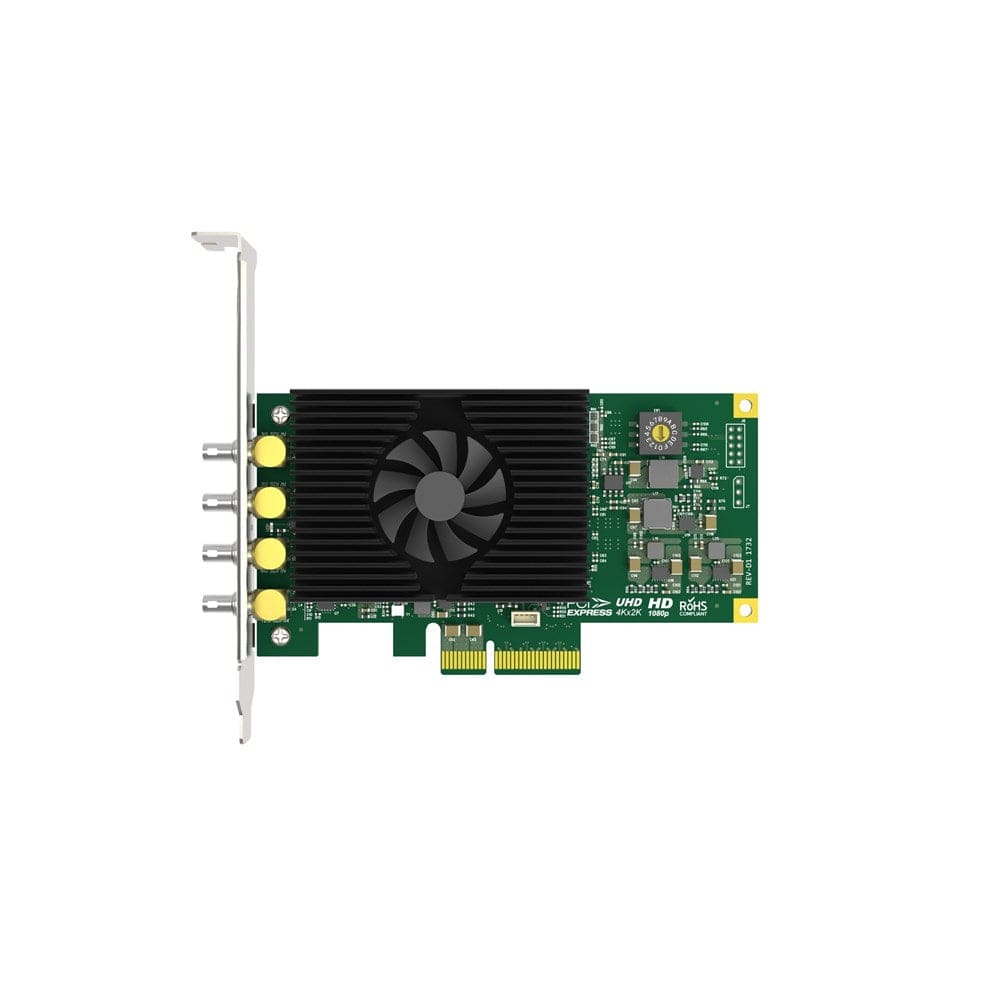

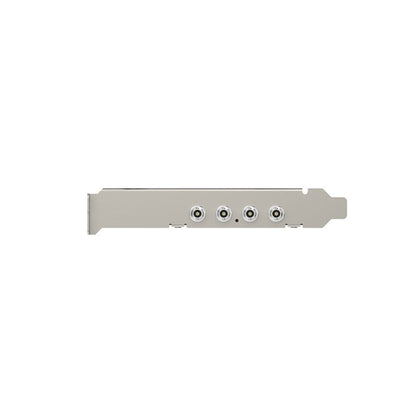

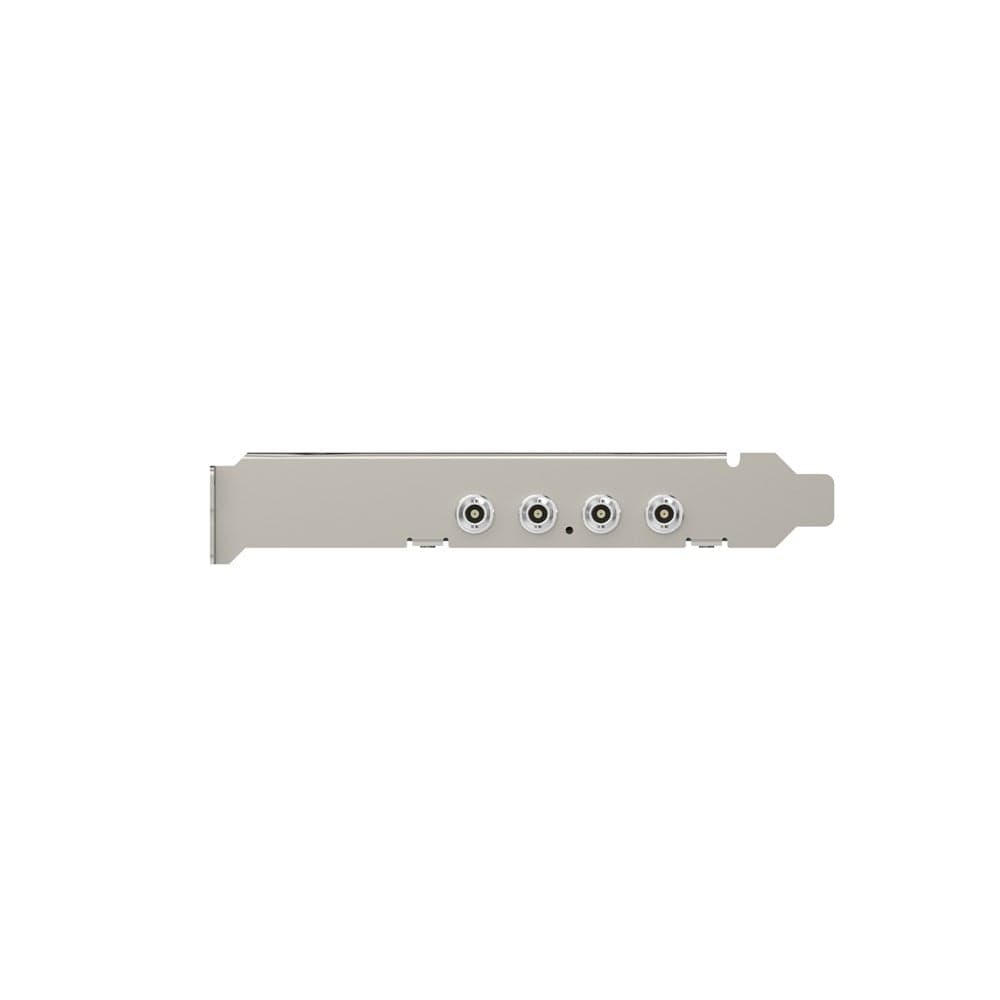

The Magewell Pro Capture SDI 4K Plus is a single-channel SDI PCIe capture card with four HD-BNC connectors that automatically detect single-link, dual-link or quad-link SDI input, supporting up to 12G-SDI and capture resolutions up to 4096x2160. It connects via PCIe Gen2 x4 and includes an integrated cable equalizer supporting long SDI cable runs, making it suitable for 4K broadcast and professional SDI-based live production workflows.

Key features
  • 12G-SDI 4K Capture: Captures single-link 12G-SDI at up to 4096 x 2160.
  • Auto Link Detection: Also supports dual-link 6G-SDI and quad-link 3G-SDI automatically.
  • High Frame Rates: Supports capture frame rates up to 144fps.
  • Long Cable Support: Integrated cable equalizer handles 12G-SDI runs up to 40m.
  • PCIe Gen2 x4: High-bandwidth interface for reliable 4K SDI capture.

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell I/O (Capture) Magewell Pro Capture SDI 4K Plus
$2,597.54
$2,597.54

Technical details

The Magewell Pro Capture SDI 4K Plus is a single-channel 4K SDI PCIe capture card supporting 12G-SDI with automatic link detection. It is built for high-resolution broadcast and professional SDI workflows.

Perfect for 4K broadcast and live production, the Pro Capture SDI 4K Plus delivers flexible high-resolution SDI capture.

  • 12G-SDI 4K Capture: Captures single-link 12G-SDI at up to 4096 x 2160.
  • Auto Link Detection: Also supports dual-link 6G-SDI and quad-link 3G-SDI automatically.
  • High Frame Rates: Supports capture frame rates up to 144fps.
  • Long Cable Support: Integrated cable equalizer handles 12G-SDI runs up to 40m.
  • PCIe Gen2 x4: High-bandwidth interface for reliable 4K SDI capture.
SpecificationDetail
Video / signal12G-SDI 4K Capture: Captures single-link 12G-SDI at up to 4096 x 2160.
Video / signalAuto Link Detection: Also supports dual-link 6G-SDI and quad-link 3G-SDI automatically.
Video / signalHigh Frame Rates: Supports capture frame rates up to 144fps.
Video / signalLong Cable Support: Integrated cable equalizer handles 12G-SDI runs up to 40m.
Video / signalPCIe Gen2 x4: High-bandwidth interface for reliable 4K SDI capture.

Compatibility

  • Supports Windows, Linux and macOS via DirectShow, DirectKS, V4L2 and AVCaptureSession/AudioUnit APIs, and works with OBS Studio, vMix, Wirecast, XSplit, VLC, VirtualDub, VidBlaster and other DirectShow/V4L2/AVCaptureSession-based encoding and streaming software.

Pro Capture SDI 4K Plus FAQs

What does the Pro Capture SDI 4K Plus capture?

It captures single-link 12G-SDI at up to 4096 x 2160.

Does it support multi-link SDI?

Yes. Automatic link detection also supports dual-link 6G-SDI and quad-link 3G-SDI.

What frame rates are supported?

It supports capture frame rates up to 144fps.

How long can 12G-SDI cable runs be?

The integrated cable equalizer handles 12G-SDI runs up to 40 m.

What PCIe interface does it use?

It uses a PCIe Gen2 x4 interface for reliable 4K SDI capture.

Is there a two-channel version?

Yes. The Pro Capture Dual SDI 4K Plus captures two independent 12G-SDI channels at up to 4096 x 2160 on a PCIe Gen2 x8 card.
