By Magewell

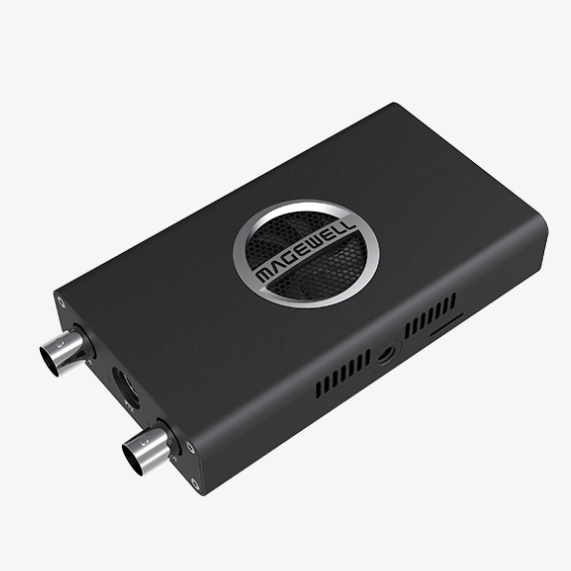

Magewell Pro Convert 12G SDI 4K Plus

$2,321.74
$2,321.74
SKU: MG-640900000
Availability: In Stock With Supplier

Fast Backorder – Get It Within 14 Days

Not available for local pickup. On backorder

Overview

The Magewell Pro Convert 12G SDI 4K Plus is a standalone hardware encoder that converts a single channel of SD/HD/3G/6G/12G-SDI video, up to 4096x2160 at 60fps, into a Full NDI stream over Gigabit Ethernet, with an SDI loop-through output for local monitoring. It encodes up to 16 channels of embedded SDI audio and supports HDR HLG with 10/12-bit color depth.

Key features
  • 12G-SDI to NDI®: Converts SD/HD/3G/6G/12G-SDI up to 4096 x 2160 60fps into Full NDI®.
  • HDR and Deep Colour: Supports HDR HLG with 10/12-bit colour.
  • 16-Channel Audio: Encodes sixteen channels of embedded SDI audio.
  • Long Cable Support: Receives 12G-SDI up to 30m and 6G-SDI up to 80m.
  • PoE Powered: Gigabit Ethernet with IEEE 802.3af PoE for single-cable install.

Warranty

2-year warranty

Product specs Download
Assembly guide Download

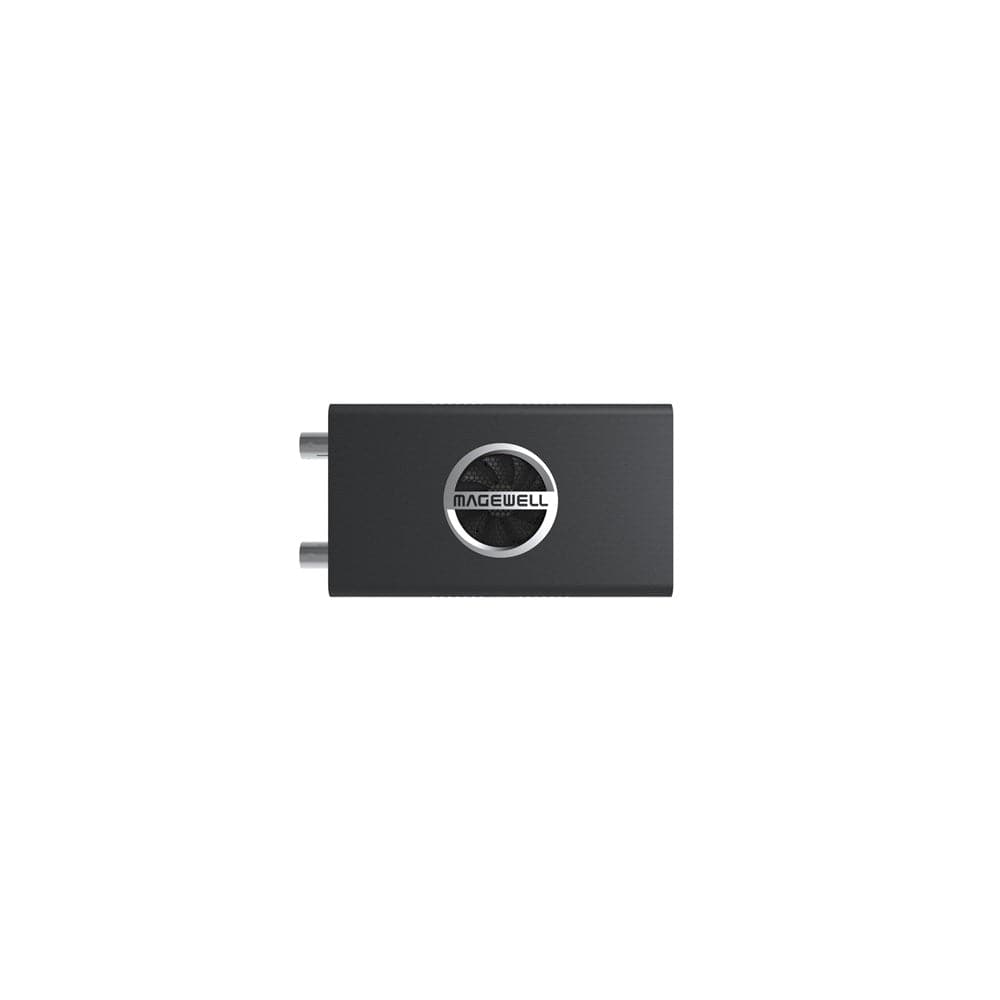

Magewell Convert Magewell Pro Convert 12G SDI 4K Plus
$2,321.74
$2,321.74

Technical details

The Magewell Pro Convert 12G SDI 4K Plus is a 12G-SDI-to-NDI® converter that delivers single-cable 4Kp60 SDI into IP-based media networks. It is Magewell's highest-bandwidth SDI-to-NDI encoder for demanding 4K production.

Perfect for high-end 4K broadcast over IP, the Pro Convert 12G SDI 4K Plus delivers single-cable 4Kp60 SDI-to-NDI conversion.

  • 12G-SDI to NDI®: Converts SD/HD/3G/6G/12G-SDI up to 4096 x 2160 60fps into Full NDI®.
  • HDR and Deep Colour: Supports HDR HLG with 10/12-bit colour.
  • 16-Channel Audio: Encodes sixteen channels of embedded SDI audio.
  • Long Cable Support: Receives 12G-SDI up to 30m and 6G-SDI up to 80m.
  • PoE Powered: Gigabit Ethernet with IEEE 802.3af PoE for single-cable install.
SpecificationDetail
Video / signal12G-SDI to NDI®: Converts SD/HD/3G/6G/12G-SDI up to 4096 x 2160 60fps into Full NDI®.
Video / signal16-Channel Audio: Encodes sixteen channels of embedded SDI audio.
Video / signalLong Cable Support: Receives 12G-SDI up to 30m and 6G-SDI up to 80m.
Network / controlPoE Powered: Gigabit Ethernet with IEEE 802.3af PoE for single-cable install.

Compatibility

  • Compatible with NDI Studio Monitor, OBS, vMix, and any other NDI-enabled software, and is configurable via IE, Edge, Firefox, Chrome, Safari or Opera web browsers.

Pro Convert 12G SDI 4K Plus FAQs

Which SDI formats and resolutions does it accept?

It accepts SD, HD, 3G, 6G and 12G-SDI up to 4096 x 2160 at 60fps over a single cable, converting it into Full NDI.

Does it support HDR?

Yes. It supports HDR HLG with 10- and 12-bit colour.

How many audio channels does it encode?

It encodes 16 channels of embedded SDI audio.

What cable lengths does it support?

It receives 12G-SDI over cables up to 30 m and 6G-SDI up to 80 m.

Can it be powered over Ethernet?

Yes. It uses Gigabit Ethernet with IEEE 802.3af PoE for single-cable installation.

How does it differ from the Pro Convert SDI 4K Plus?

The 12G model takes single-cable 12G-SDI up to 4K 60fps, while the SDI 4K Plus takes 6G-SDI up to 4K 30fps. The 12G is Magewell's highest-bandwidth SDI-to-NDI encoder.
