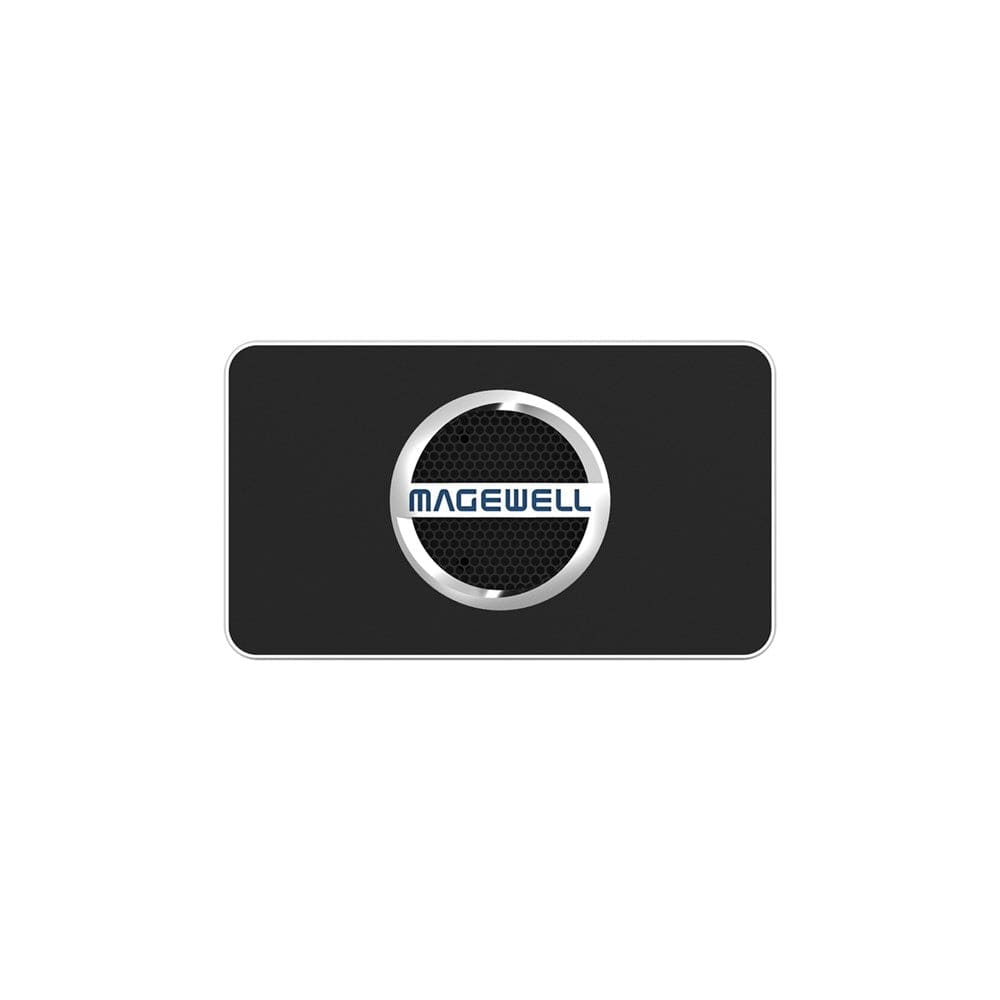

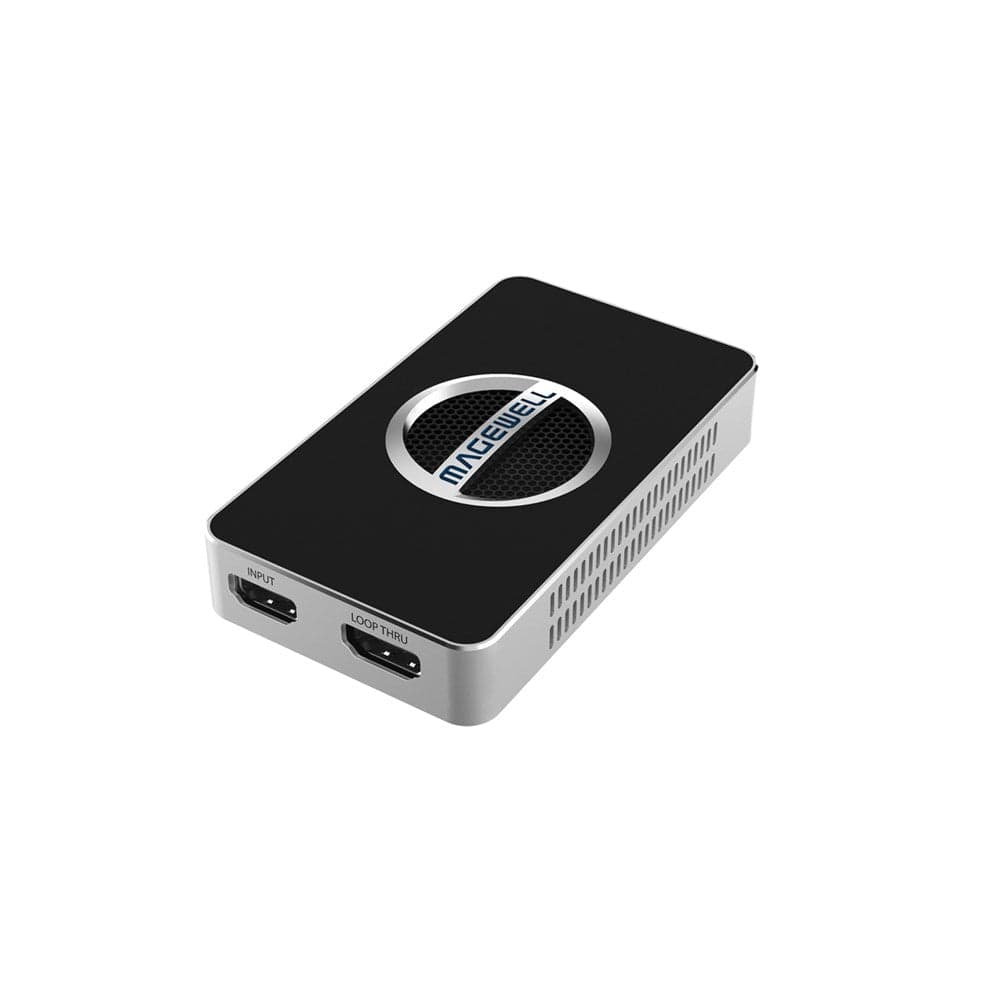

Magewell USB Capture HDMI 4K Plus
Product SKU: MG-32090
Usually ships in 2-7days
Inquire for Information
Regular price
$897.00
Sale
The Pro Capture Family brings you the best quality, performance and value.
The cards are compatible with both Windows and Linux so more A/V professional s can experience the incredible cards. You can find a model to meet your need, because Pro capture Family captures all the popular video signals. A FPGA is used for video processing and data transmission, greatly reducing CPU usage. Various features are included to improve the user experience so users can start to capture easily, and the cards maintain stable performance after long periods of use.
Auto Detection of Signal
When users plug in the cable, the card will automatically detect the input signal and link the audio input with the video input. The signal format is also analyzed so that users do not need to manually choose the video and audio to capture, nor select the resolution, frame rate, etc.


Support Most Audio and Video Standards
Users can capture signals from almost every SDI output device, such as high-end video cameras (HD/3G-A SDI), switchers (3G-B SDI) and movie cameras (2K SDI). With the help of the Pro Capture Family, you will no longer find capturing non-standard signals to be a problem. Users can type in the resolution of non standard VGA to correctly capture the video. Manual adjustment of VGA timing is also possible. In terms of audio, both compressed and uncompressed formats are supported.
Specifications

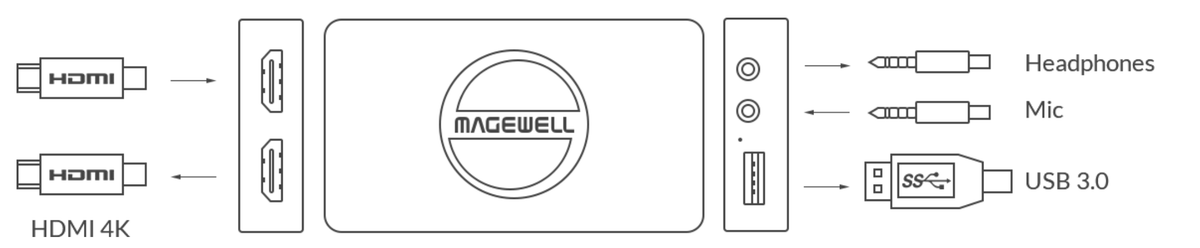

Video Interface
Input Interface:
HDMI x 1
Support Input Resolution up to 4096x2160 pixels.
Host Interface
USB 3.0

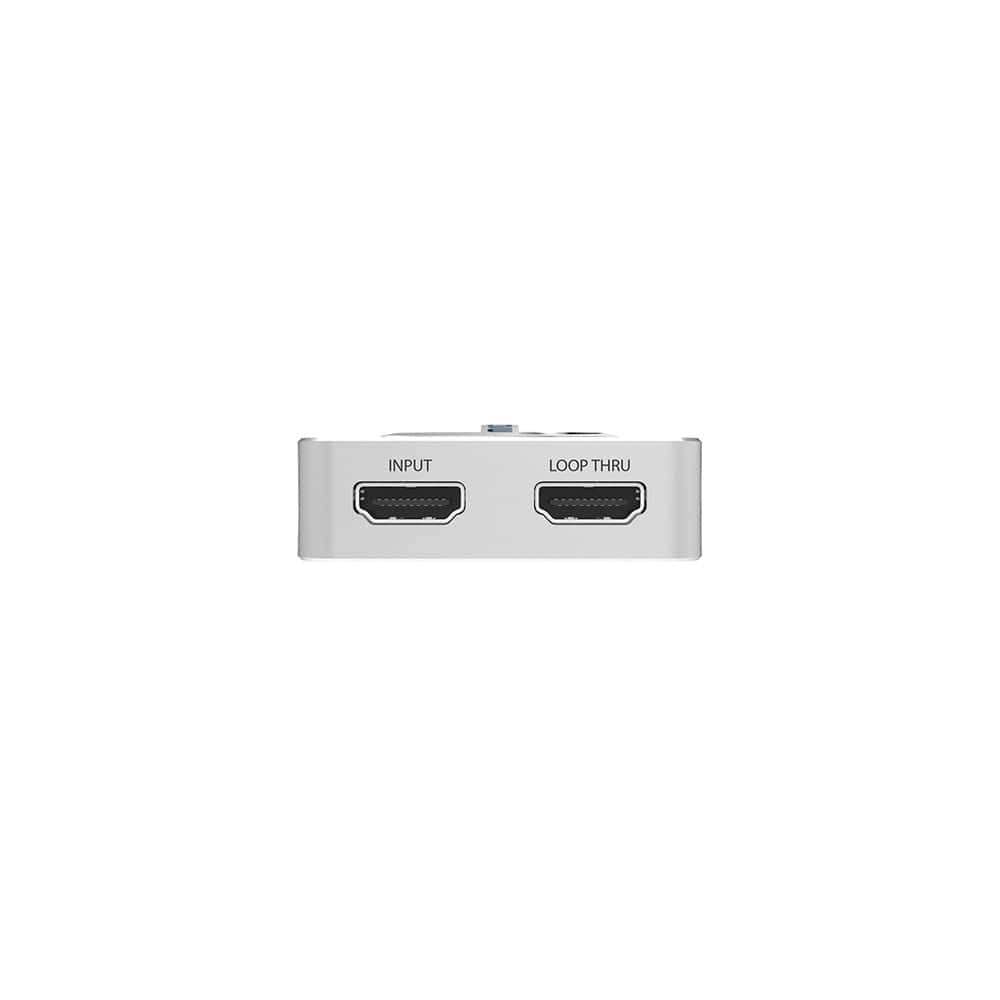

Loop-Through Interface:
HDMI x 1
Support Loop-Through resolution up to 4096x2160
Audio Input Surface:
3.5mm jack for audiophone.
Audio Output Surface:
3.5mm jack for headphones.
Video Engine
8-bit video processing
Deinterlace, Cropping
Colour Adjustment
Color Space Coversion
Up/Down Conversion
Mirror and Flip
Aspect Ration Conversion
Signal Detection& Support
Auto Detection of Input Signal Format
3D HDMI
Software Environment
OS:
Windows, Linux, Mac, Chrome OS
Driver Firmware
Driver Free, Updateable Firmware
Included Software:
USB Capture Utility, Capture Express
Compatible Software
50+ (Click here to check software)
Others
Multiple Devices on One Host
Windows & Linux SDK
Continuously Work for 24hx7
2-year Warranty
High-Speed Memory
LED Status Indicator
Software Included
Magewell provides simple applications and software tools to simplify your process of verifying the input signals and capture devices, enhance your efficiency in using a third party software or technology and make your streaming and recording experience easier.
Capture Express
Capture Express offers a simple, dedicated tool for recording, previewing and streaming one-channel input source. Users can run up to 9 instances simultaneously and leverage the capability of Magewell hardware in processing input sources and GPU in accelerating H.264 encoding for local recording and RTMP streaming.
Plugin for premiere
Users who need to use capture devices in their post production will find Magewell Plugin for Premiere® makes the combination much easier. It saves their hassles in sourcing a third party software to do the recording by giving them the direct access to Magewell’s capture device through Adobe® Premiere® Pro.
bridge for ndi
This software tool serves as an easy and reliable bridge to the AV-over-IP world powered by the technology of NDI®. Besides the capability of encoding NDI streams, which benefits users of Magewell capture devices, it can also pair with standalone NDI decoders, such as Pro Convert for NDI to HDMI.
I'm running Fedora 29 on a Ryzen 7 with an ATI Vega 64. Because Wayland's video screen capture abilities are terrible, I wanted to capture the HDMI output of my computer and feed it back the USB port for screen recording.This device worked flawlessly right out of the box. I knew that USB had bandwidth limitations, so while my screen is 4K, I told obs (Open Broadcaster Software) to use V4L and the device showed up immediately with no fiddling required. All the different capture modes showed up as well in the resolution selection. So I was able to get 1080p at 30fps with full color and it just worked.Few hardware manufacturers are willing to put in the attention to detail in their software so that specialized driver tweaks are not needed to account for ways in which their specific piece of hardware fails to follow standards specifications. Magewell deserves huge props for not being a manufacturer who is willing to do the work. This is how all hardware should be.
