By Magewell

Magewell USB Capture SDI Gen 2

$685.00
$685.00
SKU: MG-32070
Availability: 4 in stock

Overview

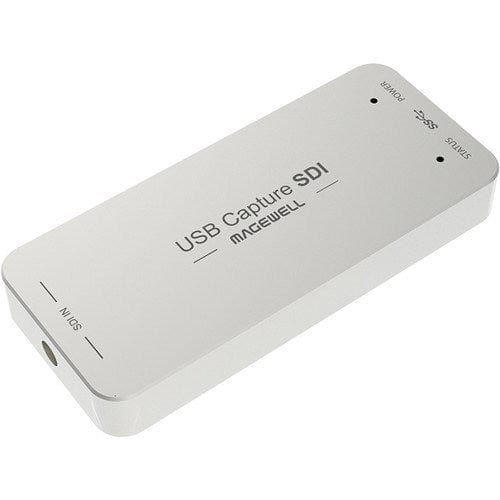

The Magewell USB Capture SDI Gen 2 is a compact USB 3.0 capture device that accepts one SD/HD/3G-SDI input with embedded audio and delivers it to a computer for video conferencing, streaming, or production workflows. Supporting SDI signals transmitted up to 150 metres for 3G-SDI, it is well suited to broadcast and live event environments where SDI cabling infrastructure is already in place.

Key features
  • Single SD/HD/3G-SDI BNC input, up to 2048Γ—1080 at 60fps
  • SDI cable runs up to 150m supported for 3G-SDI signals
  • USB 3.0 bus-powered, no external power adapter required
  • Up to 8-channel embedded audio capture
  • Driver-free UVC/UAC compatibility with Windows, Linux, macOS, and Chrome OS
  • Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
  • Auto detection of input signal format
  • Rated for continuous 24/7 operation
  • Barco ClickShare Alliance certified

Warranty

2-year warranty

Product specs Download
Assembly guide Download

One channel HD capture device.

Captures SD/HD/3G/2K SDI + embedded audio.
Magewell Media Processor Magewell USB Capture SDI Gen 2
$685.00
$685.00

Technical details

One channel HD capture device.

Captures SD/HD/3G/2K SDI + embedded audio.

  • Single SD/HD/3G-SDI BNC input, up to 2048Γ—1080 at 60fps
  • SDI cable runs up to 150m supported for 3G-SDI signals
  • USB 3.0 bus-powered, no external power adapter required
  • Up to 8-channel embedded audio capture
  • Driver-free UVC/UAC compatibility with Windows, Linux, macOS, and Chrome OS
  • Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
  • Auto detection of input signal format
  • Rated for continuous 24/7 operation
  • Barco ClickShare Alliance certified
SpecificationDetail
Part Number32070

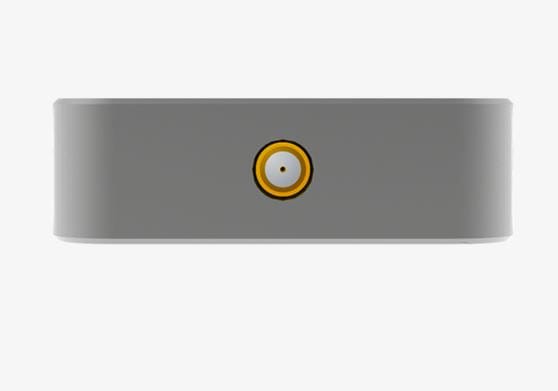

Video Input1 Γ— SD/HD/3G-SDI (BNC)
SDI StandardsSD (ST 259), HD (ST 292), 3Ga/3Gb-DL/3Gb-DS (ST 425)
Max Input Resolution2048Γ—1080 at 60fps
AudioUp to 8-channel embedded audio

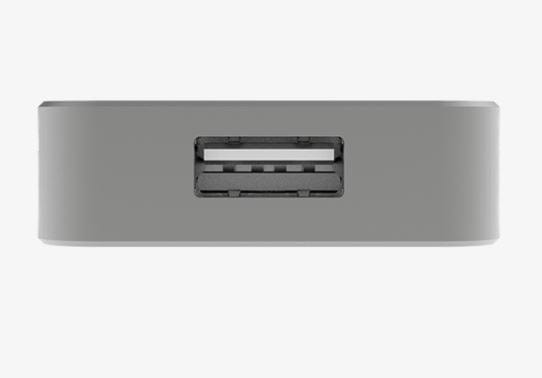

USB StandardUSB 3.0 (USB 2.0 compatible)
Max Power~2.5W (0.5A at 5V)
Dimensions92.2 Γ— 40.2 Γ— 12.3mm
OS SupportWindows 10/11/Server; Linux (kernel 2.6.35+); macOS 10.9+; Chrome OS
Operating Temp0-50Β°C

Compatibility

  • Zoom Rooms, Microsoft Teams, Skype for Business, Google Meet, OBS Studio, XSplit, VLC, QuickTime Player, and any DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS) compatible software.
