By Magewell

Magewell USB Capture SDI Plus

$915.00
$915.00
SKU: MG-32050
Availability: 2 in stock

Overview

The Magewell USB Capture SDI Plus is a USB 3.0 capture device that accepts a single SD/HD/3G-SDI input with a simultaneous SDI loop-through output, so the signal can feed both the capture computer and downstream SDI equipment without interruption. A 3.5mm audio jack provides analogue line-in and line-out connectivity alongside the SDI-embedded audio capture.

Key features

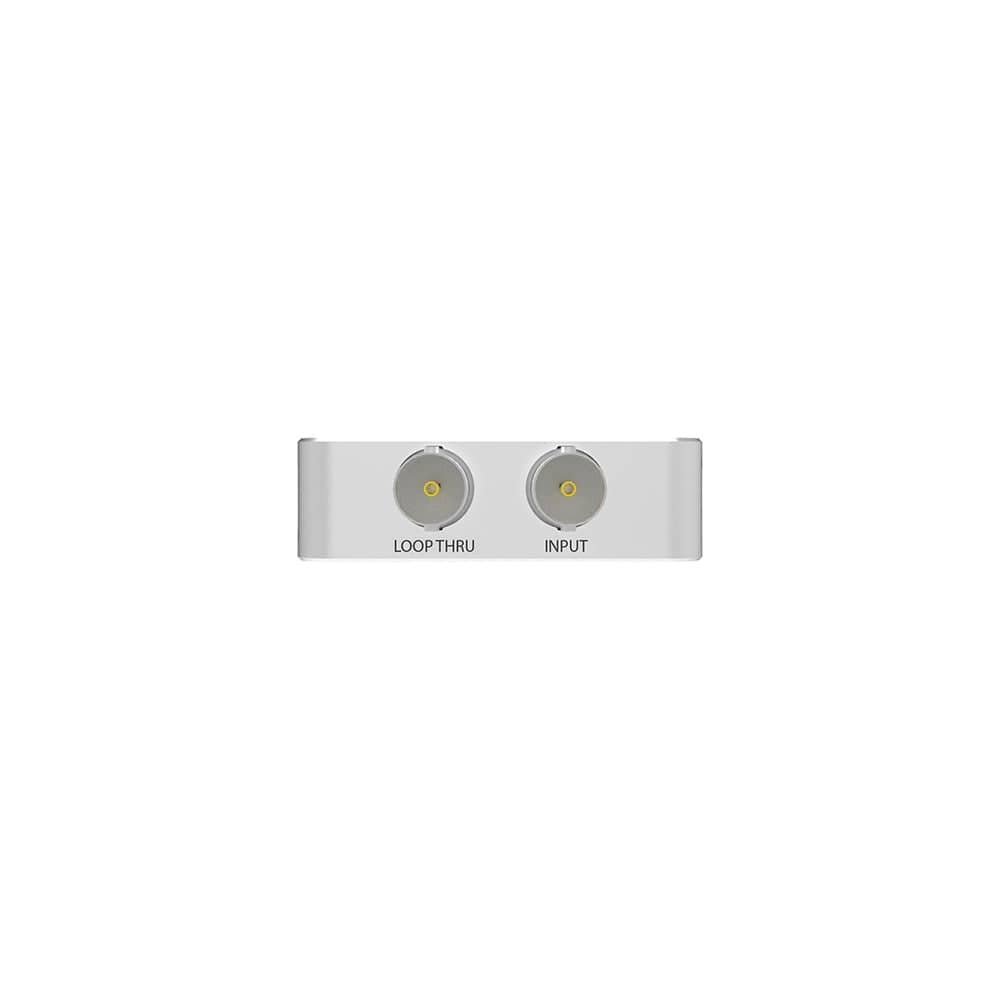

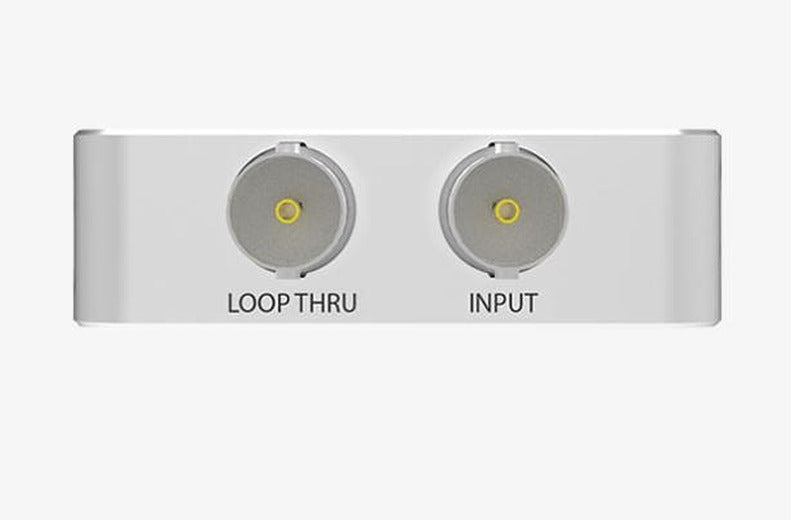

  • Single SD/HD/3G-SDI BNC input with full SDI loop-through output
  • Captures up to 2048×1080 at up to 120fps via USB 3.0

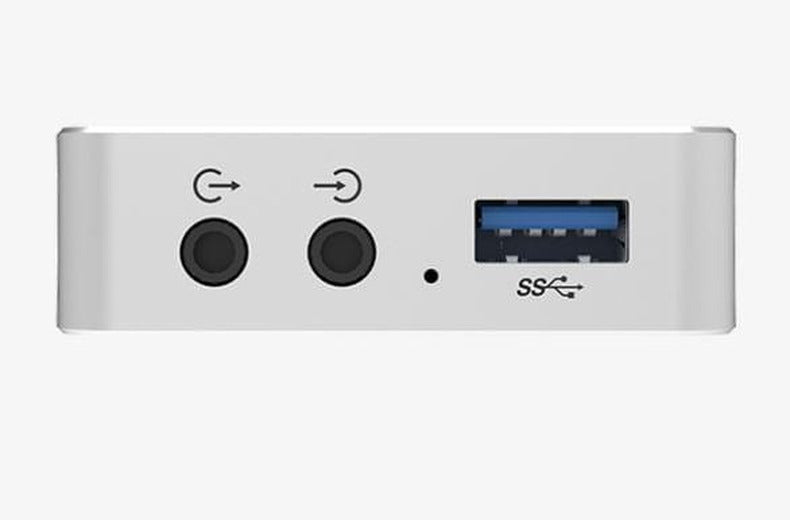

  • 3.5mm analogue Line In and Line Out alongside SDI-embedded audio capture
  • SDI cable runs up to 150m supported for 3G-SDI signals
  • Up to 8-channel embedded audio capture
  • Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
  • Rated for continuous 24/7 operation

Warranty

3-year warranty

Product specs Download
Assembly guide Download

One-channel 2K capture device.

Capture SD/HD/3G/ 2K SDI + embedded audio.

Loop-through SD/HD/3G/2K SDI.

Audio input via Line in.

Extract SDI embedded audio and output via Line out.
Magewell Media Processor Magewell USB Capture SDI Plus
$915.00
$915.00

Technical details

One-channel 2K capture device.

Capture SD/HD/3G/ 2K SDI + embedded audio.

Loop-through SD/HD/3G/2K SDI.

Audio input via Line in.

Extract SDI embedded audio and output via Line out.

  • Single SD/HD/3G-SDI BNC input with full SDI loop-through output
  • Captures up to 2048×1080 at up to 120fps via USB 3.0
  • 3.5mm analogue Line In and Line Out alongside SDI-embedded audio capture
  • SDI cable runs up to 150m supported for 3G-SDI signals
  • Up to 8-channel embedded audio capture
  • Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
  • Rated for continuous 24/7 operation
SpecificationDetail
Part Number32050
Video Input1 × SD/HD/3G-SDI (BNC)
Loop-Through Output1 × SDI (BNC)
SDI StandardsSD (ST 259), HD (ST 292), 3Ga/3Gb-DL/3Gb-DS (ST 425)
Max Input Resolution2048×1080 at 60fps
Audio Ports3.5mm Line In / Line Out
USB StandardUSB 3.0 (USB 2.0 compatible)
Max Power~2.5W (0.5A at 5V)
Dimensions110.7 × 56.8 × 17mm
OS SupportWindows 10/11/Server; Linux (kernel 2.6.35+); macOS 10.9+; Chrome OS
Operating Temp0-45°C

Compatibility

  • Zoom Rooms, Microsoft Teams, Skype for Business, Google Meet, OBS Studio, XSplit, VLC, QuickTime Player, and any DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS) compatible software.
