By Newnex

USB 3.1 USB-C to USB-C (6.3mm OD) C Male Straight to C Male Straight - 5m

$585.00
$585.00
SKU: U4SLC01C01-050
Availability: 1 in stock

Overview

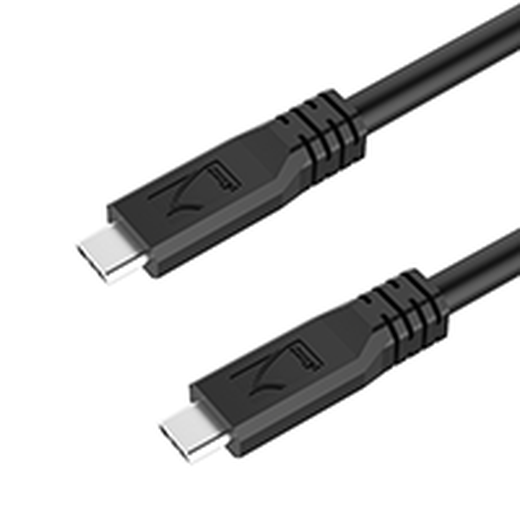

The Newnex U4SLC01C01-050 is a full-featured passive USB 3.1 Gen 2 USB-C to USB-C cable rated at 10Gbps, with a slim 6.30mm OD jacket and straight C Male connectors at both ends. It supports the complete USB Type-C pin-out including SuperSpeed data, USB 2.0, power, and SBU lines, and is 100% open, short, and miswire tested at the factory.

Key features
  • Full-featured USB 3.1 Gen 2 USB-C to USB-C passive cable at 10Gbps
  • Slim 6.30mm OD profile, flexible and easy to route
  • C Male Straight connectors at both ends for reliable, low-profile connections
  • Complete USB-C pin-out: SuperSpeed lanes, USB 2.0, VCONN, and SBU lines
  • 100% factory tested for open, short, and miswiring
  • RoHS compliant

Warranty

1-year warranty

Certifications
  • RoHS
Product specs Download
Newnex Cables & Power USB 3.1 C to C (6.3mm OD) C Male Straight to C Male Straight - 5m
$585.00
$585.00

Technical details

The Newnex USB 3.2 Gen 2 Type-C Cable is designed for high-speed data transfer, DisplayPort Alt Mode support, and reliable power delivery, making it ideal for professional and industrial applications. This 5-metre cable features a rugged build and a coaxial structure for enhanced signal integrity, allowing data rates up to 10Gbps and supporting 8K video resolution at 60Hz.

Key Features:

  • Data Rate: USB 3.2 Gen 2 up to 10Gbps.
  • Video Support: DP Alt Mode, up to 8K@60Hz.
  • Power Delivery: USB PD with E-marker, up to 20V/5A.
  • Durability: Reinforced for extended flex life and industrial use.

Applications:
Perfect for AV setups, high-speed data transfer, and extended USB-C connections in demanding environments.

  • Full-featured USB 3.1 Gen 2 USB-C to USB-C passive cable at 10Gbps
  • Slim 6.30mm OD profile, flexible and easy to route
  • C Male Straight connectors at both ends for reliable, low-profile connections
  • Complete USB-C pin-out: SuperSpeed lanes, USB 2.0, VCONN, and SBU lines
  • 100% factory tested for open, short, and miswiring
  • RoHS compliant
SpecificationDetail
Part NumberU4SLC01C01-050
TypeUSB-C Passive Cable (C Male to C Male)
USB StandardUSB 3.1 Gen 2 (10Gbps)
Cable Length5m
Cable Diameter6.30mm OD
Cable JacketPVC, Black
ConnectorsUSB 3.1 Type-C Male (straight) at both ends

Compatibility

  • Compatible with any USB-C host or device supporting USB 3.1 Gen 2 (10Gbps) data transfer.
