USB-C 240W Power Delivery Adaptor – USB4, PD 3.1, 8K Video Support
Back orders Delivered in 14 days
Not available for local pickup. On backorder
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Technical details
Tired of cables claiming "240W fast charging" but delivering 65W? Laptops charging slowly? USB2 masquerading as USB4? This inline USB-C tester instantly shows the actual voltage (3-50V), current (0-6A), power (up to 240W), and data speed your connection delivers, solving "bad cable" mysteries, slow charging diagnosis, and speed validation without interrupting the connection itself.
Perfect for AV installers, IT teams, and power users who need proof before client handovers.
Specifications
-
Live USB PD 3.1 readings (up to 240W): Voltage (3-50V), Current (0-6A), Power (W), direction, energy (mAh/Wh), timer
-
USB4 data speeds: Confirms 40Gbps/20Gbps operation vs legacy USB
-
8K video validation: Works with DisplayPort Alt Mode connections
-

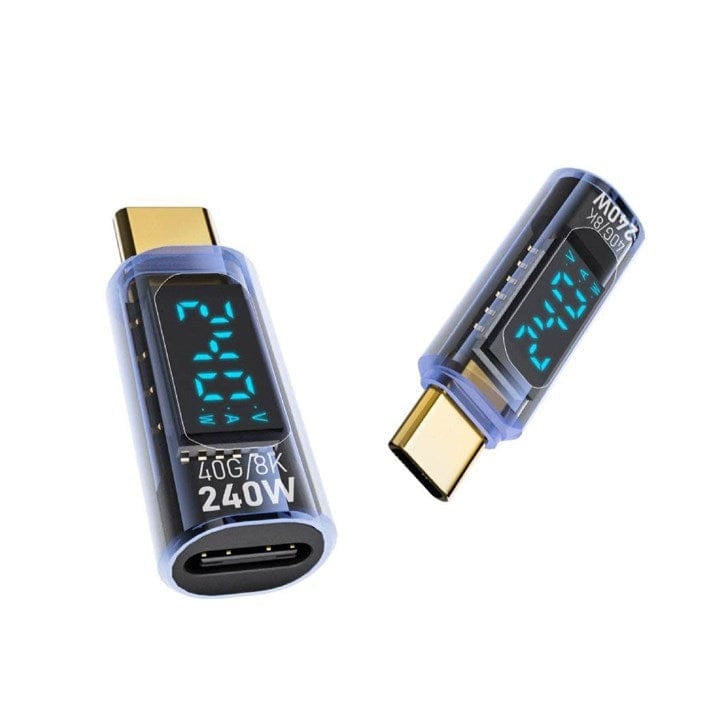

Compact inline design: USB-C male/female pass-through (36.7 x 23.5 x 7.8mm)
Pass-through only – displays specs of whatever cable/device you're testing
- Built-in digital LED display shows live voltage, current, and wattage passing through the connection
- Passes through up to 240W Power Delivery (PD 3.1) without power loss
- Supports up to 40Gbps data pass-through
- Supports up to 8K@60Hz video pass-through
- Full OTG pass-through support
- Short circuit protection
- Gold-plated USB-C connectors for reliable contact
- Available in multiple colour variants, including models with a physical display toggle button
| Specification | Detail |
|---|---|
| Connector type | USB-C male to USB-C female (inline pass-through) |
| Max power pass-through | 240W (PD 3.1, compatible with PD 3.0 / PD 2.0) |
| Max data pass-through | 40Gbps |
| Max video pass-through | 8K @ 60Hz |
| Display | Built-in digital LED (real-time voltage / current / wattage) |
| Protection | Short circuit |
| Material | Polycarbonate (PC), gold-plated connectors |
| Colours | Black, Blue, Transparent, Gray, White, Purple |
Compatibility
- Any USB-C device or cable connection where power, data, or video monitoring is required
- Laptops
- Smartphones
- Docking stations
