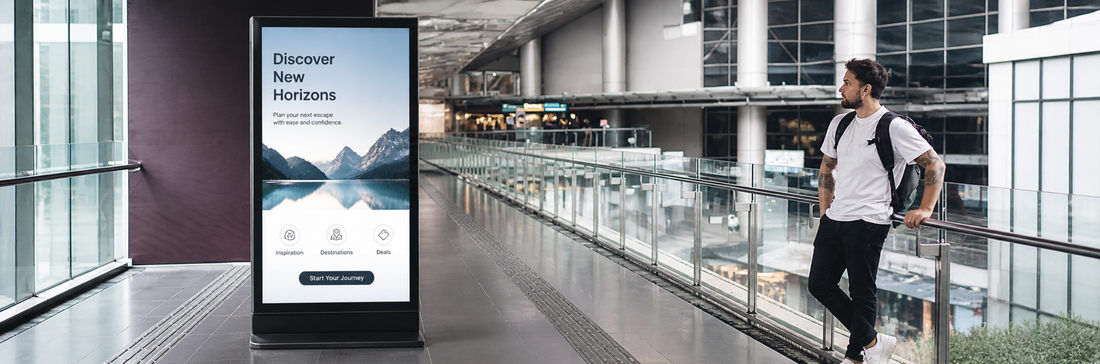

When you walk past a digital display or an LED wall in a shopping centre, airport, or hotel lobby, you probably don't think about what's keeping it running. Behind the scenes, one small but critical feature is often responsible for making sure that it fixes itself when something goes wrong.
What Is a Watchdog Timer?
A watchdog timer is essentially a self-recovery mechanism built into a device. While the player is running, the software continuously sends a small signal (often called a heartbeat) to the watchdog timer, resetting its countdown. As long as those signals keep coming, the watchdog knows everything is fine.
If the system freezes, crashes, or gets stuck in an unresponsive state, those signals stop. The watchdog timer reaches zero, detects the problem and automatically triggers a system reset. The display gets back up and running without anyone needing to physically push a button to restart the device.
This makes watchdog timers especially valuable in digital signage, where devices are often installed in locations that aren't easy to access. High on a wall, in a cabinet, or in an unstaffed environment running 24/7.
CPU Watchdog & Independent Watchdog
Not all watchdog timers are created equal. A standard CPU watchdog operates at the software level, monitoring whether the OS and applications are still responding. For most everyday issues like a frozen app, this does the job well and for some installations, that's fine and may be all you need.
However, if a problem runs deeper than the software layer, a CPU watchdog can get caught up in the same failure it's supposed to catch. If a hardware-level fault causes the CPU itself to become unresponsive, one layer of protection won't be enough for the device to sort itself out.
This is where an independent watchdog comes in. Operating at the hardware level but separate from the main processor, an independent watchdog monitors the system from the outside in. Even if the CPU is fully stuck, the independent watchdog can still detect the problem and force a recovery.
Taking Things to the Next Level with the BXP-100
The Qbic BXP-100 is one of the few compact digital signage players to feature a dual watchdog timer.
Both a CPU watchdog and an independent watchdog work together as two separate layers of protection. This means the BXP-100 can recover from a far wider range of failures than a single watchdog device.
- If the software glitches, the CPU watchdog handles it
- If there's a hardware fault, the independent watchdog handles it
The result is a device that basically fixes itself, regardless of what causes the problem. This kind of dual watchdog protection is usually only found in enterprise-grade hardware, and of course that comes at a price. Qbic have built it into the BXP-100 as standard, making it an exceptional choice for businesses that need reliable hardware without the enterprise price tag.
Why It Matters for Your Business
No one wants downtime on a digital display, especially if it means getting technicians out to site. Whether you're running promotional content in a retail store, wayfinding screens in a corporate building, or menus in a hospitality venue, an unresponsive screen reflects poorly on your brand and can mean lost revenue.
The watchdog timer, and especially the dual watchdog in the BXP-100, ensures you don't need to worry. Your content is showing, your displays are on, and your AV integrator doesn't need to charge you for parking.
Ready to explore the Qbic BXP-100 or find the right digital signage player for your setup?
Check out the full Qbic range and get in touch with the Leading Solutions team. We're here to help.
