By Newnex

15m C-C USB 3.1 - 10Gbps - PD 30w - 6.4mm OD - C Male to C Male

$1,615.00
$1,615.00
SKU: ULK10G-CC-15M
Availability: Custom order

Back orders Delivered in 4 weeks

Not available for local pickup. On backorder

Overview

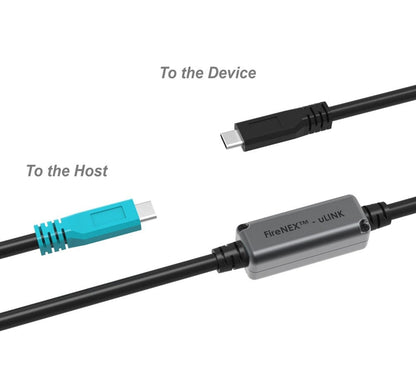

The Newnex FireNEX-uLINK-10G (ULK10G-CC-15M) is an active repeater cable that extends USB-C connectivity to 15 metres while simultaneously carrying USB 3.2 Gen 2 data at 10Gbps, DisplayPort 1.4 video, and bidirectional USB Power Delivery up to 30W over a single cable. Two compact metal repeater enclosures are built into the cable for signal regeneration, and the colour-coded aqua host connector prevents incorrect end-to-end reversal.

Key features
  • Extends USB-C up to 15 metres with USB 3.2 Gen 2 data, DisplayPort 1.4, and 30W PD simultaneously
  • 2-Lane DP 1.4 (HBR3): up to one 4K@60Hz or two 2K@60Hz displays
  • Bidirectional USB PD 3.0 up to 30W
  • Backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0/1.1
  • Dual metal repeater enclosures built in for signal integrity over long runs
  • Colour-coded connectors: aqua host end, black device end
  • Plug and play, no drivers required on Windows, macOS, or Linux
  • AIA USB3 Vision compliant for machine vision applications

Warranty

1-year warranty

Certifications
  • FCC Class B
  • CE Class B
  • RoHS
  • AIA USB3 Vision
Product specs Download
Assembly guide Download
Newnex Cables & Power 15m C-C USB 3.1 - 10Gbps - PD 30w - 6.4mm OD - C Male to C Male
$1,615.00
$1,615.00

Technical details

This unidirectional USB-C Active Cable offers high-speed 10Gbps data transfer, DisplayPort with 2-lane support, and power delivery up to 60W. Available in 8m and 15m lengths, it is designed for extended connections in professional AV and data environments, maintaining signal quality over longer distances.

Key Features:

  • Data Rate: USB 3.2 Gen 2, up to 10Gbps.
  • Display Support: 2-lane DisplayPort for clear video output.
  • Power Delivery: Up to 60W (20V/3A).

Applications:
Ideal for AV, video conferencing, and extended USB-C setups in professional spaces.

  • Extends USB-C up to 15 metres with USB 3.2 Gen 2 data, DisplayPort 1.4, and 30W PD simultaneously
  • 2-Lane DP 1.4 (HBR3): up to one 4K@60Hz or two 2K@60Hz displays
  • Bidirectional USB PD 3.0 up to 30W
  • Backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0/1.1
  • Dual metal repeater enclosures built in for signal integrity over long runs
  • Colour-coded connectors: aqua host end, black device end
  • Plug and play, no drivers required on Windows, macOS, or Linux
  • AIA USB3 Vision compliant for machine vision applications
SpecificationDetail
Part NumberULK10G-CC-15M
TypeUSB-C Active Repeater Cable (C Male to C Male)
USB StandardUSB 3.2 Gen 2 (10Gbps); backward compatible to 5Gbps / USB 2.0
DisplayPortDP 1.4, 2-Lane, HBR3 (up to 4K@60Hz or two 2K@60Hz)
Power DeliveryUSB PD 3.0, bidirectional; up to 30W
Cable Length15m (49.2 ft.)
Cable Diameter6.4 ± 0.1mm
Cable JacketTPE, Black
Repeater Dimensions16 × 18 × 46mm (each)
Host ConnectorUSB-C Male, Aqua
Device ConnectorUSB-C Male, Black
Operating Temp0°C to 40°C
Operating Humidity20-80% RH, non-condensing

Compatibility

  • Compatible with USB-C hosts and devices supporting USB 3.2 Gen 2 data, DisplayPort 1.4 Alt Mode, and/or USB Power Delivery. Works with Windows, macOS, and Linux. AIA USB3 Vision compliant.
