1RU Rackmount Shelf (120mm)

Flexible Rackmounting for Magewell IP Devices

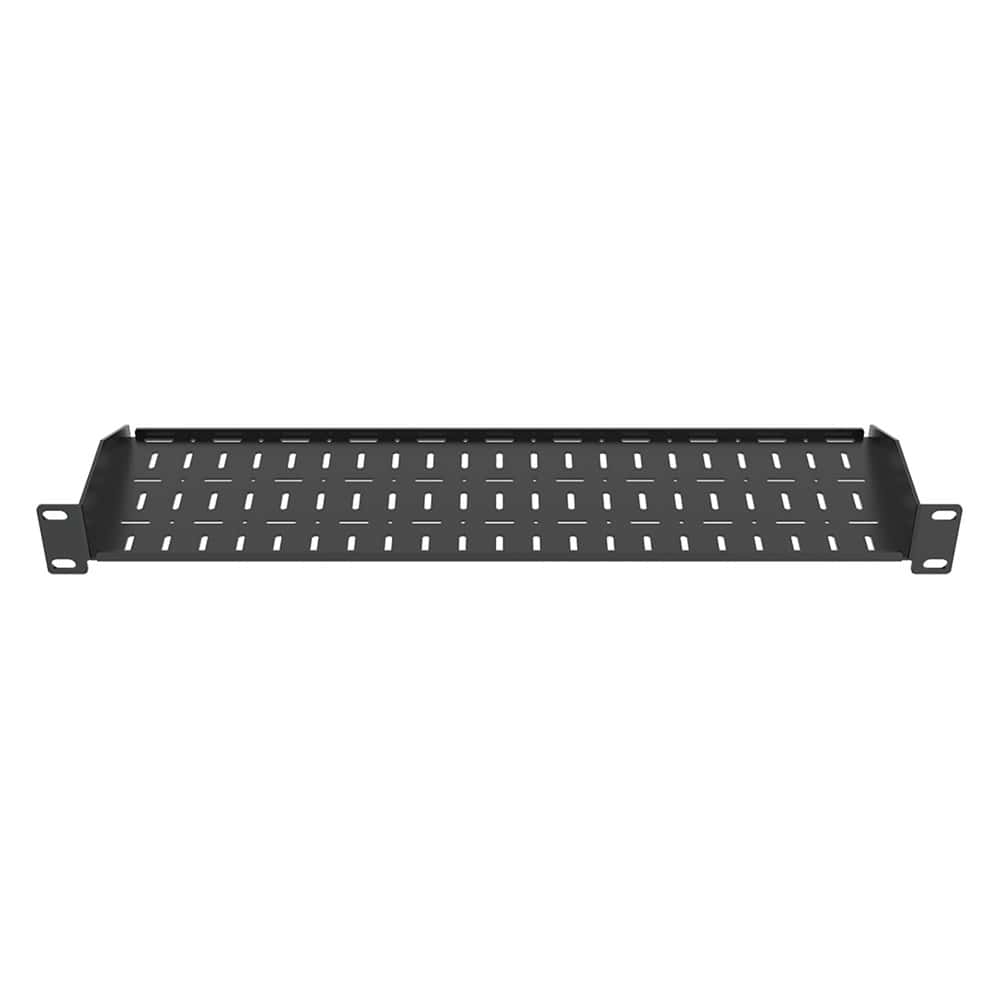

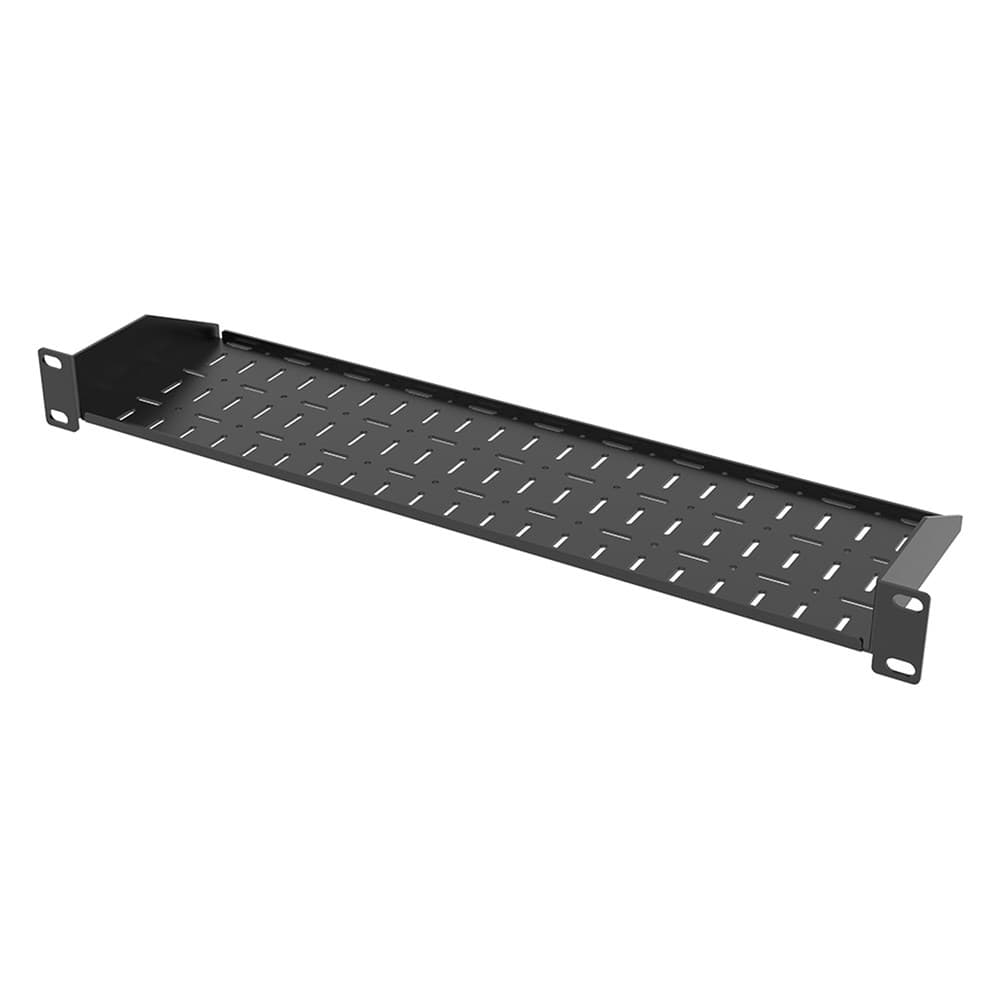

The Magewell 1RU Rackmount Shelf (120mm) is a shallow rackmount shelf for installing compatible Magewell IP devices in a standard 19-inch equipment rack. It provides a compact mounting platform for Ultra Encode encoders and Pro Convert encoders and decoders.

Round and rounded rectangular holes allow devices to be installed in fixed or adjustable positions. With the appropriate mounting kits, multiple devices, including different models, can be installed on the same shelf.

Features include:

• 1RU rackmount shelf for standard 19-inch equipment racks.

• Shallow 120mm depth for rack installations with limited space.

• Dimensions of 483 × 45 × 121 mm.

• Round holes for installing devices in precise positions.

• Rounded rectangular holes for adjusting device positions.

• Supports simultaneous installation of multiple Magewell Pro Convert or Ultra Encode devices.

• Allows different compatible device models to share the same shelf.

• Requires the appropriate device-specific mounting kits, which are purchased separately.

Flexible Mounting Positions

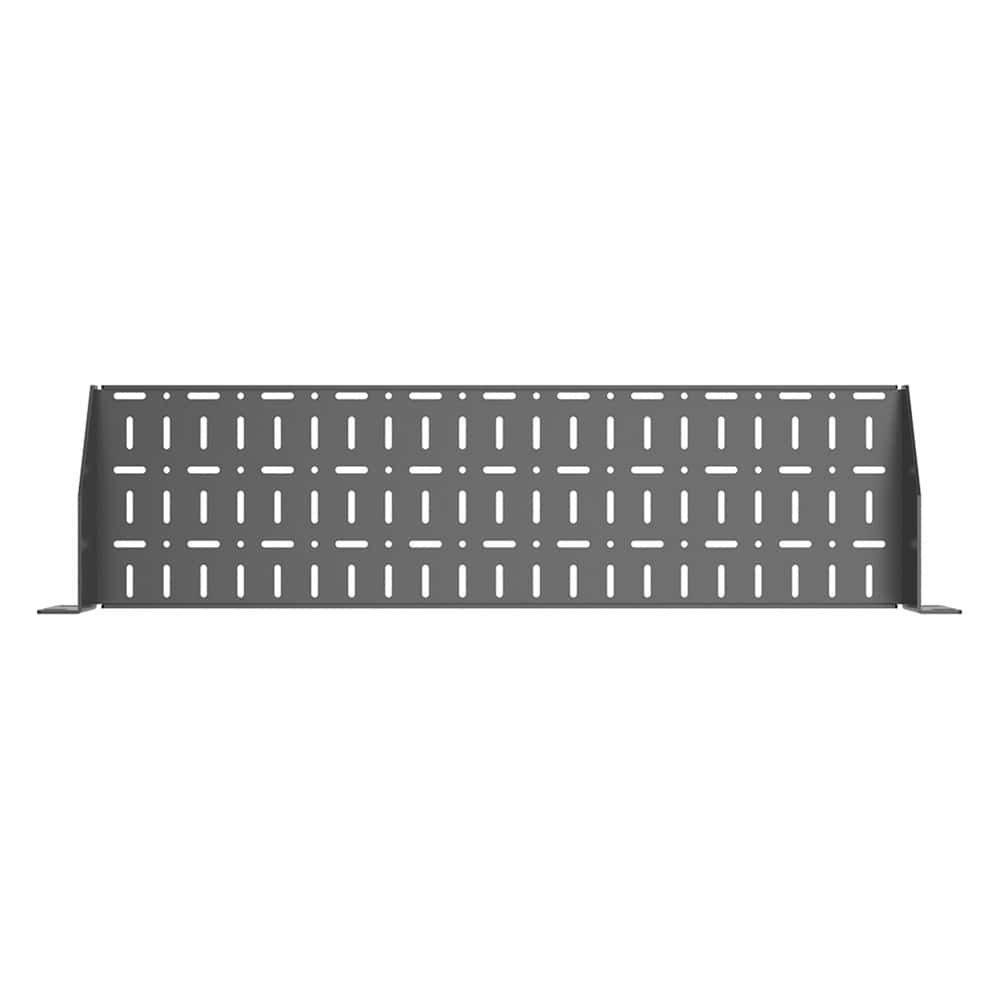

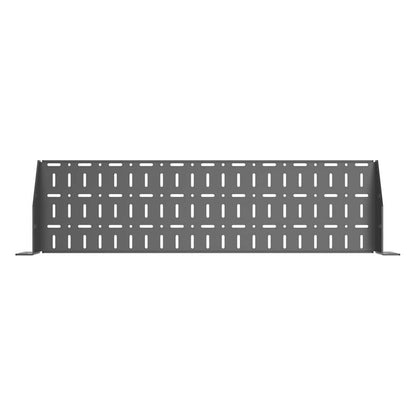

The shelf combines round holes for fixed positioning with rounded rectangular holes that allow the position of each device to be adjusted.

This gives installers flexibility to arrange compatible devices along the shelf to suit their rack layout.

Compatible Magewell Devices

The shelf supports Magewell Ultra Encode devices and Pro Convert encoders and decoders when used with the appropriate mounting kits.

Different compatible models can be installed together on the same shelf, with a matching kit required for each device.
