Technical details
Superior Image Quality
With a 4K camera and powerful zoom, the PS753 delivers remarkably detailed images to screens and projectors. The high-performance Sony sensor faithfully reproduces textures and colors in real time, with excellent control over image noise.
Wide Shooting Area

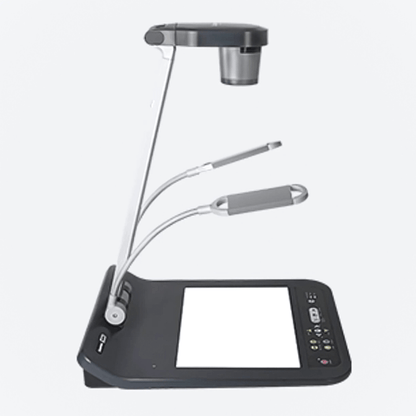

Lumens PS753 is extremely versatile, capable of reproducing documents and objects larger than A3 in size (over 20.5" x 12.1" / 50cm x 30cm). This gives presenters and demonstrators the flexibility that less powerful visualizers cannot match. Where the operator needs a close-up shot, the 300x zoom can capture the finest detail. For maximum versatility, the ePTZ functionality changes the camera angle and position to focus on a specific part of the object. This gives you the precise image you need every time.
Multi-Angle Lighting
The Lumens PS753 has dual lights on adjustable gooseneck mounts: any object is perfectly lit from above without glare or reflections. It also has a backlit LED light under the display area, making the visualizer ready to illuminate photo negatives and X-rays from below.
Easy to Use
Despite its advanced features, Lumens PS753 is very easy to use. The Auto-Tune immediately calibrates the camera to deliver a perfectly focused image with accurate colors. The annotation tool allows the user to draw over the image on the screen without installing any additional software. It’s fast, convenient, and simple to use. Use the included Ladibug software for advanced image control and connect to remote guests using your favorite conferencing platforms, such as Zoom, Meet, Skype, Teams, or WebEx.
Fast Installation
The PS753 is very easy to install. Power is provided over your Ethernet network (PoE) without additional power supplies. The system can output live pictures over a connection that suits the way you work: it links directly to a display or projector over HDMI or VGA or streams images over your network.- 4K Resolution with 300x zoom
- Supports HDMI, VGA, Ethernet, and USB output
- Shooting area (20.5" x 12.1") larger than A3
- Records to USB drives
- HDMI pass-through up to 4K resolution
- 5-year warranty
- 4K resolution (8.6MP Sony CMOS) with 300x total zoom (30x optical + 30x digital)
- Simultaneous HDMI, VGA, USB, and IP streaming (RTSP H.264) outputs
- HDMI pass-through input, share a display between camera and laptop without a switcher
- PoE+ powered (IEEE 802.3at) or DC adapter, flexible installation options
- Standalone H.264 recording at 1080p via USB storage
- Dual LED side lamps plus built-in LED backlight for flexible document illumination
- Onboard annotation via USB mouse; RS-232/USB/Ethernet control
- Shooting area 522 x 308mm; minimum close-up not specified
- VESA 75x75mm mount; Kensington lock slot
- Compatible with Ladibug software on Windows, macOS, and Chrome OS
- 5-year warranty
| Specification | Detail |
|---|---|
| Sensor | 1/2.8" 8.6MP Sony CMOS |
| Total zoom | 300x (30x optical + 30x digital) |
| HDMI output | Up to 4K @ 30fps; 1080p @ 60fps |
| VGA output | Up to 1080p |
| USB output | USB 2.0 (UVC/UAC) |
| IP streaming | RTSP H.264 |
| HDMI input | x1 pass-through (up to 4K) |
| Capture area | 522 x 308mm |
| Control | RS-232, USB, Ethernet |
| Audio | Built-in mic, Line In/Out (3.5mm) |
| VESA mount | 75 x 75mm |
| Power | PoE+ 18W / DC 16W |
| Dimensions (folded) | 566 x 385 x 152mm |
| Weight | 5.6kg |
| Warranty | 5 years |
Compatibility
- Ladibug software, Windows, macOS, Chrome OS
- All UVC/UAC-compatible computers and conferencing platforms
- PoE+ network switches (IEEE 802.3at)
- USB storage for standalone recording
