BXP-321 is a compact 4K Android digital signage player designed to drive high‑resolution content with smooth playback, HDMI input, and picture‑in‑picture for demanding signage and dashboard applications. It solves the need for reliable, always‑on media playback by combining a hexa‑core ARM processor, 4 GB RAM, and 32 GB eMMC in a fanless, mountable box PC.
Key Features:
4K UHD HDMI 2.0 output with 1080p HDMI input and PiP.
ARM Dual‑Core A72 + Quad‑Core A53 CPU, 4 GB RAM.
32 GB eMMC with microSD and M.2 2240 expansion options.
Gigabit Ethernet, Wi‑Fi 5, Bluetooth, GPIO, fanless aluminum housing.
Mainly used as a 4K digital signage and dashboard player for corporate, retail, transportation, and education environments needing stable, long‑term playback. It benefits AV integrators and IT teams who want a compact, remotely manageable Android signage node with flexible I/O and robust, fanless design.
- Live PiP: overlay live HDMI 1080p@60fps input over 4K output simultaneously
- 4K Ultra HD output at 60fps via HDMI 2.0 with CEC
- 64-bit Dual-Core A72 + Quad-core A53 CPU, 4GB RAM
- Independent hardware watchdog, automatic recovery from firmware, software, or hardware faults
- Configurable 8-pin GPIO, connect and control external devices (LED lights, sensors, switches)
- Secure I/O: all ports individually manageable to prevent unauthorised use
- 4G LTE ready via M.2 slot, deploy without fixed network infrastructure
- Optional Wi-Fi (802.11 b/g/n) and BLE Beacon
- IEEE 802.1X authentication and SSL/TLS secured connections
- RTSP/HTTP streaming and HTML5 / W3C SMIL API support
- Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
- Remote firmware and APK updates over the air (OTA)
- Kensington Lock for physical security
- Durable aluminium construction, VESA 100x100mm mount kit included
| Specification | Detail |
|---|---|
| OS | Android 8.1 / 10 / Debian / 12 |
| CPU | ARM Dual-Core A72 + Quad-core A53, 64-bit 1.8GHz |
| GPU | Mali-T864 |
| Memory | 4GB |
| Storage | 32GB eMMC |
| Watchdog | Yes, independent |
| HDMI Output | 1 x HDMI 2.0b with CEC (4K UHD 3840x2160@60fps) |
| HDMI Input | 1 x HDMI 1.4b with HDCP (1080p@60fps) |
| Live PiP | Yes |
| Video Playback | H.265 4K@60p, H.264 4K@30p, MPEG-4 1080P@60fps, HTML5 |
| Ethernet | 1 x RJ45, Gigabit 10/100/1000 |
| WLAN | Optional 802.11 b/g/n |
| BLE/Beacon | Optional (BT 4.0) |
| 4G LTE | M.2 module slot (M.2 3042 B-Key) |
| USB | 1 x USB 2.0, 1 x USB 3.0 Type-C |
| ADB | 1 x Micro USB |
| COM Port | 1 x RS-232 2.5mm jack (Tx/Rx/GND) |
| GPIO | 8 configurable pins (Phoenix type 12-pin) |
| Audio | 1 x 3.5mm (4-ring) |
| Storage Expansion | 1 x Micro SDHC slot |
| Kensington Lock | Yes |
| Dimensions (WxDxH) | 180 x 118 x 27mm |
| Net Weight | 400g |
| Material | Durable Aluminium |
| Mounting | Easy wall mount, VESA 100x100mm |
| Power | DC 12V/3A |
| Operating Temp | -40°C to 70°C |
| Storage Temp | -40°C to 80°C |
| SKU | Model |
|---|---|
| BXP-321 | Supercharged 4K Signage Player with Live PiP |
| Detail | Value |
|---|---|
| Options | Wi-Fi module (802.11 b/g/n), 4G LTE M.2 module, BLE Beacon module, M.2 SSD |
| Includes | DC adaptor, dipole antenna 2dBi, Velcro strip x2, HDMI x2, GPIO connector |
Compatibility
- 4K UHD (3840x2160) @ 60fps
- 1080p (1920x1080) @ 60fps from any HDMI source
- 8-pin configurable for LED lights
- motion sensors
- switch buttons
- Gigabit Ethernet (standard)
- optional Wi-Fi 802.11 b/g/n
- optional 4G LTE
- Transport hubs and transit stations with live feeds
- news and broadcast environments
- sports venues and live events
- retail and hospitality kiosk applications
- remote deployments requiring 4G connectivity
Product Features
-
Butter Smooth 4k Decoding
-

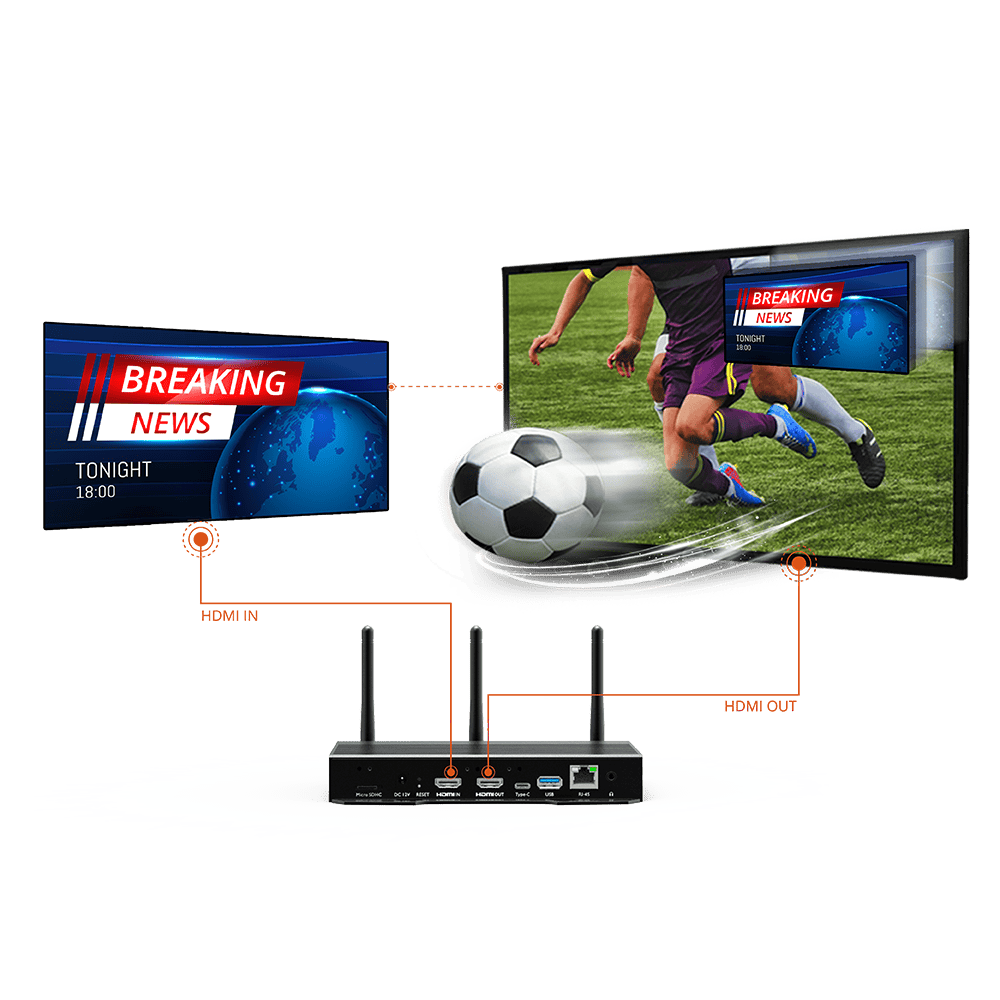

Multi-Tasking Made Easy with Picture-in-Picture
