Eco Capture 12G SDI 4K Plus M.2
Couldn't load pickup availability
Single-Channel 4Kp60 SDI Capture

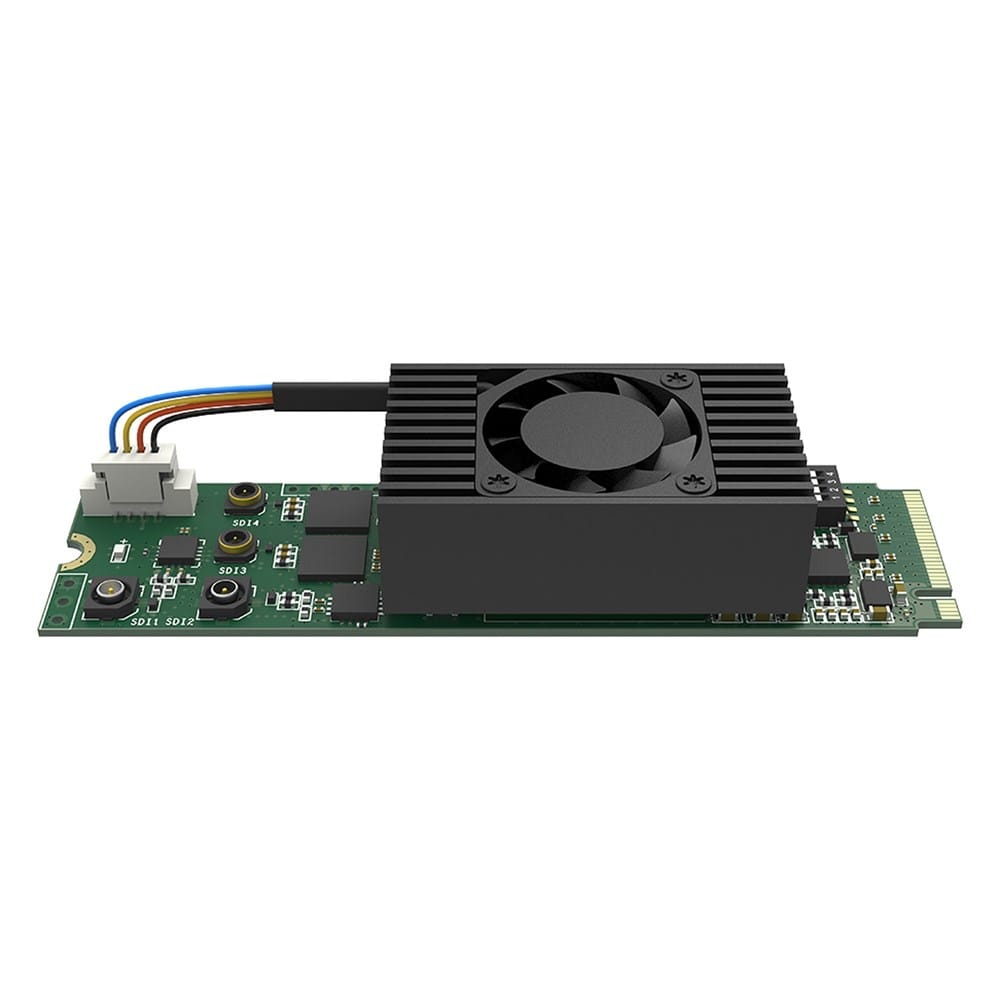

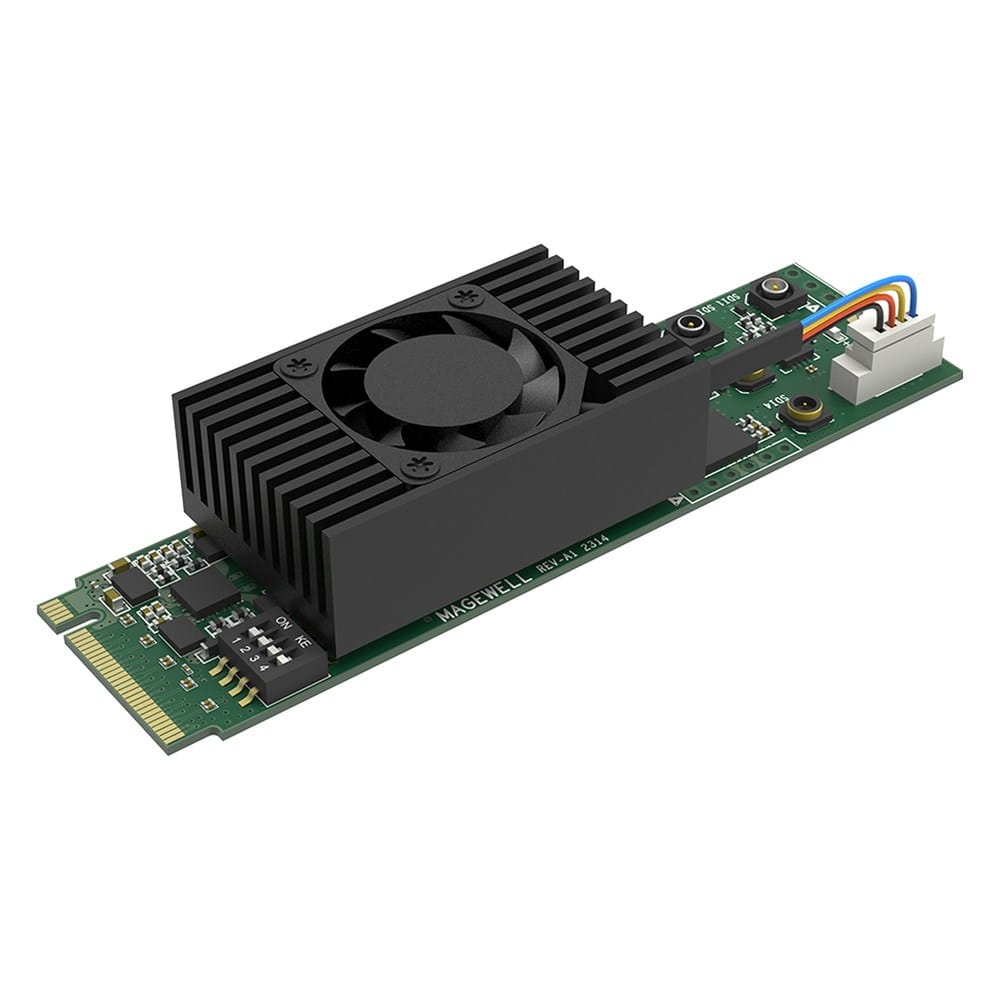

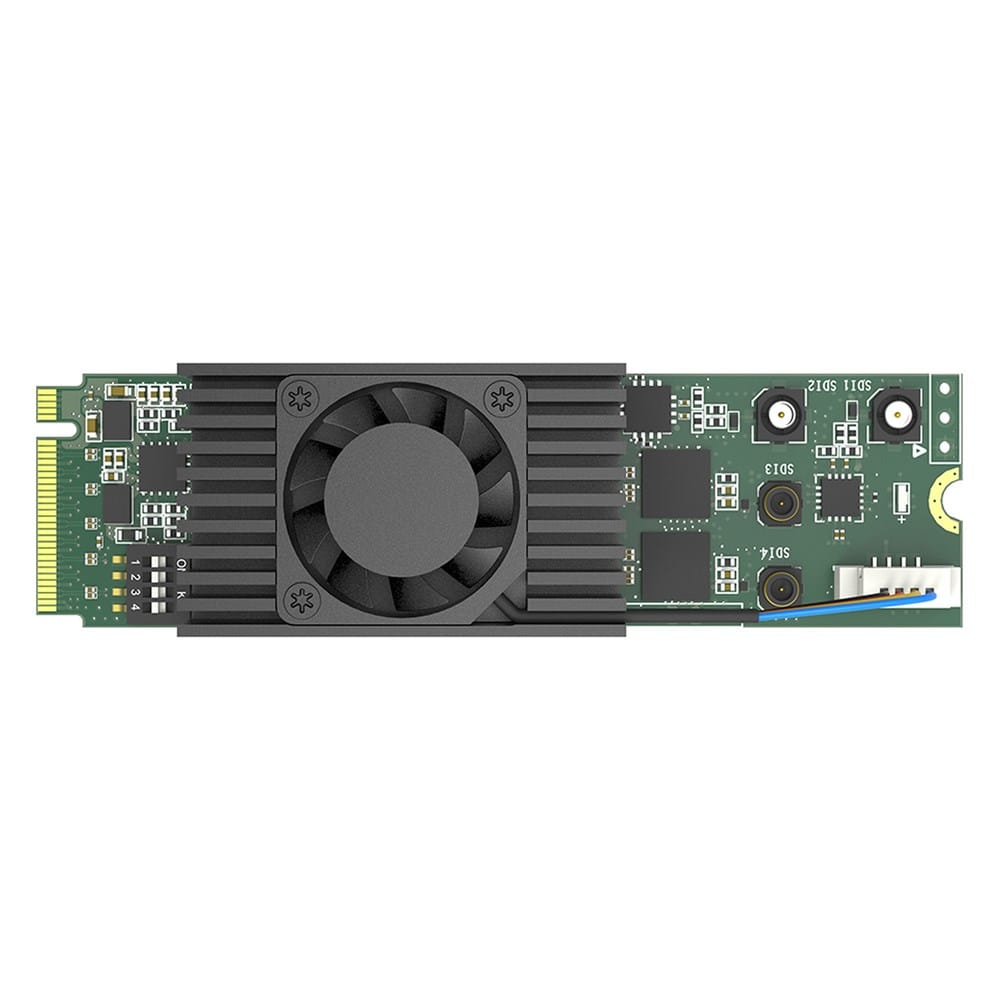

The Magewell Eco Capture 12G SDI 4K Plus M.2 is a single-channel capture card for professional SDI video workflows. It supports capture up to 4096 × 2160 at 60fps, with 4:2:2 10-bit input.
Its two SDI input connectors support signals from SD through 12G-SDI, including input configurations for 4K video. The M.2 2280 card is designed for integration into compatible systems using a PCIe Gen3 x4 host interface.
Features include:
Single-channel capture up to 4Kp60.
Maximum input of 4096 × 2160 at 60fps with 4:2:2 10-bit video.
Two SDI input connectors supporting SD, HD, 3G, 6G and 12G-SDI signals.
Support for single SD/HD/3G/6G/12G-SDI, dual 6G-SDI or quad 3G-SDI input configurations.
Capture resolutions up to 4096 × 2160 and frame rates up to 240fps, subject to PCIe bandwidth and internal working frequency.
Up to eight channels of embedded 48kHz audio.
Video output formats include NV12, I420, YUYV, UYVY, RGB24 and RGB32.
Support for scaling, de-interlacing, colour-space conversion and frame-rate conversion.
Multiple capture streams from a single input channel.
Hardware timestamping for audio and video, with support for A/V synchronisation.
Windows DirectShow, DirectKS, Wave, DirectSound and WASAPI support, plus Linux V4L2 and ALSA.
Compatible with software including OBS, vMix, VLC, Wirecast and other supported capture applications.
Flexible SDI Input
The card supports SDI standards from SD through 12G-SDI, including single-link and multi-link input configurations. It can capture 4K signals as well as a range of HD and lower-resolution formats.
Two input connectors provide support for single SDI signals, dual 6G-SDI or quad 3G-SDI configurations, depending on the source signal and setup.
Processing and Synchronisation
On-card video processing supports scaling, de-interlacing, colour-space conversion and frame-rate conversion. Output formats include YUV and RGB options, with custom output formats available through the Magewell Capture SDK.
Hardware-based timestamping supports audio and video synchronisation. The SDK also provides access to signal status, capture configuration, SMPTE timecode and ANC metadata.
Compact M.2 Integration
The M.2 2280 form factor and PCIe Gen3 x4 host interface make the card suitable for integration into compatible systems. Windows and Linux operating systems are supported.
Applications can access the capture card through supported APIs, including DirectShow on Windows and V4L2 on Linux.
Product Specifications
| Specification | Details |
|---|---|
| Product type | Single-channel SDI capture card |
| Maximum input | 4096 × 2160 at 60fps, 4:2:2 10-bit |
| Input interfaces | 2 × SDI connectors; supports SD/HD/3G/6G/12G-SDI |
| Input configurations | Single SD/HD/3G/6G/12G-SDI, dual 6G-SDI or quad 3G-SDI |
| Capture frame rates | Up to 240fps, subject to PCIe bandwidth and internal working frequency |
| Embedded audio | Up to 8 channels at 48kHz |
| Video output formats | NV12, I420, YUYV, UYVY, RGB24 and RGB32 |
| Host interface | M.2 2280 Type M, PCIe Gen3 x4 |
| Form factor | M.2 2280 standard size (22 × 80mm) |
| Supported operating systems | Windows 10/11 and Server 2016 or later; Linux (x86, x64 and ARM) |
| Maximum power consumption | Approximately 6.5W |
| Operating temperature | 0 to 40°C |
