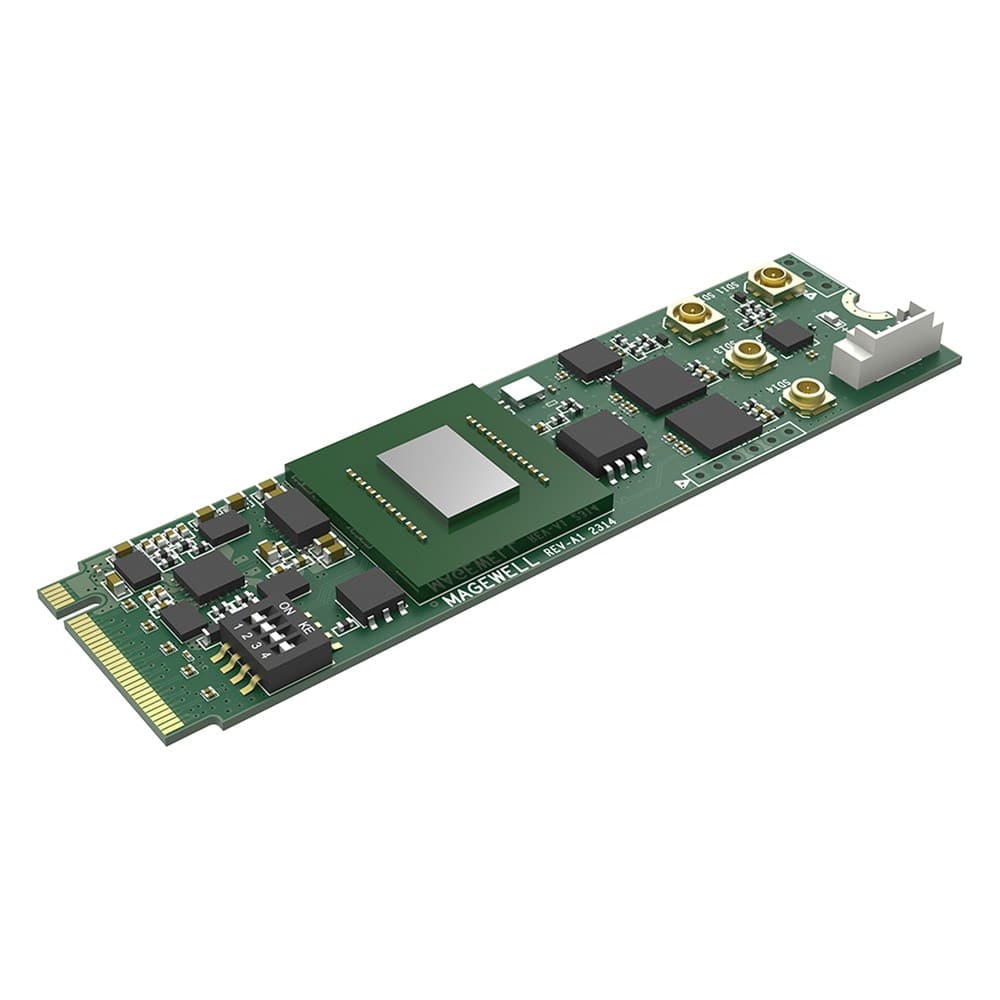

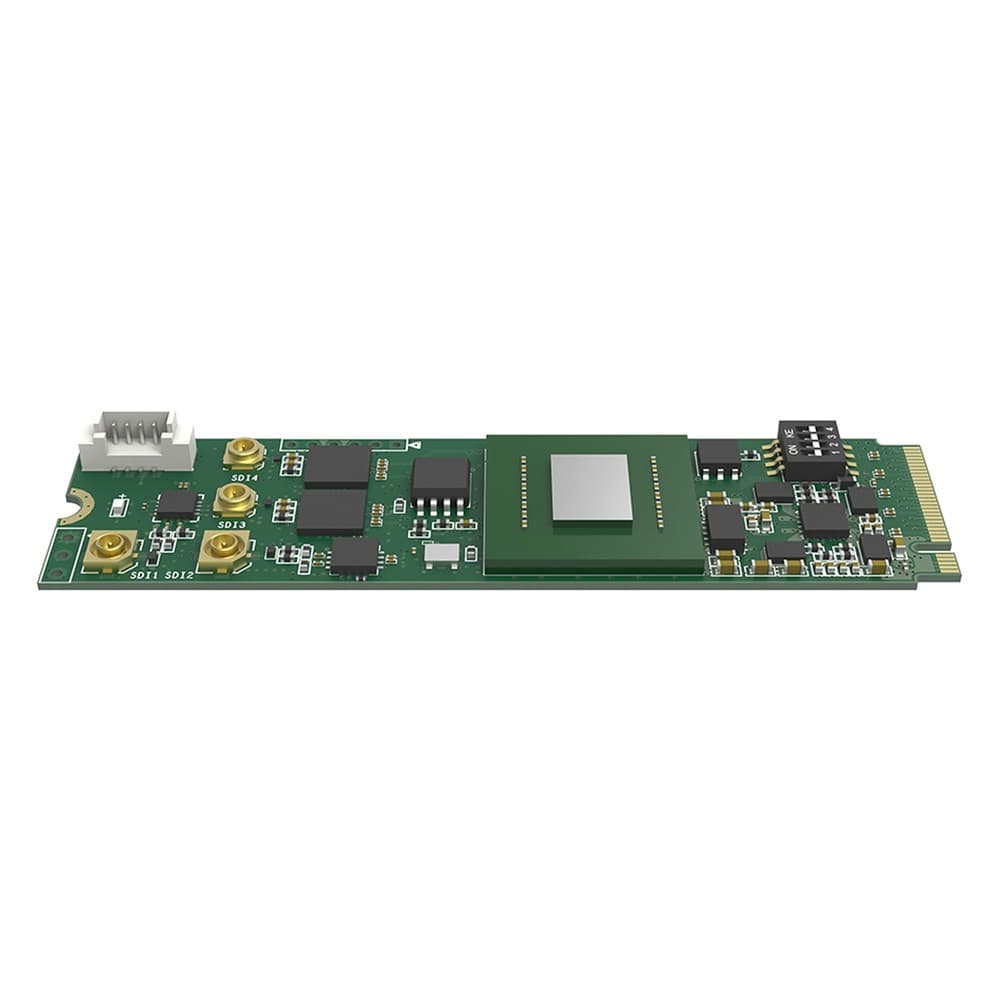

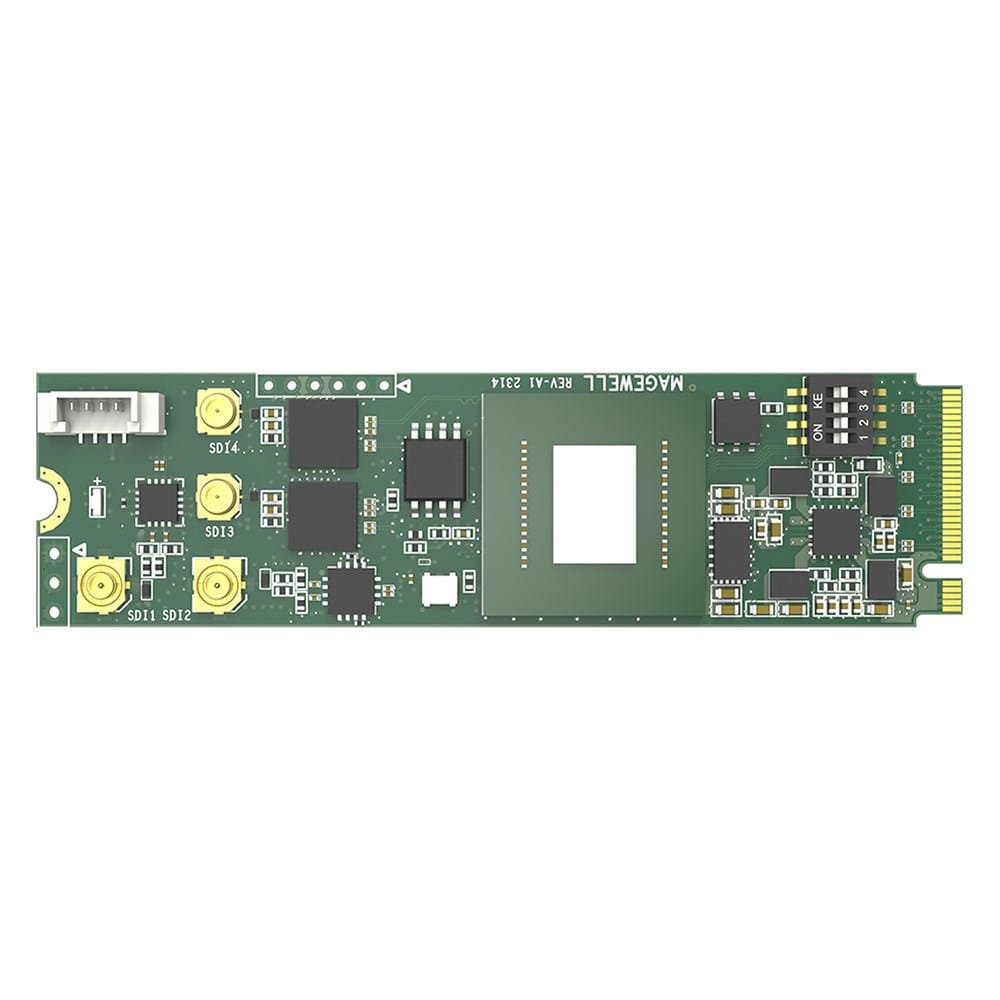

Eco Capture 12G SDI 4K Plus M.2 (no heat sink)
Couldn't load pickup availability
Single-Channel 4K SDI Capture for M.2 Systems
The Magewell Eco Capture 12G SDI 4K Plus M.2 is a single-channel 4Kp60 capture card designed for systems with an M.2 2280 Type M slot. This variant is supplied without a heat sink.
It supports SDI signals from standard definition through 12G-SDI, with options for single, dual-link or quad-link input configurations. Its compact design and support for Windows and Linux make it suitable for integration into a range of professional video capture and streaming workflows.
Features include:
Capture input up to 4096 × 2160 at 60fps in 4:2:2 10-bit.
Two SDI input interfaces supporting SD, HD, 3G, 6G and 12G-SDI signals.
Support for single SDI, dual 6G-SDI or quad 3G-SDI configurations for 12G-SDI capture.
Compatible with SDI standards from ST 259 through ST 2082.
Capture resolutions up to 4096 × 2160, with frame rates up to 240fps depending on PCIe bandwidth and internal working frequency.
Up to eight channels of 48kHz embedded audio.
Video output formats include NV12, I420, YUYV, UYVY, RGB24 and RGB32.
Supports scaling, de-interlacing, colour space conversion and frame rate conversion.
Multiple capture streams are supported for an input channel.
Hardware timestamps support audio and video synchronisation.
Windows and Linux support, including DirectShow and V4L2 APIs.
M.2 2280 Type M host interface with PCIe Gen3 x4 connectivity.
Compatible with software including OBS, vMix, VLC, Wirecast and VirtualDub.
Supplied without a heat sink.
Flexible SDI Capture
The card supports a range of SDI standards and signal configurations, including single SDI, dual 6G-SDI and quad 3G-SDI input for 12G-SDI capture. This allows it to work with different SDI sources and production setups.
Capture resolutions include 4096 × 2160 and 3840 × 2160, with supported frame rates depending on the selected format and system bandwidth.
Processing and Software Support
On-card video processing supports scaling, de-interlacing, colour space conversion and frame rate conversion. Embedded audio, timestamps and synchronisation features support audio and video capture workflows.
The card works with Windows and Linux capture APIs and is compatible with software including OBS, vMix, VLC and Wirecast.
Compact M.2 Integration
The M.2 2280 Type M form factor connects through PCIe Gen3 x4, making the card suitable for integration into compatible systems.
This product variant is supplied without a heat sink. Optional SDI cables and BNC connectors are listed by Magewell as accessories.
Product Specifications
| Specification | Details |
|---|---|
| Product type | Single-channel 4Kp60 SDI capture card |
| Input interfaces | 2 × SDI |
| Supported SDI formats | SD, HD, 3G, 6G and 12G-SDI |
| Input configurations | Single SDI, dual 6G-SDI or quad 3G-SDI to 12G-SDI |
| Maximum input | 4096 × 2160 at 60fps, 4:2:2 10-bit |
| Maximum capture resolution | 4096 × 2160 |
| Embedded audio | Up to 8 channels at 48kHz |
| Video output formats | NV12, I420, YUYV, UYVY, RGB24 and RGB32 |
| Host interface | M.2 2280 Type M, PCIe Gen3 x4 |
| Form factor | M.2 2280 standard size (22 × 80 mm) |
| Supported operating systems | Windows 10/11/Server 2016 and above; Linux x86, x64 and ARM |
| Power consumption | Maximum approximately 6.5W |
| Heat sink | Not included |
Technical details
Single-Channel 4K SDI Capture for M.2 Systems
The Magewell Eco Capture 12G SDI 4K Plus M.2 is a single-channel 4Kp60 capture card designed for systems with an M.2 2280 Type M slot. This variant is supplied without a heat sink.
It supports SDI signals from standard definition through 12G-SDI, with options for single, dual-link or quad-link input configurations. Its compact design and support for Windows and Linux make it suitable for integration into a range of professional video capture and streaming workflows.
Features include:
Capture input up to 4096 × 2160 at 60fps in 4:2:2 10-bit.
Two SDI input interfaces supporting SD, HD, 3G, 6G and 12G-SDI signals.
Support for single SDI, dual 6G-SDI or quad 3G-SDI configurations for 12G-SDI capture.
Compatible with SDI standards from ST 259 through ST 2082.
Capture resolutions up to 4096 × 2160, with frame rates up to 240fps depending on PCIe bandwidth and internal working frequency.
Up to eight channels of 48kHz embedded audio.
Video output formats include NV12, I420, YUYV, UYVY, RGB24 and RGB32.
Supports scaling, de-interlacing, colour space conversion and frame rate conversion.
Multiple capture streams are supported for an input channel.
Hardware timestamps support audio and video synchronisation.
Windows and Linux support, including DirectShow and V4L2 APIs.
M.2 2280 Type M host interface with PCIe Gen3 x4 connectivity.
Compatible with software including OBS, vMix, VLC, Wirecast and VirtualDub.
Supplied without a heat sink.
Flexible SDI Capture
The card supports a range of SDI standards and signal configurations, including single SDI, dual 6G-SDI and quad 3G-SDI input for 12G-SDI capture. This allows it to work with different SDI sources and production setups.
Capture resolutions include 4096 × 2160 and 3840 × 2160, with supported frame rates depending on the selected format and system bandwidth.
Processing and Software Support
On-card video processing supports scaling, de-interlacing, colour space conversion and frame rate conversion. Embedded audio, timestamps and synchronisation features support audio and video capture workflows.
The card works with Windows and Linux capture APIs and is compatible with software including OBS, vMix, VLC and Wirecast.
Compact M.2 Integration
The M.2 2280 Type M form factor connects through PCIe Gen3 x4, making the card suitable for integration into compatible systems.
This product variant is supplied without a heat sink. Optional SDI cables and BNC connectors are listed by Magewell as accessories.
Product Specifications
| Specification | Details |
|---|---|
| Product type | Single-channel 4Kp60 SDI capture card |
| Input interfaces | 2 × SDI |
| Supported SDI formats | SD, HD, 3G, 6G and 12G-SDI |
| Input configurations | Single SDI, dual 6G-SDI or quad 3G-SDI to 12G-SDI |
| Maximum input | 4096 × 2160 at 60fps, 4:2:2 10-bit |
| Maximum capture resolution | 4096 × 2160 |
| Embedded audio | Up to 8 channels at 48kHz |
| Video output formats | NV12, I420, YUYV, UYVY, RGB24 and RGB32 |
| Host interface | M.2 2280 Type M, PCIe Gen3 x4 |
| Form factor | M.2 2280 standard size (22 × 80 mm) |
| Supported operating systems | Windows 10/11/Server 2016 and above; Linux x86, x64 and ARM |
| Power consumption | Maximum approximately 6.5W |
| Heat sink | Not included |
