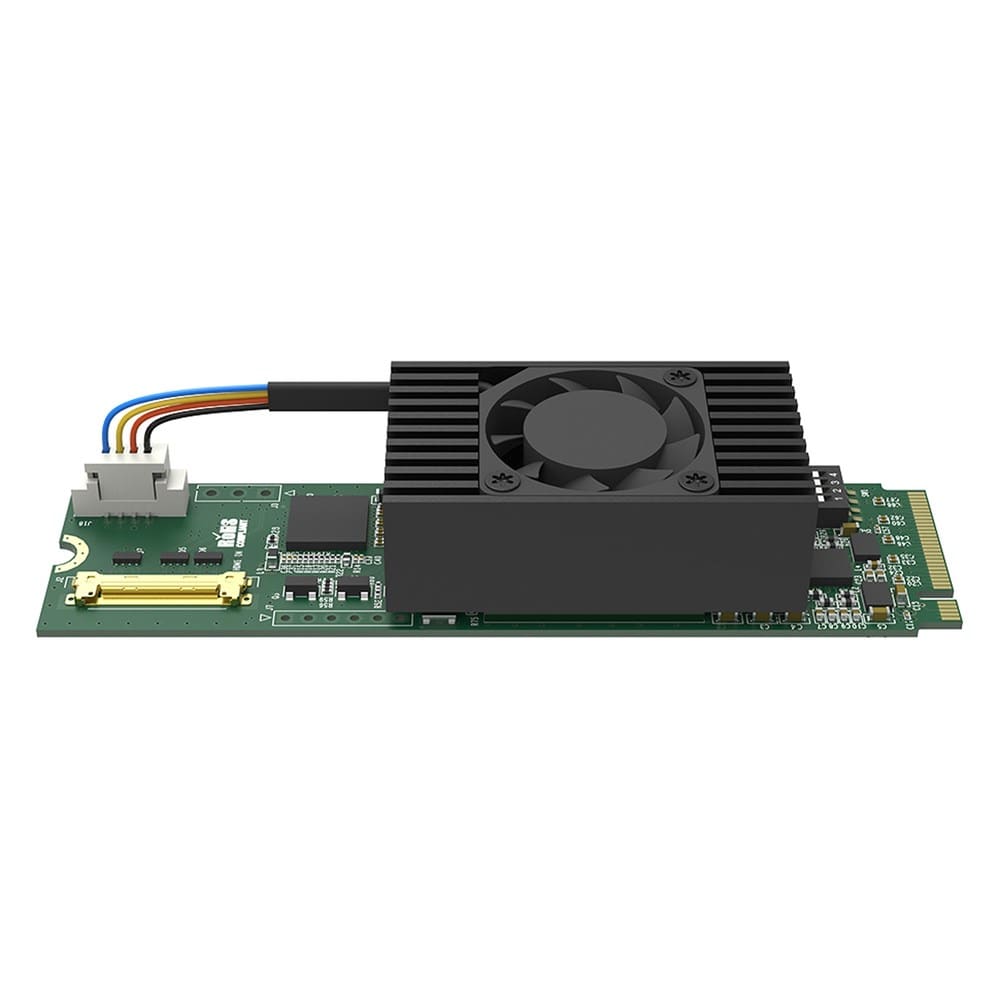

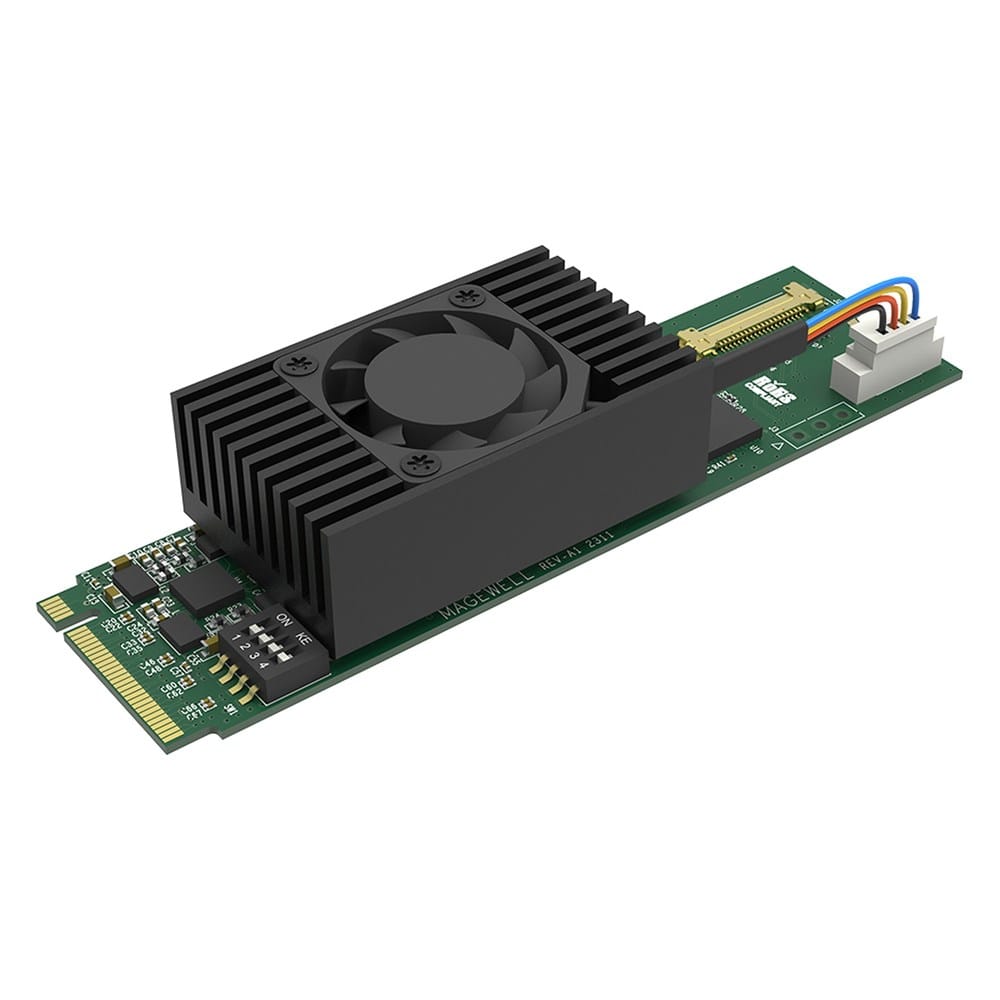

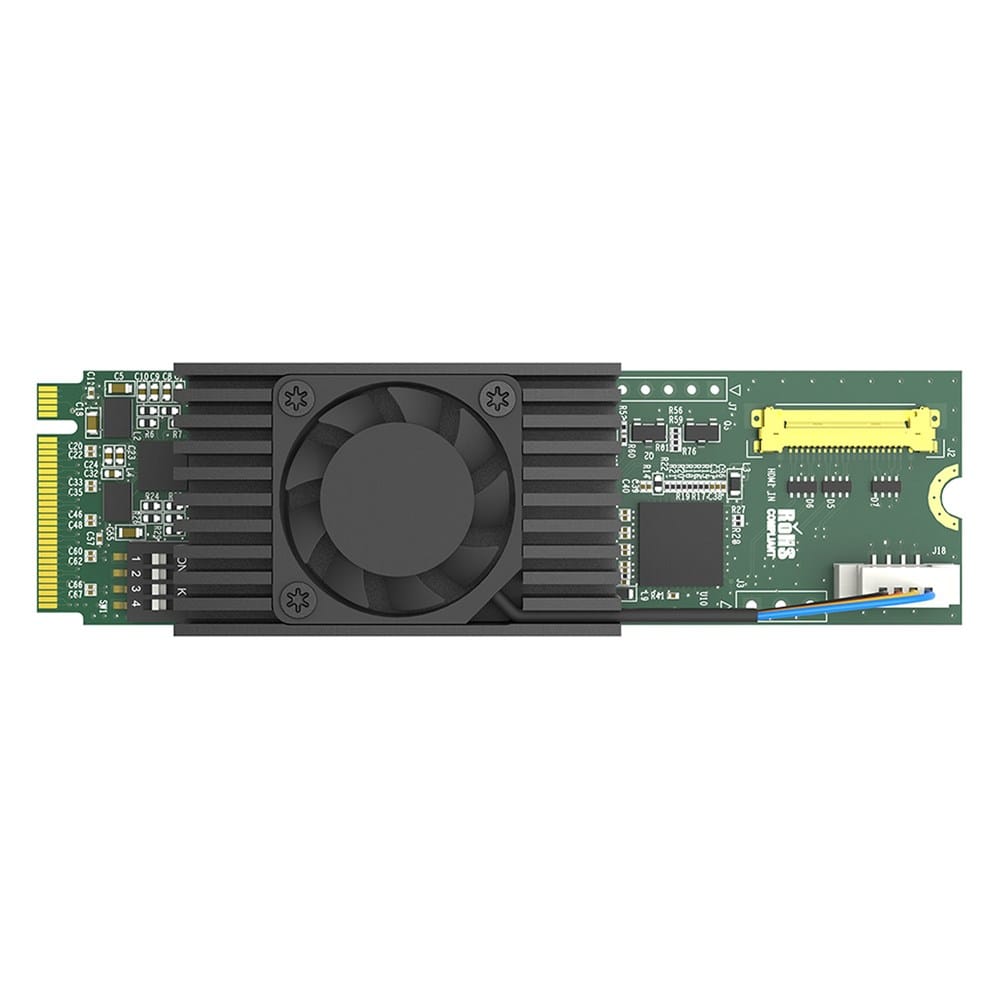

Eco Capture HDMI 4K Plus M.2
Couldn't load pickup availability
Single-Channel 4K HDMI Capture
The Magewell Eco Capture HDMI 4K Plus M.2 is a single-channel capture card for integrating HDMI video and embedded audio into computer-based production and streaming workflows. Its compact M.2 form factor is designed for installation in compatible systems.
Supporting HDMI 2.0 signals up to 4096×2160 at 60 frames per second, the card provides video processing and capture features for professional applications. It is compatible with Windows and Linux, and works with software including OBS, vMix, Wirecast and VLC.
Features include:
Single-channel HDMI video capture.
HDMI 2.0 input supporting up to 4096×2160 at 60 frames per second.
Support for HDR10 signals.
Capture of video at resolutions up to 4096×2160 and frame rates up to 240fps, subject to PCIe bandwidth and internal working frequency.
Support for up to 8-channel embedded HDMI audio.
Support for RGB and YUV input formats, including YUV 4:2:2 12-bit and RGB/YUV 4:4:4 10/12-bit signals.
Video output formats include NV12, I420, YUYV, UYVY, RGB24 and RGB32.
Video scaling, de-interlacing, colour format conversion and frame rate conversion.
Custom EDID and custom output formats through the Magewell Capture SDK.
Hardware timestamping and audio/video synchronisation.
M.2 2280 Type M host interface with PCIe Gen3 x4 connectivity.
Windows and Linux support, including DirectShow and V4L2 capture APIs.
HDMI Video and Audio Capture
The card captures HDMI video with embedded audio, supporting resolutions up to 4096×2160 and a maximum input pixel clock of 594MHz. HDR10 and a range of RGB and YUV signal formats are supported.
Capture output can be configured in several video formats, with options for scaling, de-interlacing and frame rate conversion. Actual capture rates depend on the selected format and system bandwidth.
Integration with Production Software
Eco Capture HDMI 4K Plus M.2 works with Windows and Linux applications using supported capture interfaces, including DirectShow on Windows and V4L2 on Linux.
Compatible software listed by Magewell includes OBS, vMix, Wirecast, VLC, XSplit and VirtualDub, as well as other DirectShow or V4L2 applications.
Compact M.2 Installation
The standard M.2 2280 Type M form factor measures 22mm by 80mm and connects to a compatible host through PCIe Gen3 x4. The HDMI input connection uses an LVDS 0.5PH 20-pin interface with a compatible HDMI adapter.
Designed for installation in compatible computer systems, the card has a maximum power consumption of approximately 6.6W and operates in ambient temperatures from 0 to 40 degrees Celsius.
Product Specifications
| Specification | Details |
|---|---|
| Product type | Single-channel HDMI capture card |
| Maximum input resolution | 4096×2160 at 60fps |
| Maximum input pixel clock | 594MHz |
| Input interface | LVDS 0.5PH 20-pin to DVI-D 1.0 / HDMI 2.0 |
| Maximum input audio | 8-channel, 24-bit HDMI embedded audio, up to 192kHz sample rate |
| HDR support | HDR10 |
| Maximum capture frame rate | Up to 240fps, depending on format, PCIe bandwidth and internal working frequency |
| Video output formats | NV12, I420, YUYV, UYVY, RGB24 and RGB32 |
| Host interface | M.2 2280 Type M, PCIe Gen3 x4 |
| Form factor | M.2 2280, 22mm × 80mm |
| Supported operating systems | Windows 10/11 and Server 2016 or later; Linux x86, x64 and ARM |
| Maximum power consumption | Approximately 6.6W |
| Operating temperature | 0 to 40 degrees Celsius |
Technical details
Single-Channel 4K HDMI Capture
The Magewell Eco Capture HDMI 4K Plus M.2 is a single-channel capture card for integrating HDMI video and embedded audio into computer-based production and streaming workflows. Its compact M.2 form factor is designed for installation in compatible systems.
Supporting HDMI 2.0 signals up to 4096×2160 at 60 frames per second, the card provides video processing and capture features for professional applications. It is compatible with Windows and Linux, and works with software including OBS, vMix, Wirecast and VLC.
Features include:
Single-channel HDMI video capture.
HDMI 2.0 input supporting up to 4096×2160 at 60 frames per second.
Support for HDR10 signals.
Capture of video at resolutions up to 4096×2160 and frame rates up to 240fps, subject to PCIe bandwidth and internal working frequency.
Support for up to 8-channel embedded HDMI audio.
Support for RGB and YUV input formats, including YUV 4:2:2 12-bit and RGB/YUV 4:4:4 10/12-bit signals.
Video output formats include NV12, I420, YUYV, UYVY, RGB24 and RGB32.
Video scaling, de-interlacing, colour format conversion and frame rate conversion.
Custom EDID and custom output formats through the Magewell Capture SDK.
Hardware timestamping and audio/video synchronisation.
M.2 2280 Type M host interface with PCIe Gen3 x4 connectivity.
Windows and Linux support, including DirectShow and V4L2 capture APIs.
HDMI Video and Audio Capture
The card captures HDMI video with embedded audio, supporting resolutions up to 4096×2160 and a maximum input pixel clock of 594MHz. HDR10 and a range of RGB and YUV signal formats are supported.
Capture output can be configured in several video formats, with options for scaling, de-interlacing and frame rate conversion. Actual capture rates depend on the selected format and system bandwidth.
Integration with Production Software
Eco Capture HDMI 4K Plus M.2 works with Windows and Linux applications using supported capture interfaces, including DirectShow on Windows and V4L2 on Linux.
Compatible software listed by Magewell includes OBS, vMix, Wirecast, VLC, XSplit and VirtualDub, as well as other DirectShow or V4L2 applications.
Compact M.2 Installation
The standard M.2 2280 Type M form factor measures 22mm by 80mm and connects to a compatible host through PCIe Gen3 x4. The HDMI input connection uses an LVDS 0.5PH 20-pin interface with a compatible HDMI adapter.
Designed for installation in compatible computer systems, the card has a maximum power consumption of approximately 6.6W and operates in ambient temperatures from 0 to 40 degrees Celsius.
Product Specifications
| Specification | Details |
|---|---|
| Product type | Single-channel HDMI capture card |
| Maximum input resolution | 4096×2160 at 60fps |
| Maximum input pixel clock | 594MHz |
| Input interface | LVDS 0.5PH 20-pin to DVI-D 1.0 / HDMI 2.0 |
| Maximum input audio | 8-channel, 24-bit HDMI embedded audio, up to 192kHz sample rate |
| HDR support | HDR10 |
| Maximum capture frame rate | Up to 240fps, depending on format, PCIe bandwidth and internal working frequency |
| Video output formats | NV12, I420, YUYV, UYVY, RGB24 and RGB32 |
| Host interface | M.2 2280 Type M, PCIe Gen3 x4 |
| Form factor | M.2 2280, 22mm × 80mm |
| Supported operating systems | Windows 10/11 and Server 2016 or later; Linux x86, x64 and ARM |
| Maximum power consumption | Approximately 6.6W |
| Operating temperature | 0 to 40 degrees Celsius |
