By Heckler

Heckler AV Wall Structure

$3,489.00
$3,489.00
SKU: H800-BG
Availability: 1 in stock

Want to become a AV Hardware Reseller or find one near you? Contact us or call
09-979-5479.

Overview

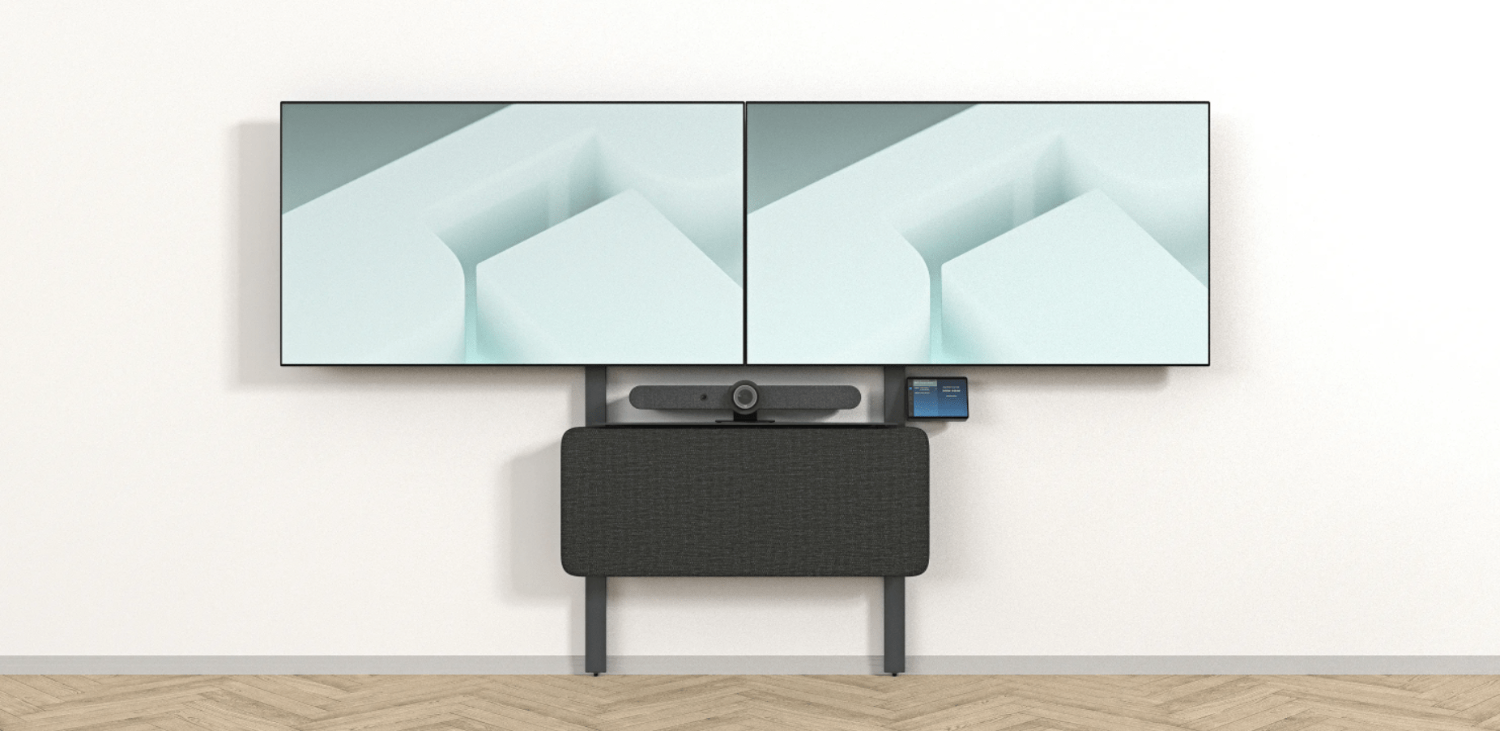

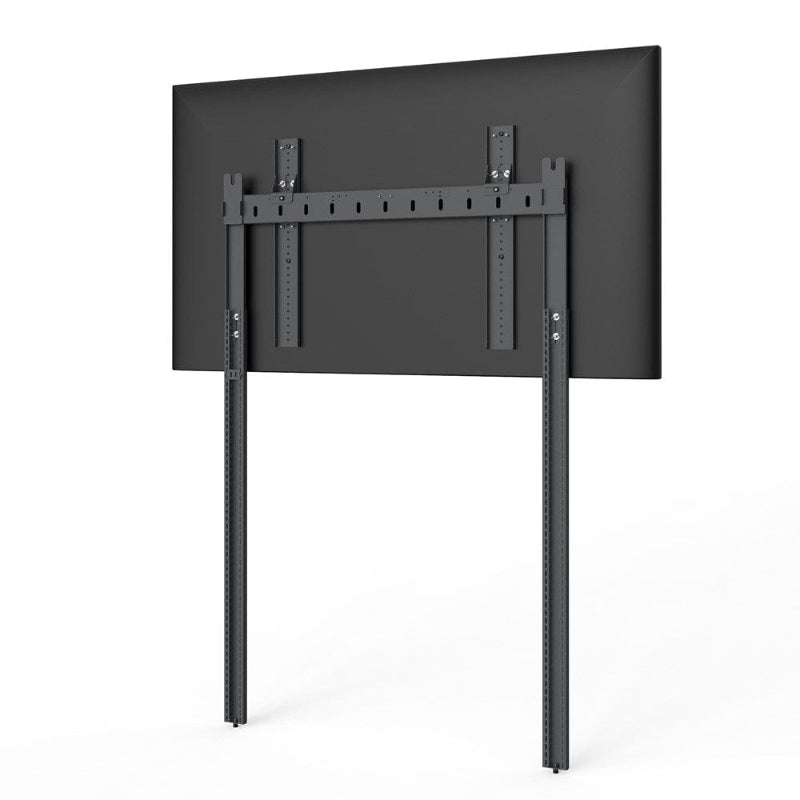

The Heckler AV Wall Structure is a floor-standing display support system engineered for 65-inch and larger displays in meeting rooms, classrooms, and conference spaces. Unlike traditional wall mounts, it transfers display weight to the floor rather than the wall, eliminating the need for wall reinforcement or structural modifications. It forms the foundation of the Heckler AV Wall ecosystem, accepting accessories such as the Video Meeting Kit, Dual Display Kit, and Controller Mount.

Key features
  • Transfers display weight to the floor, no wall reinforcement or structural work required
  • Anchors to wall studs to prevent forward tipping
  • Adjustable mounting heights on heavy-duty rails; supports VESA 300-900mm
  • Hook-engagement display mounting for secure, tool-reduced installation
  • Ships via standard small-package carriers; scalable for multi-room deployments
  • Accepts the full range of Heckler AV Wall accessories

Warranty

2-year warranty

Certifications
  • TAA compliant
Product specs Download
Assembly guide Download
Heckler AV Wall Structure supports large displays from 65 to 98 inches with versatile VESA mounting.
$3,489.00
$3,489.00

Technical details

Don’t let the trend toward large displays complicate your deployments.

  • Supports 65-inch to 98-inch displays
  • Supports a variety of VESA mounting patterns from 300mm to 900mm

The Heckler AV Wall Structure is engineered to transfer the weight of your equipment to the floor, not the wall. This eliminates the need to reinforce walls in preparation for video meeting system deployments. Your investment stays in your hardware, not leased office space.

  • Transfers display weight to the floor, no wall reinforcement or structural work required
  • Anchors to wall studs to prevent forward tipping
  • Adjustable mounting heights on heavy-duty rails; supports VESA 300-900mm
  • Hook-engagement display mounting for secure, tool-reduced installation
  • Ships via standard small-package carriers; scalable for multi-room deployments
  • Accepts the full range of Heckler AV Wall accessories
SpecificationDetail
Dimensions76.7 x 50.25 x 1.72 in (1947 x 1276 x 44 mm)
Shipping Dimensions60 x 25 x 4 in (1524 x 635 x 102 mm)
Weight51 lbs / 23.1 kg
Shipping Weight63 lbs / 28.6 kg
MaterialPowdercoated Steel (12-gauge, 10-gauge, and quarter-inch sections with continuous welds)
VESA Compatibility300, 350, 400, 600, 800, and 900mm horizontal patterns
Max Display Weight350 lbs (159 kg)
Warranty2 years

Available options

ColourSKU
Black GreyH800-BG

Compatibility

  • Displays with horizontal VESA patterns of 300, 350, 400, 600, 800, and 900mm. Recommended for displays 65 inches and larger. Maximum display weight 350 lbs (159 kg).
