Outdoor Deluxe Acrylic Convex Mirror

Outdoor Deluxe Acrylic Convex Mirror

Product SKU: 18066C

Free Shipping Rate Applies to all Security Mirrors.

Unbreakable Circular Mirror suitable for Outside

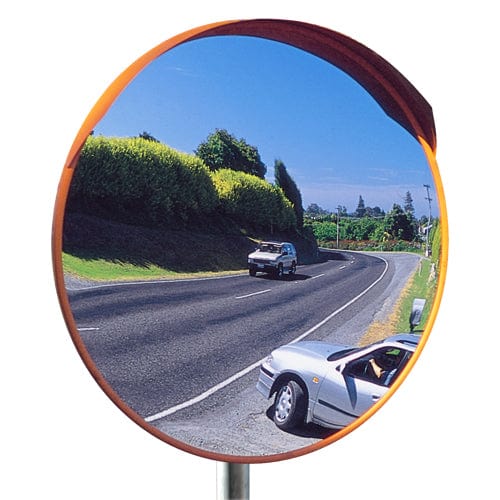

The unbreakable Deluxe stainless steel convex mirror is tough and durable and can withstand extreme weather conditions. The shallower curve of the mirror face means you can observe high speed traffic much more safely without risk of damage from projectile objects such as rocks or vandalism. The Deluxe model can be strategically positioned anywhere a driver’s field of vision is obstructed, such as blind corners, a concealed entry or exit and hard to see intersections. The galvanised steel clamp bracket is designed for pole mounting. A wall mounting adaptor is also available to fix the mirror to a flat surface

Features

  • 304 grade 18 gauge stainless steel mirror face
  • Large radius of curvature for minimum distance distortion
  • Orange powder coated hood
  • Vinyl celuka back
  • Orange vinyl extrusion
  • Outdoor strength pole mount fittings to fit 75mm dia. pole
  • Wall mounting adaptor available for clamp style bracket

Suitable Uses

  • Road and Traffic Safety
  • Railway and Subway Platforms
  • Extreme Weather Conditions
  • Coastal Environments
  • Driveways and Carparks
  • Outdoor Security aound Buildings
  • Security Checkpoints and Boarder Control

Installation Guide

  1. Decide the appropriate place to site the mirror to give maximum vision.

  2. Fix J-Bracket to wall or ceiling using suitable fixing hardware (ie: screws, bolts). Allowing enough room to get the mirror on to the J-Bracket.

  3. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

  4. Tighten the Grub Screw in the adaptor securely with the Allen Key supplied.

Pole Mounting with U-Bolts:

  1. Choose a 75mm Round pole to attach the U-Bolts to.

  2. 300mm - 450mm diameter mirrors: - Thread the U-Bolts around the J-Bracket and through the U-Bolt Flat Plate.

    600mm diameter mirrors: - Thread the U-Bolts through one side of the J-Bracket and then through both sides of the U-Bolt Flat Plate.

  3. Thread the Washer and Nut onto the U-Bolts and tighten.

  4. Slide the adaptor and mirror over the J-Bracket and adjust mirror to the desired position.

  5. Tighten the Grub Screw in the adaptor securely with the Allen Key supplied.

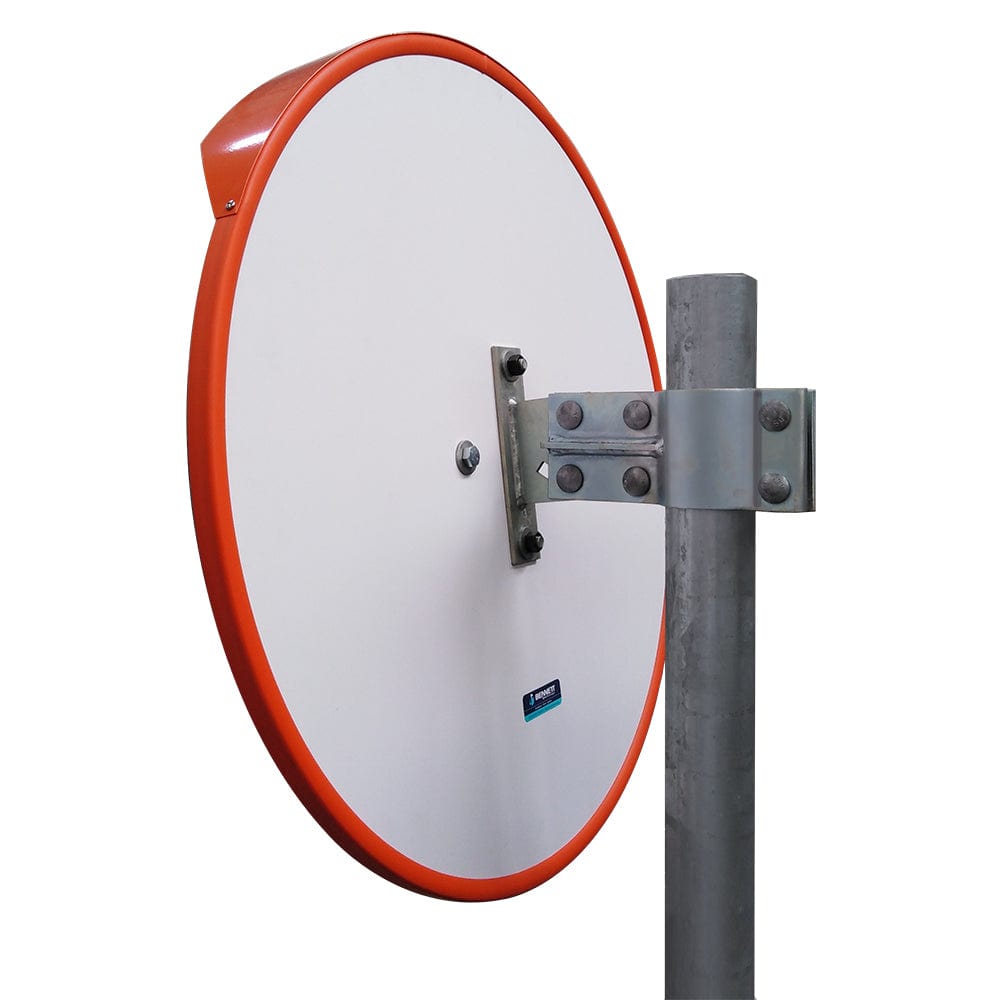

Pole Mounting - Clamp Bracket:

Clamp Bracket Installation Guide: (800mm - 1000mm Sizes Only)

  1. Decide the appropriate place to site the mirror on 75mm pole.

  2. Fix clamp and mirror mount assembly to the pole.

  3. Make sure adjustment slot is to the bottom

  4. Fix the mirror to the clamp bracket.

  5. Once the desired position has been found, tighten the bolts and nuts.

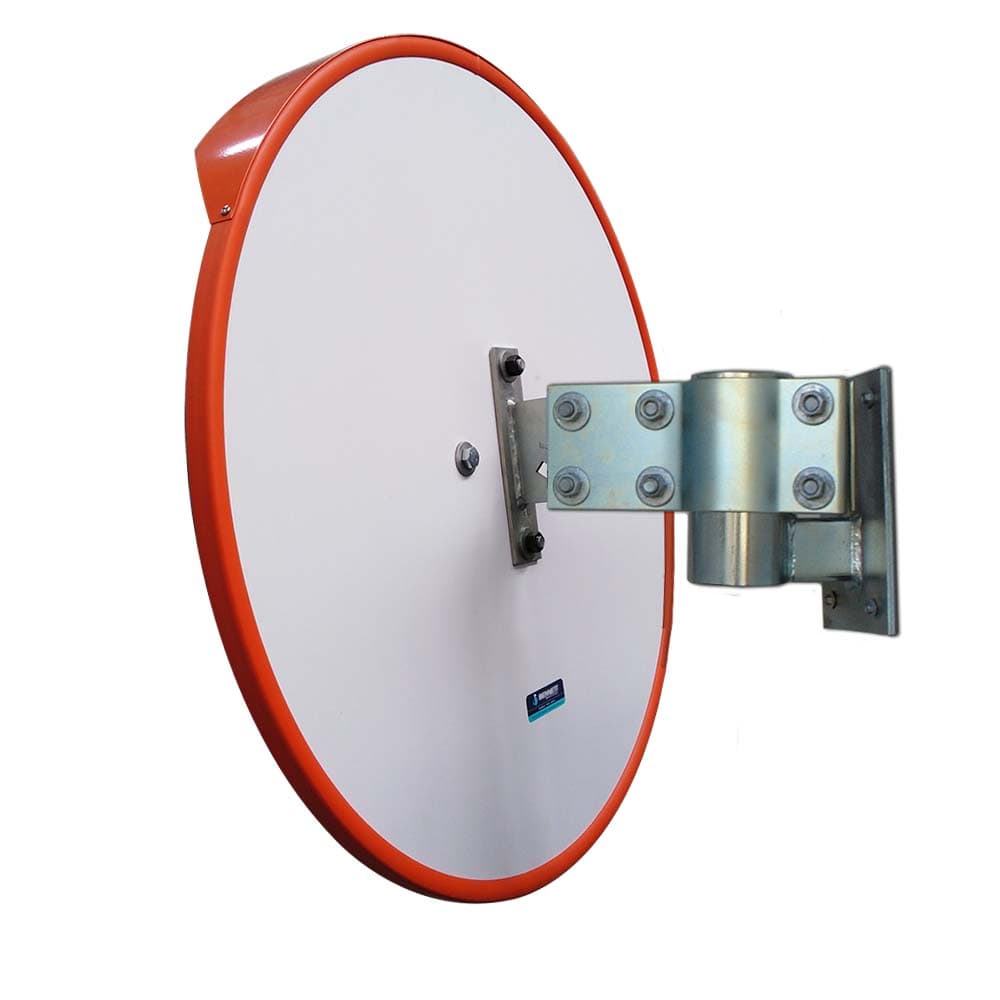

Wall Mounting - Clamp Bracket:

NOTE: The Wall Mounting Adaptor is not included and must be purchased separately.
For use only with 75mm Clamp Bracket (ie: 800mm - 1000mm size mirrors).

  1. Decide the appropriate place to site the mirror (on a flat surface) and fix the Wall Adaptor using suitable hardware.

  2. Fix clamp and mirror mount assembly to the Wall Adaptor making sure the slot is to the bottom.

  3. Fix the mirror face to the clamp bracket.

  4. Once the desired position has been found, tighten the bolts and nuts.

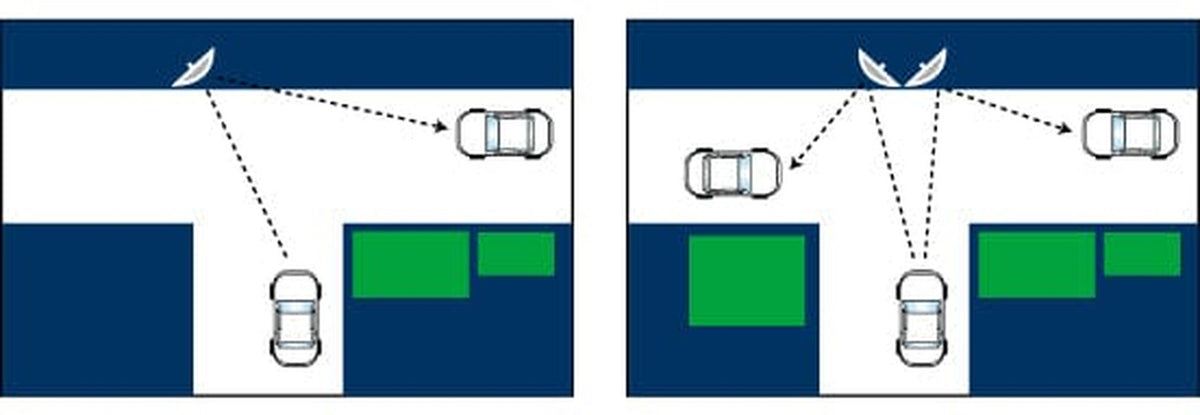

Positioning

Viewing Distance

Downloadable Content

Product Sheet
Installation Guide
Cleaning Guide
