Traffic Stainless Steel Deluxe Mirror
Delivered in 1-3 days
Not available for local pickup. Ships directly from supplier
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Warranty
Warranty
Technical details

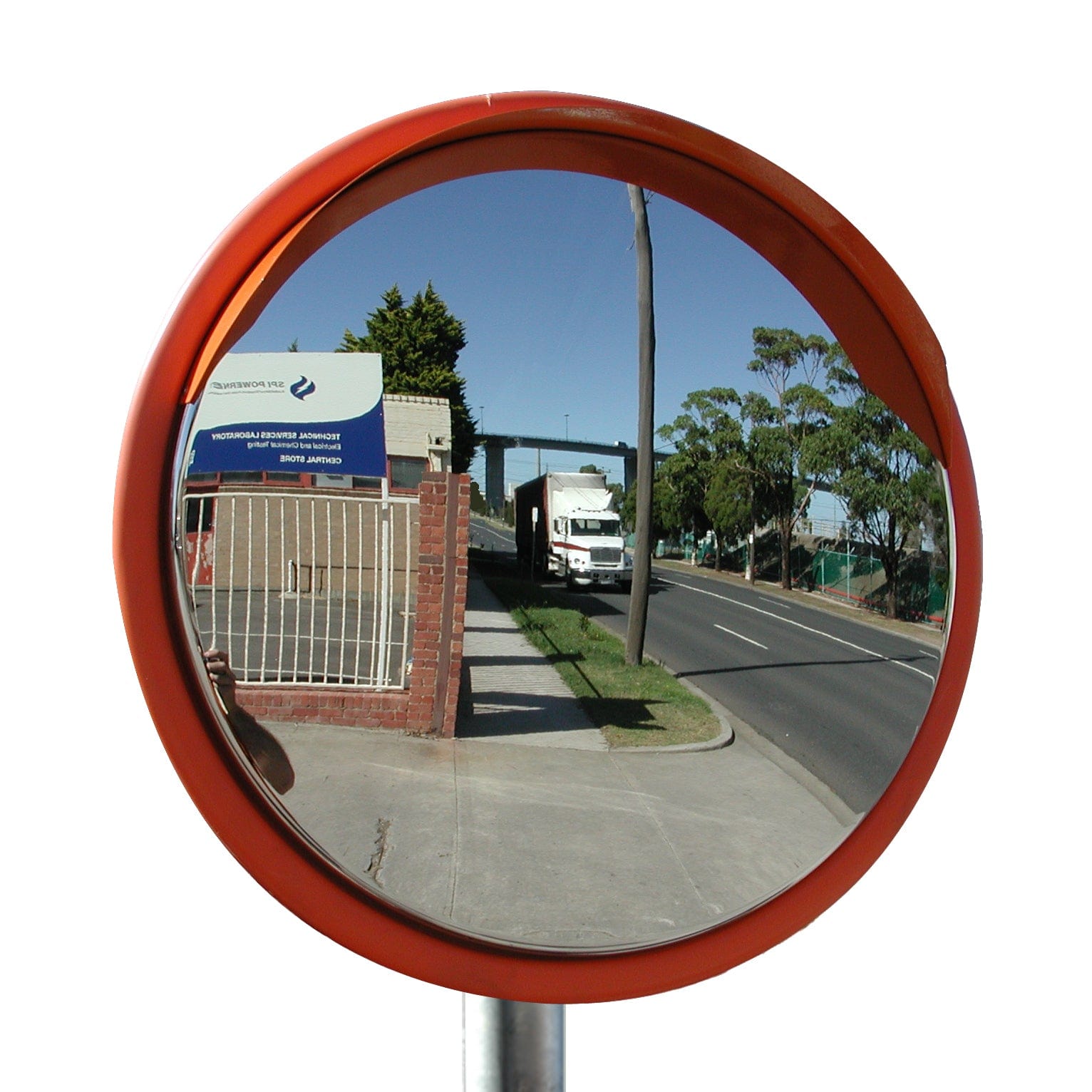

The unbreakable Deluxe Stainless Steel Convex Mirror is built tough to withstand extreme weather and resist damage from projectiles such as rocks or vandalism. Its shallower curve provides safer observation of high-speed traffic by minimising distortion.
Made in New Zealand and backed by a 5-year warranty.
The galvanised steel clamp bracket allows secure pole mounting, while a wall-mounting adaptor is available for fixing to flat surfaces.

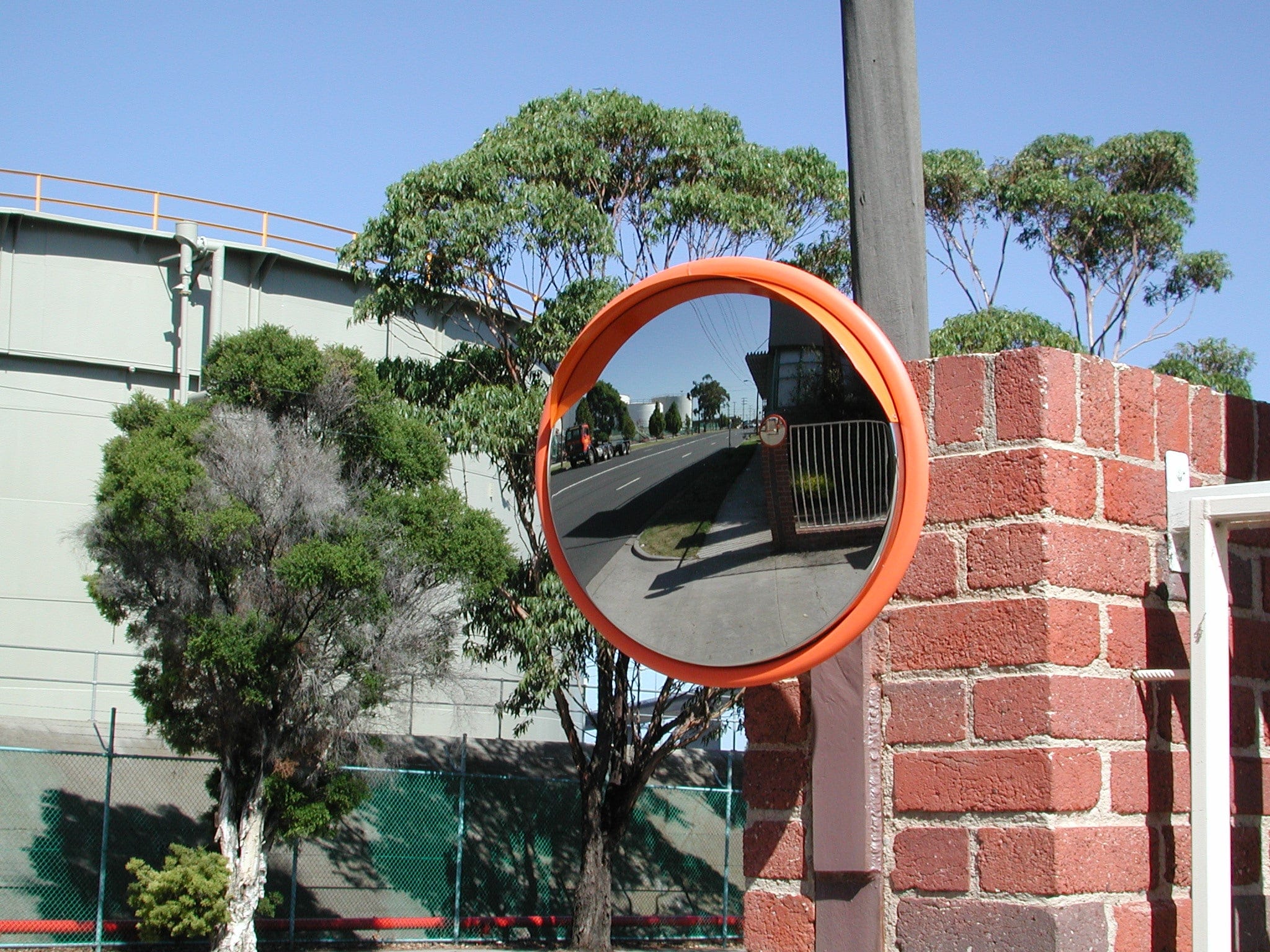

Ideal for positioning at blind corners, concealed entry and exit points, and hard-to-see intersections to improve driver visibility and safety.
- 304 grade 18 gauge stainless steel mirror face
- Large radius of curvature for minimum distance distortion at speed
- 10mm PVC Celuka backing for rigidity and impact resistance
- Orange powder-coated steel hood for high visibility
- Orange vinyl extrusion border

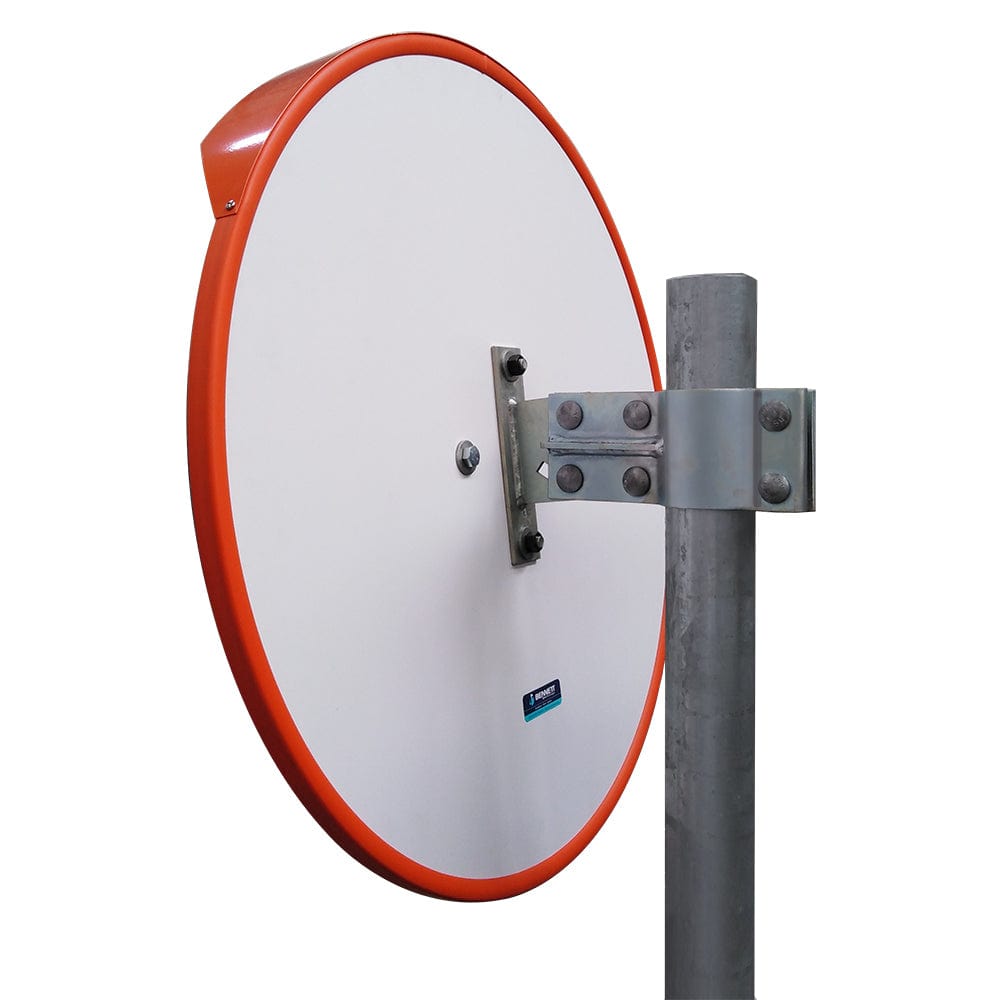

- Galvanised steel clamp bracket for pole mounting (75mm diameter pole)

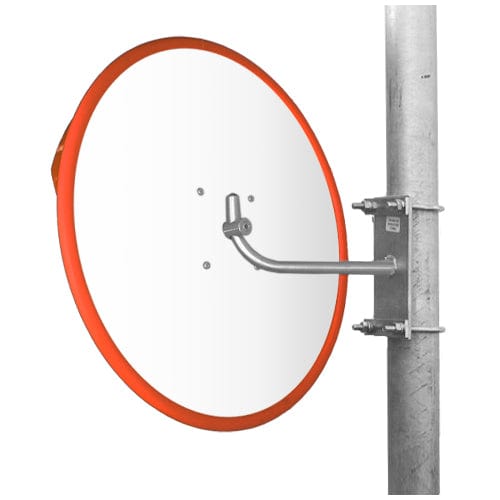

- 300-450mm sizes include J-Bracket and U-Bolts for pole or wall mounting
- 600-1000mm sizes include 75mm clamp bracket
- Wall mounting adaptor available separately for clamp-bracket sizes
- Suitable for coastal and extreme weather environments
- Unbreakable stainless steel construction resistant to vandalism and projectiles
Dimensions & view distance
The table below lists each available mirror size alongside its effective view distance, helping you choose the right size for your site line and speed environment.
| Size | View distance |
|---|---|
| 300mm | Up to 23m |
| 450mm | Up to 32m |
| 600mm | Up to 42m |
| 800mm | Up to 60m |
| 1000mm | Over 60m |
Materials
The table below details the materials used in each component of the mirror, from the stainless steel face to the protective hood and backing.
| Component | Material |
|---|---|
| Mirror Face (300mm) | 0.6mm Stainless Steel (304 grade, 18 gauge) |
| Mirror Face (450-600mm) | 0.7mm Stainless Steel (304 grade, 18 gauge) |
| Mirror Face (800-1000mm) | 0.8mm Stainless Steel (304 grade, 18 gauge) |
| Backing | 10mm PVC Celuka |
| Hood | Orange powder-coated steel |
| Extrusion | Orange vinyl |
Mounting
The table below outlines the mounting hardware included for each size range, covering both pole and wall installation options.
| Specification | Details |
|---|---|
| 300-450mm | J-Bracket with U-Bolts (75mm pole) or wall mount via J-Bracket |
| 600-1000mm | 75mm clamp bracket (pole mount); optional wall adaptor sold separately |
| Pole Diameter | 75mm |

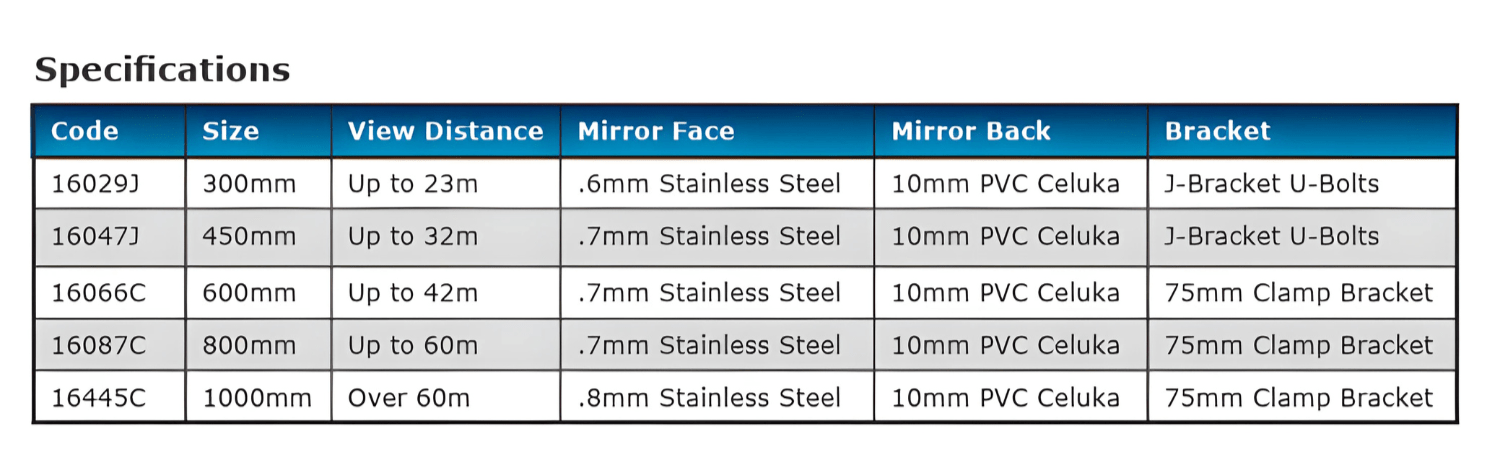

| SKU | Size | View distance | Material | Backing | Mounting |
|---|---|---|---|---|---|
| 16029J | 300mm | Up to 23m | 0.6mm Stainless Steel | 10mm PVC Celuka | J-Bracket + U-Bolts |
| 16047J | 450mm | Up to 32m | 0.7mm Stainless Steel | 10mm PVC Celuka | J-Bracket + U-Bolts |
| 16066C | 600mm | Up to 42m | 0.7mm Stainless Steel | 10mm PVC Celuka | 75mm Clamp Bracket |
| 16087C | 800mm | Up to 60m | 0.7mm Stainless Steel | 10mm PVC Celuka | 75mm Clamp Bracket |
| 16445C | 1000mm | Over 60m | 0.8mm Stainless Steel | 10mm PVC Celuka | 75mm Clamp Bracket |
Compatibility
- Road and traffic safety applications
- High-speed driveways, intersections, and carparks
- Extreme weather and coastal environments
- Outdoor building security and perimeter monitoring
- Security checkpoints and border control
- Pole mounting on 75mm diameter poles
- Wall mounting via J-Bracket (300-450mm) or optional wall adaptor (600-1000mm, sold separately)
