Pro Convert for NDI to AIO - Rackmount version for installation inside Modator 2U
Couldn't load pickup availability
Decode NDI for HDMI and SDI Workflows

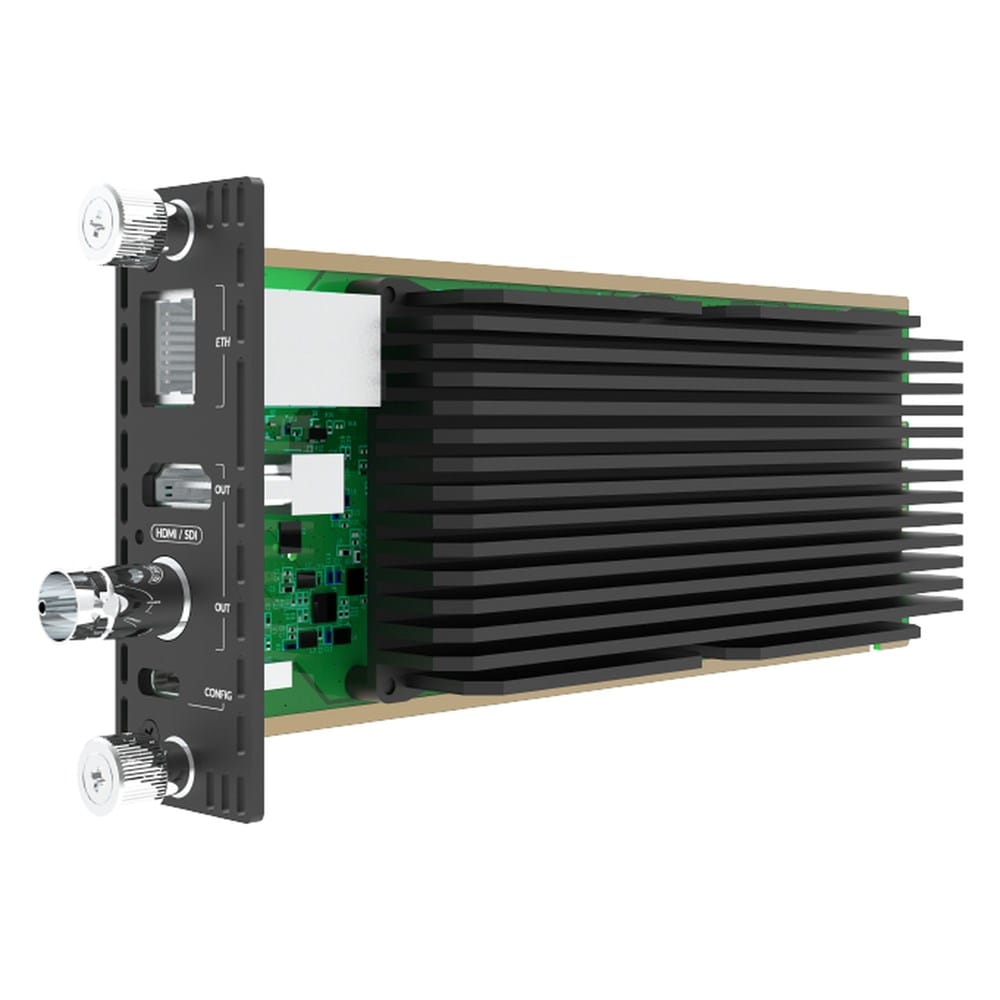

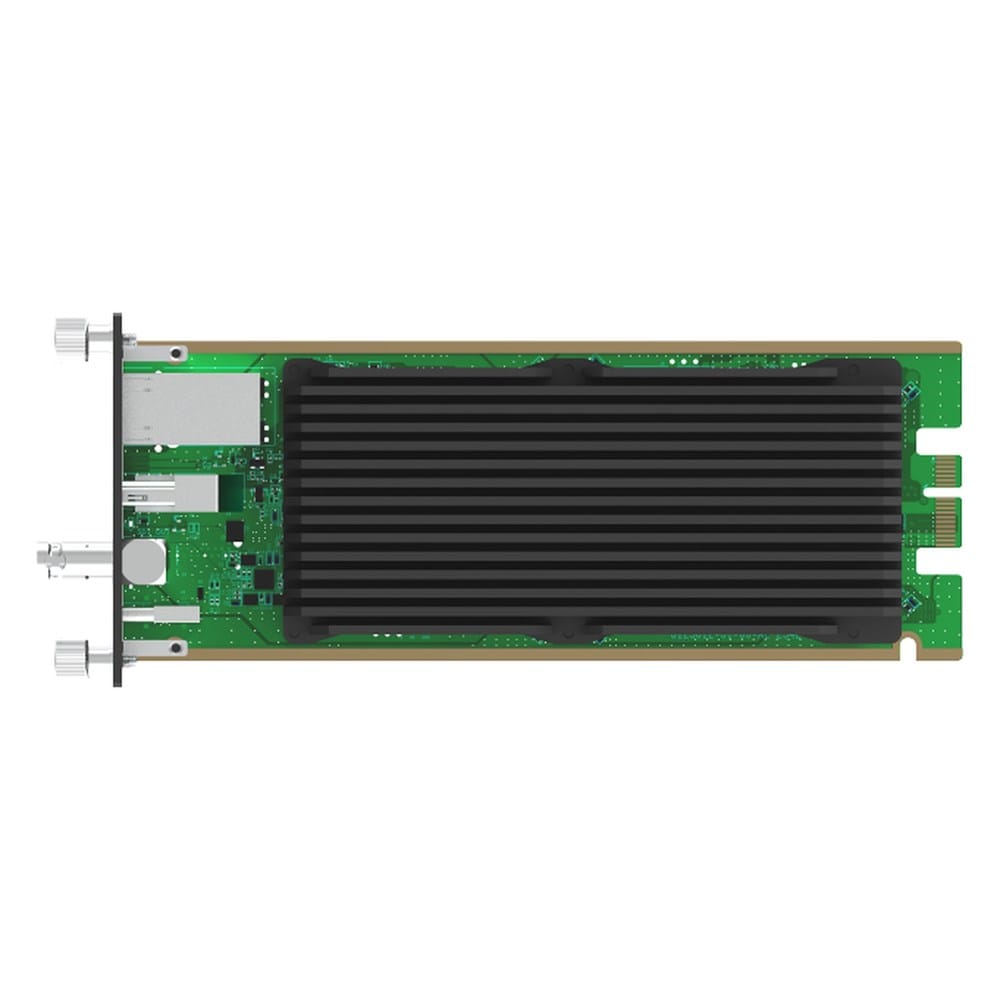

The Magewell Pro Convert for NDI to AIO Module is a hot-swappable decoder module for installation inside the Magewell Modator 2U chassis. It decodes a live NDI or supported IP stream and outputs video simultaneously over HDMI and SDI.
Designed for integrating IP video sources with baseband equipment, the module supports NDI High Bandwidth, NDI HX and other video streaming protocols. It is suitable for broadcast, production and AV installations that need a rackmount NDI decoding solution.
Features include:
Hot-swappable module for the Magewell Modator 2U chassis.
Decodes NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3 streams.
Decodes supported streams up to 2Kp60.
Simultaneous HDMI and SDI video output.
HDMI 1.4 output up to 1920 × 1080p60.
SDI output up to 1920 × 1080p60.
Supports RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU protocols.
H.264 and H.265 video decoding.
AAC and MP3 audio decoding.
48KHz, 8-channel audio output over HDMI and SDI.
1 × 1000Mbps RJ45 Ethernet port.
USB Type-C port for configuration.
Configuration and management via Web UI, with remote centralised management through Magewell Control Hub.
HTTP APIs for integration with compatible control systems.
Flexible IP Video Decoding
The module decodes NDI High Bandwidth, NDI HX, NDI HX2 and NDI HX3 streams, as well as supported RTSP, HTTP, HLS, RTMP, MPEG-TS and TVU sources. H.264 and H.265 video decoding supports a range of IP video workflows.
Decoded video can be sent simultaneously to HDMI and SDI outputs, connecting network video sources with displays, production equipment and other baseband systems.

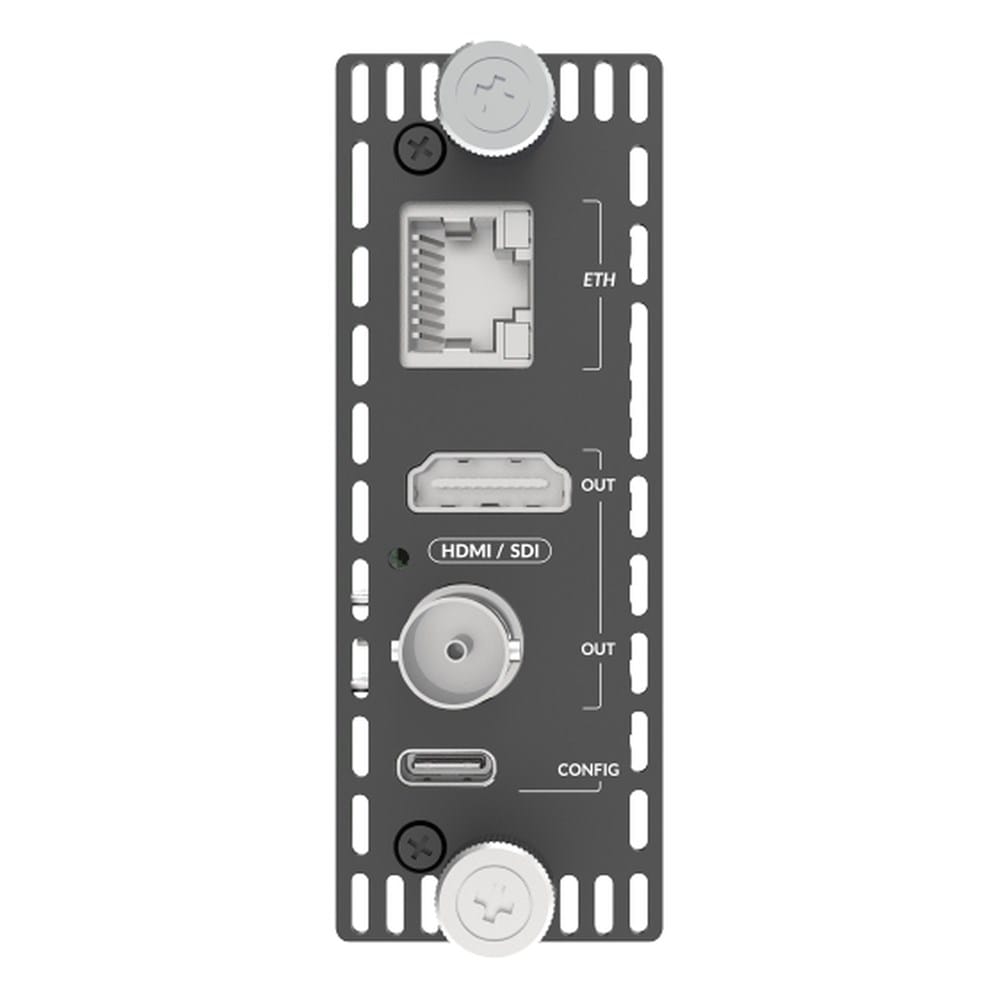

HDMI and SDI Outputs
The HDMI 1.4 and SDI outputs support resolutions up to 1920 × 1080p60. Both outputs support 48KHz, 8-channel audio, while the SDI output supports SD, HD and 3G-SDI standards.
SDI output also supports native CEA-608/608 over 708 captions, providing caption support for compatible workflows.
Rackmount Integration and Control
Designed for the Magewell Modator 2U chassis, the hot-swappable module provides a rackmount option for installations requiring centralised deployment of compatible Modator modules.
Configure and manage the module through its Web UI or Magewell Control Hub. The Web UI provides device and signal information, decoding and output settings, network configuration and firmware updates.
Product Specifications
| Specification | Details |
|---|---|
| Product type | NDI and IP video decoder module |
| Form factor | Hot-swappable module for Magewell Modator 2U |
| Network interface | 1 × RJ45 1000Mbps Ethernet |
| Configuration interface | 1 × USB Type-C |
| Video outputs | 1 × HDMI 1.4 and 1 × SDI, active simultaneously |
| Maximum decoded stream resolution | Up to 2Kp60 |
| Maximum output resolution | 1920 × 1080p60 |
| Supported protocols | NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU |
| Video decoding | H.264 and H.265 |
| Audio decoding | AAC and MP3 |
| Audio output | 48KHz, 8-channel over HDMI and SDI |
| SDI standards | SD (ST 259), HD (ST 292), 3Ga, 3Gb, 3Gb-DL and 3Gb-DS (ST 425) |
| Management | Web UI, Magewell Control Hub and HTTP APIs |
| Dimensions | 184.4 × 30.0 × 81.5mm |
| Weight | Approximately 300g |
| Maximum power consumption | 5.2W |
