Pro Convert HDMI 4K Plus Module
Couldn't load pickup availability
4K HDMI to High-Bandwidth NDI

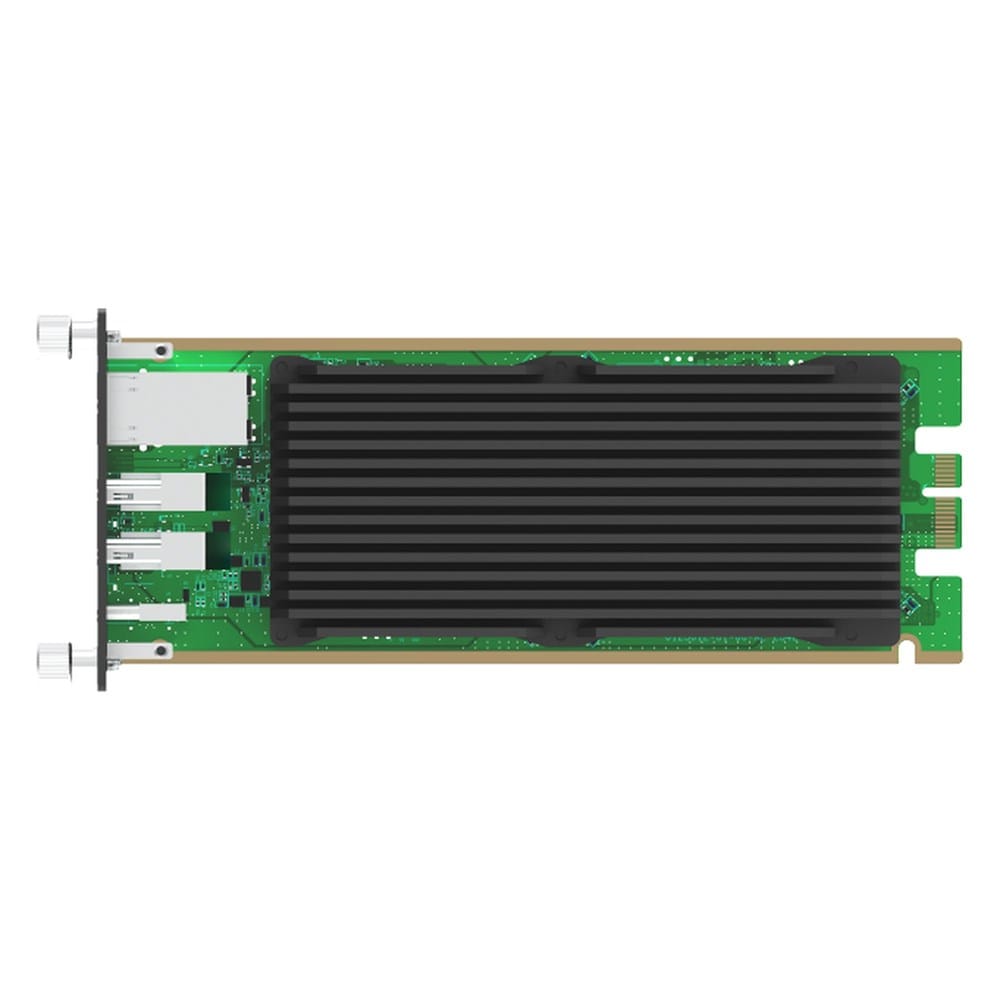

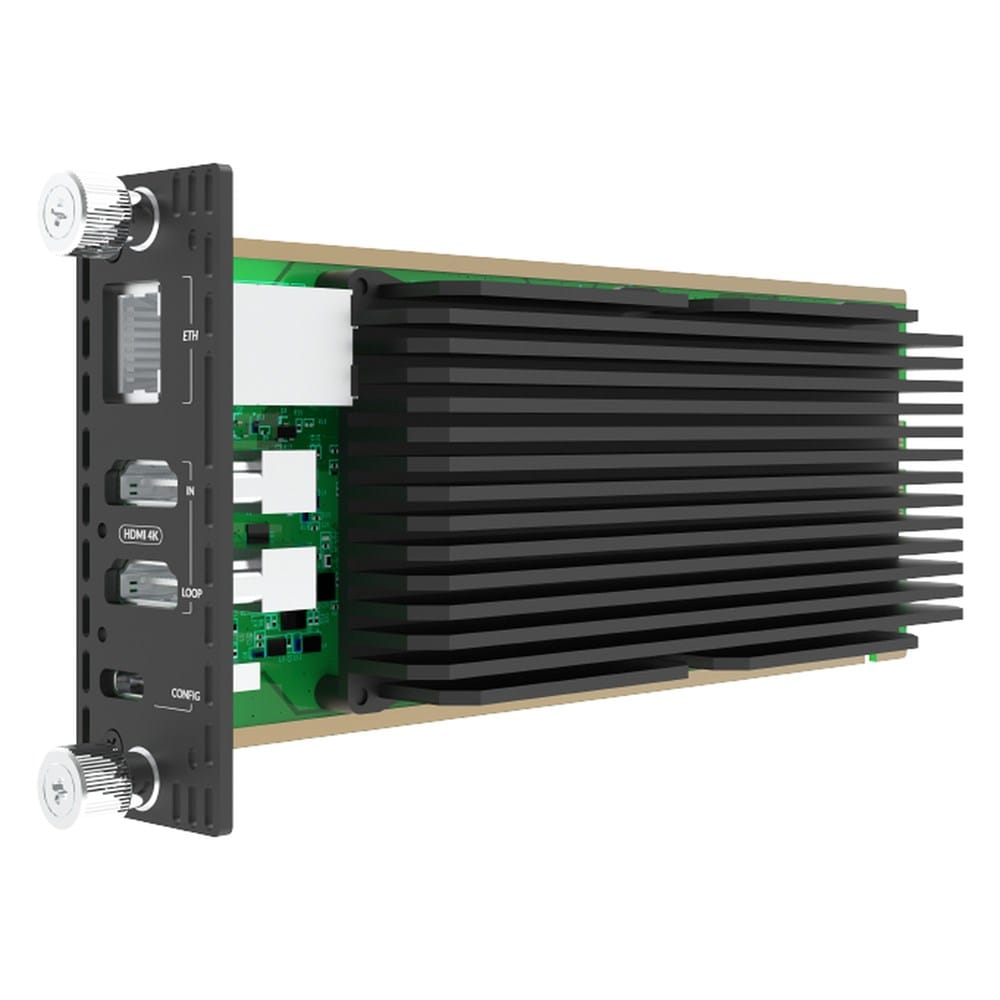

The Magewell Pro Convert HDMI 4K Plus Module converts a 4K HDMI input signal into high-bandwidth NDI, with HDMI loop-through for a local display or other equipment.
Designed as a module for the Modator 2U, it supports up to 4Kp60 input and NDI encoding. A Gigabit Ethernet port provides network connectivity, while USB-C supports configuration.
Features include:
Converts HDMI input to high-bandwidth NDI.
HDMI 2.0 input and output ports for signal loop-through.
Supports input and loop-through signals up to 4096 × 2160 at 60fps, 4:4:4, 8-bit.
Encodes NDI output up to 4096 × 2160 at 60fps, 4:2:2, 8-bit.
Supports NDI encoding up to 1920 × 1080 at 240fps, 4:2:2, 8-bit.
Supports eight-channel HDMI-embedded audio and eight-channel NDI-embedded audio.
Supports RGB and YUV BT.601, BT.709 and BT.2020 signals.
Allows custom input EDID settings.
Supports NDI 6.2.

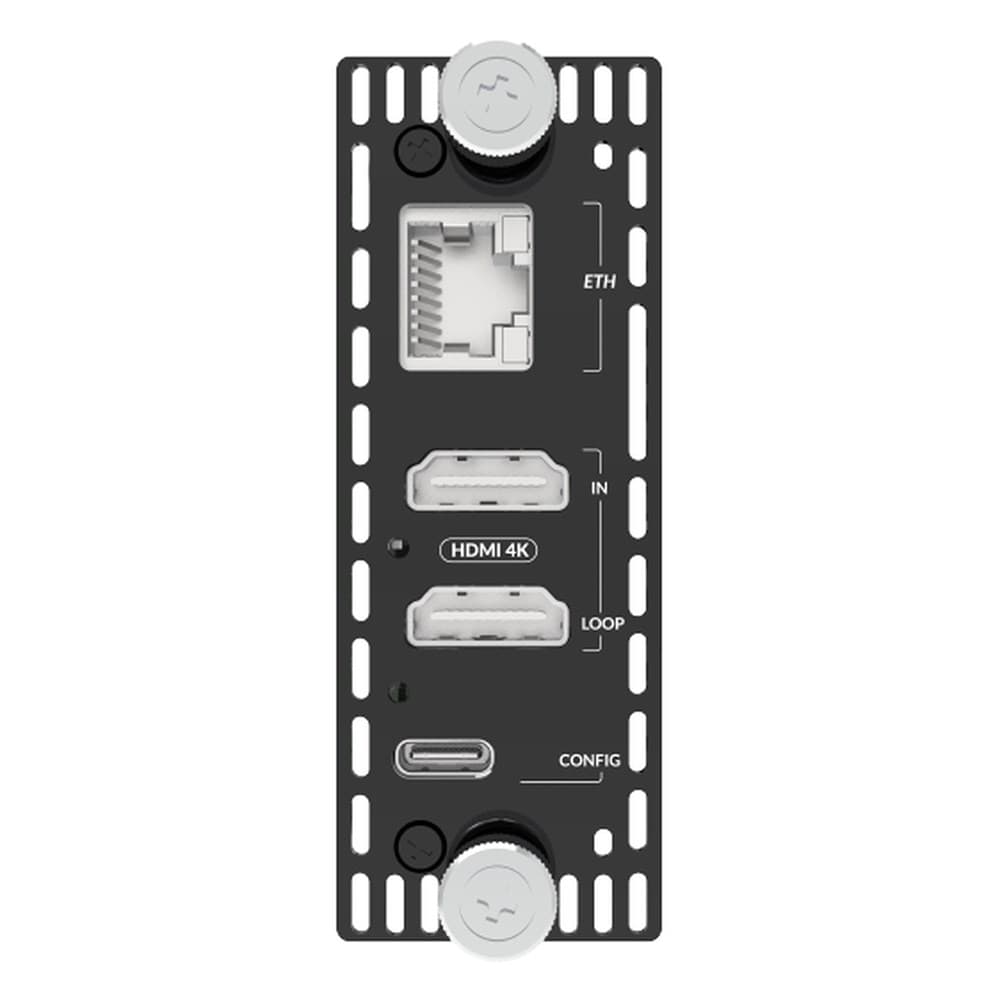

Provides a 1000Mbps Ethernet port and USB Type-C configuration port.
Supports hot-swappable connection to the Modator 2U.
Maximum power consumption of 7W.
HDMI Input and Loop-Through
The HDMI 2.0 input accepts video signals in configurable formats, with support for custom EDID settings. The HDMI output provides loop-through, allowing the input signal to be passed to a connected display or other device.
Input and loop-through support signals up to 4096 × 2160 at 60fps in 4:4:4, 8-bit format.
High-Bandwidth NDI Encoding
The module encodes real-time NDI streams at up to 4096 × 2160 at 60fps or 1920 × 1080 at 240fps, both in 4:2:2, 8-bit format.
Output can match the input resolution or use a custom resolution, with frame-rate options including the original rate or one-half, one-third or one-quarter of the input frame rate.
Configuration and Management
Configuration and management are available through the web UI, which provides real-time information about the device and signals. Settings include deinterlacing, EDID, scaling, frame rate, aspect ratio and network connection.
The module can also be registered with Magewell Control Hub for remote centralised management and supports firmware updates and HTTP APIs.
Product Specifications
| Specification | Details |
|---|---|
| Product type | HDMI to high-bandwidth NDI encoder module with loop-through |
| Module compatibility | Modator 2U; hot-swappable module interface |
| HDMI input | 1 × HDMI 2.0 |
| HDMI output | 1 × HDMI 2.0 loop-through |
| Maximum input and loop-through signal | 4096 × 2160 at 60fps, 4:4:4, 8-bit |
| Maximum NDI output | 4096 × 2160 at 60fps or 1920 × 1080 at 240fps, 4:2:2, 8-bit |
| NDI version | NDI 6.2 |
| Audio | 8-channel HDMI-embedded audio and 8-channel NDI-embedded audio |
| Ethernet | 1 × RJ45 1000Mbps |
| Configuration port | 1 × USB Type-C |
| Power consumption | Maximum 7W |
| Dimensions | 184.4 × 30.0 × 81.5mm |
| Weight | Approximately 295g |
| Operating temperature | 0 to 50°C |
Technical details
4K HDMI to High-Bandwidth NDI
The Magewell Pro Convert HDMI 4K Plus Module converts a 4K HDMI input signal into high-bandwidth NDI, with HDMI loop-through for a local display or other equipment.
Designed as a module for the Modator 2U, it supports up to 4Kp60 input and NDI encoding. A Gigabit Ethernet port provides network connectivity, while USB-C supports configuration.
Features include:
Converts HDMI input to high-bandwidth NDI.
HDMI 2.0 input and output ports for signal loop-through.
Supports input and loop-through signals up to 4096 × 2160 at 60fps, 4:4:4, 8-bit.
Encodes NDI output up to 4096 × 2160 at 60fps, 4:2:2, 8-bit.
Supports NDI encoding up to 1920 × 1080 at 240fps, 4:2:2, 8-bit.
Supports eight-channel HDMI-embedded audio and eight-channel NDI-embedded audio.
Supports RGB and YUV BT.601, BT.709 and BT.2020 signals.
Allows custom input EDID settings.
Supports NDI 6.2.
Provides a 1000Mbps Ethernet port and USB Type-C configuration port.
Supports hot-swappable connection to the Modator 2U.
Maximum power consumption of 7W.
HDMI Input and Loop-Through
The HDMI 2.0 input accepts video signals in configurable formats, with support for custom EDID settings. The HDMI output provides loop-through, allowing the input signal to be passed to a connected display or other device.
Input and loop-through support signals up to 4096 × 2160 at 60fps in 4:4:4, 8-bit format.
High-Bandwidth NDI Encoding
The module encodes real-time NDI streams at up to 4096 × 2160 at 60fps or 1920 × 1080 at 240fps, both in 4:2:2, 8-bit format.
Output can match the input resolution or use a custom resolution, with frame-rate options including the original rate or one-half, one-third or one-quarter of the input frame rate.
Configuration and Management
Configuration and management are available through the web UI, which provides real-time information about the device and signals. Settings include deinterlacing, EDID, scaling, frame rate, aspect ratio and network connection.
The module can also be registered with Magewell Control Hub for remote centralised management and supports firmware updates and HTTP APIs.
Product Specifications
| Specification | Details |
|---|---|
| Product type | HDMI to high-bandwidth NDI encoder module with loop-through |
| Module compatibility | Modator 2U; hot-swappable module interface |
| HDMI input | 1 × HDMI 2.0 |
| HDMI output | 1 × HDMI 2.0 loop-through |
| Maximum input and loop-through signal | 4096 × 2160 at 60fps, 4:4:4, 8-bit |
| Maximum NDI output | 4096 × 2160 at 60fps or 1920 × 1080 at 240fps, 4:2:2, 8-bit |
| NDI version | NDI 6.2 |
| Audio | 8-channel HDMI-embedded audio and 8-channel NDI-embedded audio |
| Ethernet | 1 × RJ45 1000Mbps |
| Configuration port | 1 × USB Type-C |
| Power consumption | Maximum 7W |
| Dimensions | 184.4 × 30.0 × 81.5mm |
| Weight | Approximately 295g |
| Operating temperature | 0 to 50°C |
