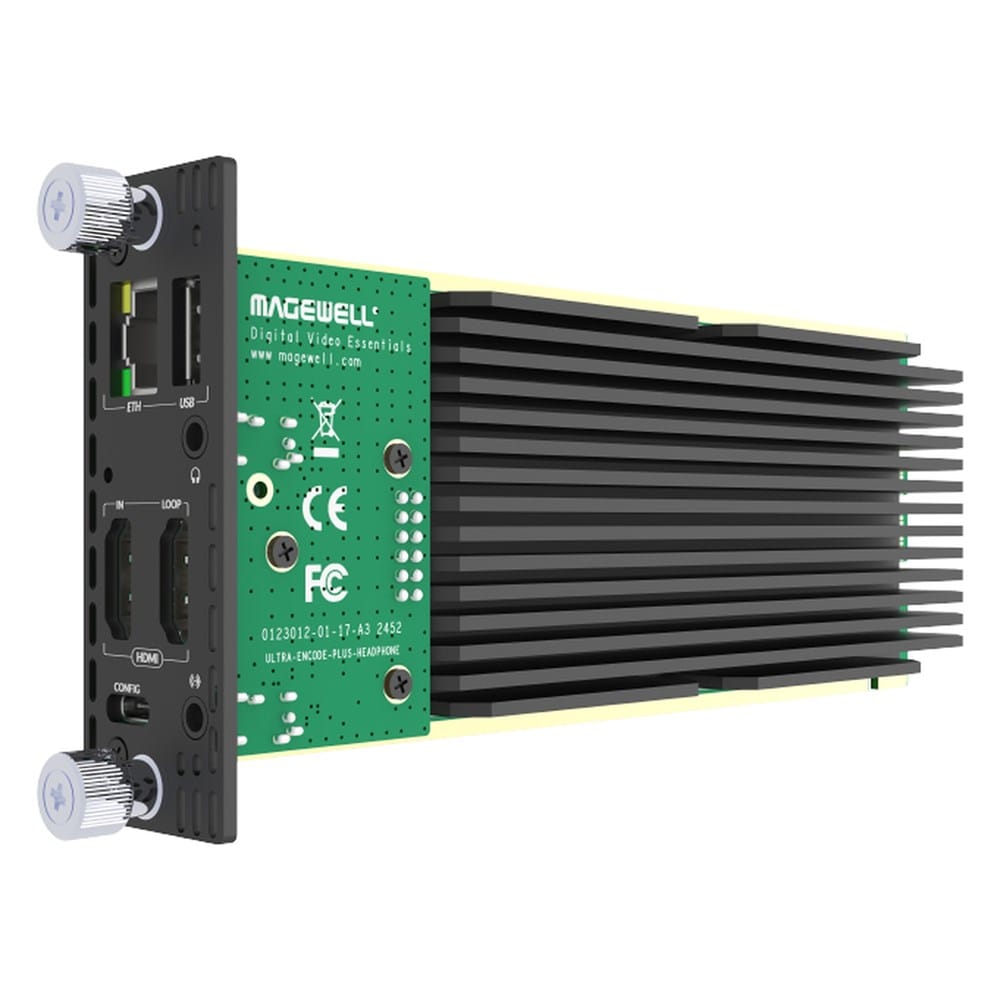

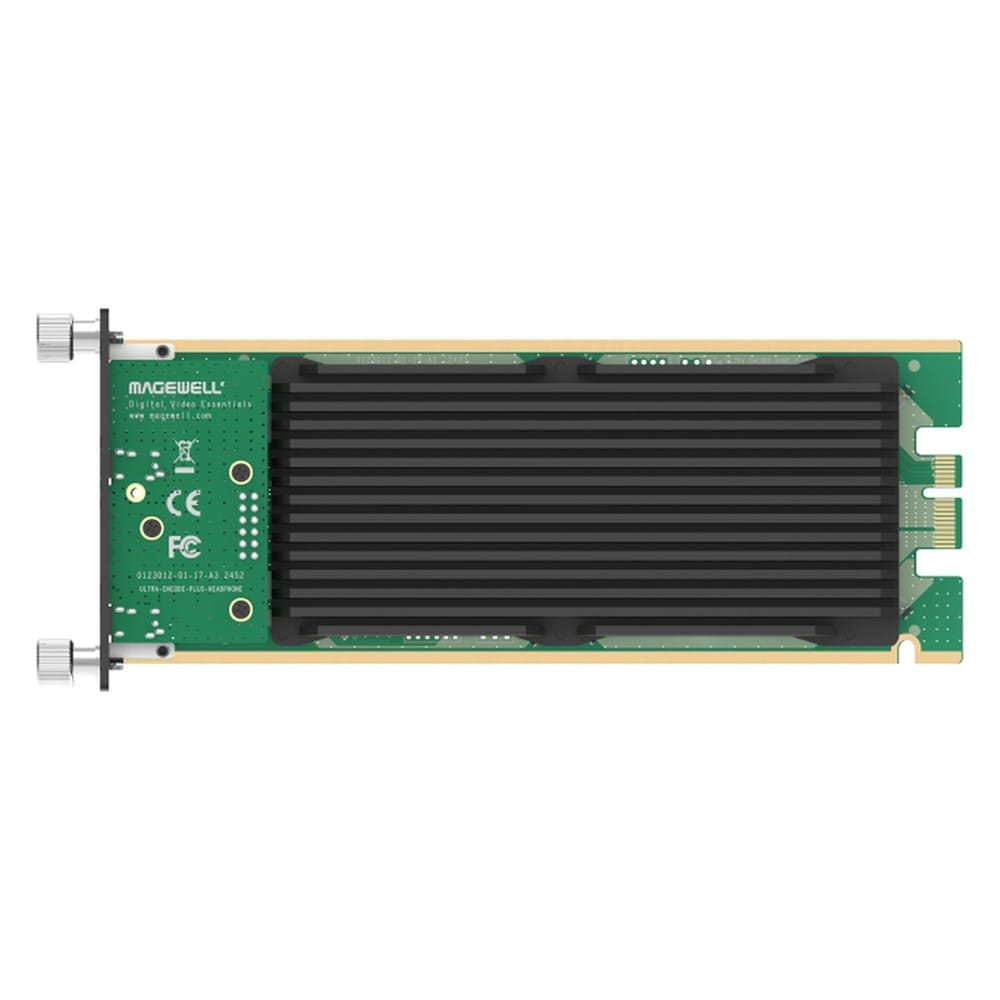

Ultra Encode HDMI Plus Module
Interested? Contact us
Not available for local pickup. Contact us for availability
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Flexible HDMI Encoding for Live Streaming
The Magewell Ultra Encode HDMI Plus Module is a compact live streaming and recording encoder designed to connect to the Modator 2U rackmount system. It captures HDMI video and audio, encodes the content and streams or records it using a range of professional protocols and formats.
With support for resolutions up to 4K at 30fps, dual-stream encoding, local and external recording, and remote management through a web interface, the module offers flexible options for live production and AV workflows.
Encode and Stream HDMI Video
The HDMI input supports a range of video formats, including resolutions up to 4K at 30fps. The HDMI loop-through output allows the incoming signal to be passed on to another device.
H.264 and H.265 encoding, configurable main and sub streams, and support for protocols including NDI, SRT, RTMP and HLS allow the module to fit a variety of streaming workflows.
Recording and Remote Management
Recordings can be saved to the supplied microSD card, external USB storage or network-attached storage. Recording options include MP4, MOV and TS formats, with scheduling, loop recording and file management available.
The web interface provides access to device status, video preview, encoding settings, streaming destinations, recording tasks and overlays. The module also supports remote centralised management through Magewell Control Hub.
Designed for Modator 2U

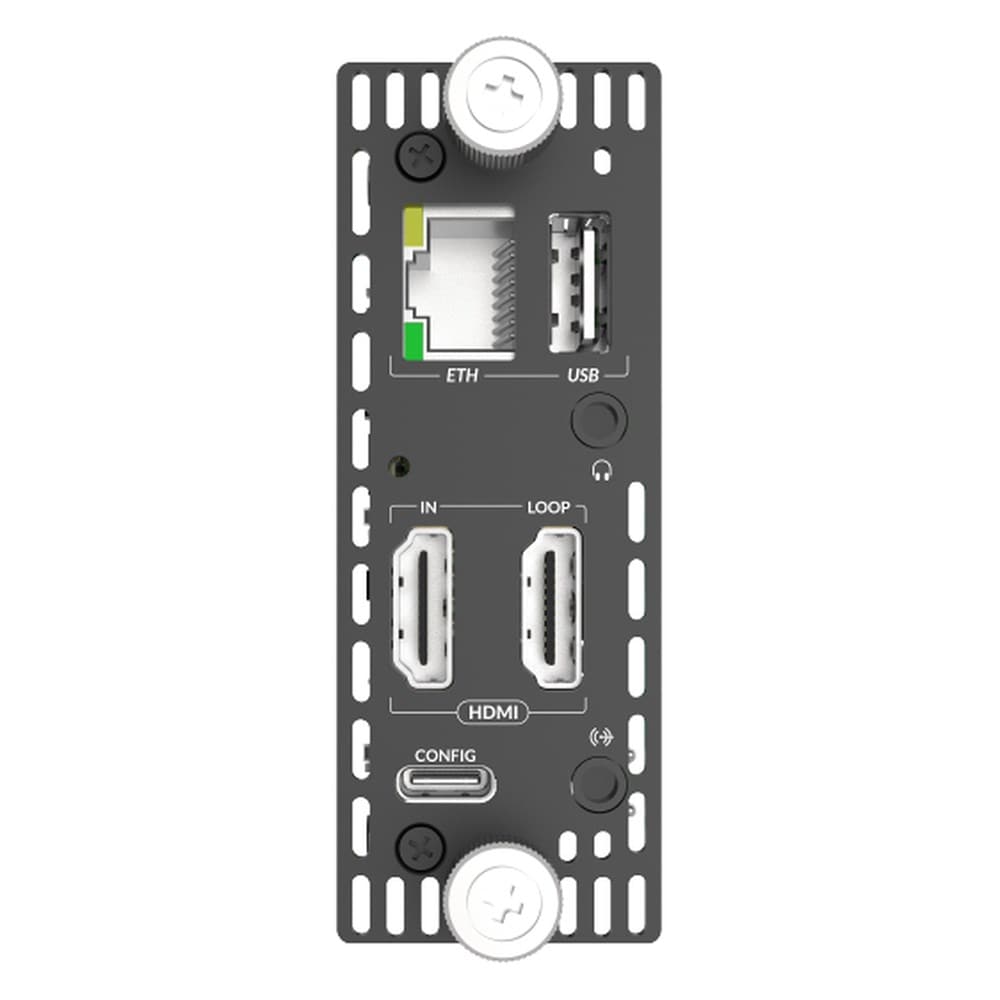

The Ultra Encode HDMI Plus Module connects to Modator 2U through its hot-swappable Modator interface. Its Ethernet, USB, HDMI and audio connections support integration into a rack-based streaming or recording installation.
Technical details
Flexible HDMI Encoding for Live Streaming
The Magewell Ultra Encode HDMI Plus Module is a compact live streaming and recording encoder designed to connect to the Modator 2U rackmount system. It captures HDMI video and audio, encodes the content and streams or records it using a range of professional protocols and formats.
With support for resolutions up to 4K at 30fps, dual-stream encoding, local and external recording, and remote management through a web interface, the module offers flexible options for live production and AV workflows.
Encode and Stream HDMI Video
The HDMI input supports a range of video formats, including resolutions up to 4K at 30fps. The HDMI loop-through output allows the incoming signal to be passed on to another device.
H.264 and H.265 encoding, configurable main and sub streams, and support for protocols including NDI, SRT, RTMP and HLS allow the module to fit a variety of streaming workflows.
Recording and Remote Management
Recordings can be saved to the supplied microSD card, external USB storage or network-attached storage. Recording options include MP4, MOV and TS formats, with scheduling, loop recording and file management available.
The web interface provides access to device status, video preview, encoding settings, streaming destinations, recording tasks and overlays. The module also supports remote centralised management through Magewell Control Hub.
Designed for Modator 2U
The Ultra Encode HDMI Plus Module connects to Modator 2U through its hot-swappable Modator interface. Its Ethernet, USB, HDMI and audio connections support integration into a rack-based streaming or recording installation.
- Hot-swappable module for the Magewell Modator 2U chassis
- HDMI input and loop-through up to 4096 × 2160 at 30fps
- H.264/H.265 encoding with main and sub streams
- NDI HX3 bitrates up to 62Mbps; other encoding up to 32Mbps
- RTSP, RTMP/RTMPS, SRT, NDI HX2/HX3, HLS, TS over UDP/RTP and TVU ISSP
- Up to six simultaneous streaming destinations, subject to protocol restrictions; NDI HX3 uses one exclusive session
- Record to supplied 128GB microSD, USB storage or NFS/CIFS network storage
- Gigabit Ethernet, Web UI management and HTTP APIs
| Specification | Detail |
|---|---|
| Supplier SKU | B31510000 |
| Form Factor | Hot-swappable Modator module |
| Chassis Compatibility | Magewell Modator 2U |
| HDMI Input / Loop-through | 1 × input; 1 × loop-through; HDMI 1.4a / DVI-D |
| Maximum Main-stream Resolution | 4096 × 2160 at 30fps |
| Maximum Sub-stream Resolution | 1920 × 1080 at 60fps |
| Video Codecs | H.264; H.265 (HEVC) |
| Maximum NDI HX3 Bitrate | 62Mbps |
| Maximum Other Encoding Bitrate | 32Mbps |
| Audio Input | 8-channel HDMI embedded; 2-channel 3.5mm LINE IN |
| Audio Output | 3.5mm LINE OUT |
| Network | 1 × RJ45 10/100/1000Mbps Ethernet |
| Storage | Supplied 128GB microSD; USB storage; NFS/CIFS NAS |
| USB Ports | USB Type-C for configuration; USB Type-A |
| Maximum Power Consumption | 13.08W |
| Dimensions | 184.4 × 30.0 × 81.5 mm |
| Weight | Approximately 307g |
| Operating Temperature | 0–50°C |
| Relative Humidity | 5–90%, non-condensing |
Compatibility
- Requires a Magewell Modator 2U chassis; this is not a standalone encoder.
- HDMI 1.4a / DVI-D video sources within the supported resolution and frame-rate limits.
- Streaming destinations supporting RTSP, RTMP/RTMPS, SRT, NDI HX2/HX3, HLS, TS over UDP/RTP or TVU ISSP.
- Native streaming integrations include Twitch, YouTube, Facebook and Wowza.
- Web UI supports Microsoft Edge, Firefox, Chrome, Safari and Opera; remote management through Magewell Control Hub.
- USB storage formats: FAT32, exFAT and NTFS; network recording: NFS/CIFS.
Frequently Asked Questions
Is this a standalone encoder?
Is this a standalone encoder?
What resolution can it encode?
What resolution can it encode?
Which video codecs and streaming protocols are supported?
Which video codecs and streaming protocols are supported?
Can it stream to multiple destinations?
Can it stream to multiple destinations?
Can it record without a separate computer?
Can it record without a separate computer?
How is the module configured and managed?
How is the module configured and managed?
