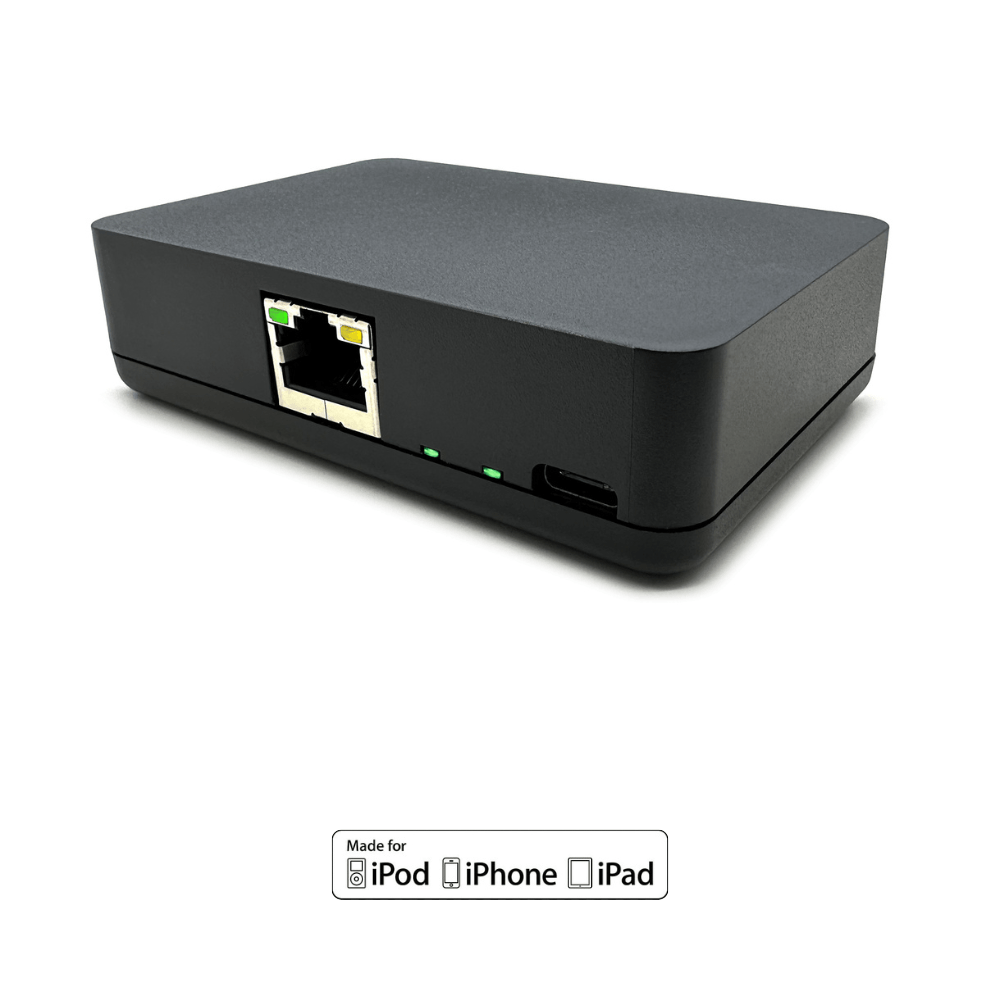

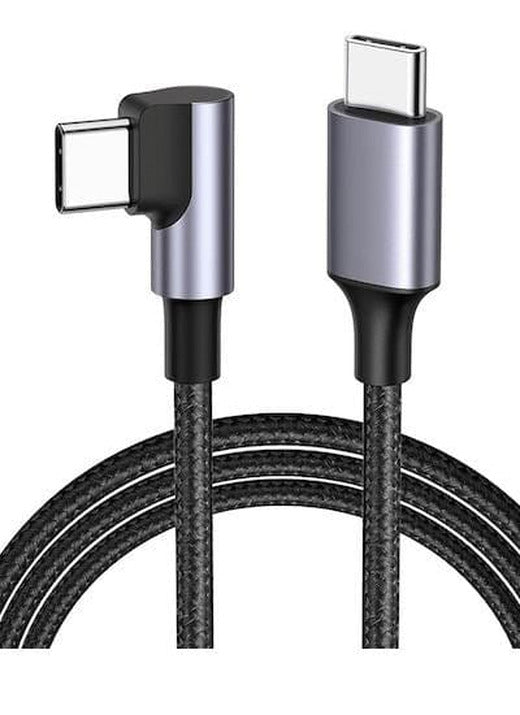

USB-C Gigabit PoE+ adaptor with USB-C cable
Couldn't load pickup availability
Overview
Overview
Key features
Key features
Technical details
A PoE adaptor designed specifically for iPads using the USB-Connector. Allowing the new generation of iPads to get power of ethernet, charging the iPad while transmitting data making set up a breeze.
Specifications
- PoE+ adaptors require PoE+ (802.3at) or PoE++ (802.3bt) power from switches since they need minimum 30W
- iOS Compatibility: Compatible with all iOS devices featuring a USB-C connector, requires iOS 16.5 or later
- USB Connection to iPad: Provides 3A 5V power as per Apple specifications, Connector: USB-C. Use Redpark USB-C cable or Apple USB-IF certified USB-C cable
- Environmental: Temperature Range: 0C – 55C
- Dimensions: 3.50” x 2.35” x .95”
- Ethernet: 10/100/1000, RJ45 Auto MDX connector, delivering speeds of up to 900Mbps
Redpark – Simple PoE Power for Tablet Stands
Redpark PoE adapters provide reliable power and data to your tablet stands over a single Ethernet cable, so there’s no need for on-site electrical work. Perfect for fast, professional installations.
- Single Ethernet cable carries both data and power to the iPad via PoE+ (802.3at)
- Gigabit Ethernet with bandwidth up to 900Mbps with a USB 3 USB-C cable, or up to 350Mbps with a USB 2 USB-C cable
- Provides 3A (5V) in line with Apple specifications, enough to fully charge or power any USB-C iPad or iPhone
- Instantly recognised as a network connection, no app required to configure
- Configure via the Settings app: Ethernet appears between Wi-Fi and Bluetooth
- Supports DHCP and static IP addressing
- Each unit has a unique MAC address programmed at manufacture
- Power, link status, and network activity LEDs
- Does not draw power from the iPad, powered entirely by the PoE+ source
| Specification | Detail |
|---|---|
| Ethernet speed | 10/100/1000Mbps (Gigabit) |
| Bandwidth | Up to 900Mbps (USB 3 USB-C cable) / Up to 350Mbps (USB 2 USB-C cable) |
| PoE standard | PoE+ (802.3at) |
| PoE input requirement | 30W (PoE+ switch or injector required) |
| Power output | 3A @ 5V (Apple specification) |
| Connector (device side) | USB-C (via USB-C to USB-C cable) |
| Recommended cable | Cat5e, Cat6, or Cat6A |
| Dimensions | 3.50" × 2.35" × 0.95" |
| OS | iOS 16.5 or later |
| IP configuration | DHCP and static IP |
| USB standard | USB 3 (SuperSpeed) |
| Data path, USB 3 cable | SuperSpeed TX/RX pairs, up to 900Mbps |
| Data path, USB 2 cable | D+/D− pair, up to 350Mbps |
| Power delivery pins | VBUS (PoE+ sourced, converted to USB-PD) |
| Power negotiation | CC1/CC2 pins, locked to Apple 5V / 3A specification |
Available options
| Length | SKU |
|---|---|
| 400mm | HD-T310 |
| 950mm | HD-T311 |
| 3000mm | HD-T312 |
Compatibility
- USB-C iPad and iPhone (iOS 16.5 or later)
- Requires PoE+ switch or injector (802.3at, 30W)
Not compatible with 24V injectors. Does not support Lightning iPads. Android and Surface tablets not warranted.
