By Qbic

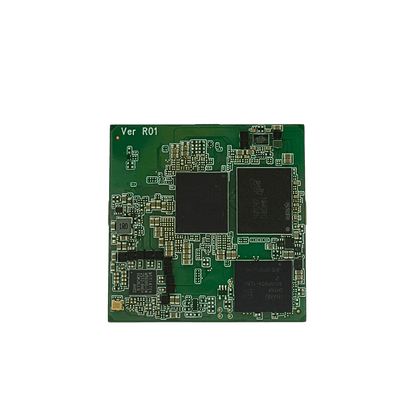

Industrial PC Board QOM-0520

$1,069.00
$1,069.00
SKU: QOM-0520
Availability: In Stock With Supplier

Back orders Delivered in 4 weeks

Not available for local pickup. On backorder

Overview

The Qbic QOM-0520 is an OSM Size-L compute module built on the MediaTek Genio 520 SoC, designed to accelerate development of edge AI and industrial embedded systems. At just 45×45mm, it integrates an Arm hexa-core CPU, Mali-G57 GPU, and a Gen 8 APU delivering up to 10 TOPS of AI performance, enabling intelligent vision, predictive analytics, and generative AI workloads at the edge. Optimised for smart retail, factory automation, AI signage, and HMI applications, the QOM-0520 significantly reduces time-to-market for next-generation embedded solutions.

Key features
  • MediaTek Genio 520 SoC: 2× Cortex-A78 + 6× Cortex-A55 hexa-core CPU
  • Up to 10 TOPS AI performance via Gen 8 APU for edge AI workloads
  • Arm Mali-G57 MC2 GPU with 4K60 video decode and 4K30 video encode
  • 8GB LPDDR5 6400MT/s on-board memory and 128GB UFS storage
  • OSM Size-L form factor (45×45mm) for compact embedded deployments
  • Dual display outputs: eDP 1.4 (up to 4K) and DP TX 1.4 (up to 5120×2160)
  • 2× 4-lane MIPI-CSI camera inputs for dual-camera vision applications
  • Gigabit Ethernet (RGMII), 2× USB 3.2 Gen1, 2× USB 2.0, PCIe Gen 2
  • 31× GPIO, 3× SPI, 2× I2C, 3× PWM, 2× ADC for broad peripheral integration
  • Arm TrustZone + OP-TEE hardware security
  • Supports Android and Yocto Linux

Warranty

2-year warranty, extendable to 5 years

Certifications
  • CE / FCC Class B
  • ISO/IEC 27001:2022, Information Security Management (Certificate TW25/00000583, valid to 9 July 2028)
Product specs Download
Qbic Industrial PC Board QOM-0520
$1,069.00
$1,069.00

Technical details

The Qbic QOM-0520 is an OSM Size-L (Open Standard Module) compute module based on the MediaTek Genio 520 series SoC. This industrial-grade embedded platform integrates Arm Cortex-A78/A55 CPUs, Mali-G57 GPU, and Genio 8 APU to deliver up to 10 TOPS of AI processing for edge computing applications.

Key Features

  • MediaTek Genio 520 SoC

  • Arm Cortex-A78/A55 CPU cores

  • Mali-G57 GPU + Genio 8 APU

  • 10 TOPS AI performance

  • OSM Size-L form factor

  • Optimized for industrial edge workloads

Purpose and Target Audience
Designed for embedded systems developers, OEMs, and integrators building AI-enabled devices like smart retail kiosks, factory automation HMIs, AI signage, and predictive analytics nodes. It accelerates development for compact, high-performance edge solutions.

  • MediaTek Genio 520 SoC: 2× Cortex-A78 + 6× Cortex-A55 hexa-core CPU
  • Up to 10 TOPS AI performance via Gen 8 APU for edge AI workloads
  • Arm Mali-G57 MC2 GPU with 4K60 video decode and 4K30 video encode
  • 8GB LPDDR5 6400MT/s on-board memory and 128GB UFS storage
  • OSM Size-L form factor (45×45mm) for compact embedded deployments
  • Dual display outputs: eDP 1.4 (up to 4K) and DP TX 1.4 (up to 5120×2160)
  • 2× 4-lane MIPI-CSI camera inputs for dual-camera vision applications
  • Gigabit Ethernet (RGMII), 2× USB 3.2 Gen1, 2× USB 2.0, PCIe Gen 2
  • 31× GPIO, 3× SPI, 2× I2C, 3× PWM, 2× ADC for broad peripheral integration
  • Arm TrustZone + OP-TEE hardware security
  • Supports Android and Yocto Linux
SpecificationDetail
ModelQOM-0520
CPUMediaTek Genio 520, 2× Cortex-A78 @ 2.0-2.2GHz + 6× Cortex-A55 @ 1.8-2.0GHz
GPUArm Mali-G57 MC2, up to 880MHz
APU10 TOPS (Gen 8)
Memory8GB LPDDR5 6400MT/s (on-board)
Storage128GB UFS; optional eMMC
Operating SystemAndroid and Yocto
Display1× MIPI-DSI/LVDS (up to 1920×1080); 1× eDP 1.4 (up to 3840×2160); 1× DP TX 1.4 (up to 5120×2160)
Camera Input2× 4-lane MIPI-CSI
Ethernet1× RGMII, 10/100/1000M
USB2× USB 3.2 Gen1, 2× USB 2.0
PCIe1× Gen 2
SDIO1× 4-bit SDIO, 1× 8-bit eMMC
Serial2× 4-wire UART, 1× 2-wire UART
Audio2× I2S, 3× Mic input, 1× Headphone output, 1× Line output
GPIO31
SPI3
I2C2
PWM3
ADC2
SecurityArm TrustZone + OP-TEE
RTCOptional
PowerFixed 5V DC
Dimensions (W×D)45×45 mm
Operating Temperature0°C to 60°C
Operating Humidity95% @ 40°C (non-condensing)
Detail
QOM-0520, OSM Size-L Module, MediaTek Genio 520

Compatibility

Operating Systems
  • Android
  • Yocto Linux
Applications
  • Edge AI
  • smart retail
  • factory automation
  • AI signage
  • HMI
  • industrial IoT
Form Factor
  • OSM Size-L (Open Standard Module
  • OSM 1.2 compliant)
Display interfaces
  • MIPI-DSI/LVDS
  • eDP
  • DisplayPort

Frequently Asked Questions

Can it handle dual cameras for vision applications?

Yes. It has 2 x 4-lane MIPI-CSI camera inputs for dual-camera vision applications.

How much AI performance does it offer?

Its Gen 8 APU delivers up to 10 TOPS of AI performance.

What memory and storage does it have?

It has 8GB LPDDR5 on-board memory and 128GB UFS storage.

What display outputs are supported?

It supports MIPI-DSI/LVDS up to 1080p, eDP 1.4 up to 4K and DP 1.4 up to 5120 x 2160.

Which operating systems does it run?

It supports Android and Yocto Linux.

What warranty is included?

It includes a 2-year warranty, extendable to 5 years.
