By Qbic

Smart Meeting Room Hybrid Hub RJ45 ports for lamp, sensor connections

$369.00
$369.00
SKU: AC-210
Availability: 1 in stock

Overview

The Qbic AC-210.Ex OQ Hybrid Hub is the central controller for a Qbic Smart Meeting Room or occupancy management system. It connects up to 5 lamps and 5 sensors (PIR or seat sensors) via RJ45 and communicates with the FHD-100 gateway via RS-232. Its hybrid design allows mixing different sensor types on the same hub, giving installers flexibility to tailor the system to the layout of any space.

Key features
  • Central hub connecting lamps, PIR sensors, and seat sensors in a single occupancy system
  • 5x RJ45 ports for lamp, PIR or seat sensor connections
  • 5x RJ45 ports for PIR or seat sensor connections
  • 2x RJ45 ports for daisy-chaining additional Hybrid Hub units
  • 1x RS-232 port for connection to FHD-100 gateway
  • Mix-and-match sensor types on the same hub
  • Single 12V DC power supply for entire hub
  • 10x LED lamp status indicators plus power status LED
  • Operating temperature: 0-50°C
Product specs Download
Assembly guide Download

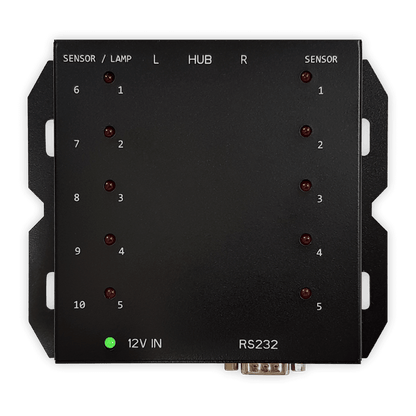

Qbic smart hybrid hub with RJ45 ports for lamp and sensor integration.
$369.00
$369.00

Technical details

A modern designed occupancy solution paired with LED vacancy light lets anyone visually identify the occupancy status of any room or space. With the Ex Hybrid Hub, you're able to mix-n-match different sensors according to your requirements.

  • Central hub connecting lamps, PIR sensors, and seat sensors in a single occupancy system
  • 5x RJ45 ports for lamp, PIR or seat sensor connections
  • 5x RJ45 ports for PIR or seat sensor connections
  • 2x RJ45 ports for daisy-chaining additional Hybrid Hub units
  • 1x RS-232 port for connection to FHD-100 gateway
  • Mix-and-match sensor types on the same hub
  • Single 12V DC power supply for entire hub
  • 10x LED lamp status indicators plus power status LED
  • Operating temperature: 0-50°C
SpecificationDetail
RJ45 ports (lamp/PIR/seat sensor)5
RJ45 ports (PIR/seat sensor only)5
RJ45 ports (hub series connection)2
RS-232 port (FHD-100 connection)1
DC power input12V (1x DC jack)
LED indicators10x lamp status + 1x power
Dimensions140mm (L) x 120mm (W) x 24mm (H)
Operating temperature0-50°C

Compatibility

  • Compatible with AC-211 OQ Sensor, AC-212 OQ Lamp, and AC-610 Seat Sensor
  • Requires FHD-100 Smart Box PC for network connectivity and remote configuration
  • Multiple hubs can be daisy-chained for larger installations
